Description
Luxrite 1" Trimless Spotlight - CCT Selectable
Specifications
- Item description: LED/TLMD1/5CCT/RD/WT
- Size: 1 Inch
- Shape: 1 Inch Trimless

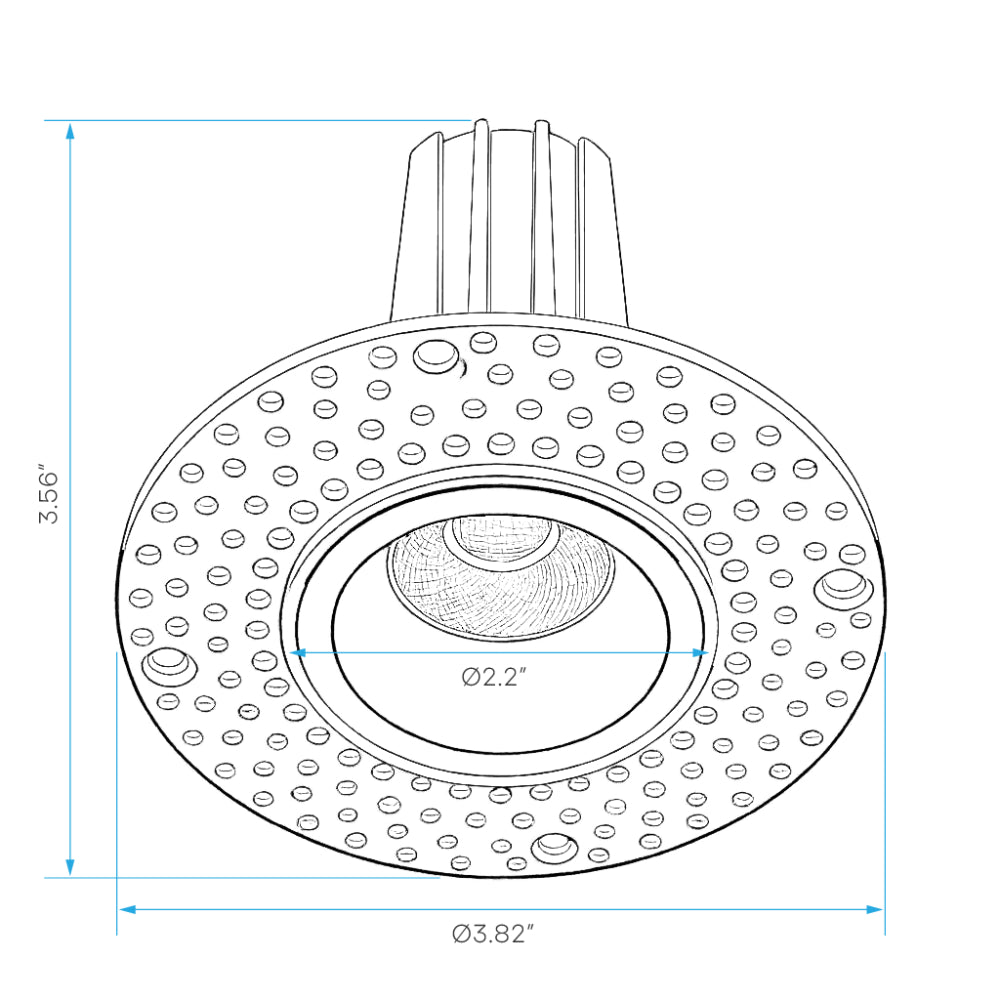

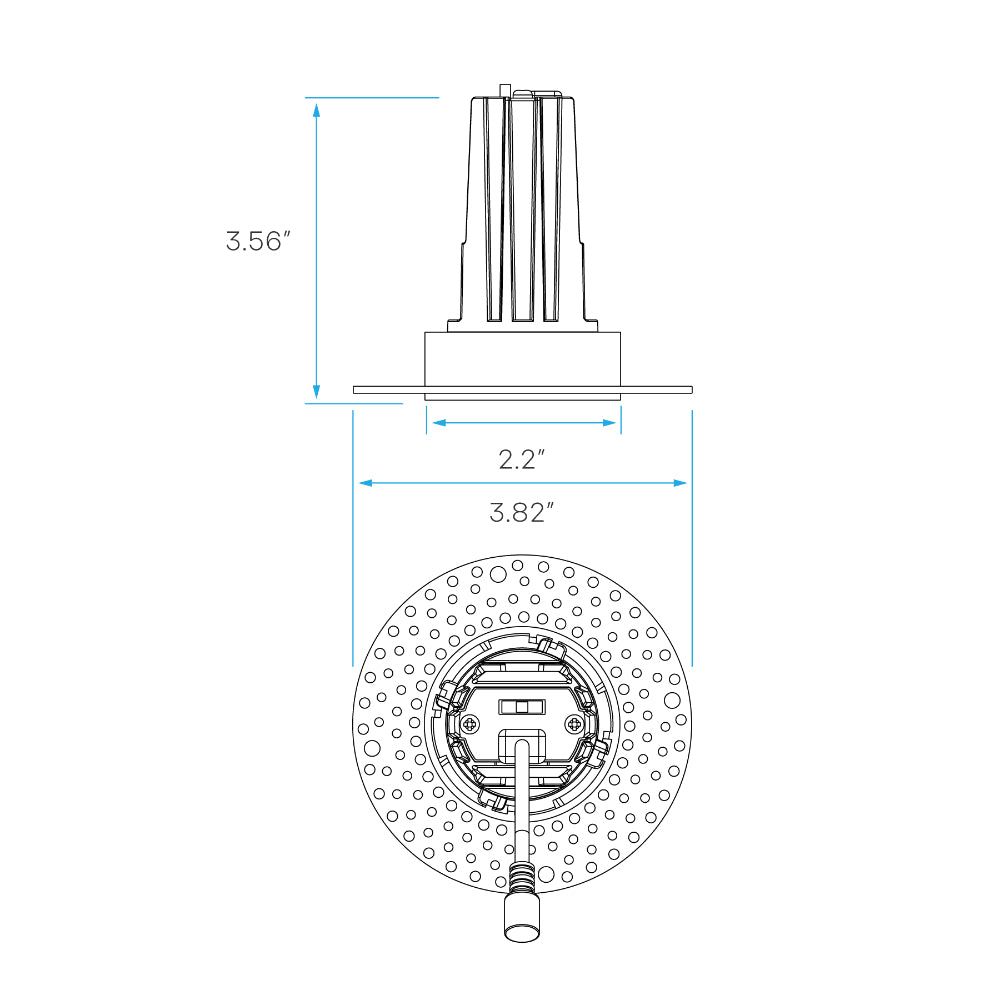

- Dimensions:
- Width: Ø3.82 Inch
- Depth: 3.56 Inch
- Finish: White
- Cutout: Ø2.24 Inch
- Plate: LR41004 (#1), LR41010 (#L1), LR41011 (#0)

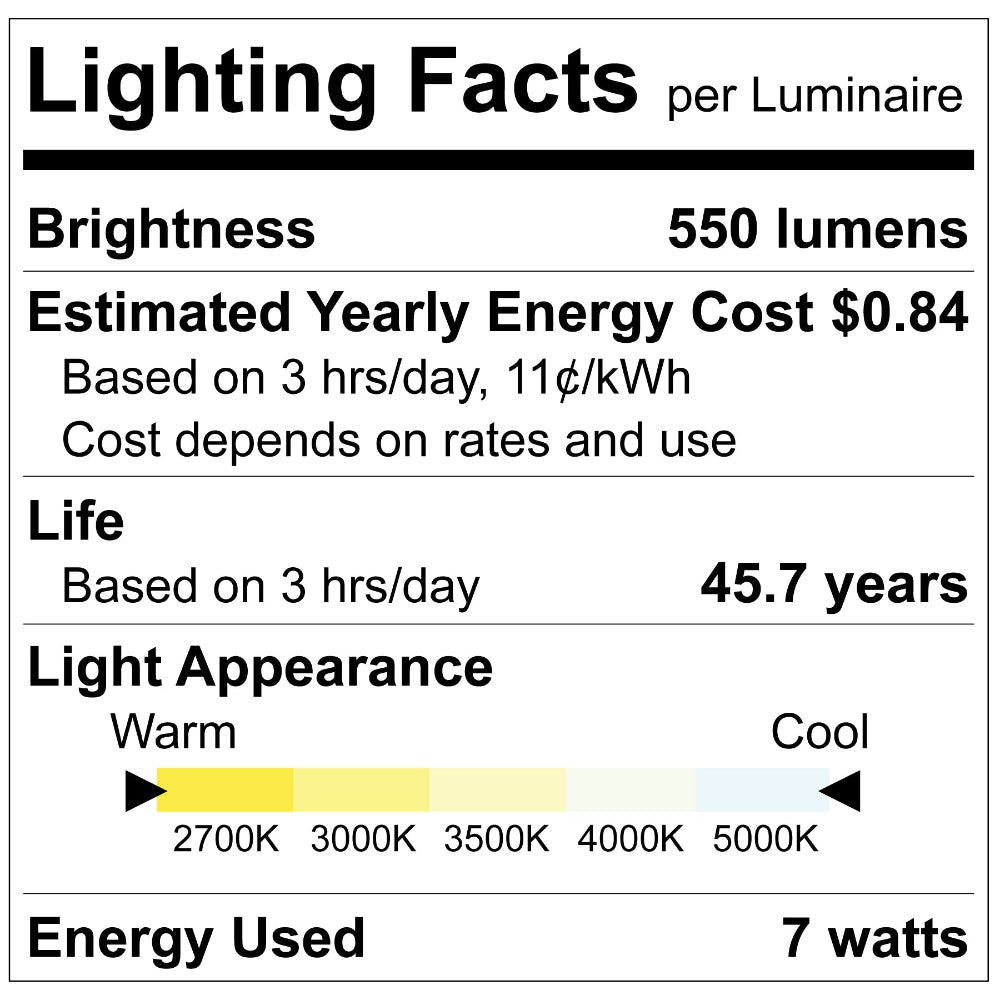

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 550
- Beam Angle: 38º
- CRI: 80
Electrical
- Power (Wattage): 7
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Input Current: 70Ma
- Frequency: 60Hz
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR24916 Specification Sheet
Click forLuxrite LR24916 Family Specification Sheet
Click forLuxrite LR24916 Install Guide
Click forLuxrite LR24916 Dimmer Compatibility
