Description
Luxrite 10" 5 CCT & 3 Wattage Selectable - Universal Voltage/Dual Dimming Commercial Downlight
Specifications
- Item description: LED/CDL10HO/3WO/5CCT/JB/UNV/DD
- Size: 10 Inch
- Shape: 10 Inch Round

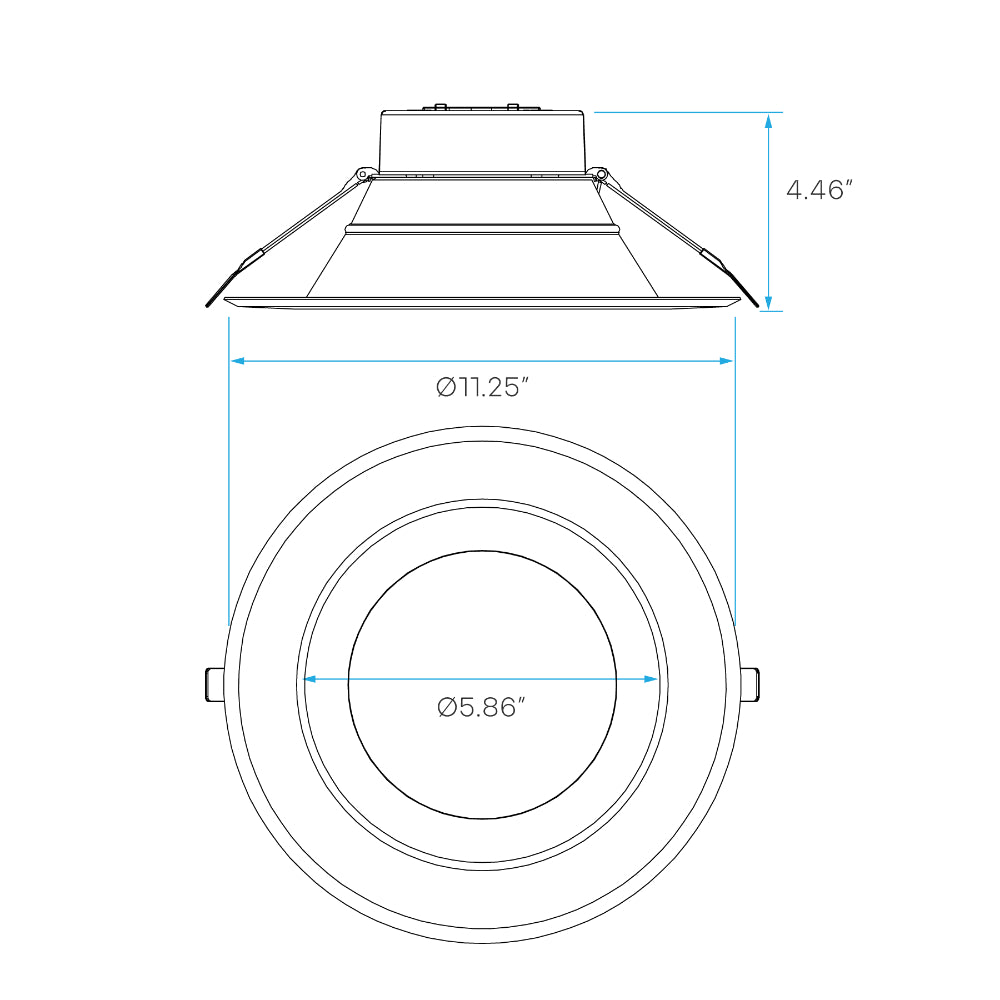

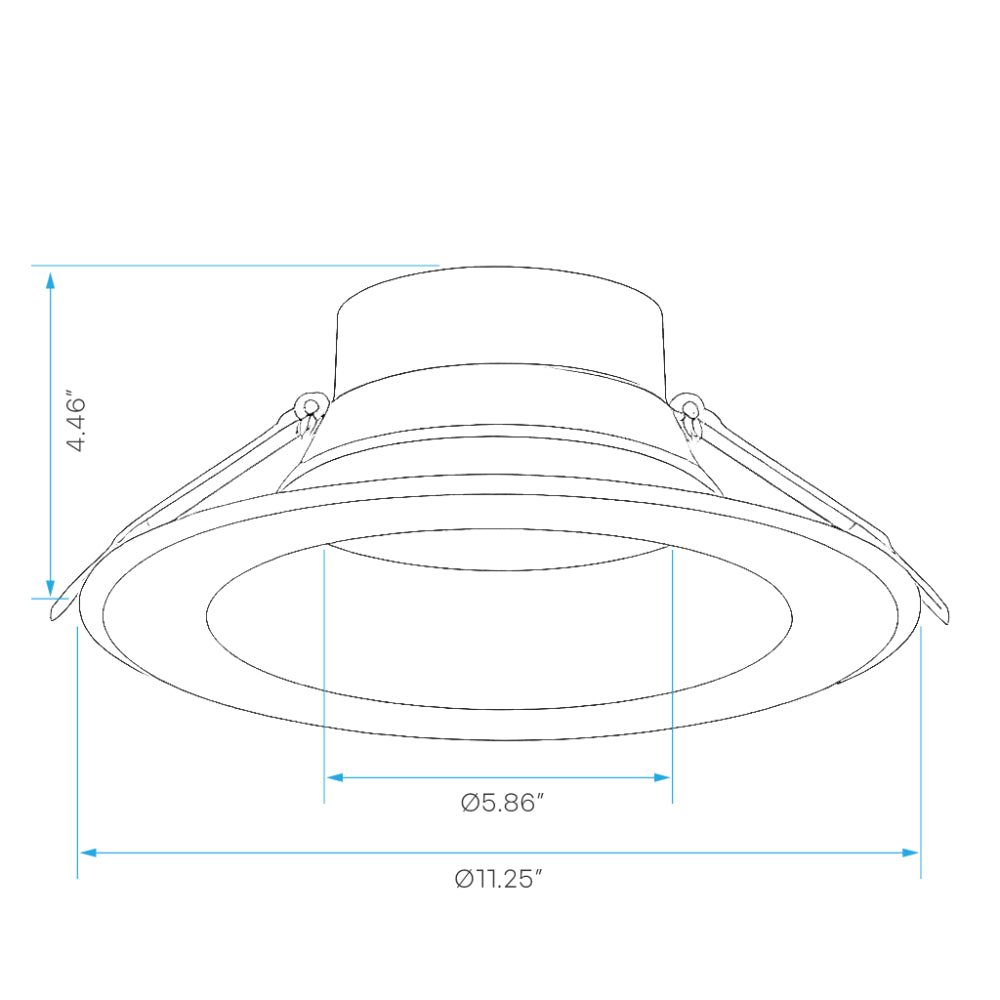

- Dimensions:
- Width: Ø11.25 Inch
- Depth: 4.46 Inch
- Finish: White
- Cutout: Ø8.07 Inch
Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 2800/3500/4500
- Beam Angle: 80°
- CRI: 90
Electrical
- Power (Wattage): 24/30/37
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: TRIAC/0-10V
- Power Factor: 0.9
- Input Current: 310Ma
- Frequency: 50/60Hz
- Lumen Efficacy: 117
- Operating Temp:
- Min: -13°
- Max: 104°
Product Files
Click forLuxrite LR23973 Specification Sheet
Click forLuxrite LR23973 Install Guide
