Description

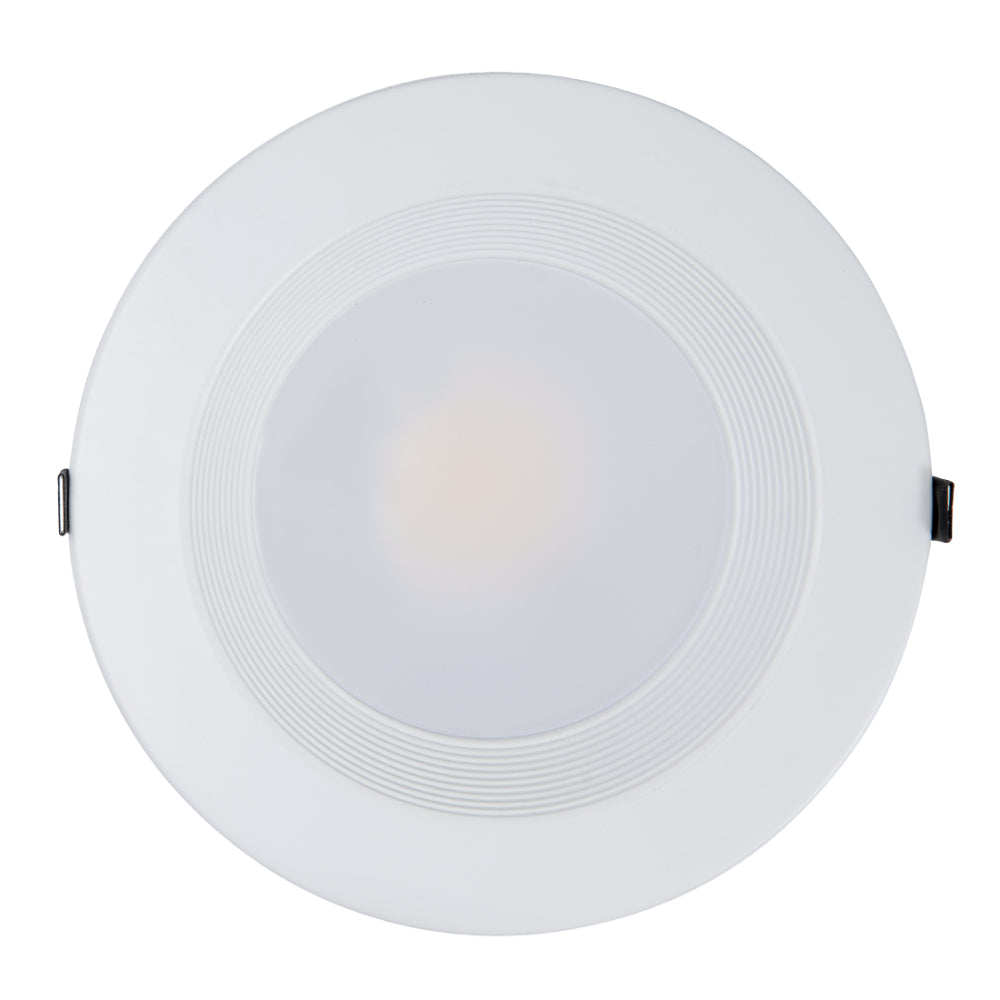

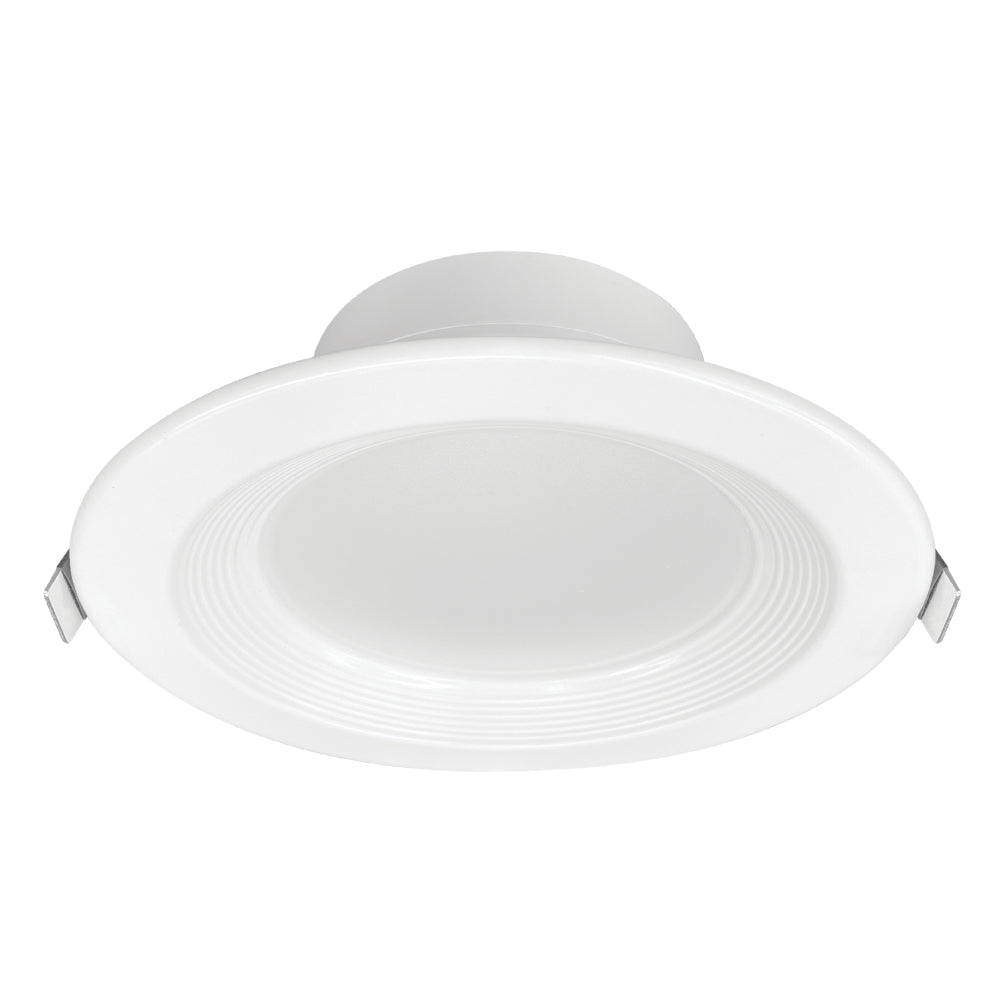

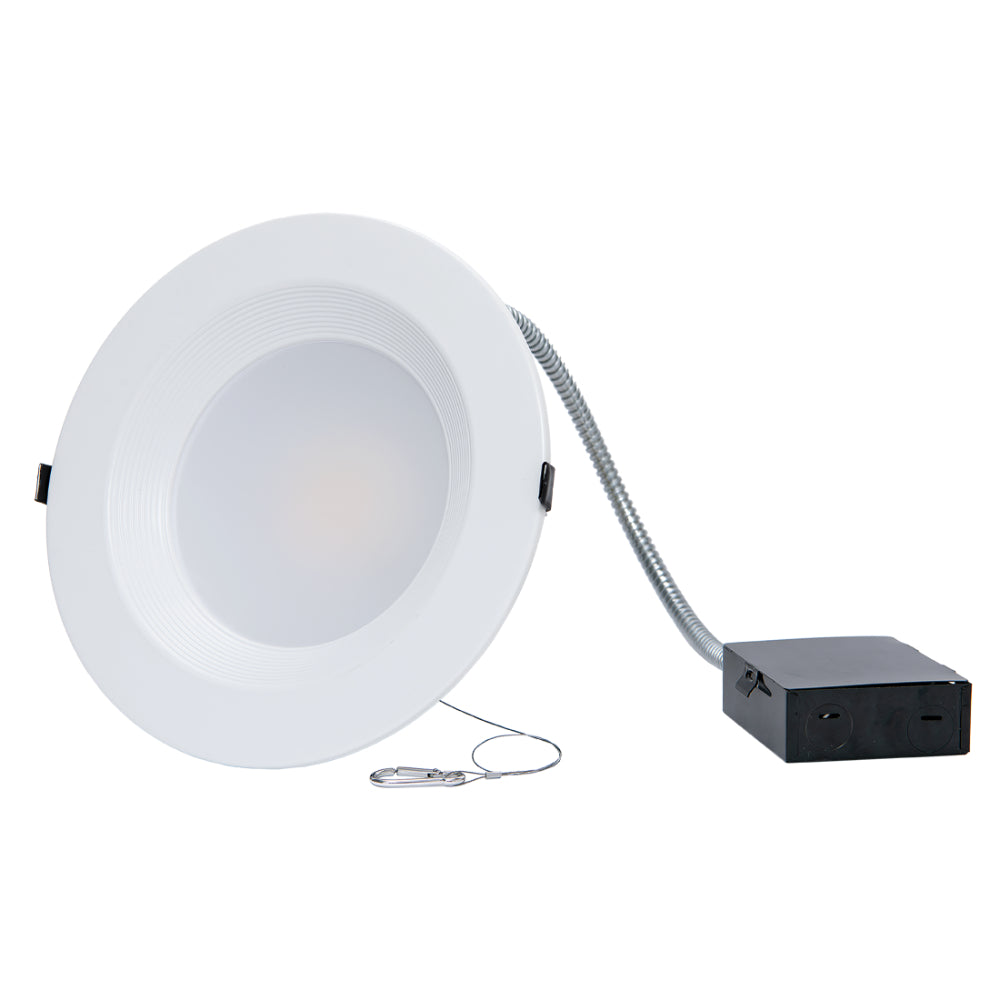

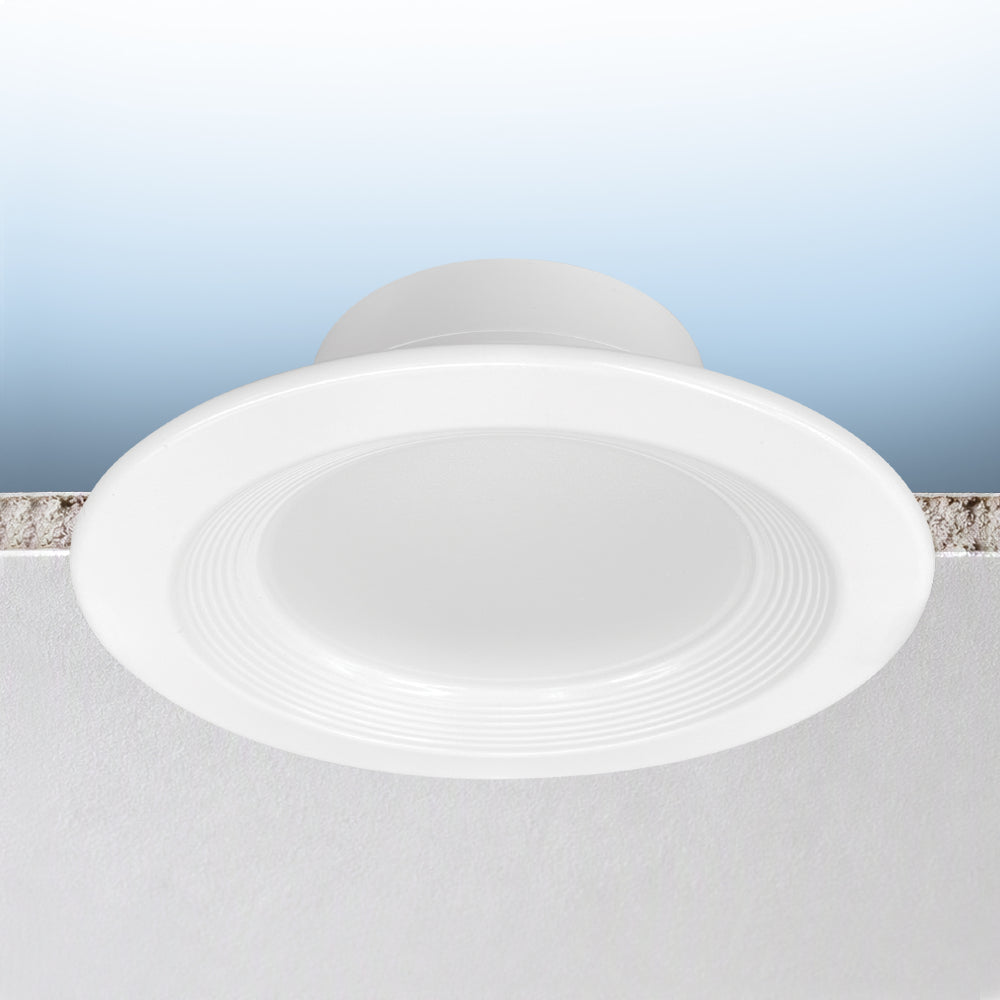

Luxrite 10" Baffled CCT & Wattage Selectable Universal Voltage Dual Dimming Commercial Downlight
Specifications
- Item description: LED/CDL10HO/3WO/5CCT/B/JB/UNV/DD
- Size: 10 Inch
- Shape: 10 Inch Round

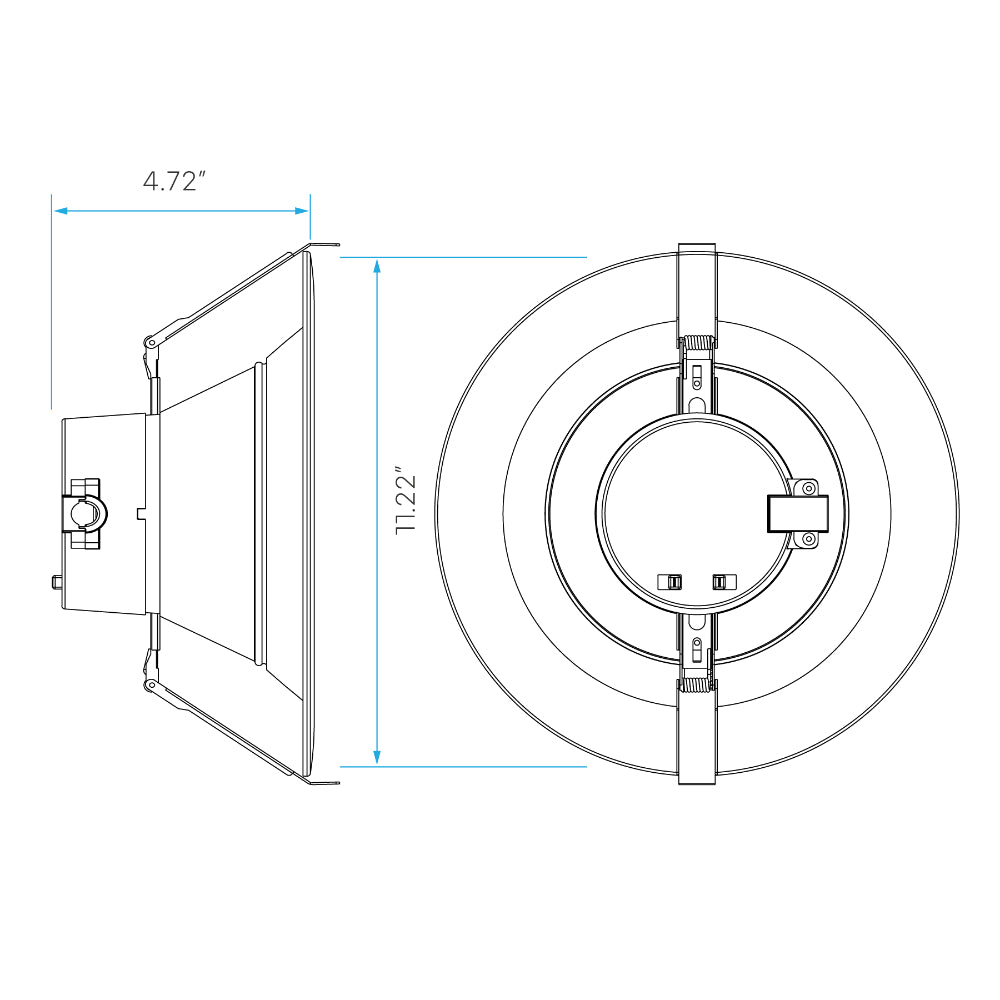

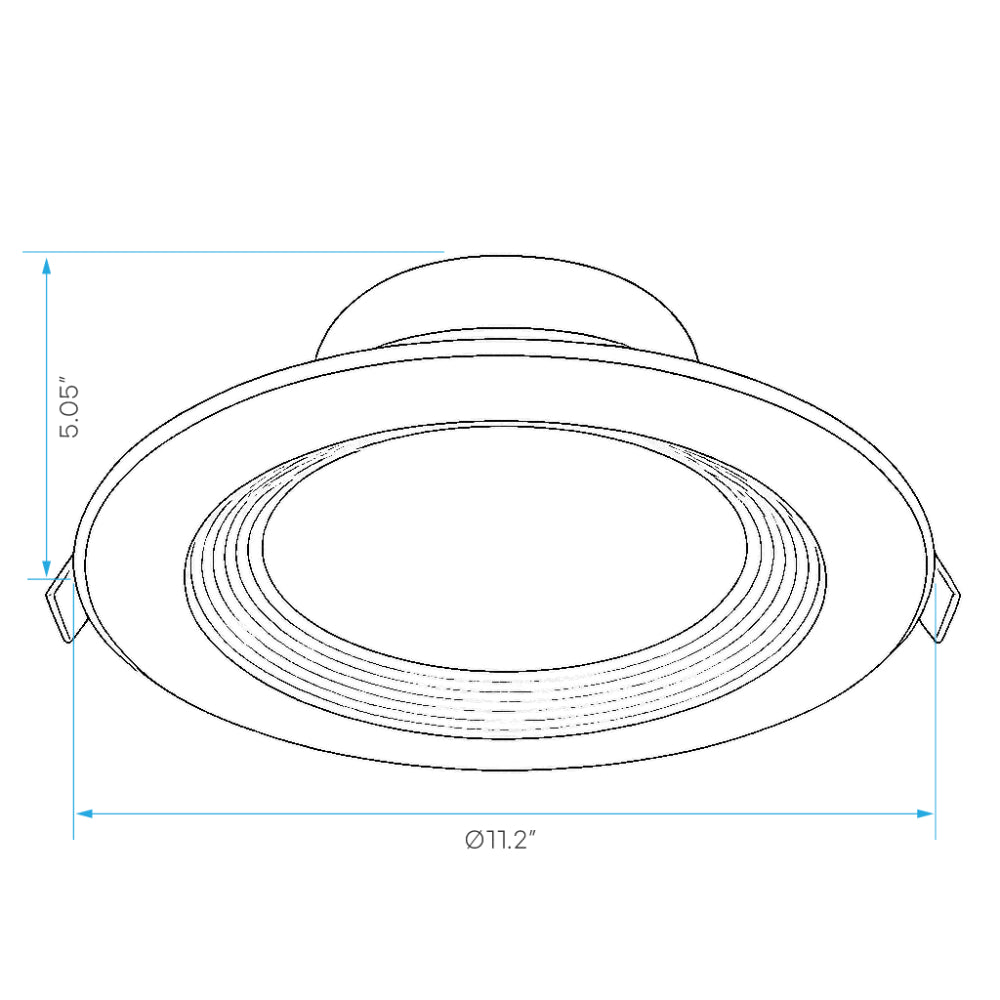

- Dimensions:
- Width: Ø 11.2 Inch
- Depth: 4.72 Inch
- Finish: White
- Cutout: 9.84 Inch

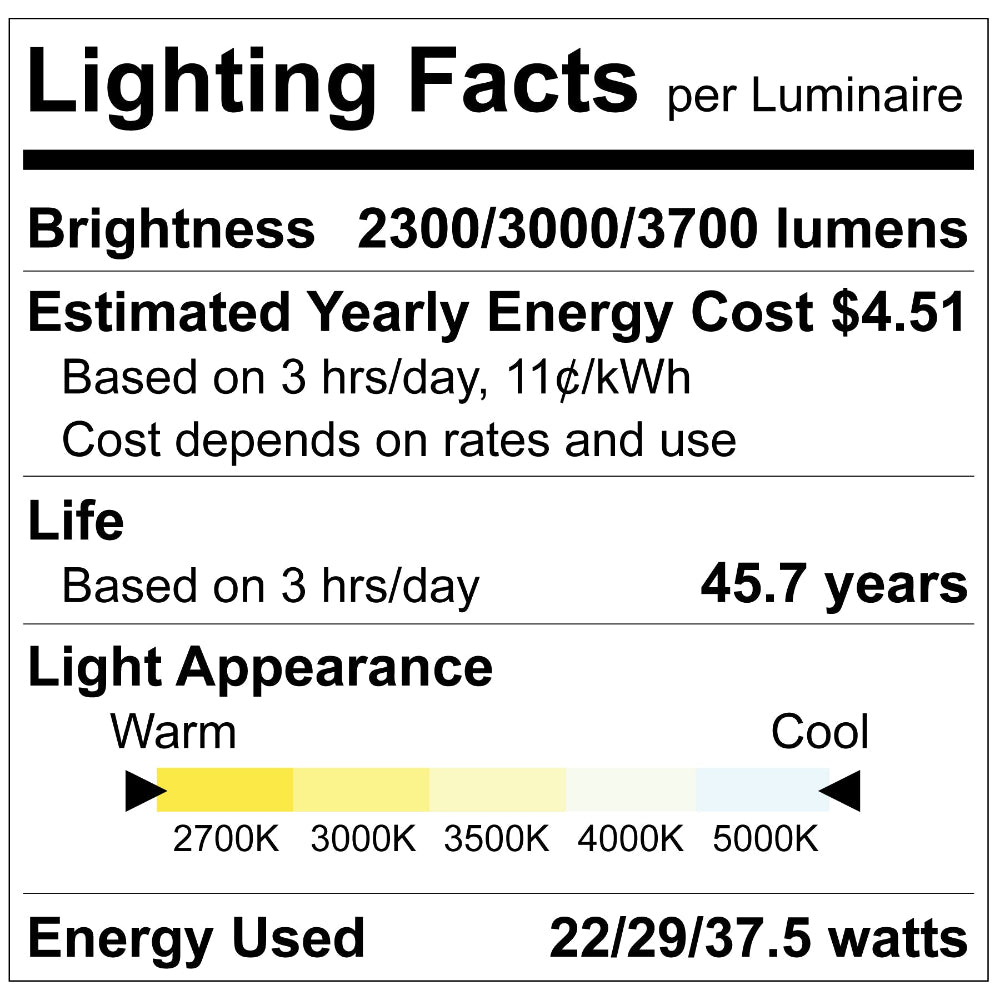

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 2300/3000/3700
- Beam Angle: 100°
- CRI: 80
Electrical
- Power (Wattage): 22/29/37.5
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: Dual Dimming TRIAC/0-10V
- Power Factor: 0.9
- Input Current: 320Ma
- Frequency: 50/60Hz
- Lumen Efficacy: 105
- Operating Temp:
- Min: -13°
- Max: 104°
Product Files
Click forLuxrite LR23978 Specification Sheet
Click forLuxrite LR23978 Install Guide
