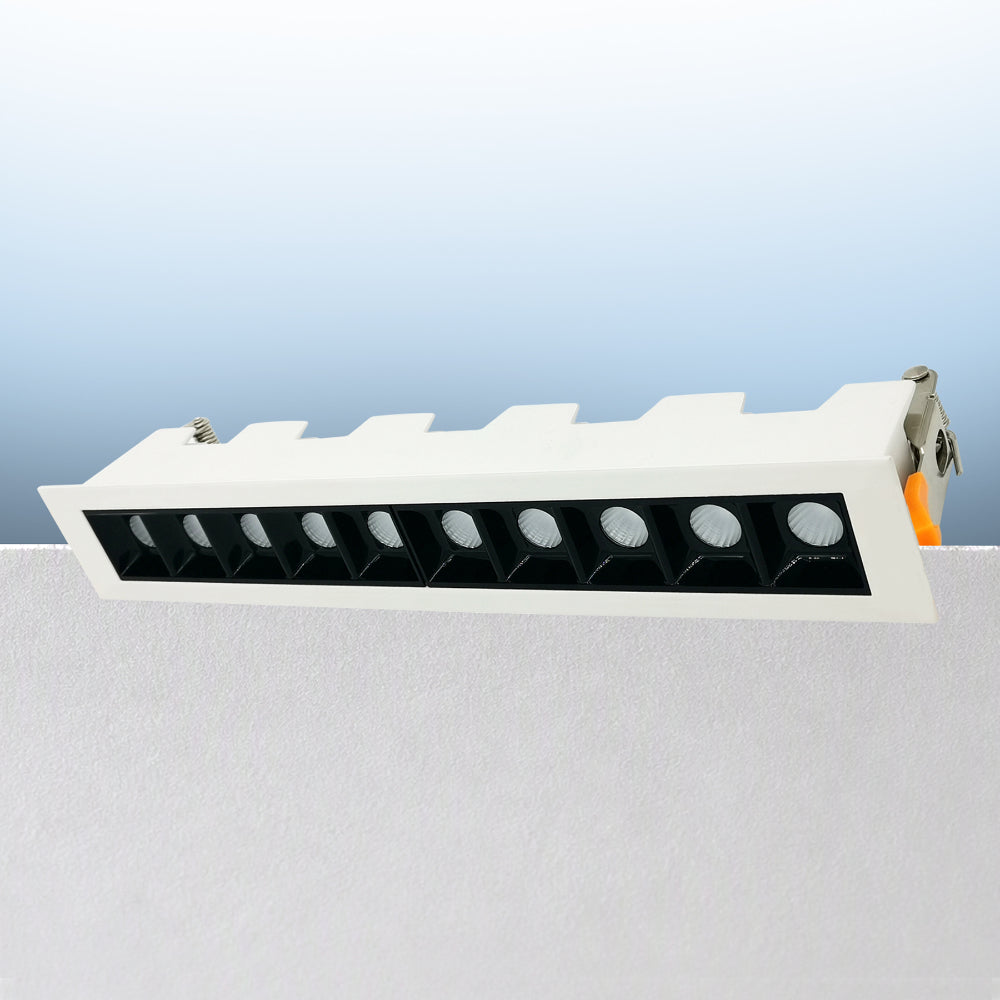

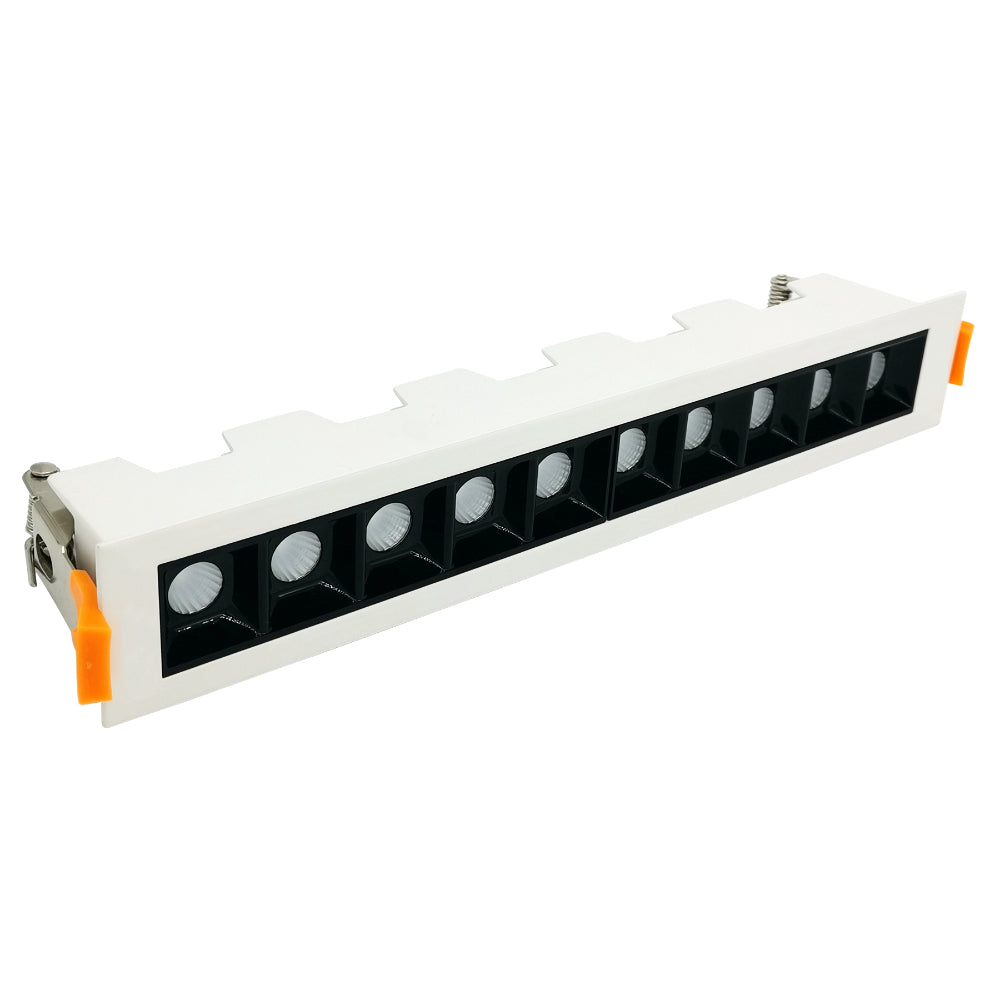

Luxrite 10 Canless Architectural Multilight - CCT Selectable

LuxriteSKU: LR32099

Price:
Sale price$0.00 USD

Description

Luxrite 10 Canless Architectural Multilight - CCT Selectable

Specifications

  • Item description: LEDML10/18W/5CCT/B/D
  • Size: 11 Inch x 1.7 Inch
  • Shape: 10 Architectural Multilight

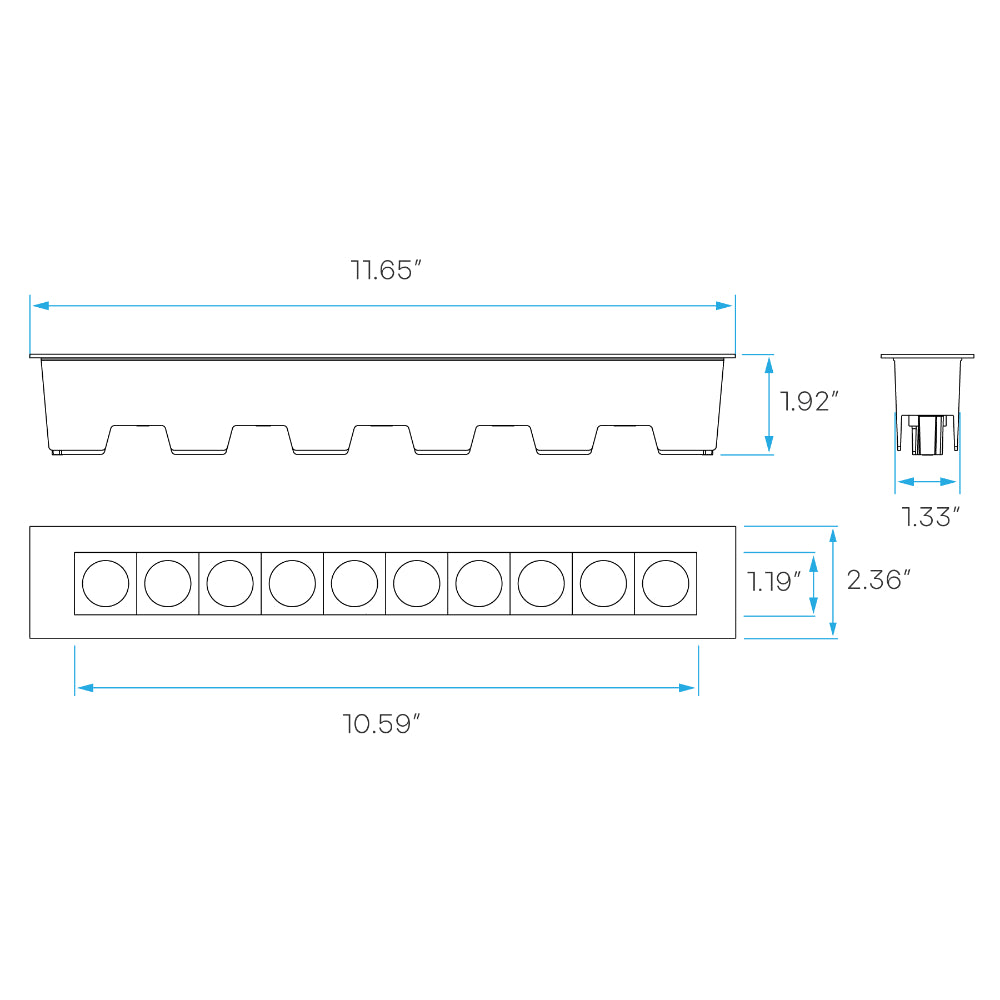

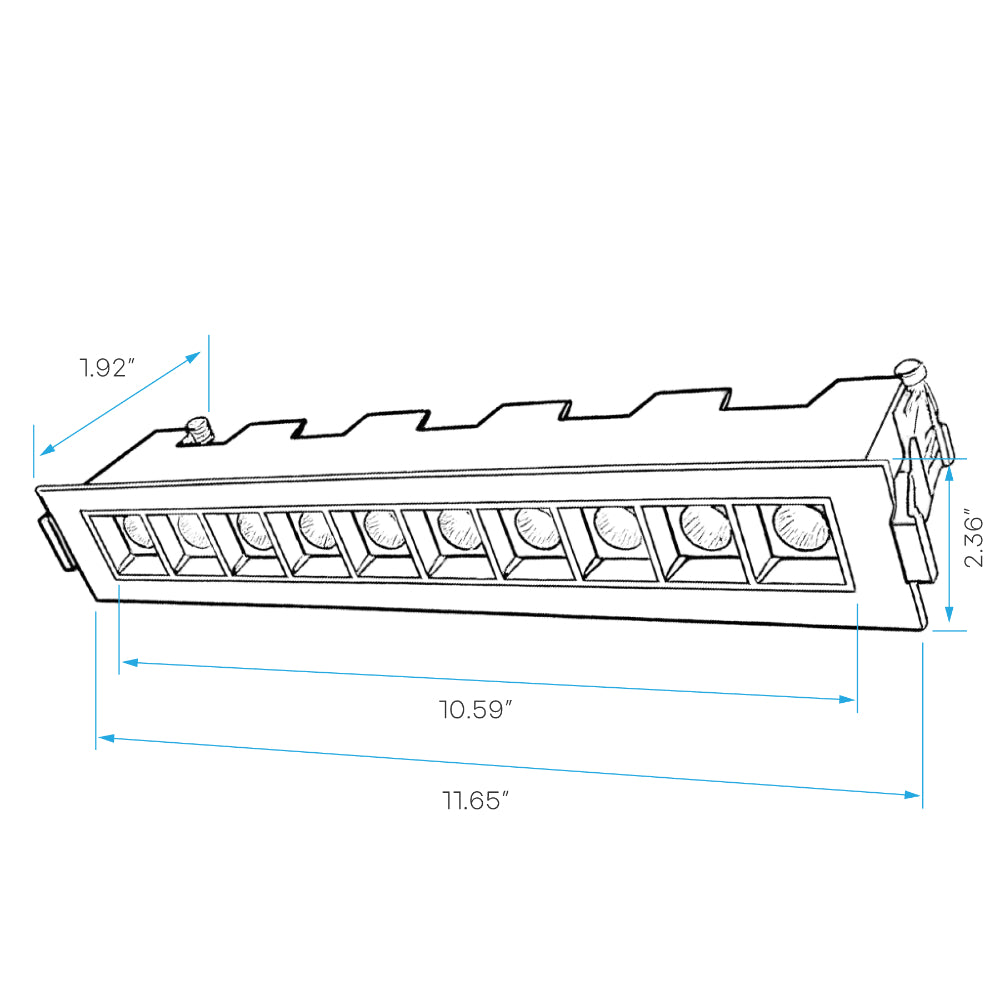

  • Dimensions:
    • Length: 11 Inch
    • Width: 1.7 Inch
    • Height: 1.9 Inch
  • Finish: WHITE/BLACK
  • Cutout: 10.7 Inch x 1.4 Inch
  • Plate: LR41012 (#1), LR41018 (#4)

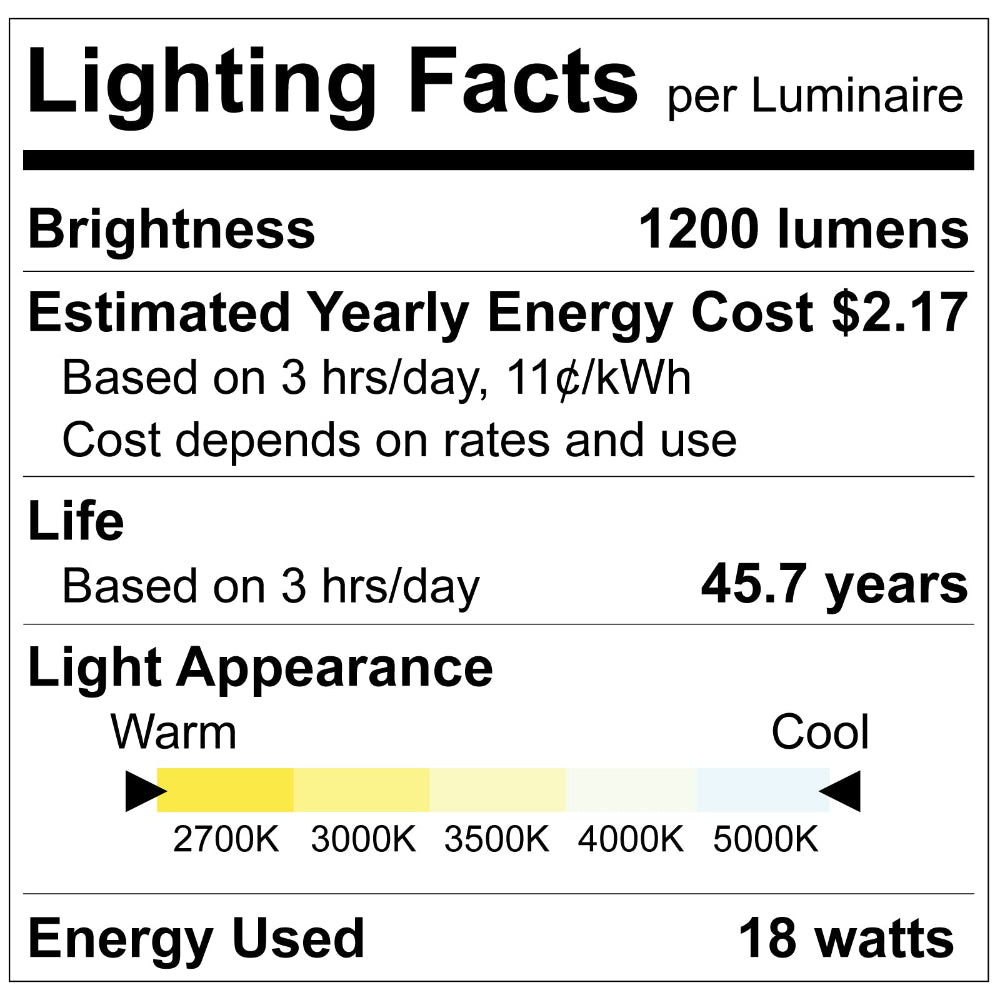

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1200
  • Beam Angle: 45°
  • CRI: 90

Electrical

  • Power (Wattage): 18
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Power Factor: >0.9
  • Input Current: 180Ma
  • Frequency: 50/60Hz
  • Lumen Efficacy: 67
  • Operating Temp:
    • Min: -4º
    • Max: 104º
Product Files

Click forLuxrite LR32099 Specification Sheet

Click forLuxrite LR32099 Family Specification Sheet

Click forLuxrite LR32099 Install Guide

Click forLuxrite LR32099 Dimmer Compatibility

Click forLuxrite LR32099 Warranty
