Description

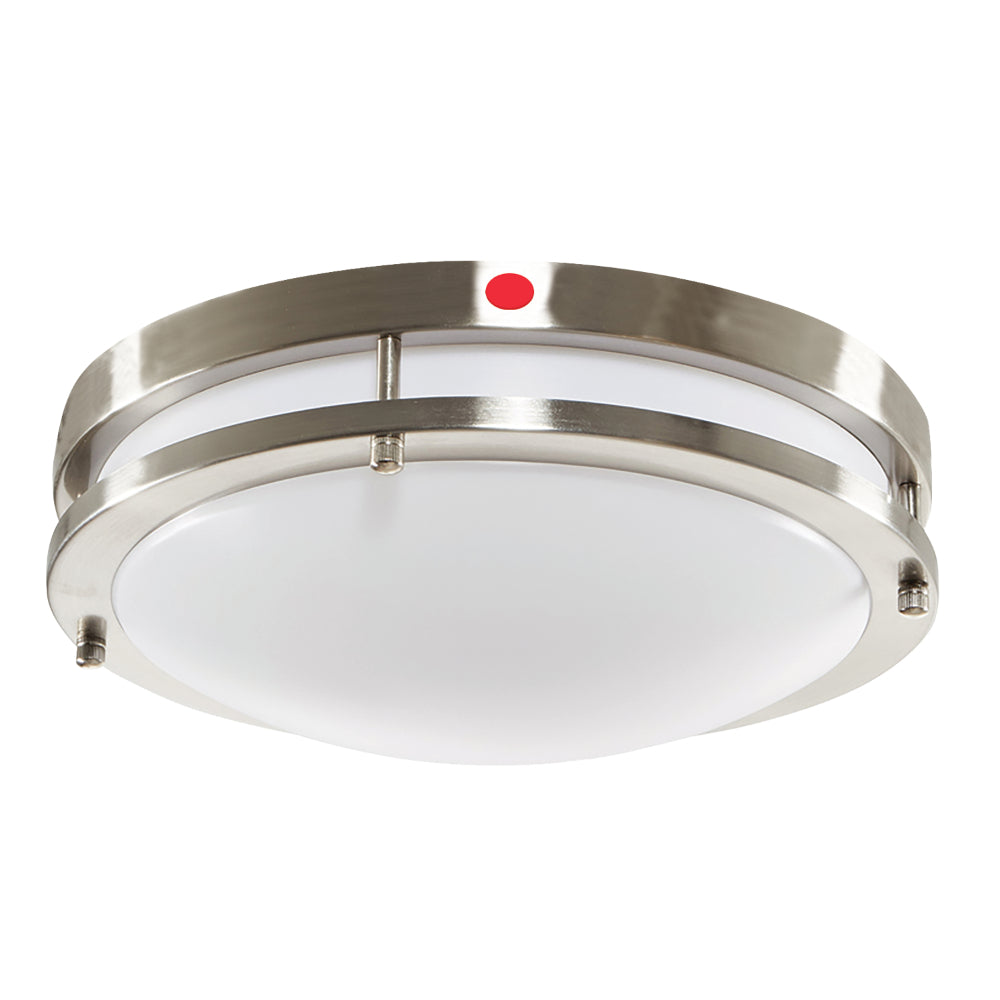

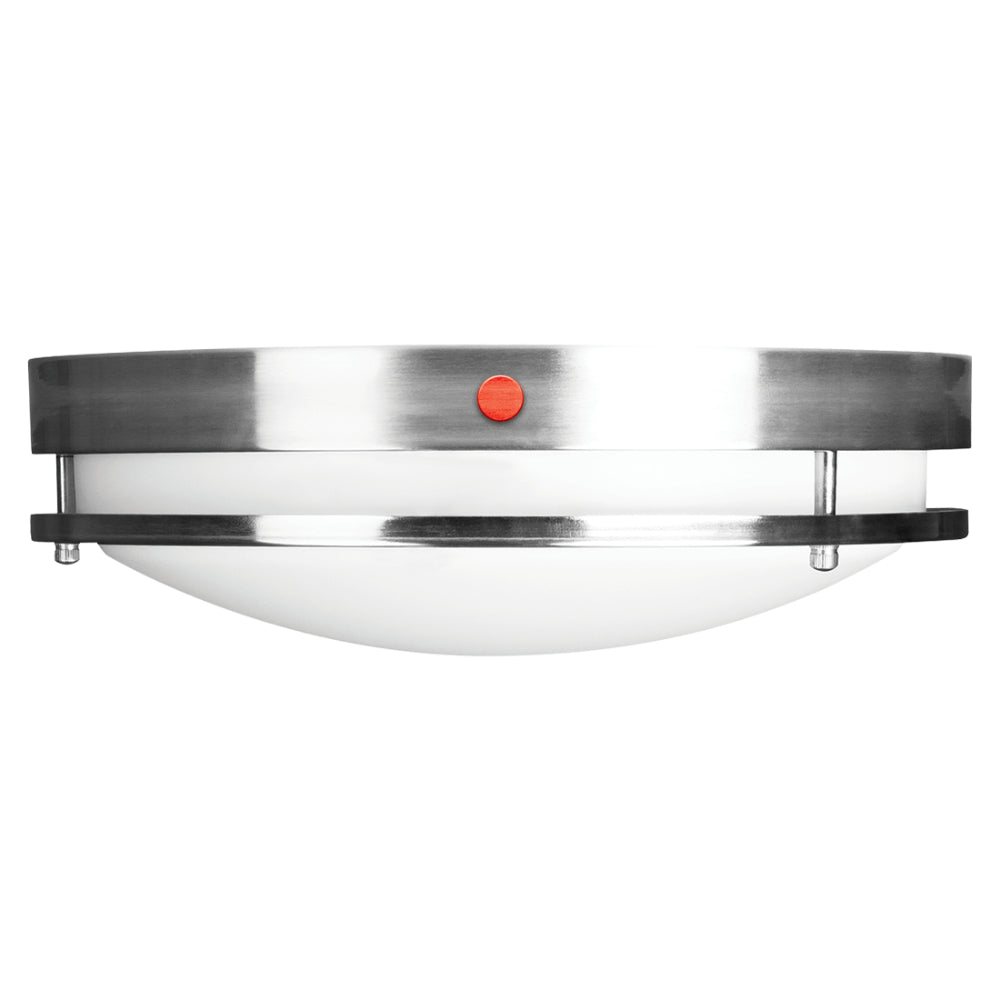

Luxrite 12" Double Ring Surface Mount 5CCT 120-277V 0-10V Emergency - Brushed Nickel
Specifications
- Item description: LED12"FLUSH/CHROME/5CCT+EM
- Size: 12 Inch
- Shape: Double Ring - Emergency

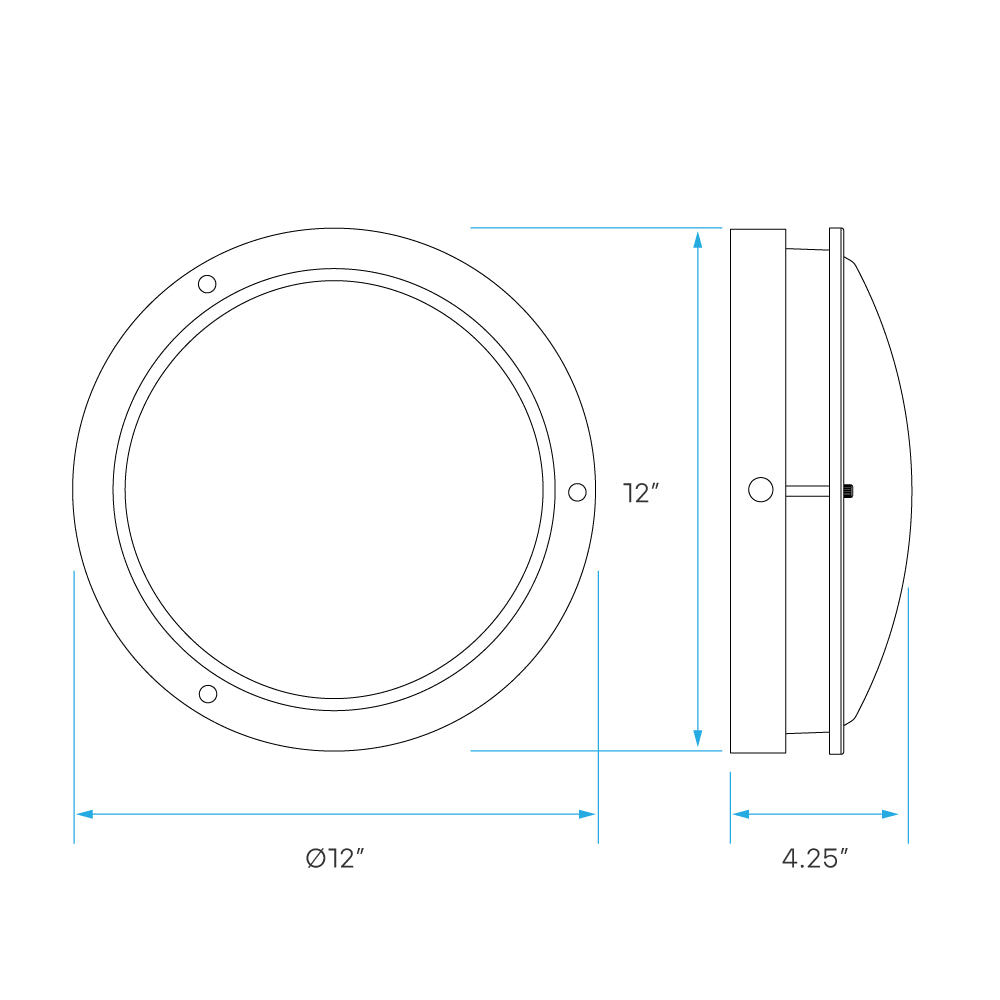

- Dimensions:
- Width: Ø 12 Inch
- Height: 4.25 Inch
- Finish: Brushed Nickel

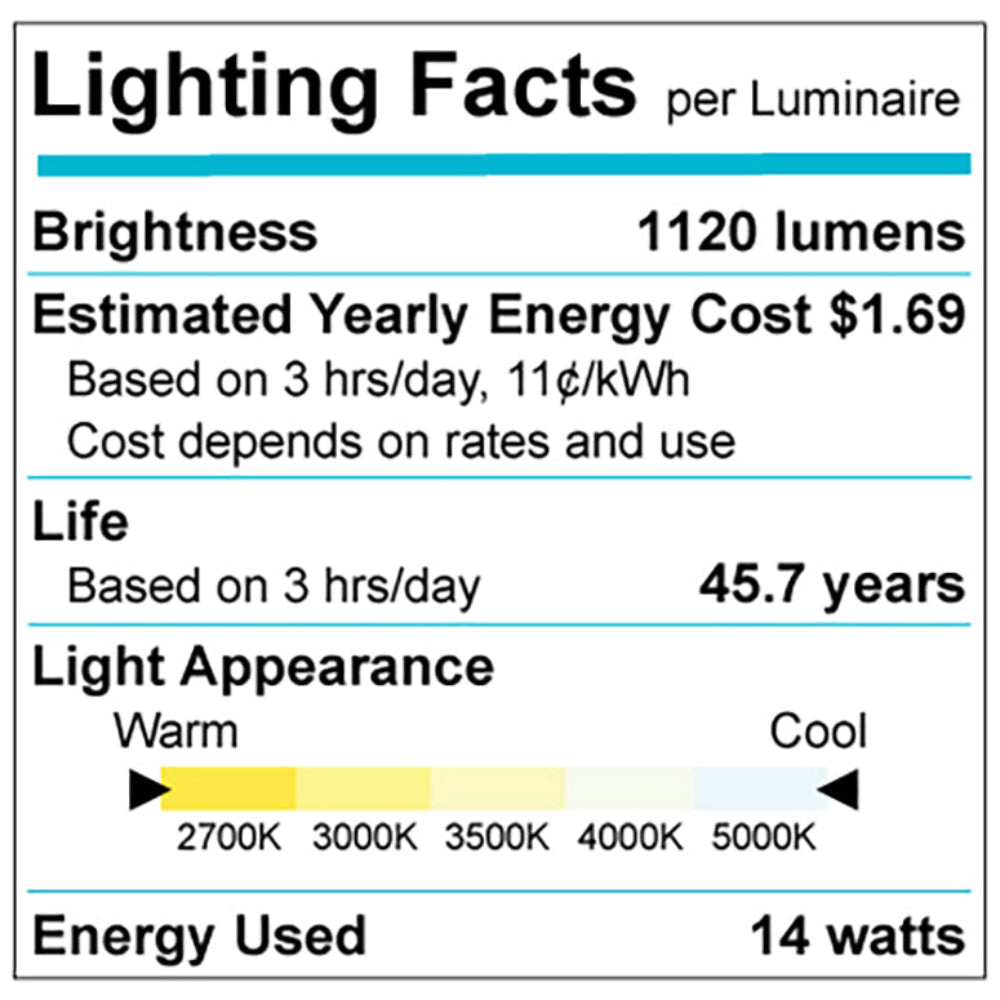

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1120
- Beam Angle: 120°
- CRI: 80
Electrical
- Power (Wattage): 14
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: 0-10V
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 77
- Operating Temp:
- Min: -4°
- Max: 113°
Product Files
Click for Luxrite LR23286-R Specification Sheet
Click for Luxrite LR23286-R Install Guide
