Luxrite 16" Double Ring 5CCT 120-277V 0-10V Deep Collar - Brushed Nickel
Specifications
- Item description: LED16"FLUSH/CHROME/5CCT/UNV/DC
- Size: 16 Inch
- Shape: Double Ring Deep Collar

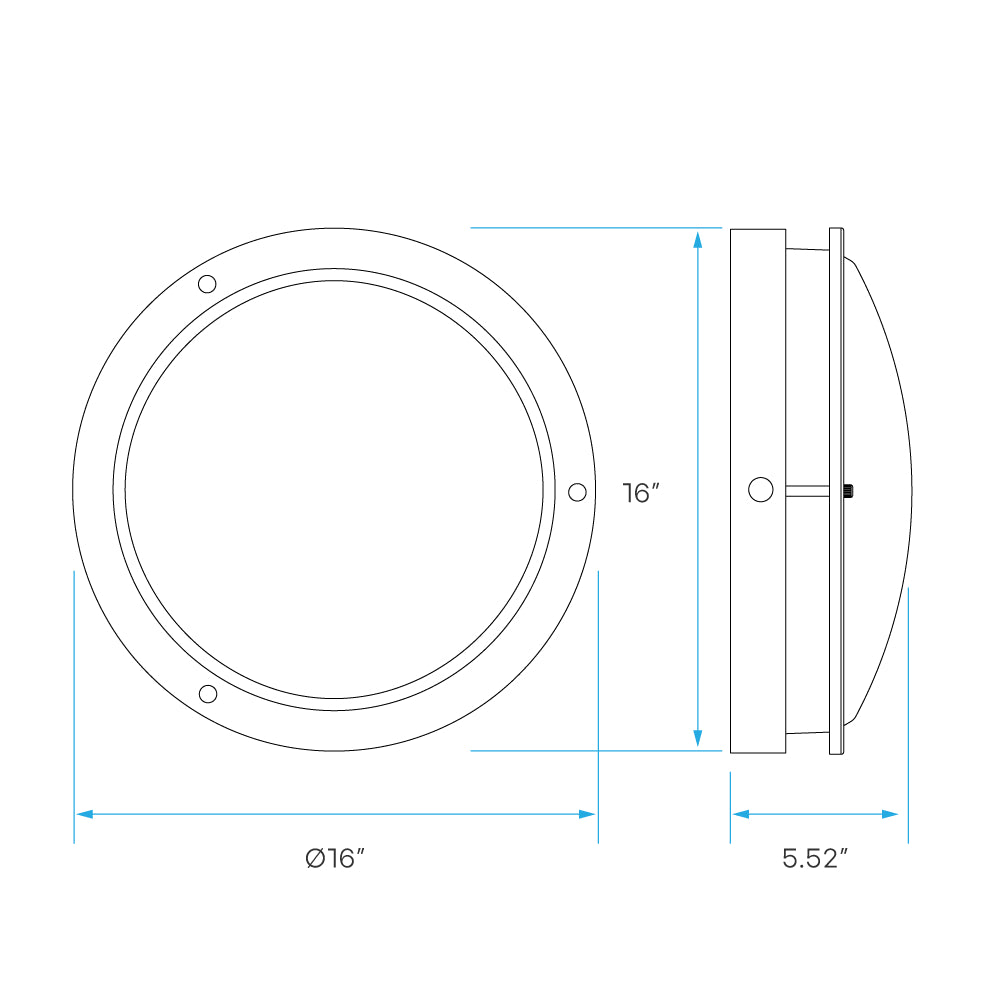

- Dimensions:
- Width: Ø 16 Inch
- Height: 5.52 Inch
- Finish: Brushed Nickel

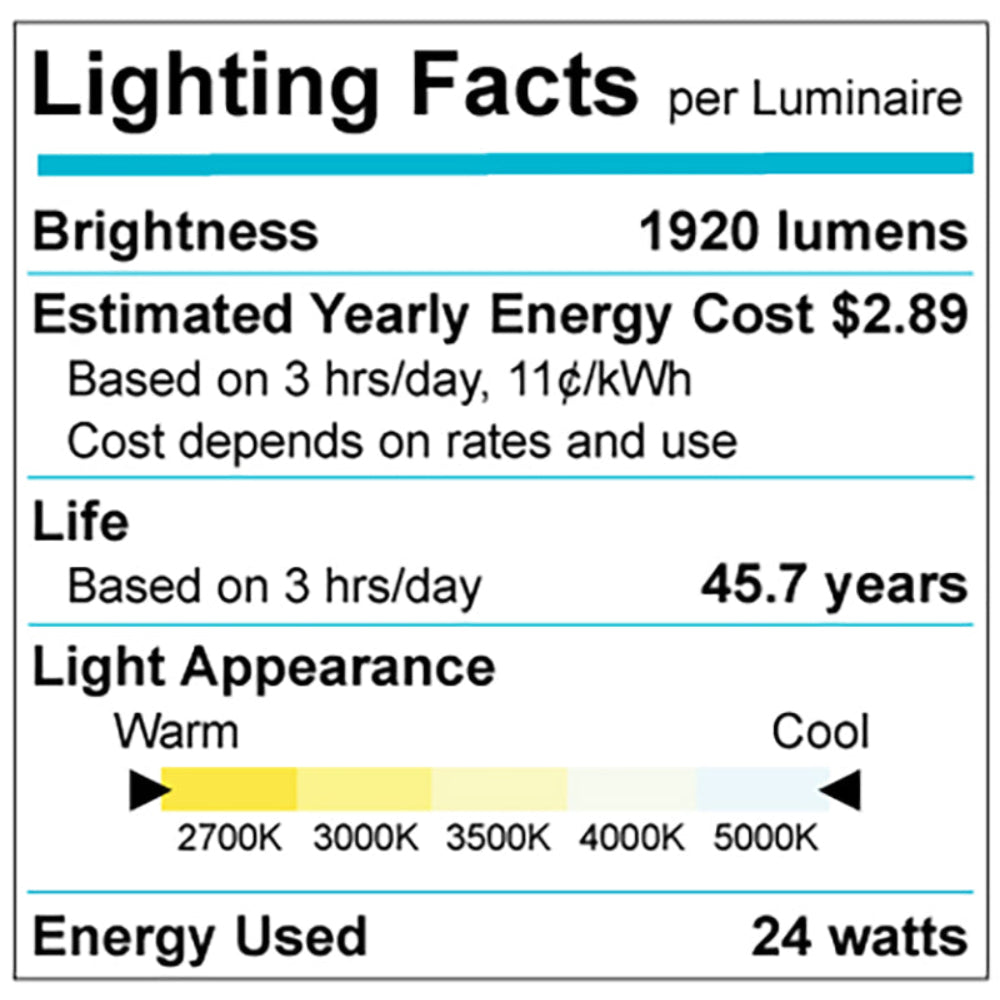

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1920
- Beam Angle: 120°
- CRI: 80
Electrical
- Power (Wattage): 24
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: 0-10V
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 75
- Operating Temp:
- Min: -4°
- Max: 113°
Product Files
Click for Luxrite LR23288 Specification Sheet
Click for Luxrite LR23288 Install Guide
