Luxrite 2" Interchangeable Module - 5CCT & 2 Wattage Selectable Very High Output - Universal Voltage/Dual Dimming

LuxriteSKU: LR25034
Select Beam Angle: 38 Degree
Price:
$0.00 USD

Description

Luxrite 2" Interchangeable Module - 5CCT & 2 Wattage Selectable Very High Output - Universal Voltage/Dual Dimming

Specifications

  • Item description: LED/DLMD2VHO/2WO/5CCT/DD/UNV/FL
  • Size: 2 Inch
  • Shape: 2 Inch Interchangable

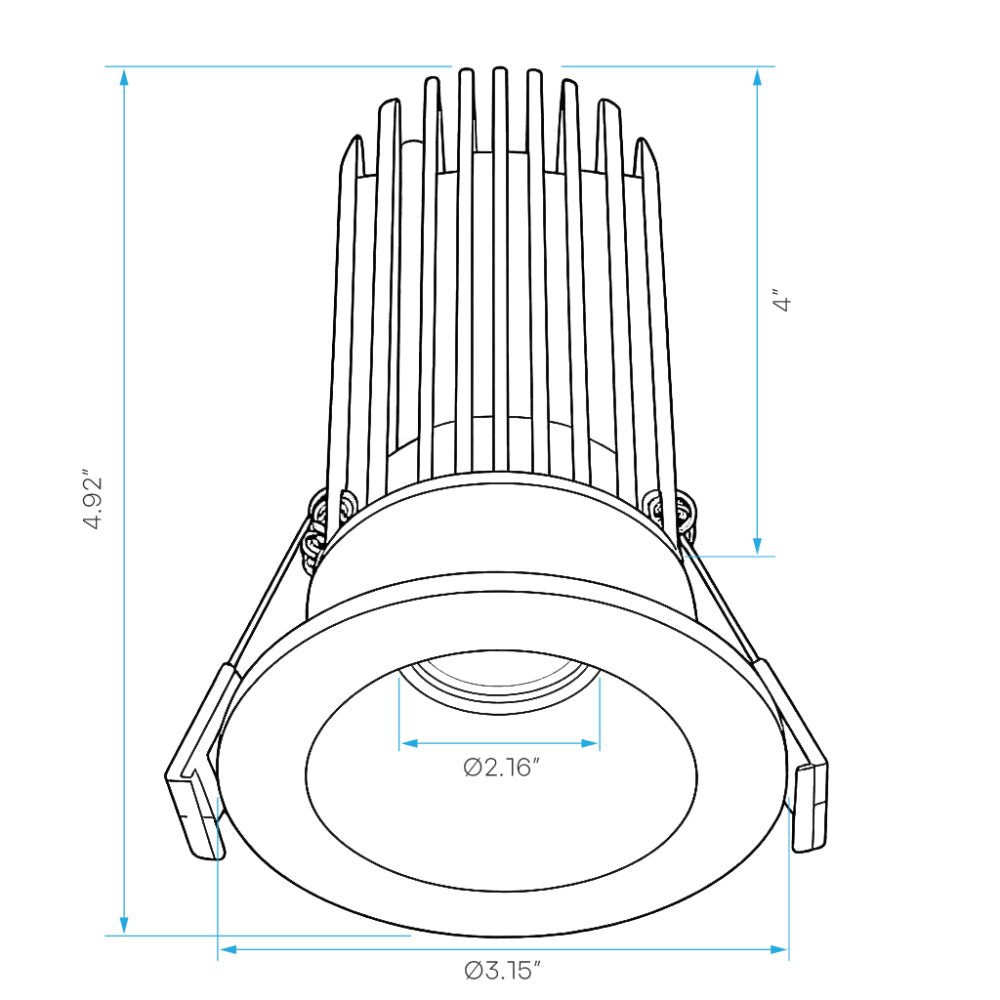

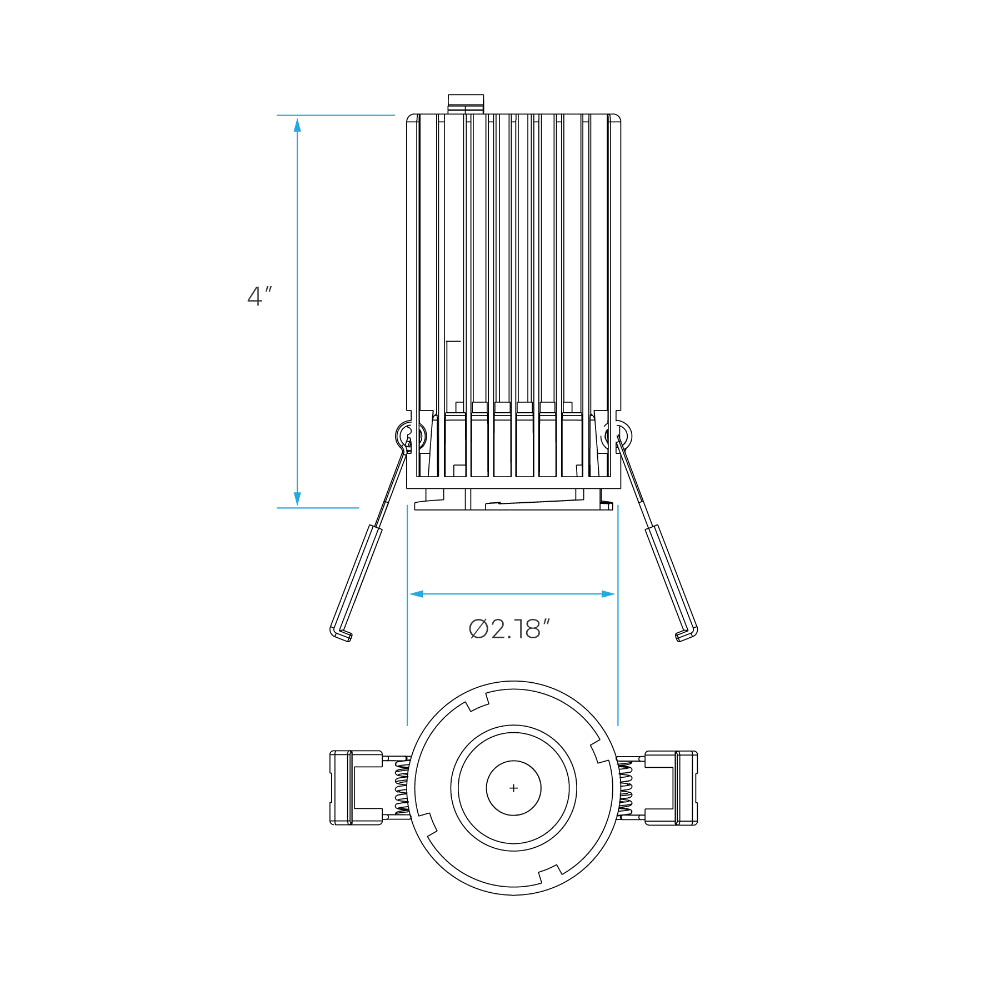

  • Dimensions:
    • Width: Ø 2.16 Inch (3.14 Inch w/Trim)
    • Depth: 4 Inch (4.92 Inch w/trim)
  • Finish: Black
  • Cutout: 2.83 Inch
  • Plate: LR41004 (#1), LR41010 (#L1), LR41011 (#1)

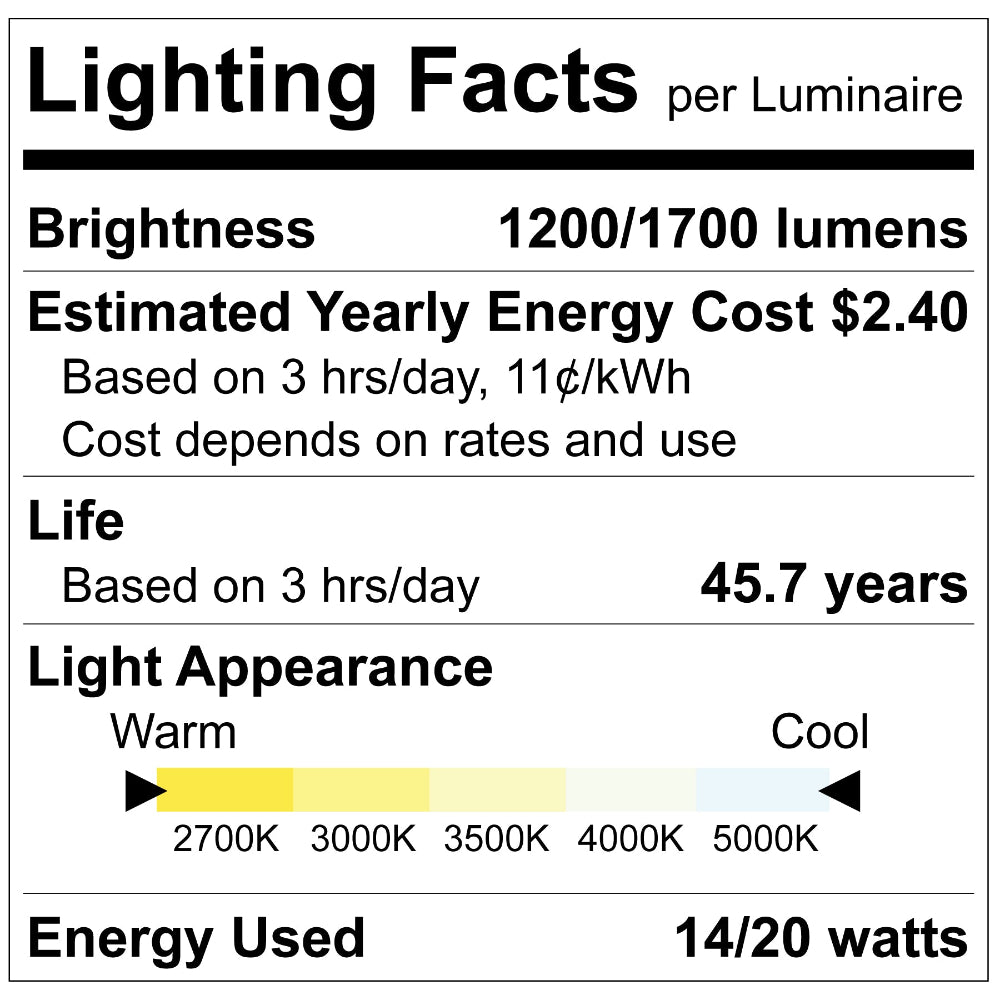

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1200@14W/1700@20W
  • CRI: 90

Electrical

  • Power (Wattage): 14/20
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: >0.9
  • Input Current: 320mA/460mA
  • Frequency: 60Hz
  • Lumen Efficacy: 85
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR25034 Specification Sheet

Click forLuxrite LR25034 Family Specification Sheet

Click forLuxrite LR25034 Install Guide

Click forLuxrite LR25034 Dimmer Compatibility

Click forLuxrite LR25034 Warranty

Click forLuxrite LR25035 Dimmer Compatibility

Click forLuxrite LR25035 Warranty
