Description

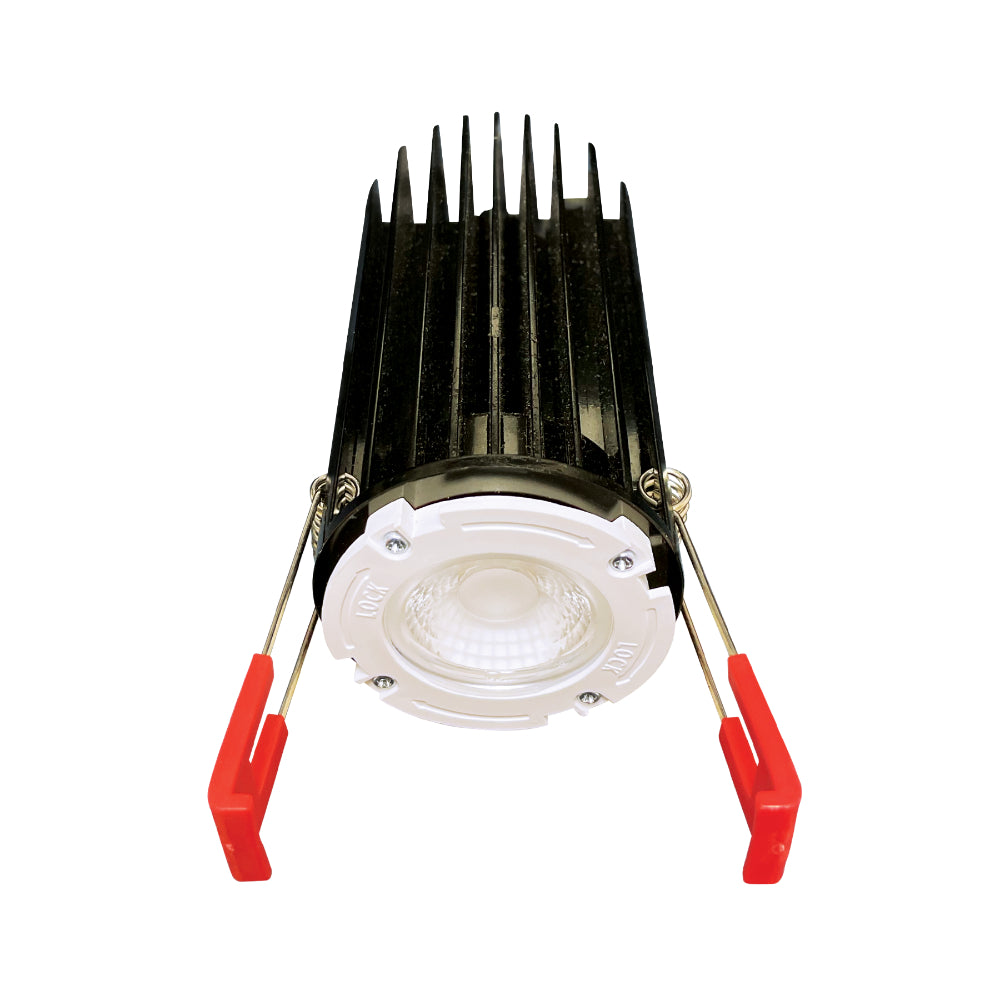

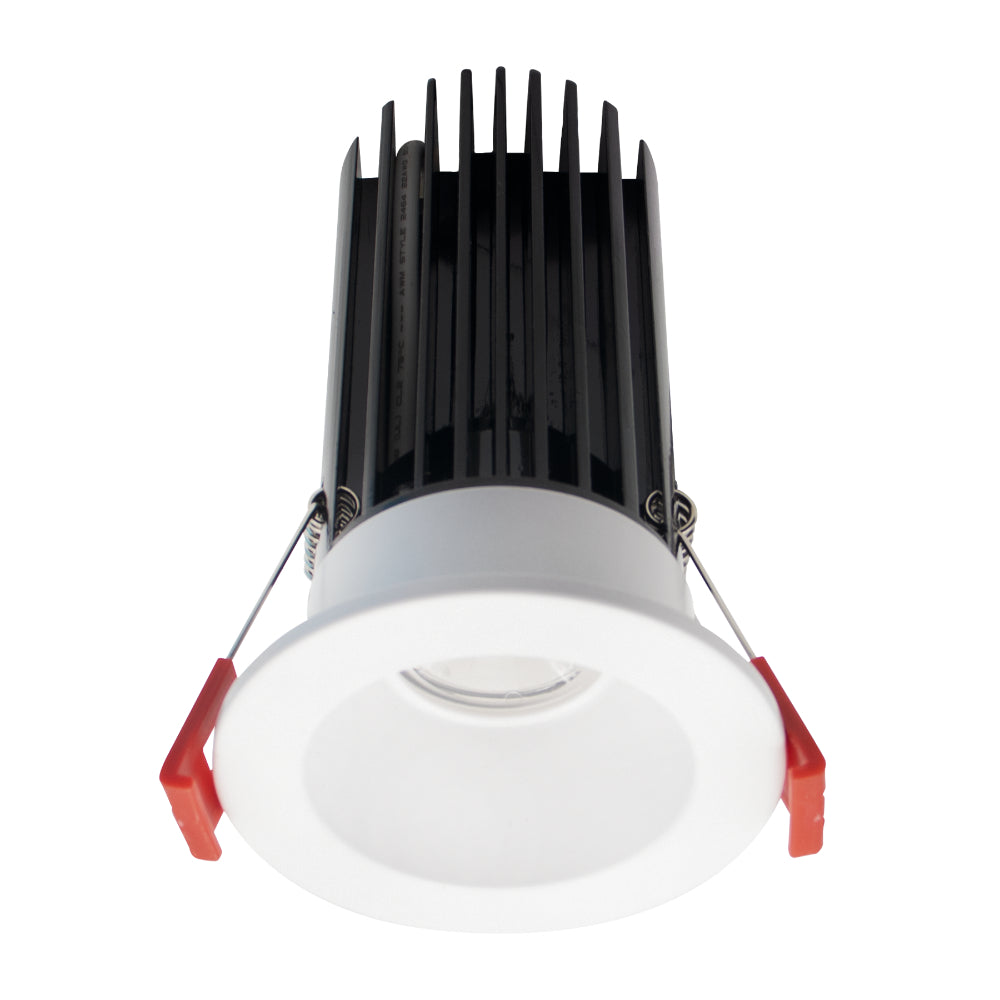

Luxrite 2" Interchangeable Module - 5CCT High Output
Specifications
- Item description: LED/DLMD2HO/5CCT/D/FL
- Size: 2 Inch
- Shape: 2 Inch Interchangable

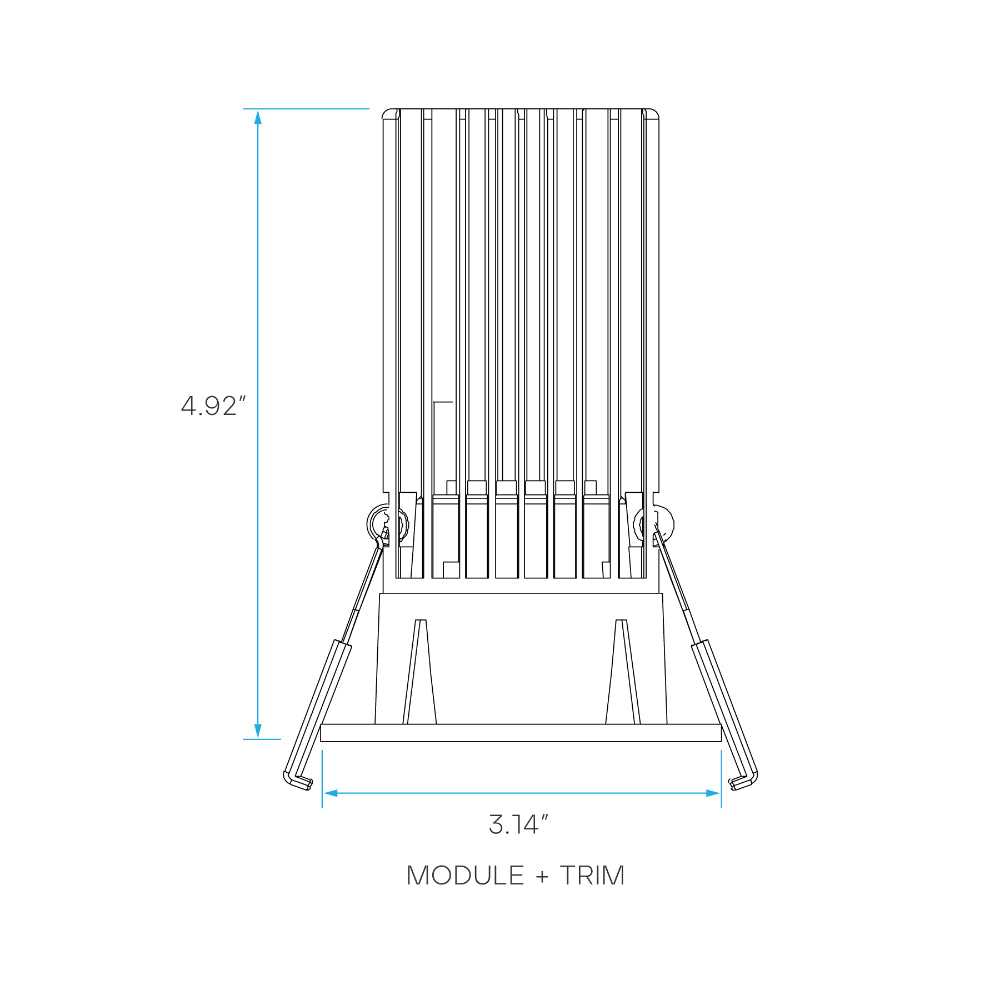

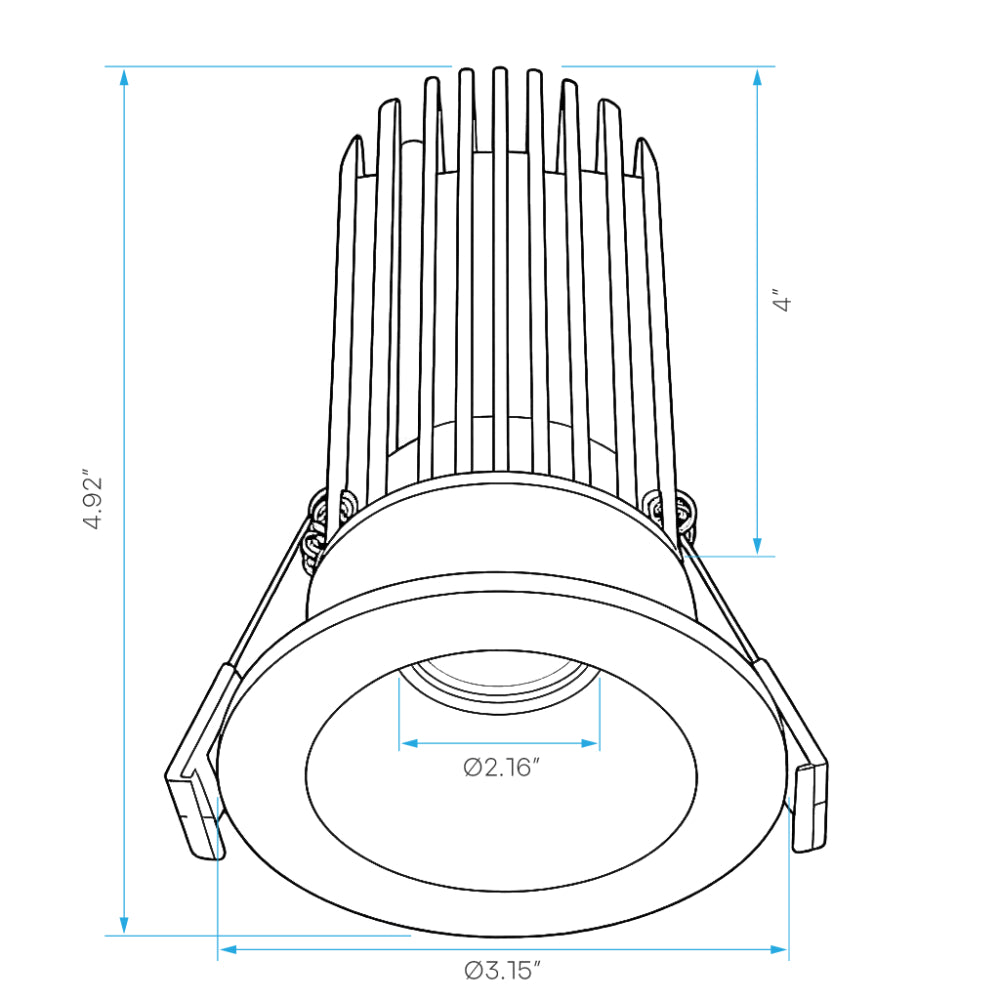

- Dimensions:
- Width: Ø 2.16 Inch (3.14 Inch w/Trim)
- Depth: 4.01 Inch (4.92 Inch w/trim)
- Finish: Black
- Cutout: 2.83 Inch
- Plate: LR41004 (#1), LR41010 (#L1), LR41011 (#1)

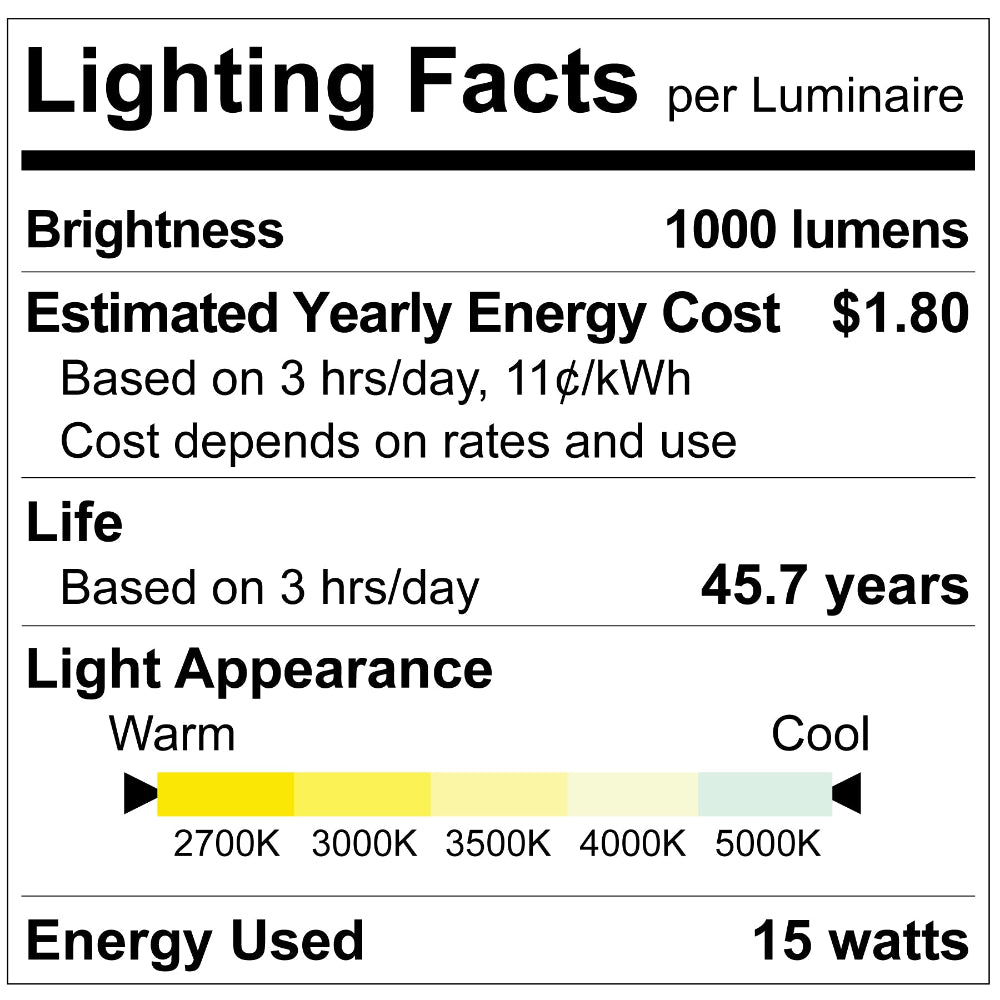

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1000
- CRI: 90
Electrical
- Power (Wattage): 15
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: >0.9
- Frequency: 60Hz
- Lumen Efficacy: 66
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR25020 Specification Sheet
Click forLuxrite LR25020 Family Specification Sheet
Click forLuxrite LR25020 Install Guide
