Description

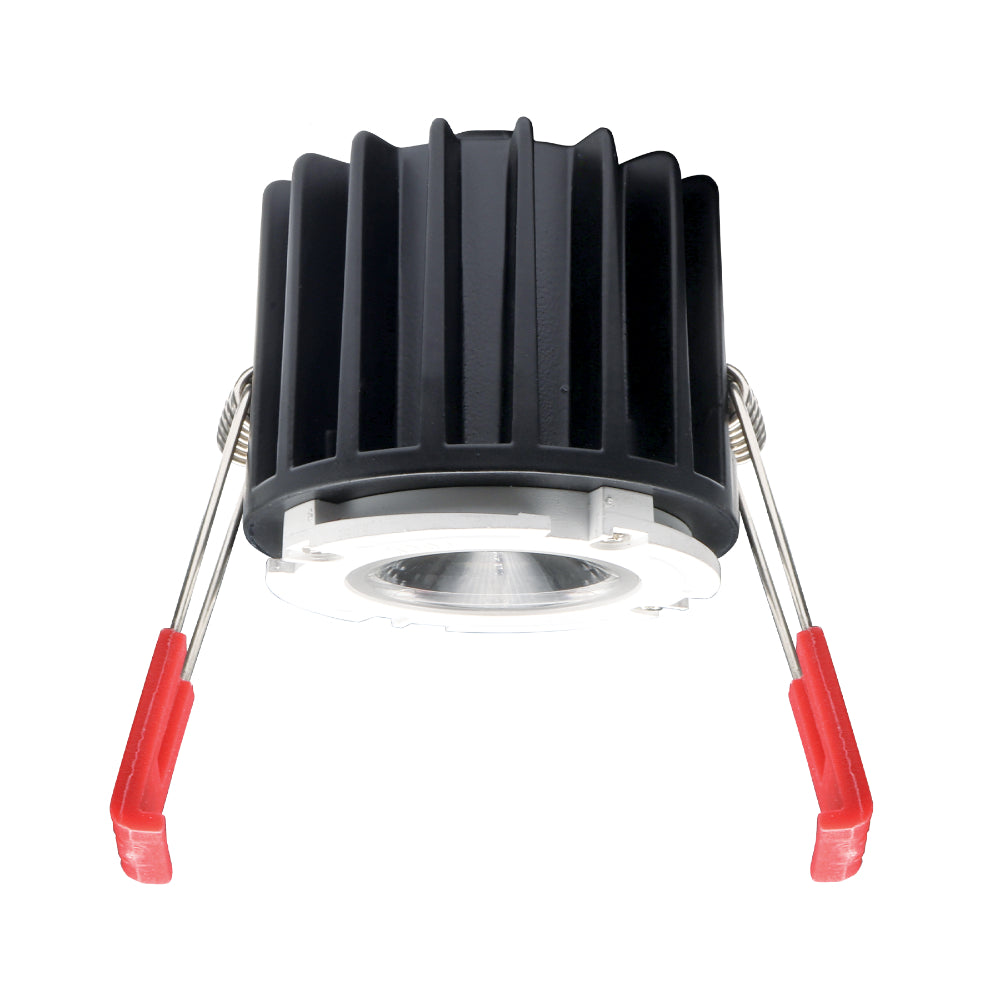

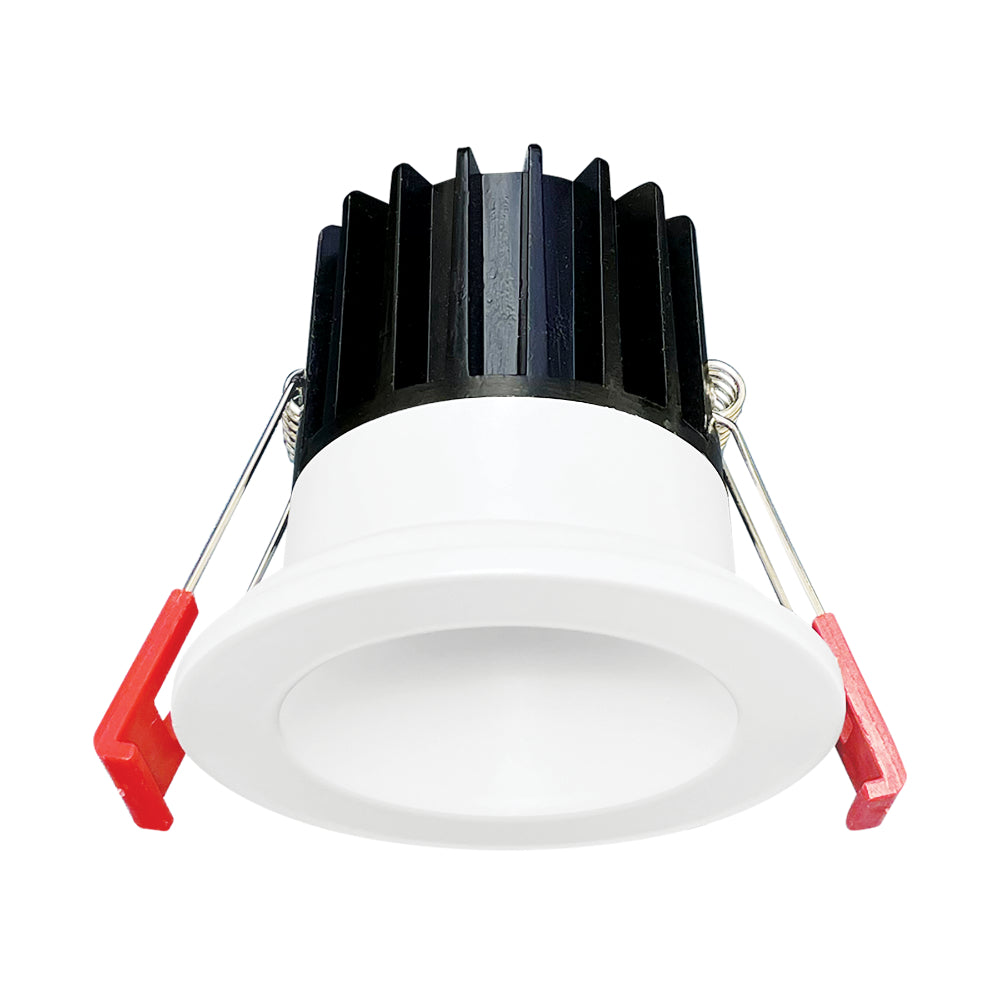

Luxrite 2" Interchangeable Module - 5CCT Selectable
Specifications
- Item description: LED/DLMD2/5CCT/D/WFL
- Size: 2 Inch
- Shape: 2 Inch Interchangable

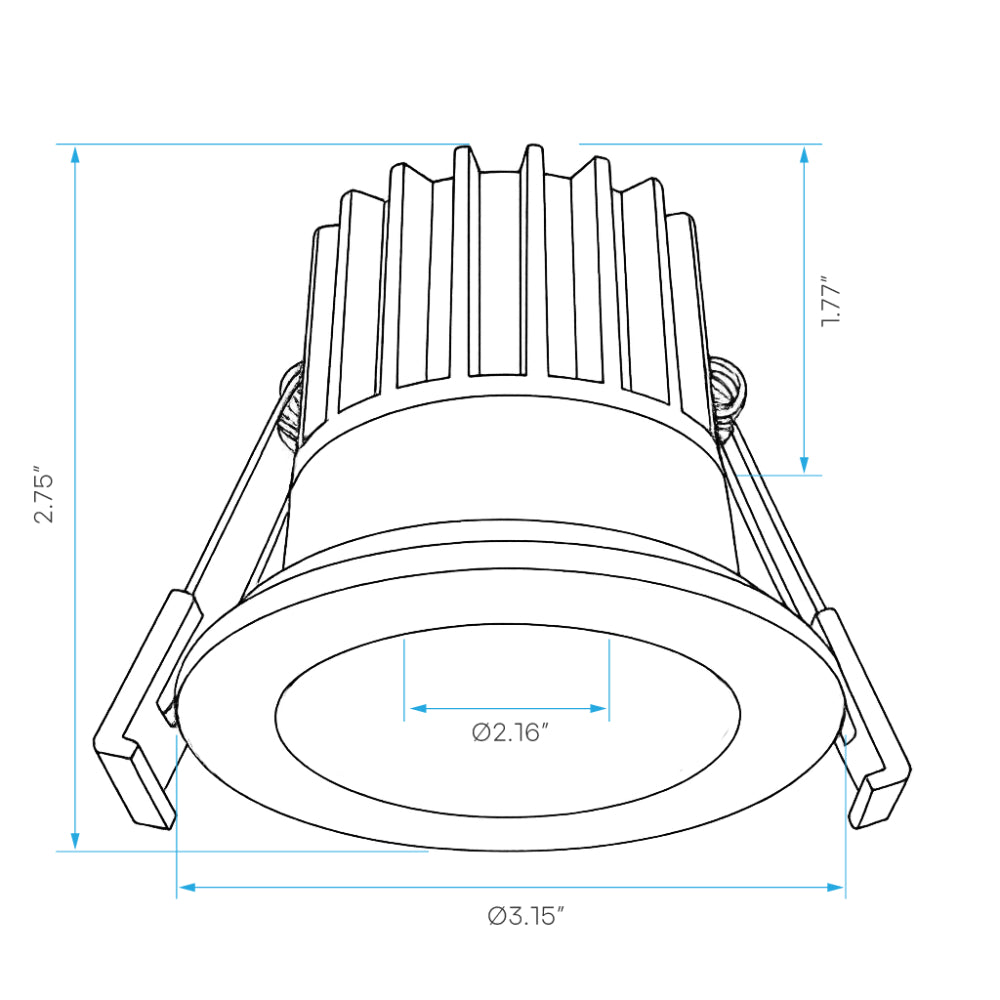

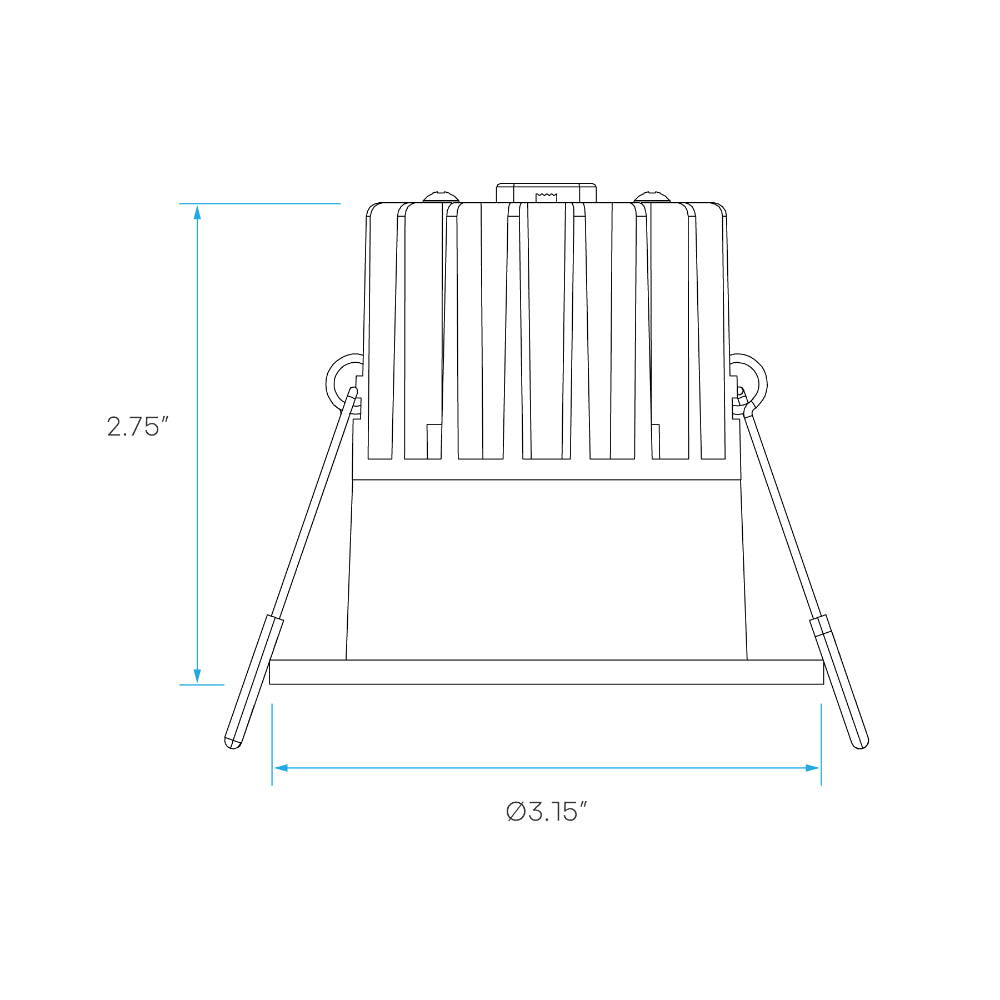

- Dimensions:
- Width: Ø2.16 Inch (3.15 Inch w/Trim)
- Depth: 1.77 Inch (2.75 Inch w/trim)
- Finish: Black
- Cutout: 2.83 Inch
- Plate: LR41004 (#1), LR41010 (#L1), LR41011 (#1)

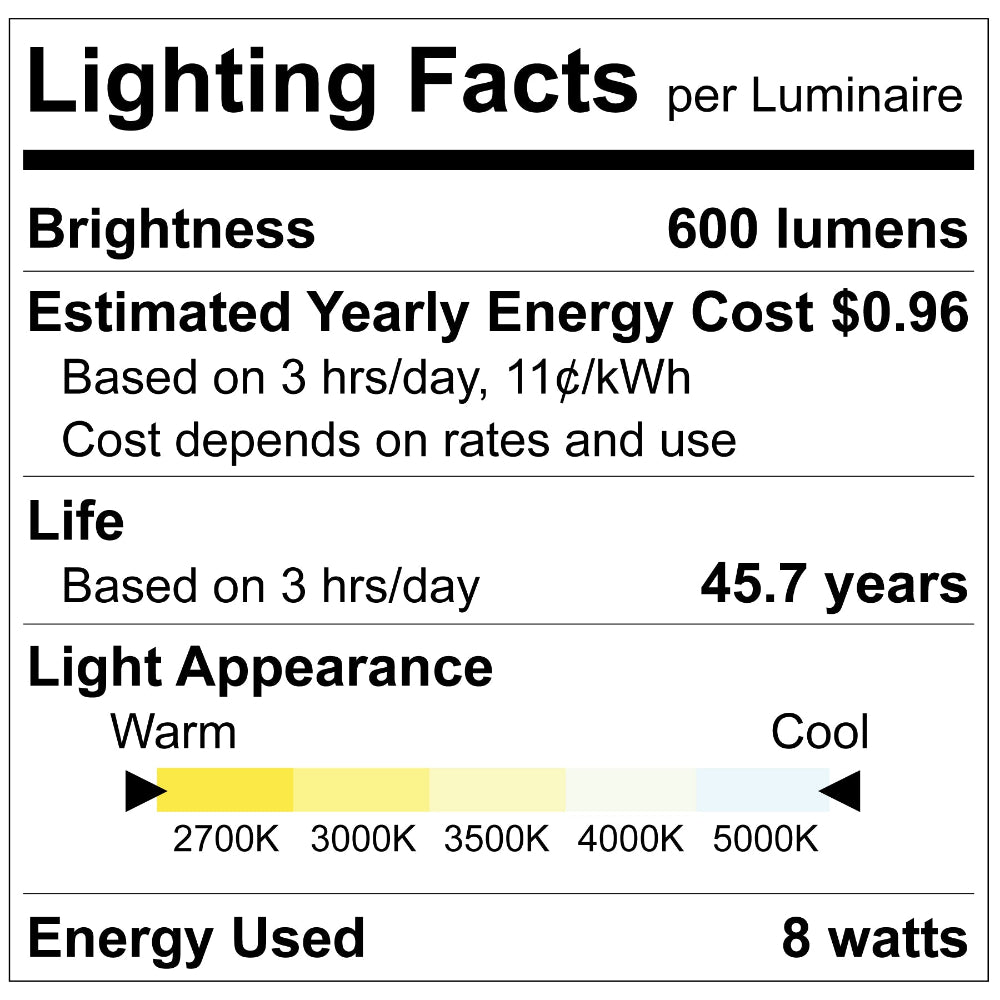

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 600
- CRI: 90
Electrical
- Power (Wattage): 8
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 75
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR25030 Specification Sheet
Click forLuxrite LR25030 Family Specification Sheet
Click forLuxrite LR25030 Install Guide
Click forLuxrite LR25030 Dimmer Compatibility
Click forLuxrite LR25030 Warranty
Click forLuxrite LR25031 Install Guide
