Luxrite 2" Interlocking High Output Trimless Module - 5CCT Selectable

LuxriteSKU: LR25480
Price:
$0.00 USD

Description

Luxrite 2" Interlocking High Output Trimless Module - 5CCT Selectable

Specifications

  • Item description: LED/ITLMD2/HO/5CCT/SQ/WT/D
  • Size: 2 Inch
  • Shape: Interlocking Trimless

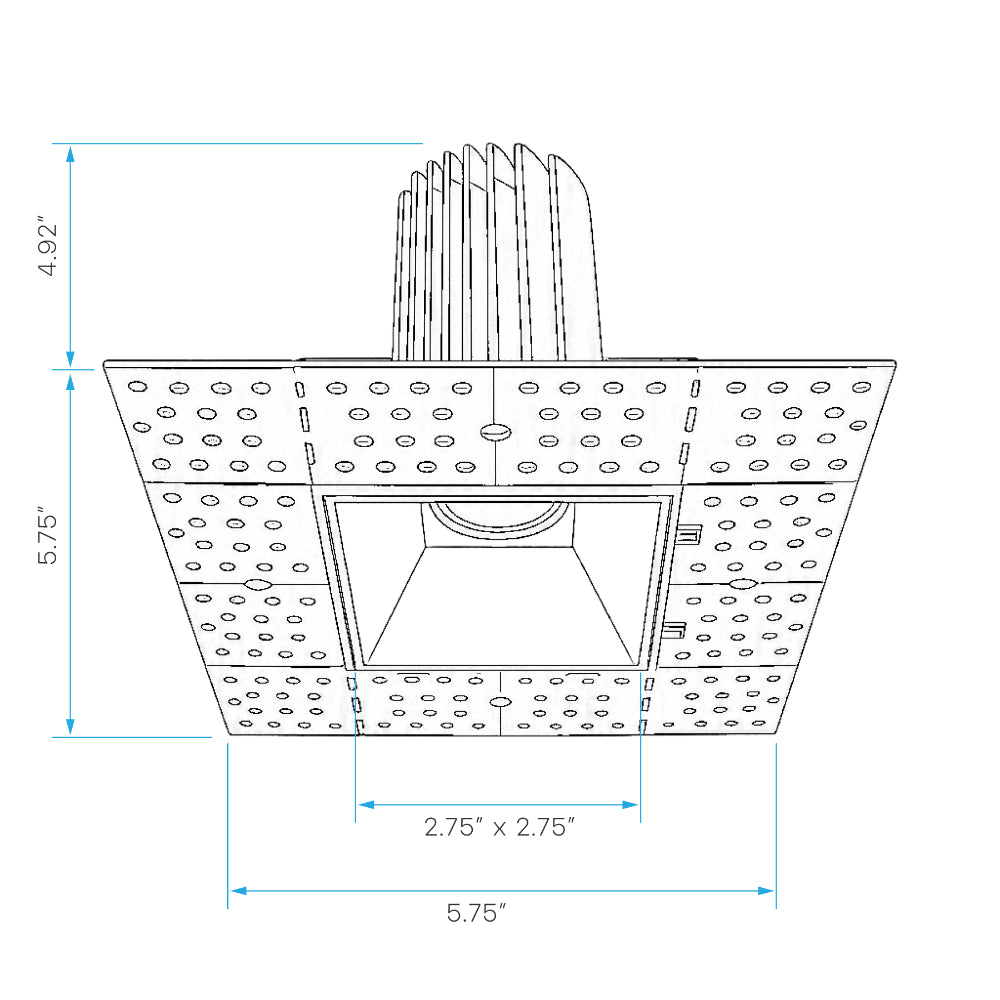

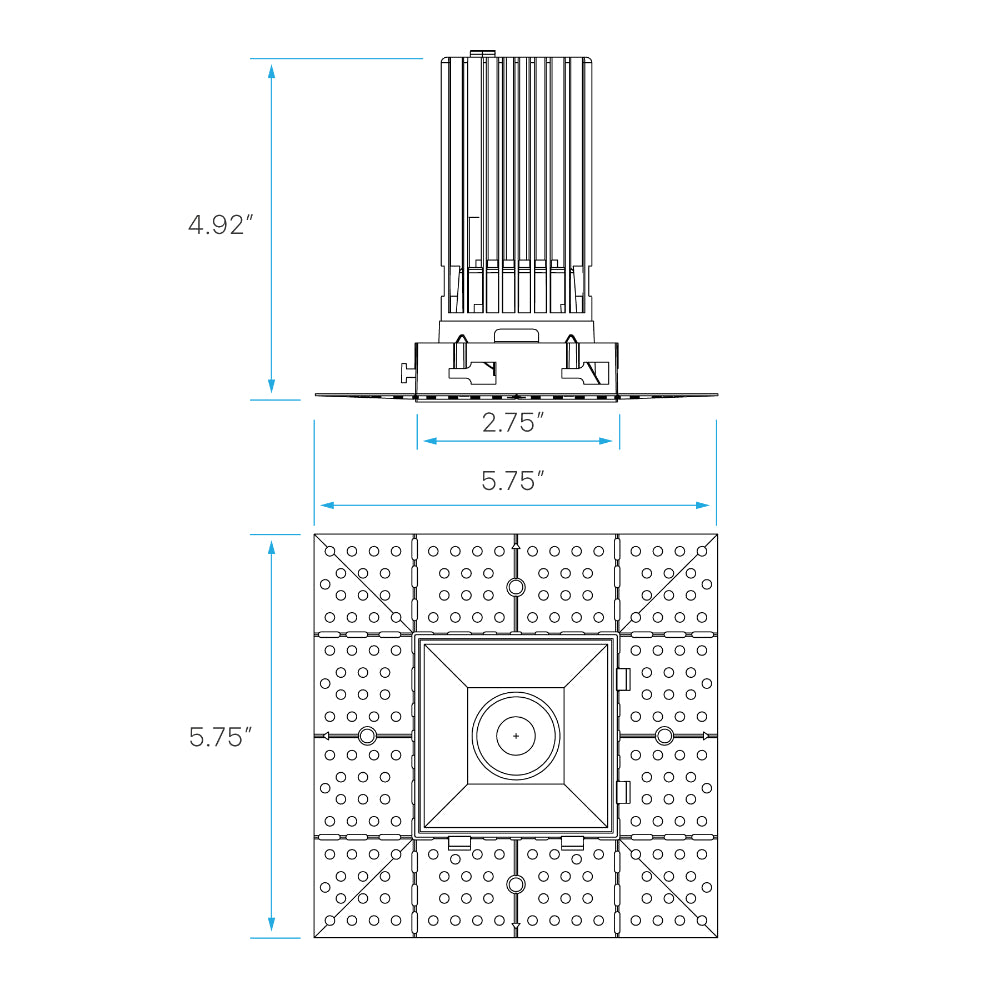

  • Dimensions:
    • Length: 5.75 Inch
    • Width: 5.75 Inch
    • Depth: 4.92 Inch
  • Finish: White
  • Cutout: 3.25 Inch x 3.25 Inch
  • Plate: LR41005 (#1), LR41013 (#0)

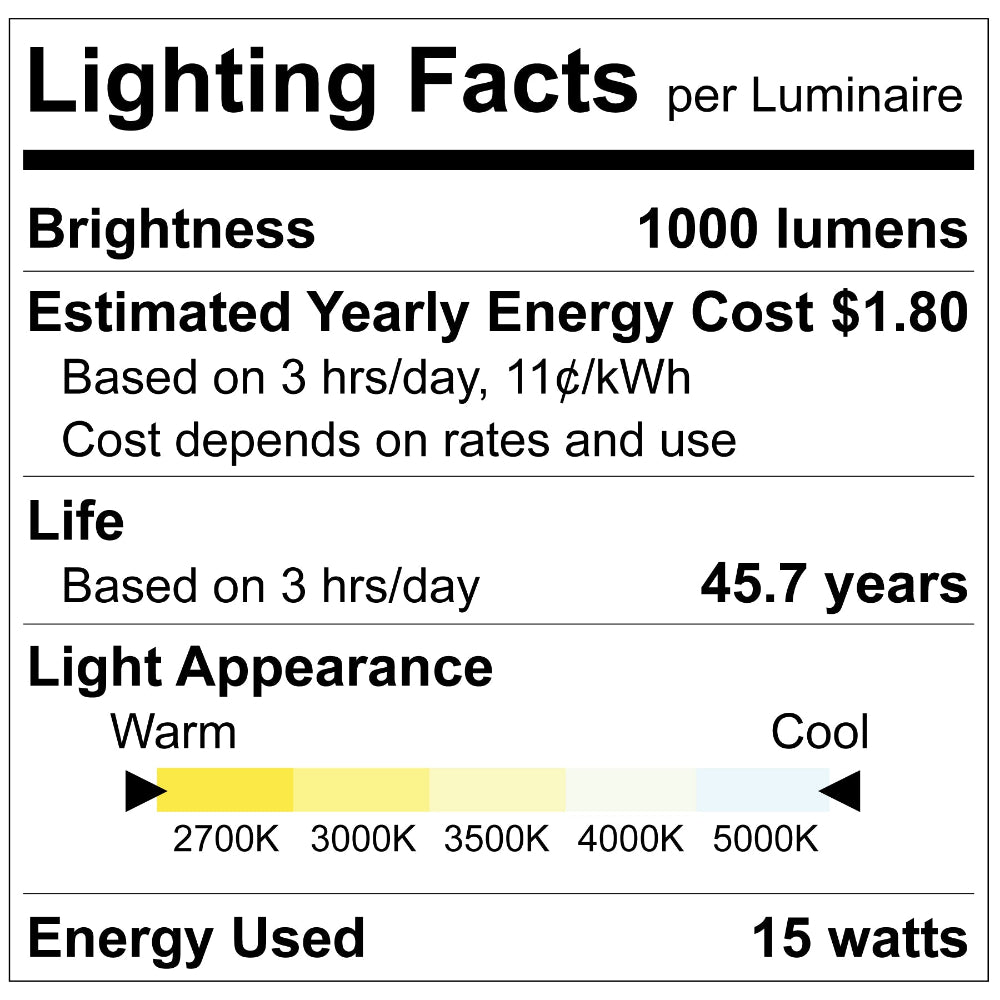

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1000
  • Beam Angle: 38º
  • CRI: 90

Electrical

  • Power (Wattage): 15
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Power Factor: 0.9
  • Frequency: 60Hz
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR25480 Specification Sheet

Click forLuxrite LR25480 Family Specification Sheet

Click forLuxrite LR25480 Install Guide

Click forLuxrite LR25480 Dimmer Compatibility

Click forLuxrite LR25480 Warranty
