Luxrite 2" Recessed Floating Gimbal - 5 CCT Selectable Round Trim

LuxriteSKU: LR23330
Price:
$0.00 USD

Description

Luxrite 2" Recessed Floating Gimbal - 5 CCT Selectable Round Trim

Specifications

  • Item description: LED7W/DL2/FGB/5CCT/RD
  • Size: 2 Inch
  • Shape: Floating Gimbal

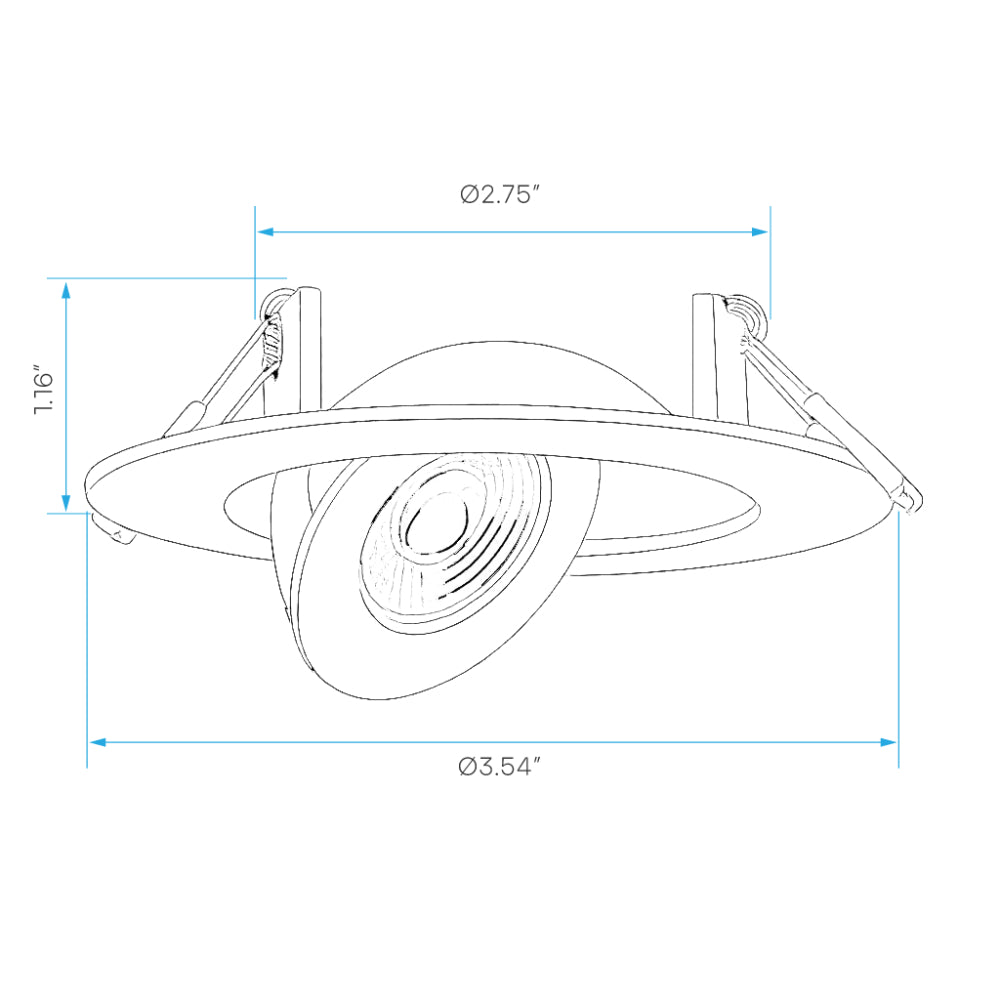

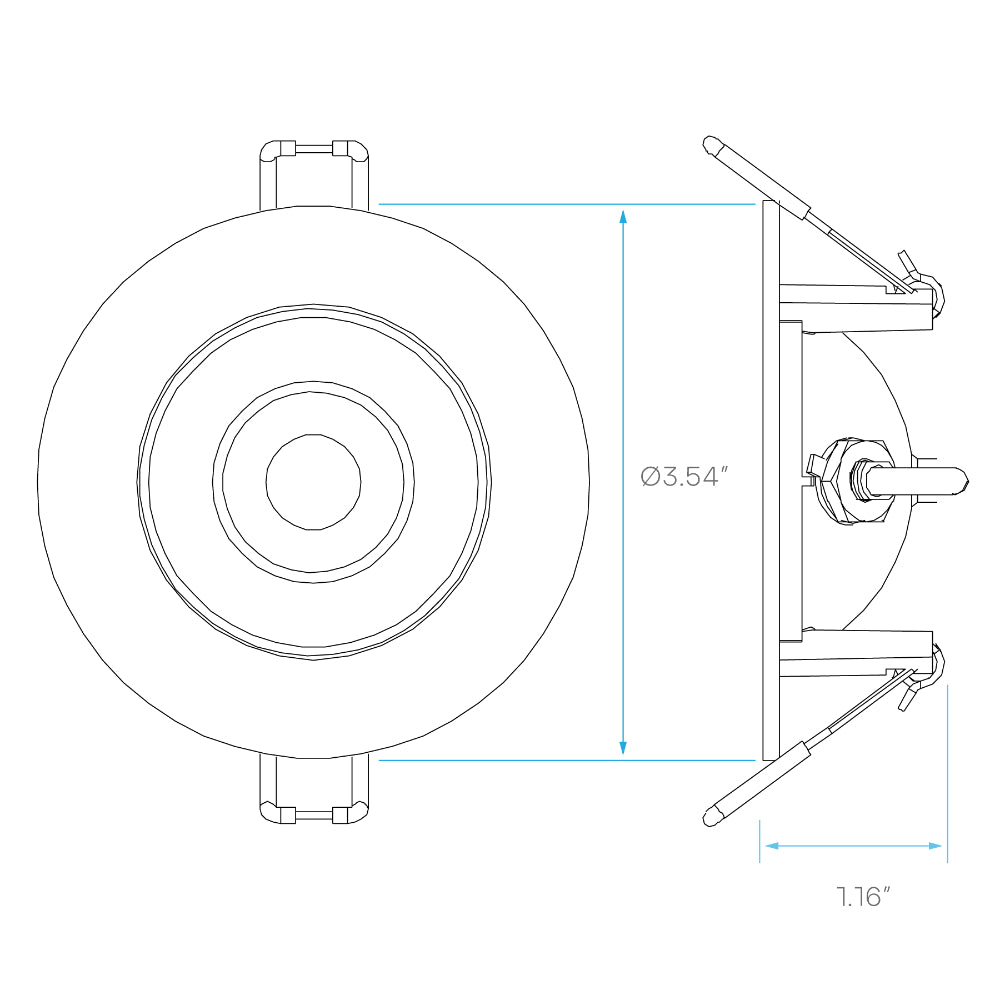

  • Dimensions:
    • Width: Ø3.54 Inch
    • Depth: 1.16 Inch
  • Finish: White
  • Cutout: Ø2.75 Inch
  • Plate: LR41002 (#0), LR41004 (#1), LR41006 (#1), LR41010 (#L1), LR41011 (#1)

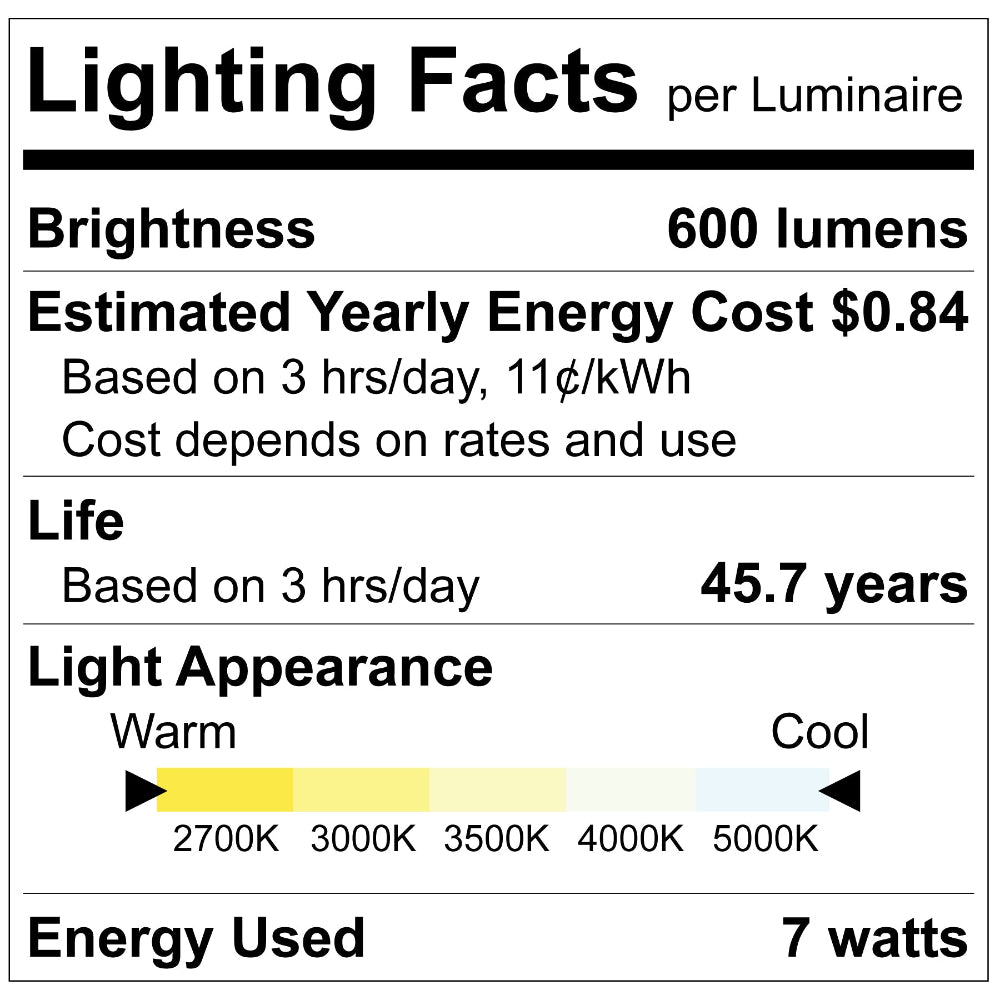

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 600
  • Beam Angle: 36°
  • CRI: 90

Electrical

  • Power (Wattage): 7
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Power Factor: 0.9
  • Frequency: 50/60Hz
  • Lumen Efficacy: 77
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR23330 Specification Sheet

Click forLuxrite LR23330 Install Guide

Click forLuxrite LR23330 Dimmer Compatibility

Click forLuxrite LR23330 Warranty
