Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage
Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 1
Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 2
Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 3
Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 4
Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 5
Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 6
Roll over image to zoom in Click on image to zoom
Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal VoltageLuxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 1Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 2Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 3Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 4Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 5Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage Additional Image 6

Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage

LuxriteSKU: LR25445
Select Beam Angle: 38 Degree
Price:
$0.00 USD

Description

Luxrite 2" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/TLMD2/5CCT/RD/WT/UNV/DD/FL
  • Size: 2 Inch
  • Shape: Regressed Trimless

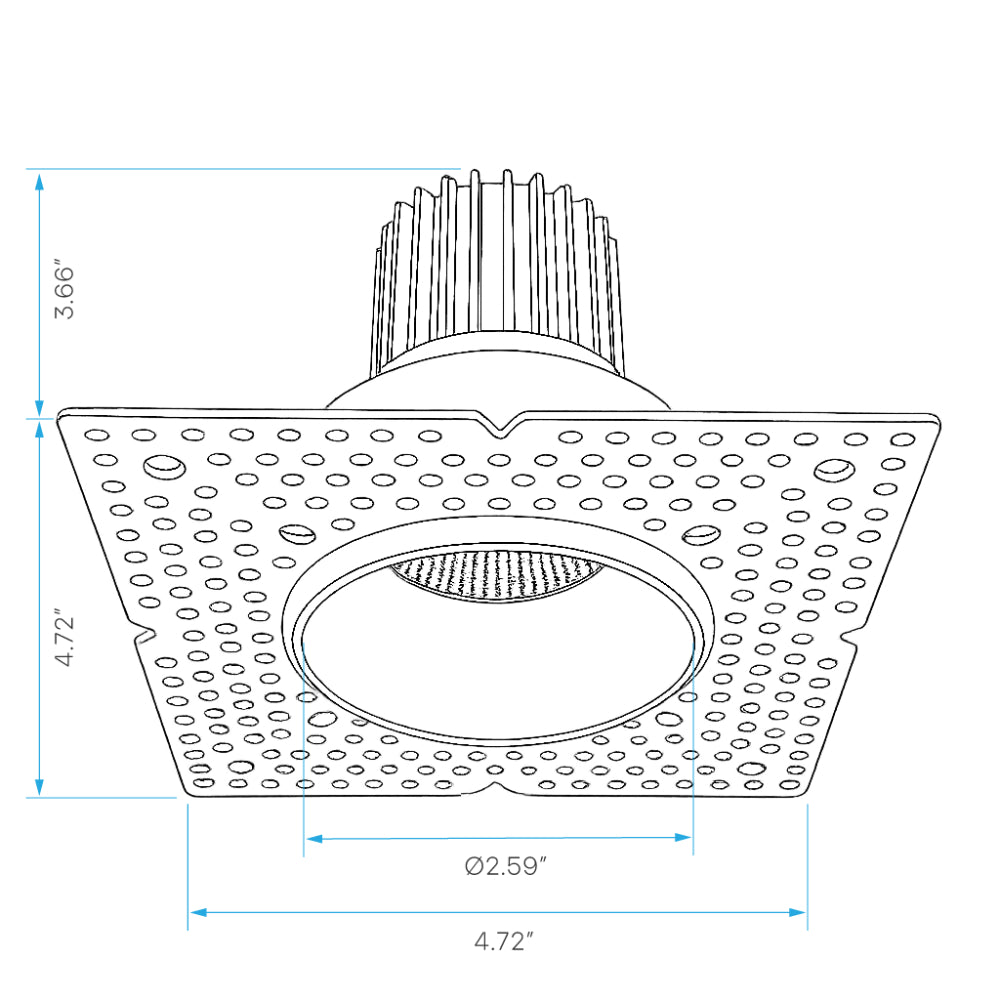

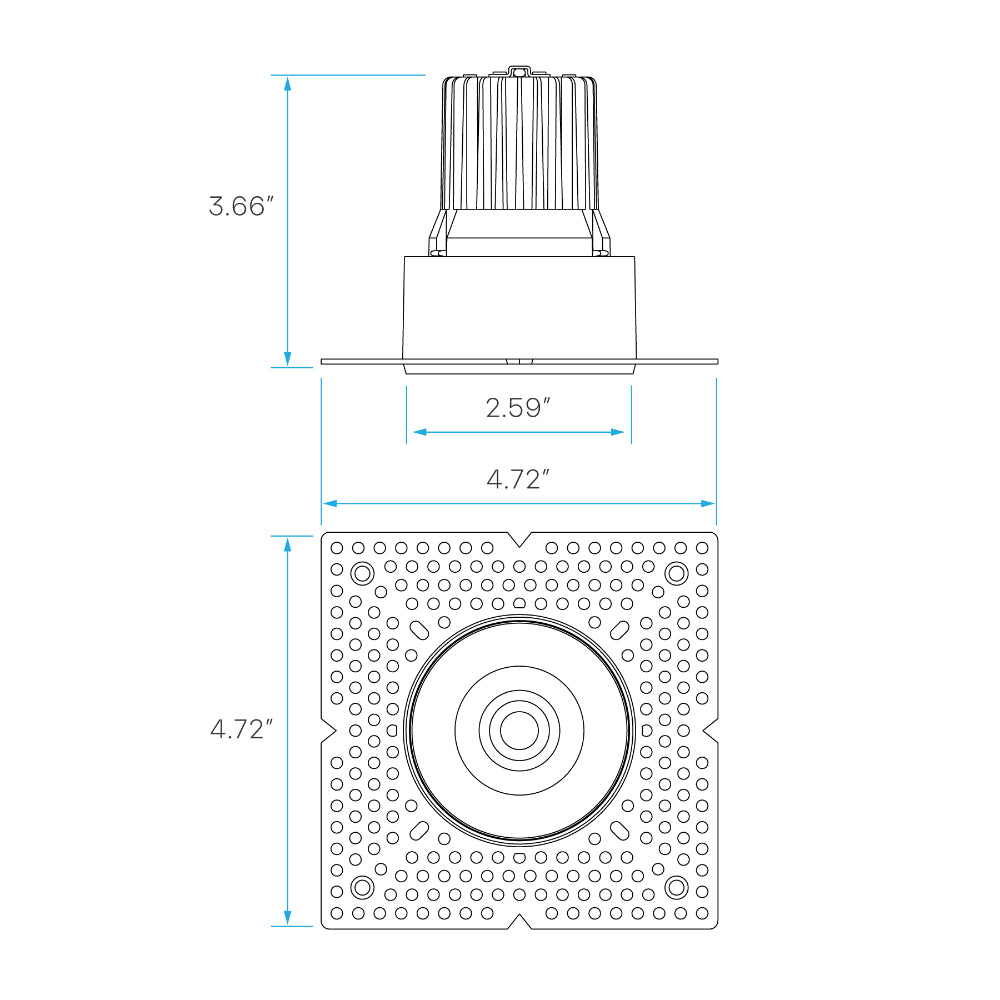

  • Dimensions:
    • Length: 4.72 Inch
    • Width: 4.72 Inch
    • Depth: 3.66 Inch
  • Finish: White
  • Cutout: Ø3 Inch
  • Plate: LR41002 (#0), LR41004 (#2), LR41006 (#1), LR41010 (#R0), LR41011 (#2)

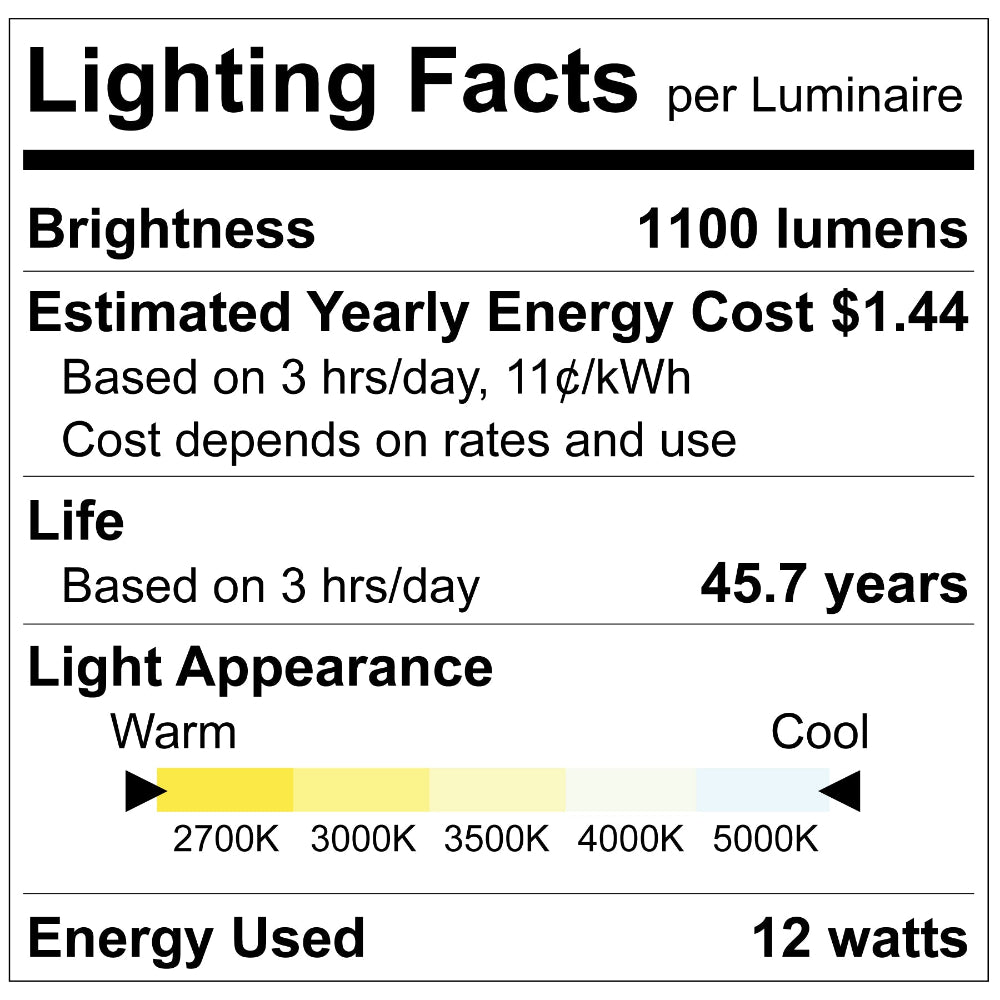

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1100
  • CRI: 90

Electrical

  • Power (Wattage): 12
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Frequency: 60Hz
  • Lumen Efficacy: 91
  • Operating Temp:
    • Min: -4º
    • Max: 113º
Product Files

Click forLuxrite LR25445 Specification Sheet

Click forLuxrite LR25445 Family Specification Sheet

Click forLuxrite LR25445 Install Guide

Click forLuxrite LR25445 Dimmer Compatibility

Click forLuxrite LR25445 Warranty

Click forLuxrite LR25446 Dimmer Compatibility

Click forLuxrite LR25446 Warranty
