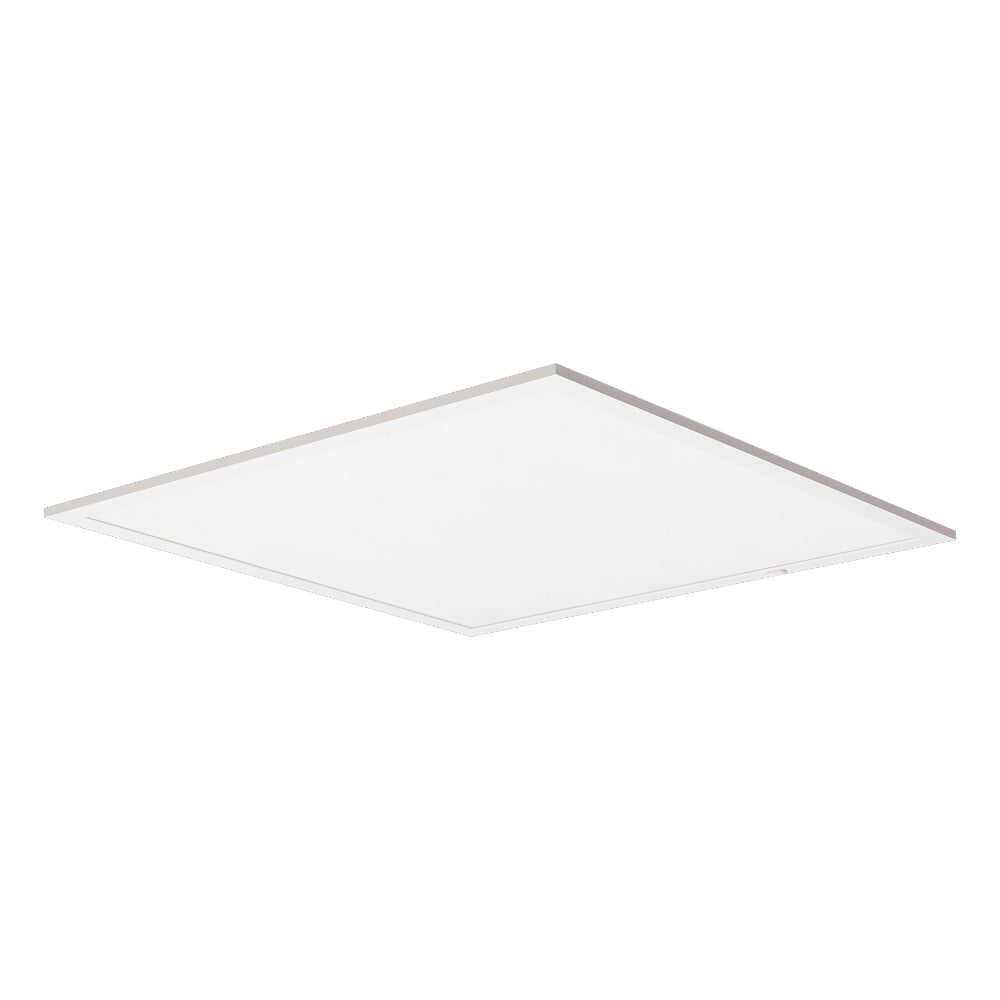

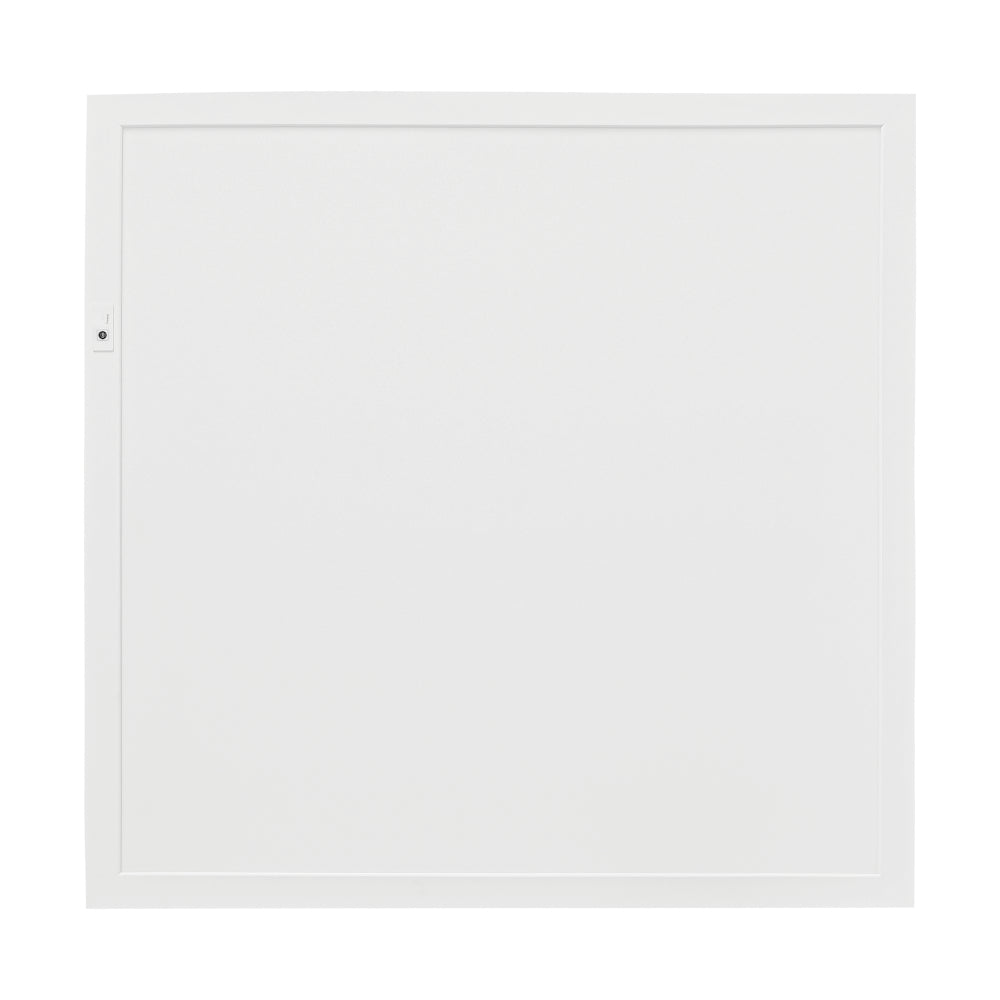

Luxrite 2x2 Backlit Panel 5CCT & 4 Wattage Selectable - Sensor Ready - High Output
Luxrite 2x2 Backlit Panel 5CCT & 4 Wattage Selectable - Sensor Ready - High Output Additional Image 1
Luxrite 2x2 Backlit Panel 5CCT & 4 Wattage Selectable - Sensor Ready - High Output Additional Image 2
Luxrite 2x2 Backlit Panel 5CCT & 4 Wattage Selectable - Sensor Ready - High Output Additional Image 3
Roll over image to zoom in Click on image to zoom
Luxrite 2x2 Backlit Panel 5CCT & 4 Wattage Selectable - Sensor Ready - High OutputLuxrite 2x2 Backlit Panel 5CCT & 4 Wattage Selectable - Sensor Ready - High Output Additional Image 1Luxrite 2x2 Backlit Panel 5CCT & 4 Wattage Selectable - Sensor Ready - High Output Additional Image 2Luxrite 2x2 Backlit Panel 5CCT & 4 Wattage Selectable - Sensor Ready - High Output Additional Image 3

Luxrite 2x2 Backlit Panel 5CCT & 4 Wattage Selectable - Sensor Ready - High Output

LuxriteSKU: LR24299
Price:
$0.00 USD

Description

Luxrite 2x2 Backlit Panel 5CCT & 4 Wattage Selectable - Sensor Ready - High Output

Specifications

  • Item description: LED2X2BPNL/VHO/4WO/5CCT/D/SR
  • Size: 2 x 2
  • Shape: 2 x 2

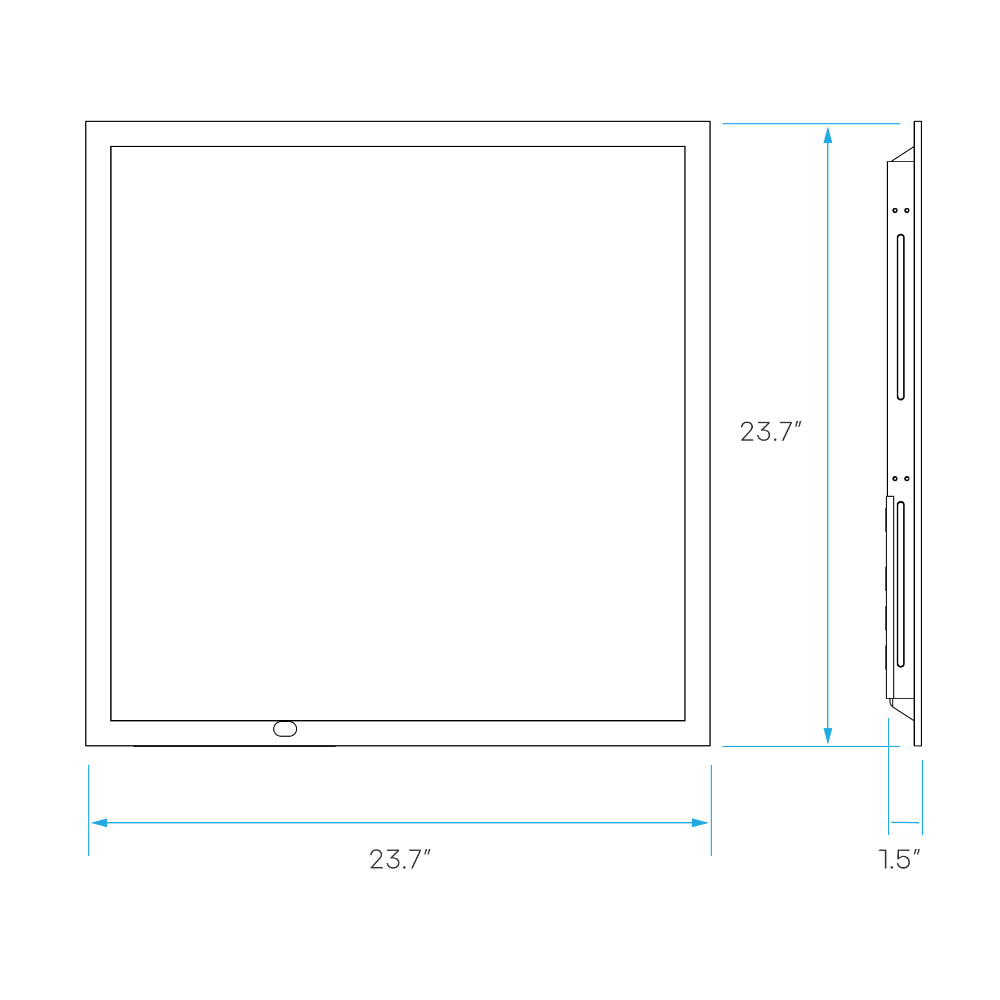

  • Dimensions:
    • Length: 23.7 Inch
    • Width: 23.7 Inch
    • Height: 1.5 Inch
  • Finish: White

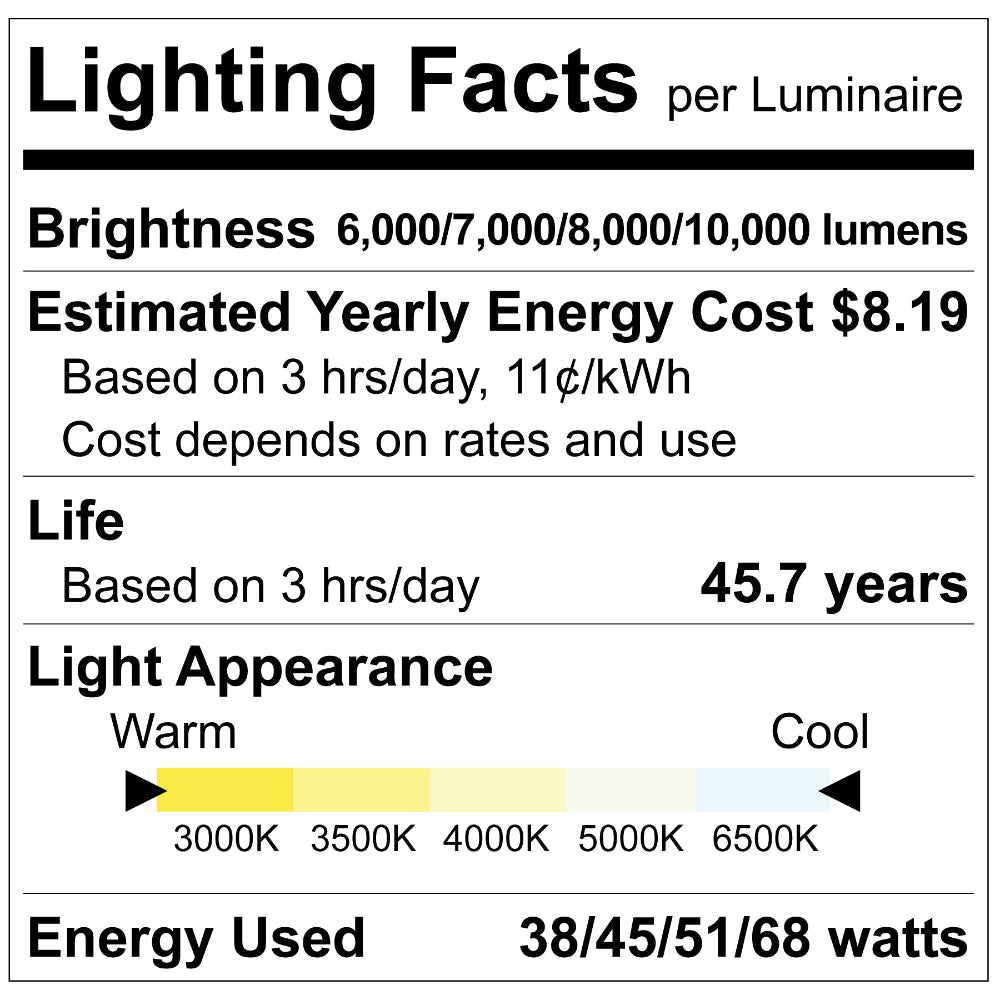

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 3000K/3500K/4000K/5000K/6500K
  • Lumen: 6000/7000/8000/10000
  • Beam Angle: 110º
  • CRI: 80

Electrical

  • Power (Wattage): 38/45/51/68
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: 0-10V
  • Power Factor: 0.9
  • Frequency: 50/60Hz
  • Lumen Efficacy: 150
Product Files

Click forLuxrite LR24299 Specification Sheet

Click forLuxrite LR24299 Install Guide

Click forLuxrite LR24299 Warranty
