Luxrite 2x2 Center Lens Designer Panel - 5CCT & 4 Wattage Selectable Sensor Ready + EM

LuxriteSKU: LR25715+EM
Price:
$0.00 USD

Description

Luxrite 2x2 Center Lens Designer Panel - 5CCT & 4 Wattage Selectable Sensor Ready + EM

Specifications

  • Item description: LED2x2DPNL/4WO/5CCT/HC/CL/SR+EM
  • Size: 2 x 2
  • Shape: 2 x 2

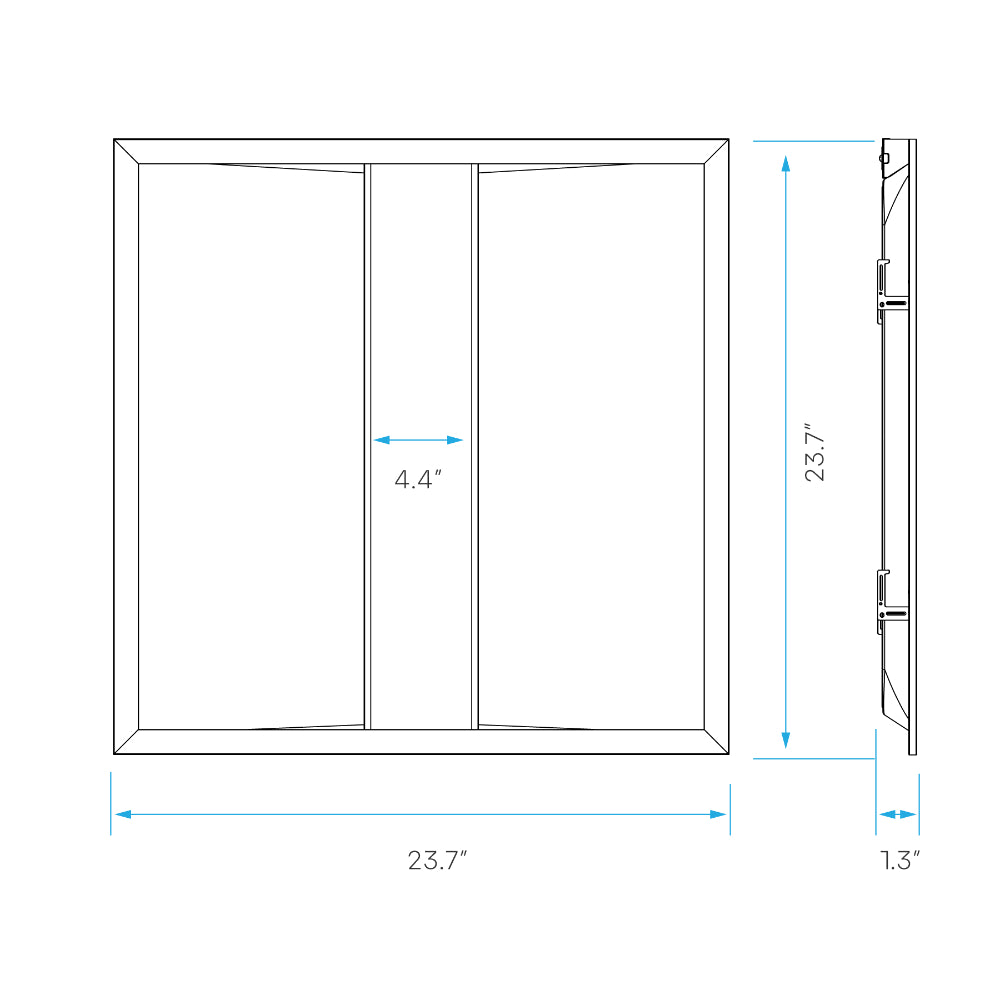

  • Dimensions:
    • Length: 23.74 Inch
    • Width: 23.74 Inch
    • Height: 1.3 Inch
  • Finish: White

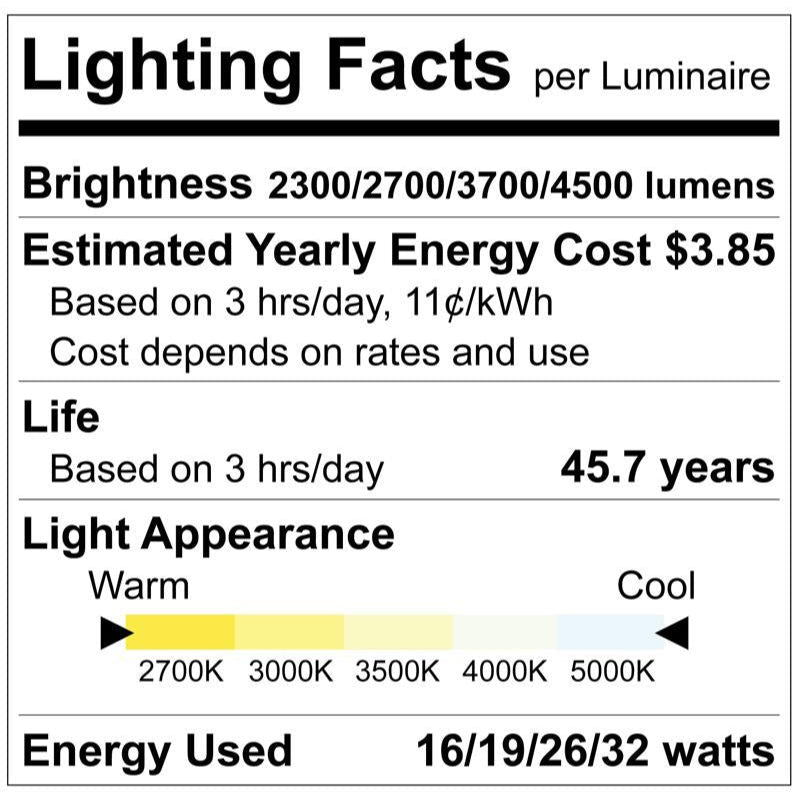

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 3500K/4000K/5000K
  • Lumen: 2300/2700/3700/4500
  • Beam Angle: 120°
  • CRI: 90

Electrical

  • Power (Wattage): 16/19/26/32
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: 0-10V
  • Power Factor: 0.9
  • Frequency: 50/60Hz
  • Lumen Efficacy: 140
  • Operating Temp:
    • Min: -4°
    • Max: 122°
Product Files

Click forLuxrite LR25715+EM Specification Sheet

Click forLuxrite LR25715+EM Install Guide

Click forLuxrite LR25715+EM Warranty
