Description

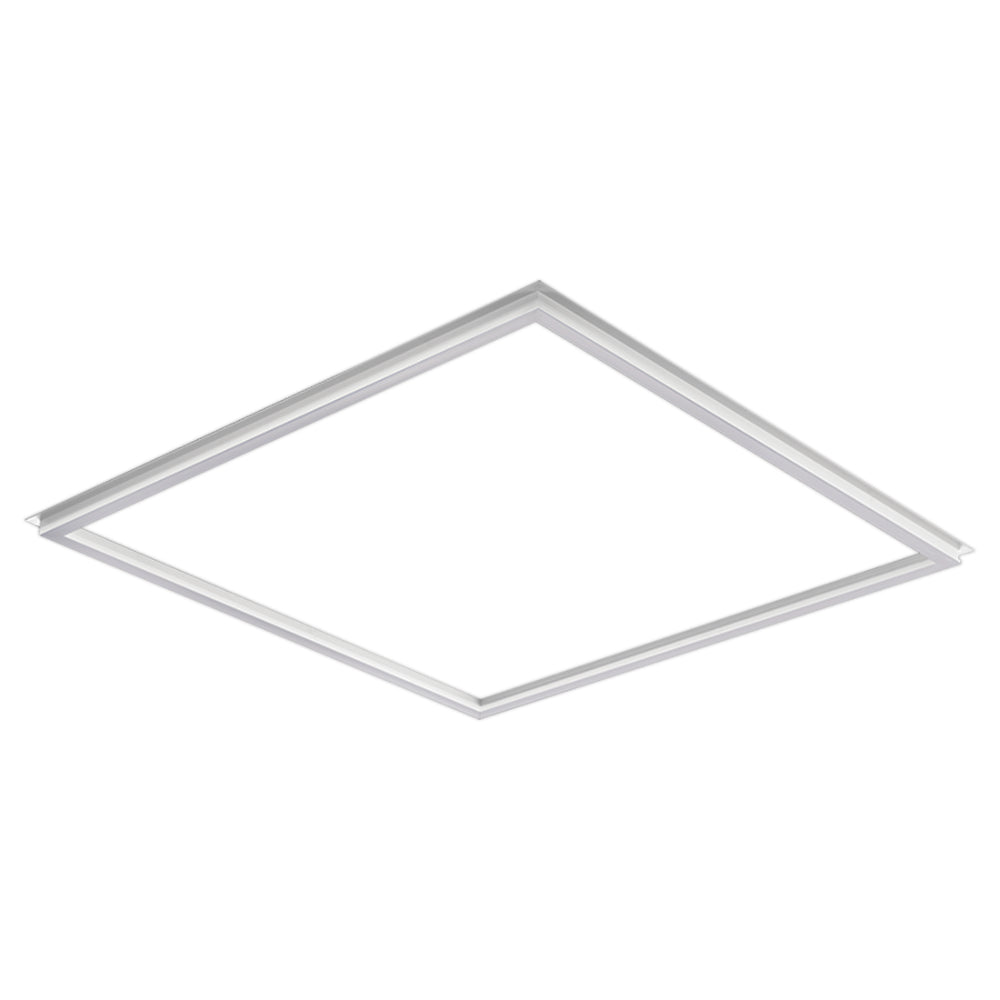

Luxrite 2x2 Frame Panel 5CCT & 3 Wattage Selectable
Specifications
- Item description: LED2X2FRAME/PNL/3WO/5CCT/D
- Size: 2 x 2
- Shape: Frame Panel

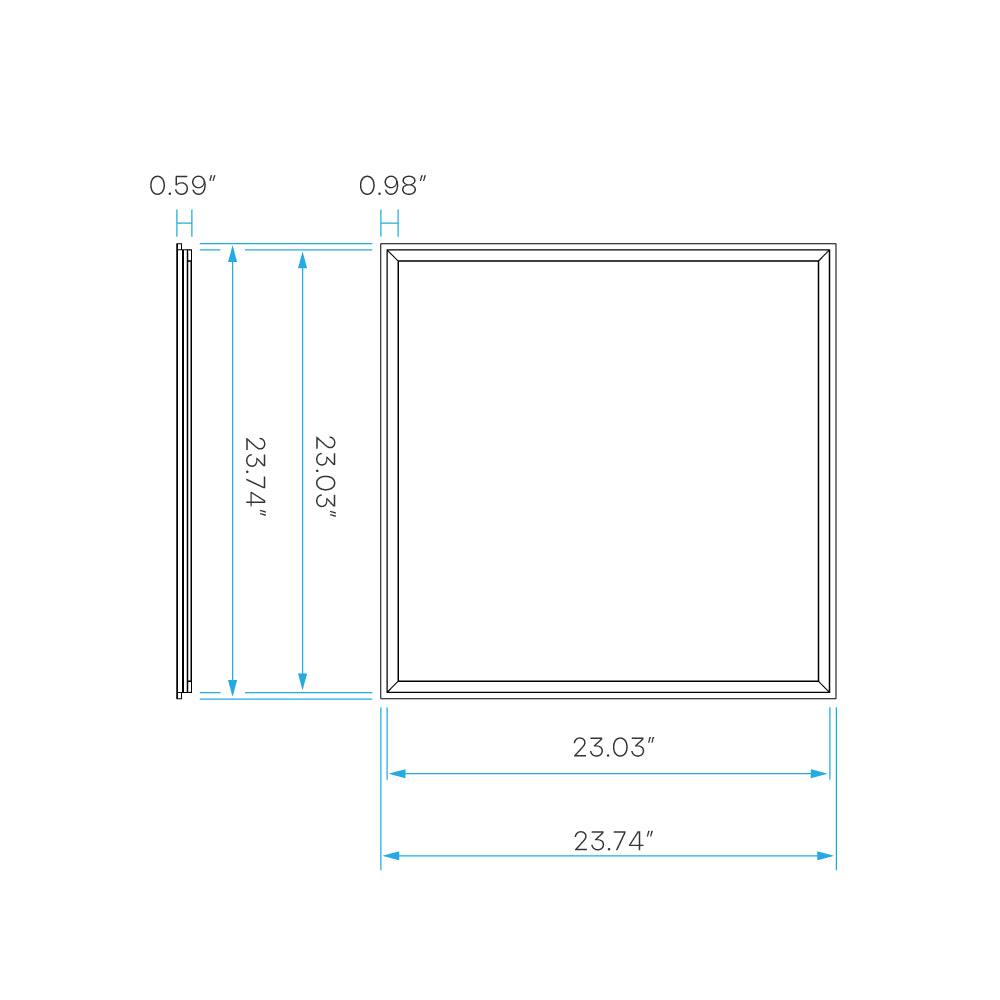

- Dimensions:
- Length: 23.7 Inch
- Width: 23.7 Inch
- Height: 0.5 Inch
- Finish: White

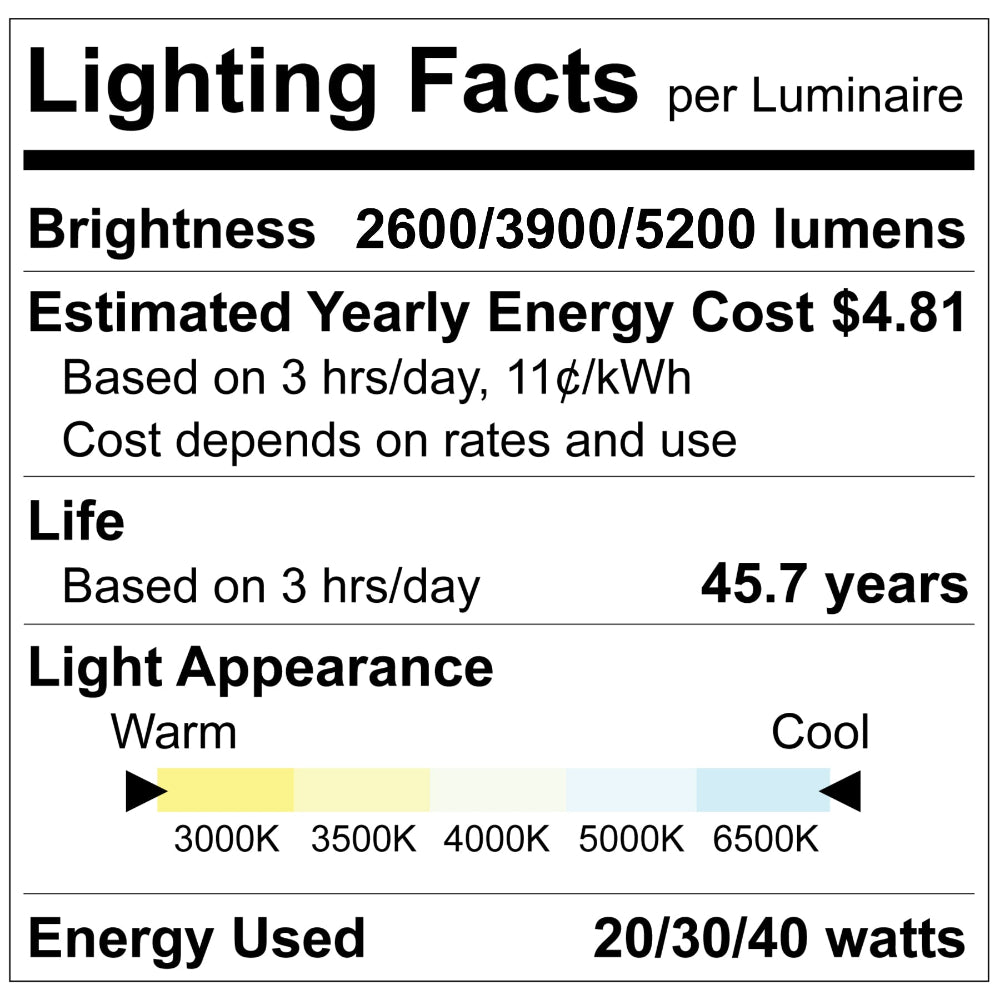

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 30000K/3500K/4000K/5000K/6500K
- Lumen: 2600/3900/5200
- Beam Angle: 120º
- CRI: 80
Electrical
- Power (Wattage): 20/30/40
- Input Volts: 100-277V
- Rated Lifetime: 50000
- Dimmable: 0-10V
- Power Factor: >0.95
- Input Current: 0.45A Max
- Frequency: 50/60Hz
- Lumen Efficacy: 130
- Operating Temp:
- Min: -4º
- Max: 113º
Product Files
Click forLuxrite LR24164 Specification Sheet
