Luxrite 2x4 Center Lens Designer Panel - 5CCT & 4 Wattage Selectable Sensor Ready

LuxriteSKU: LR25717
Price:
$0.00 USD

Description

Luxrite 2x4 Center Lens Designer Panel - 5CCT & 4 Wattage Selectable Sensor Ready

Specifications

  • Item description: LED2x4DPNL/4WO/5CCT/HC/CL/SR
  • Size: 2 x 4
  • Shape: 2 x 4

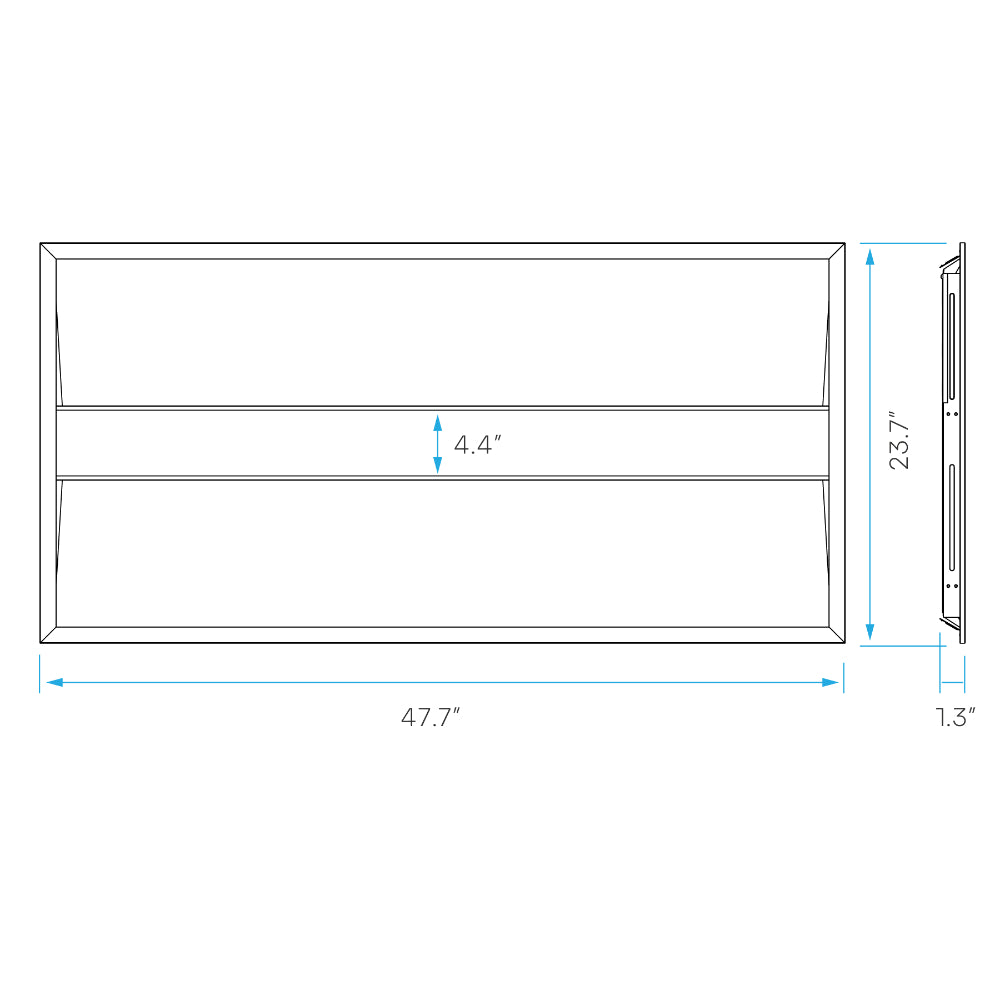

  • Dimensions:
    • Length: 47.7 Inch
    • Width: 23.7 Inch
    • Height: 1.3 Inch
  • Finish: White

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 3,100/4,200/5,100/6,000
  • Beam Angle: 120°
  • CRI: 90

Electrical

  • Power (Wattage): 22/30/36/43
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: 0-10V
  • Power Factor: 0.9
  • Frequency: 50/60Hz
  • Lumen Efficacy: 140
  • Operating Temp:
    • Min: -4°
    • Max: 122°
Product Files

Click forLuxrite LR25717 Specification Sheet

Click forLuxrite LR25717 Install Guide

Click forLuxrite LR25717 Warranty
