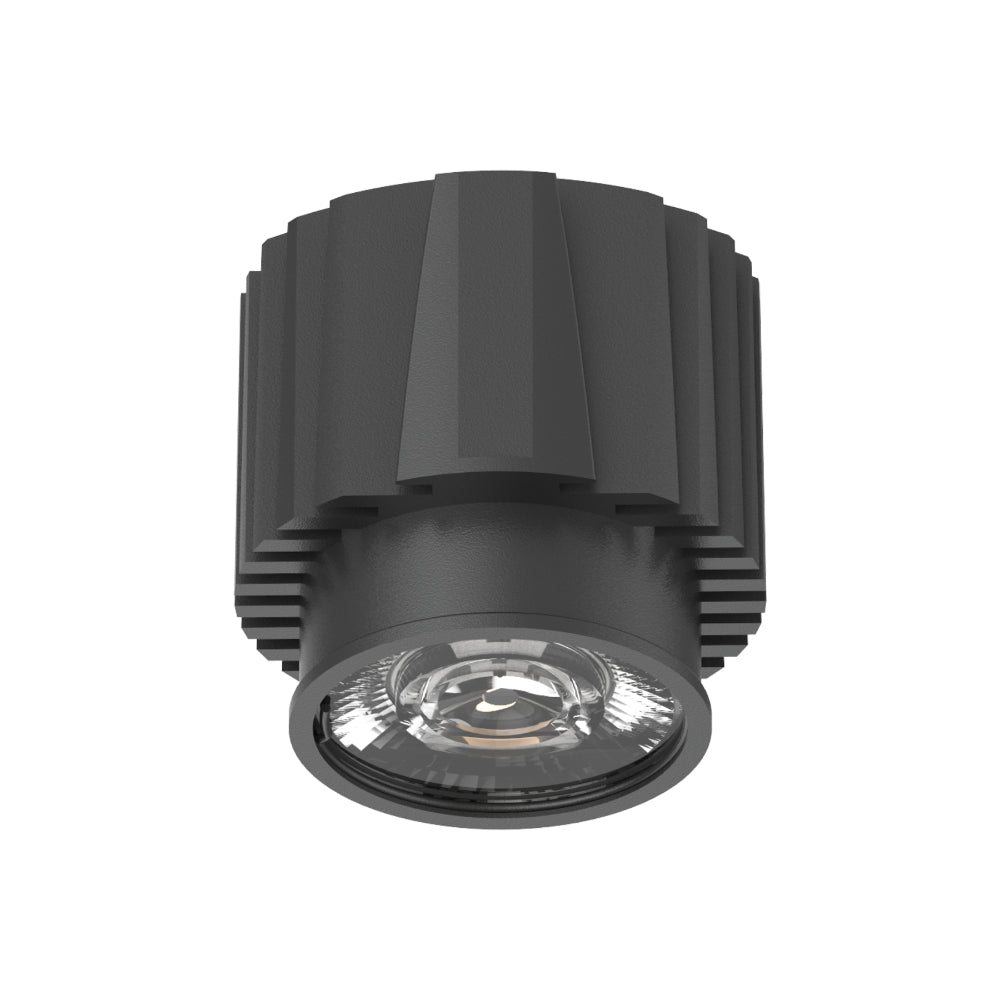

Luxrite 3" Architectural Interchangeable Module

LuxriteSKU: LR25230
Select Color Temperature: 2700K
Price:
$0.00 USD

Description

Luxrite 3" Architectural Interchangeable Module

Specifications

  • Item description: LED/ALMD3H/27K/D/FL
  • Size: 3 Inch
  • Shape: Architectural Module

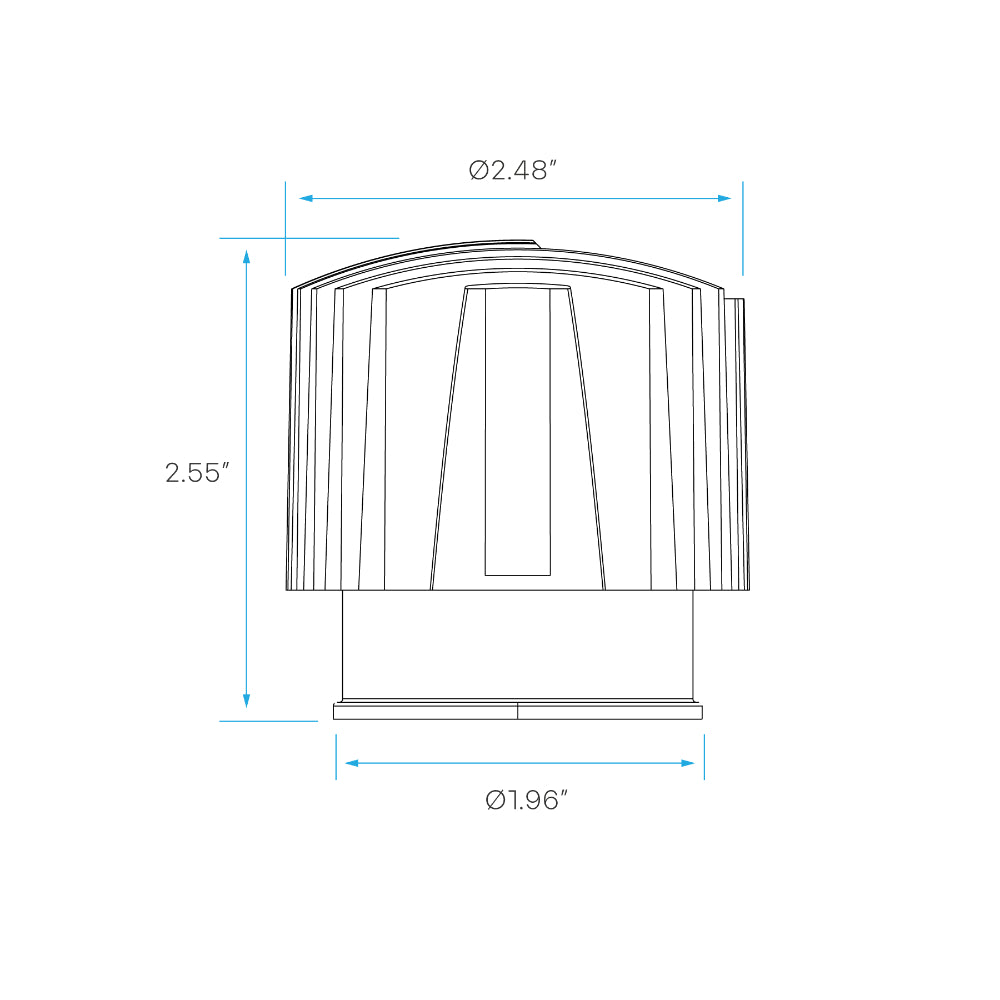

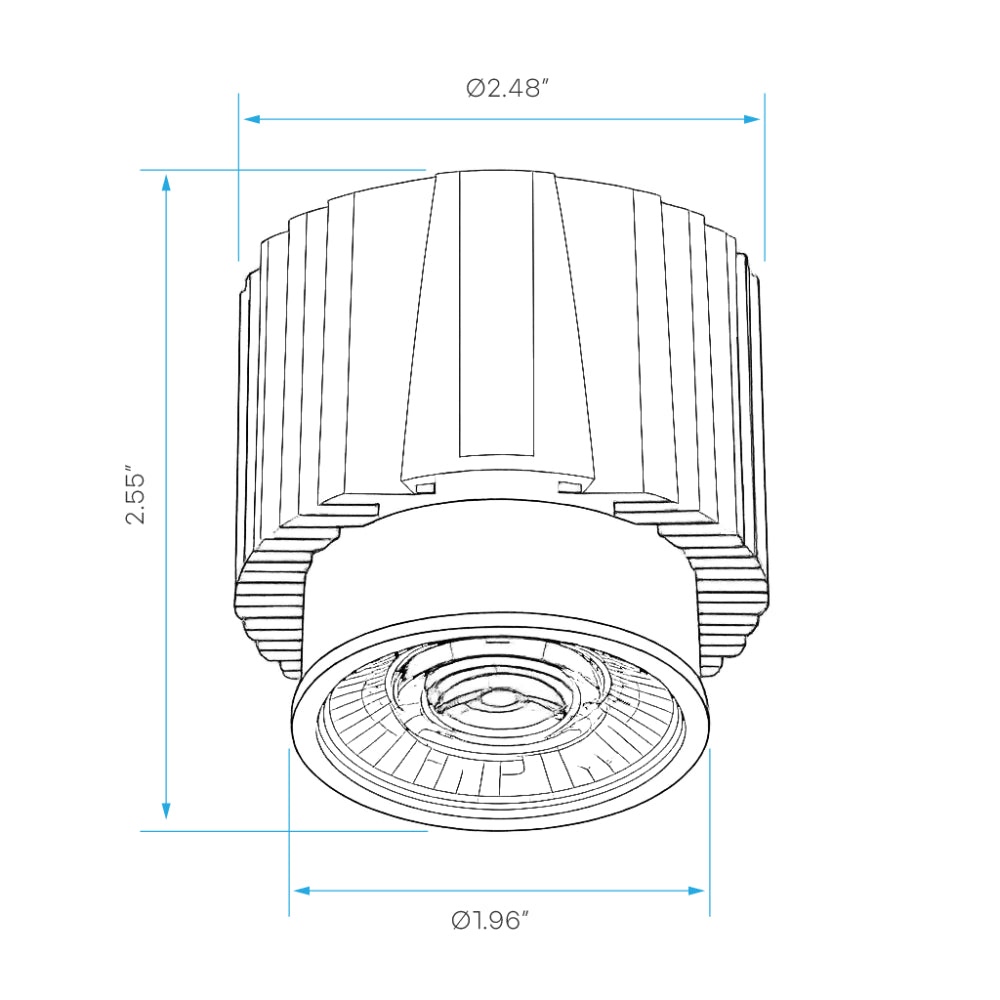

  • Dimensions:
    • Width: Ø1.96 Inch
    • Depth: 2.55 Inch
  • Finish: Black
  • Cutout: Ø2.95 Inch

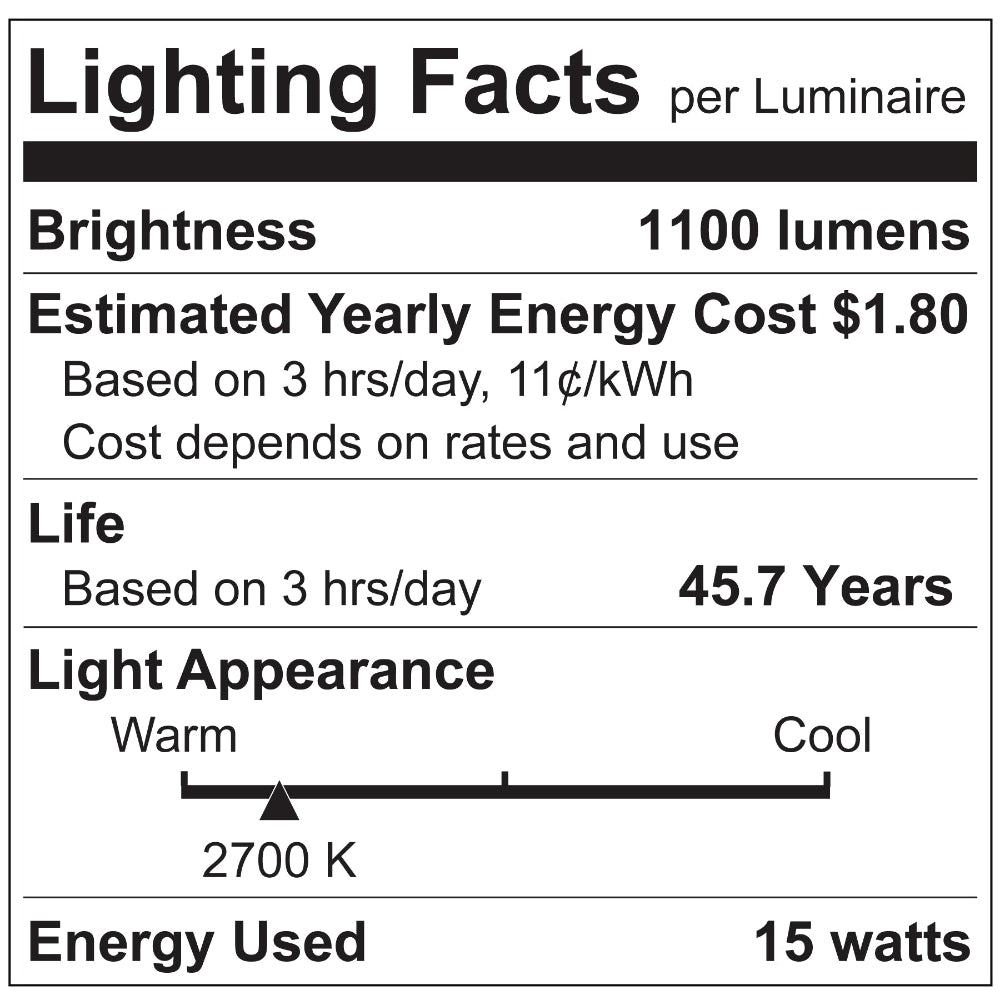

Photometric

  • Color (Temp): Warm White
  • Lumen: 1100
  • Beam Angle: 35º
  • CRI: 90

Electrical

  • Power (Wattage): 15
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Input Current: 350Ma
  • Frequency: 50/60Hz
  • Lumen Efficacy: 73
  • Operating Temp:
    • Min: -4º
    • Max: 104º
