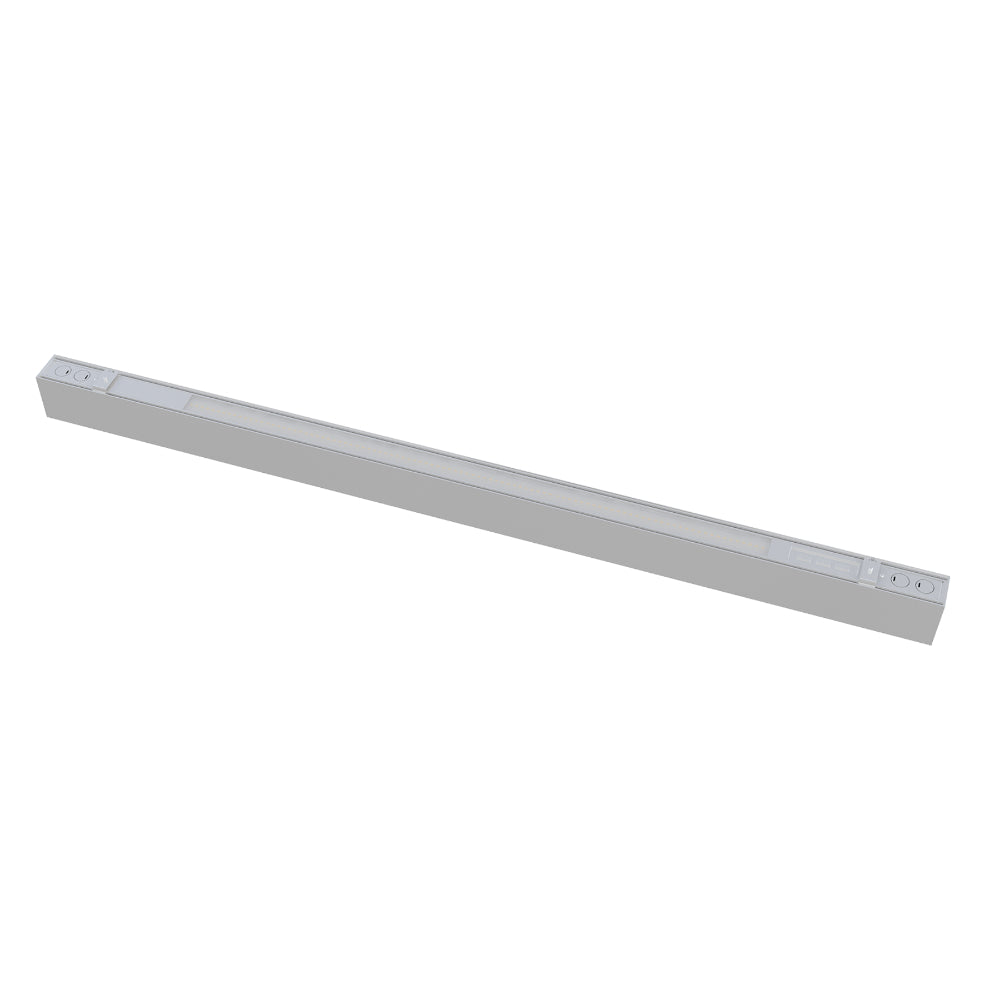

Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 2
Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 3
Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 4
Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 5
Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 6
Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 7

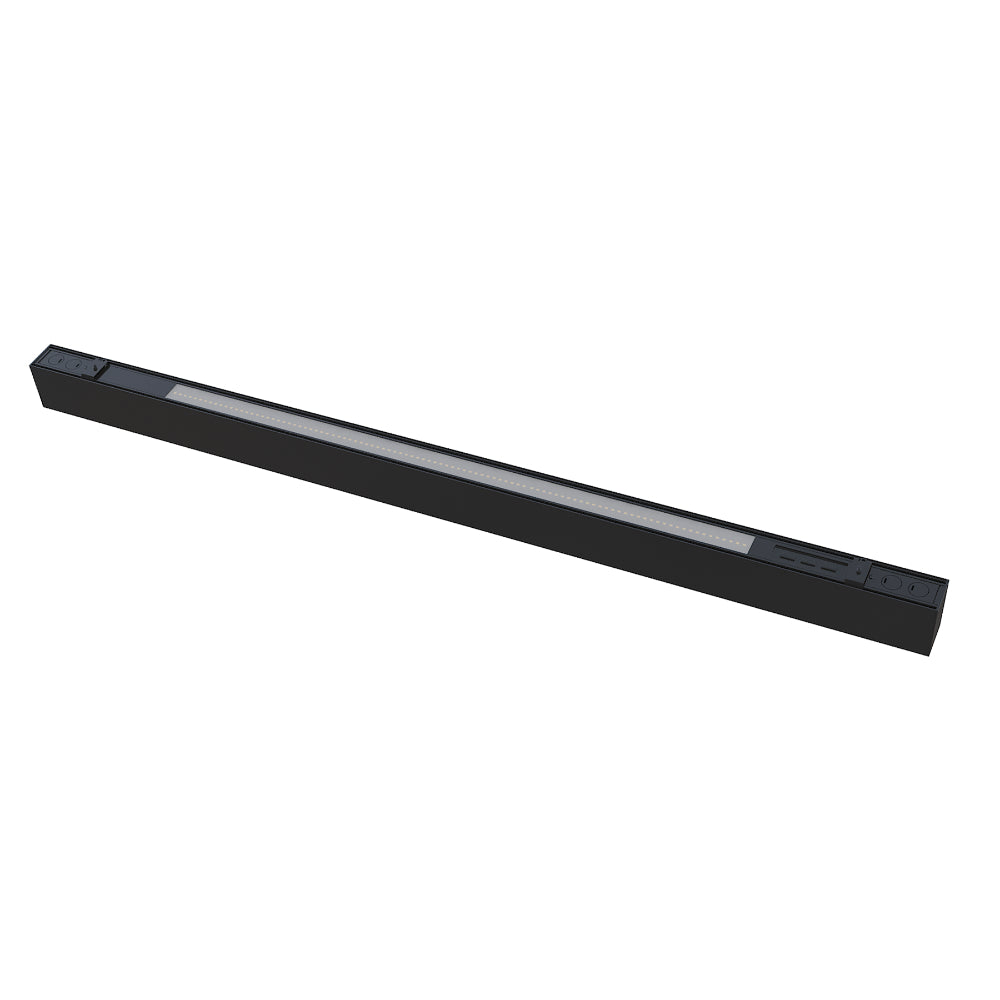

Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 8
Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 9
Roll over image to zoom in Click on image to zoom
Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down SelectableLuxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 1Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 2Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 3Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 4Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 5Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 6Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 7Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 8Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable Additional Image 9

Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable

LuxriteSKU: LR42648
Select Finish: White
Price:
$0.00 USD

Description

Luxrite 3' Architectural Linkable Linear 3 CCT/3 Wattage/Up-Down Selectable

Specifications

  • Item description: ARCHL36/3CCT/3WO/WT/UPDN
  • Size: 3'
  • Shape: Architectural Linear

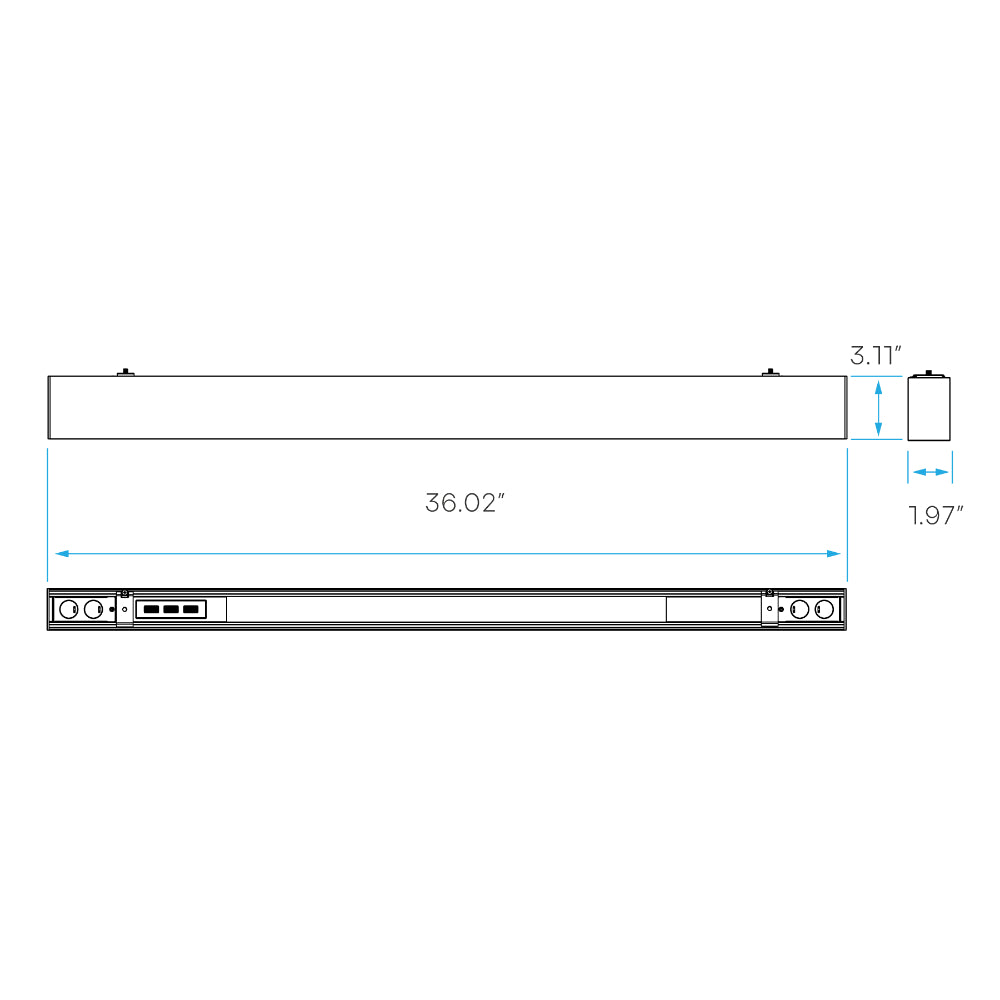

  • Dimensions:
    • Length: 36.02 Inch
    • Width: 1.97 Inch
    • Height: 3.11 Inch
  • Finish: White
  • MOL: 36.02 Inch

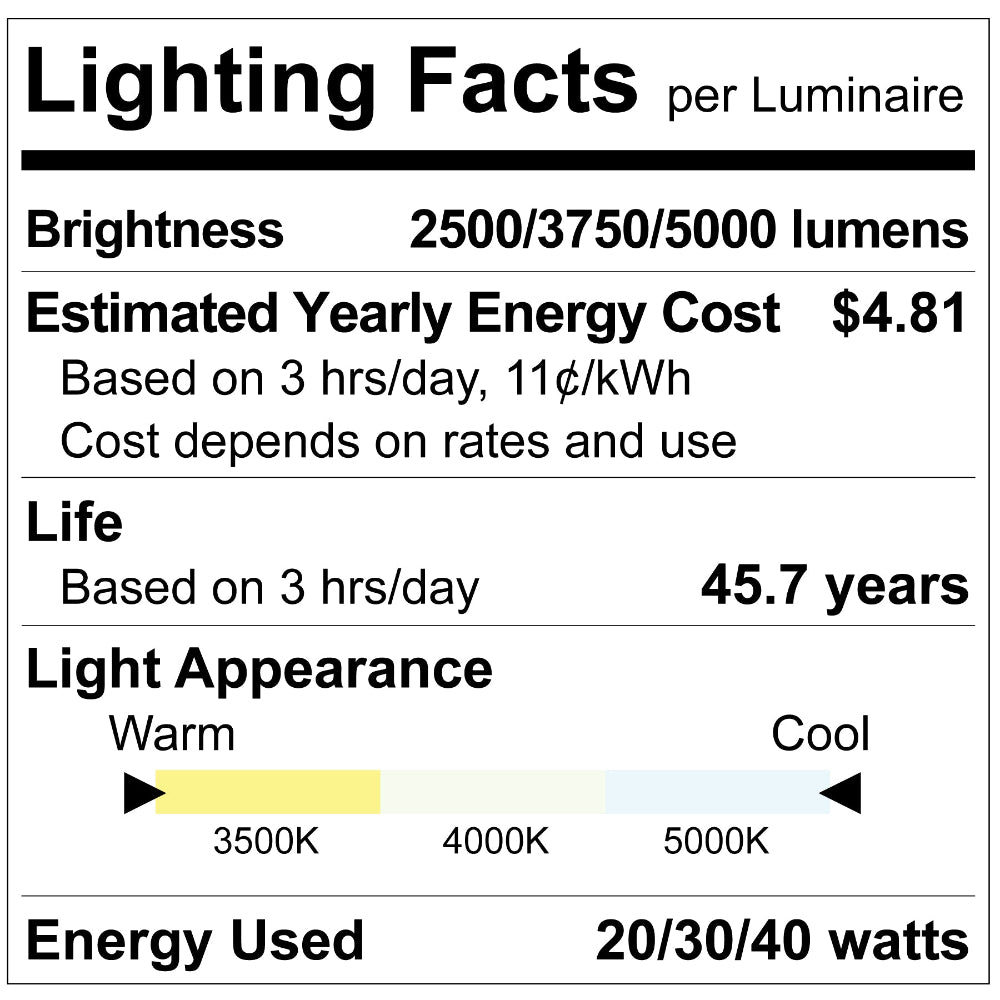

Photometric

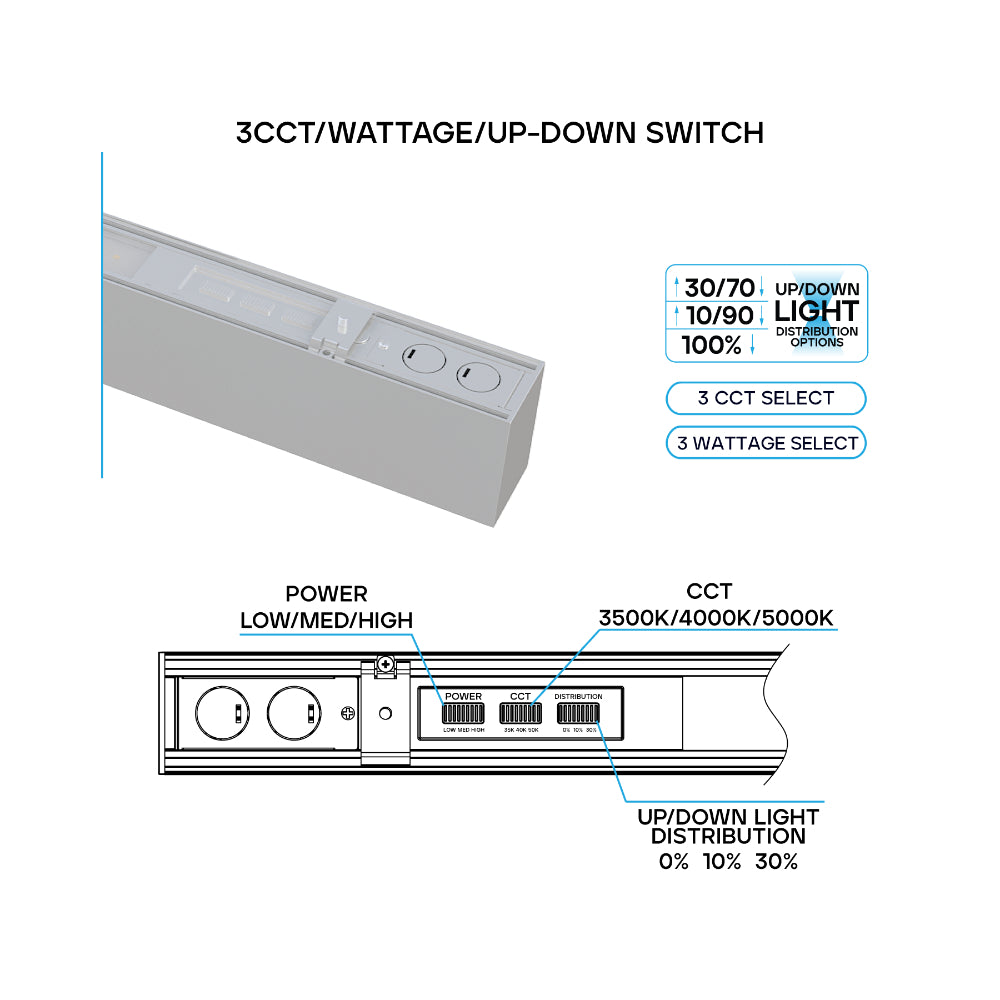

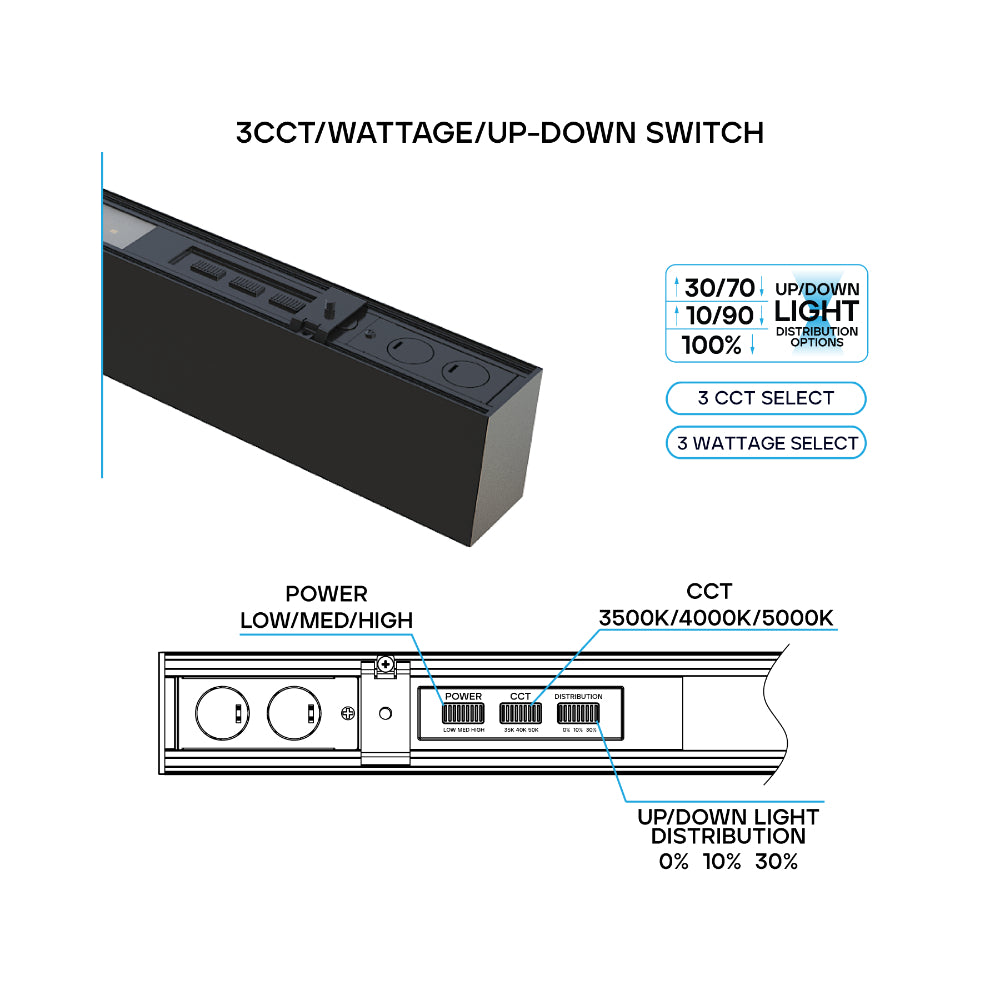

  • Color (Temp): CCT Selectable
  • Color (CCT): 3500K/4000K/5000K
  • Lumen: 2500/3750/5000
  • Beam Angle: 120º
  • CRI: 80

Electrical

  • Power (Wattage): 20/30/40
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: 0-10V
  • Power Factor: 0.9
  • Lumen Efficacy: 125
  • Operating Temp:
    • Min: -4º
    • Max: 113º
Product Files

Click for Luxrite LR42648 Specification Sheet

Click for Luxrite LR42648 Install Guide

Click for Luxrite LR42648 Warranty
