Description

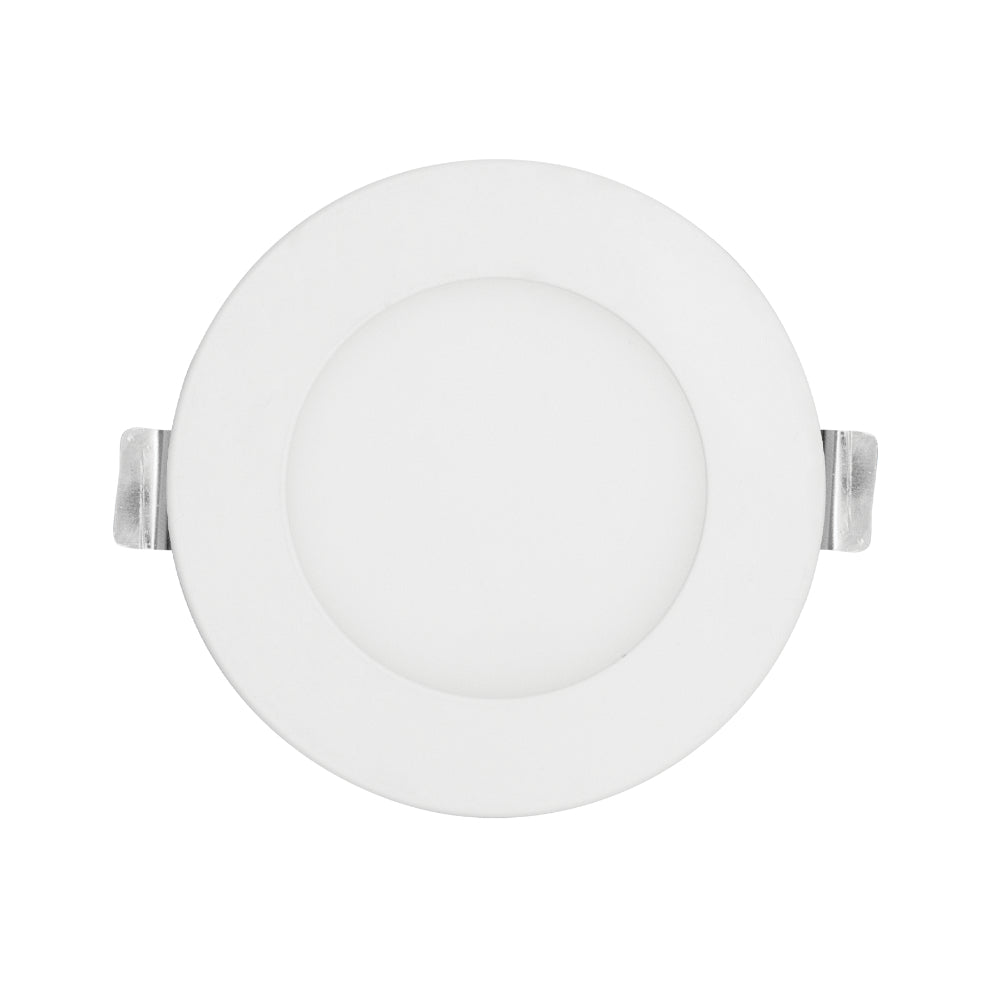

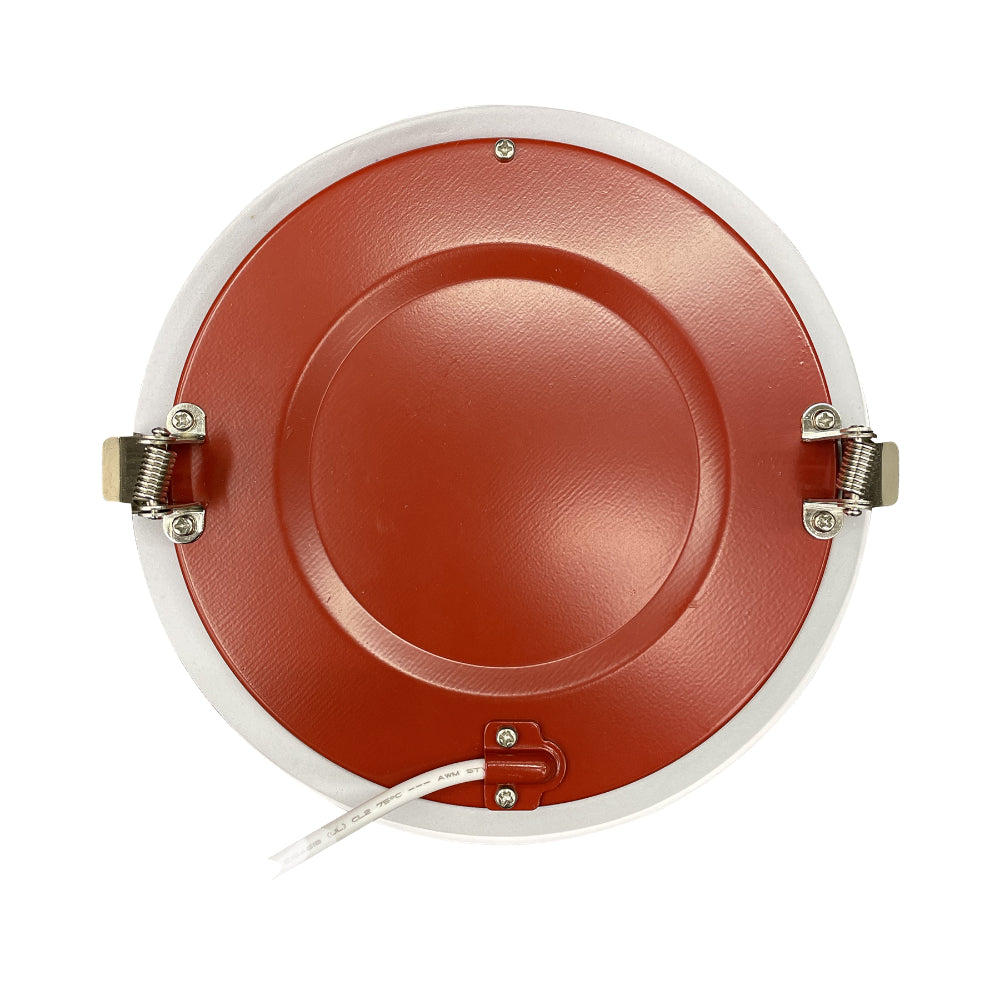

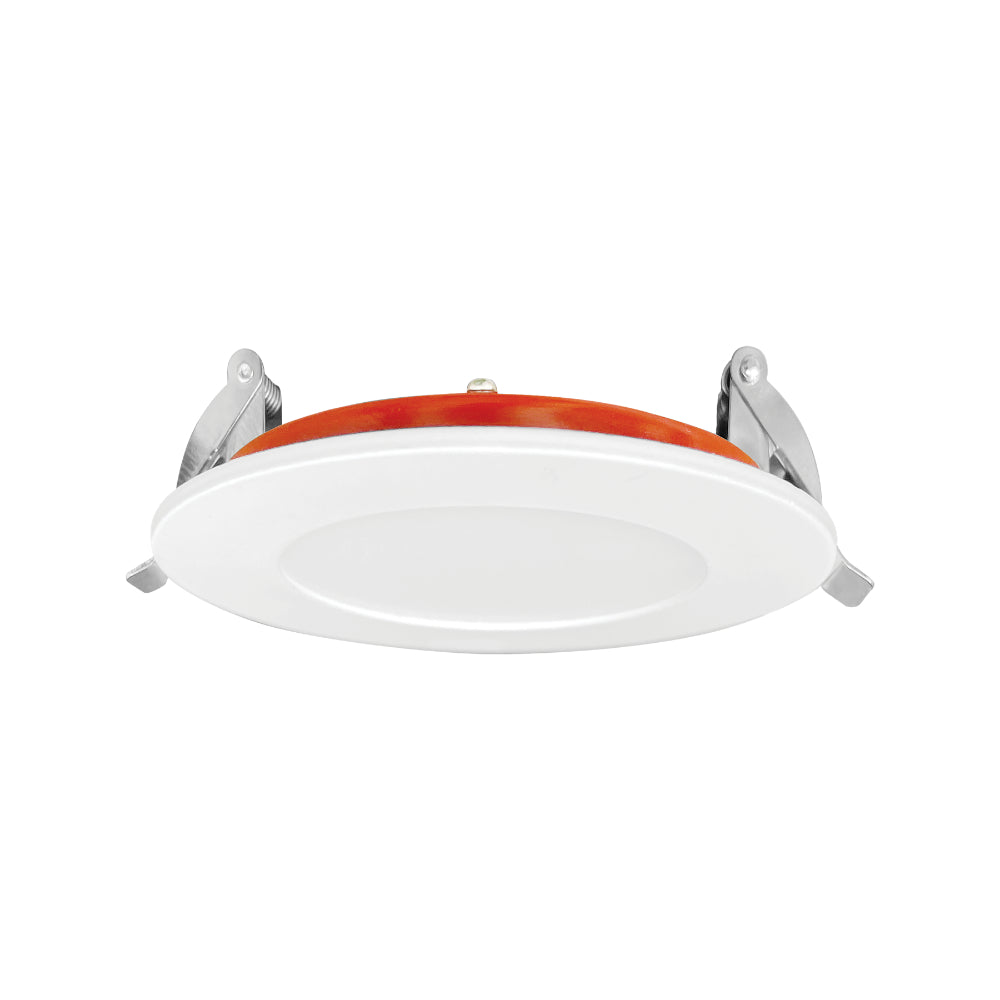

Luxrite 3" Fire Rated Canless Wafer Spotlight - 5 CCT Selectable
Specifications
- Item description: LED/MINI3/FIRE/5CCT/RD/WT
- Size: 3 Inch
- Shape: 3 Inch Fire Rated Mini Panel

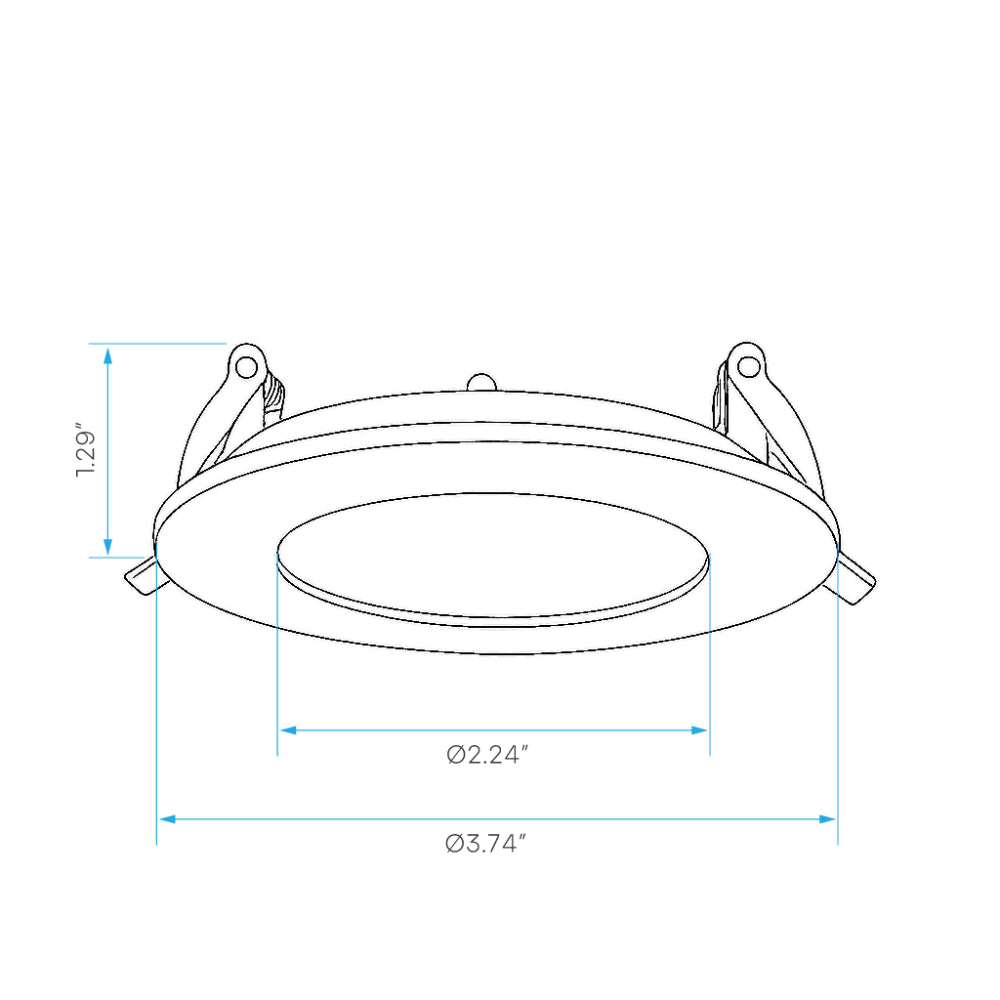

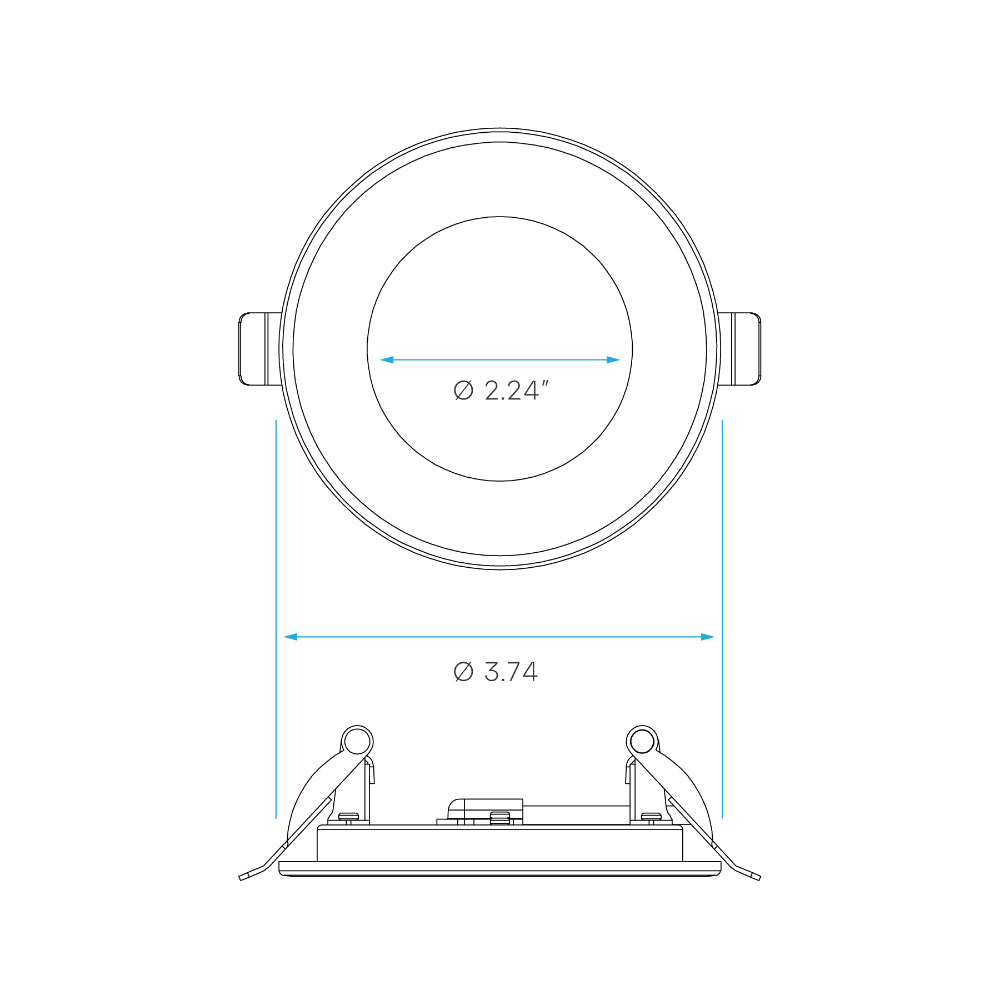

- Dimensions:
- Length: Ø3.75 Inch
- Height: 1.25 Inch
- Finish: White
- Cutout: Ø3.25 Inch
- Plate: LR41010 (#R0), LR41011 (#2)

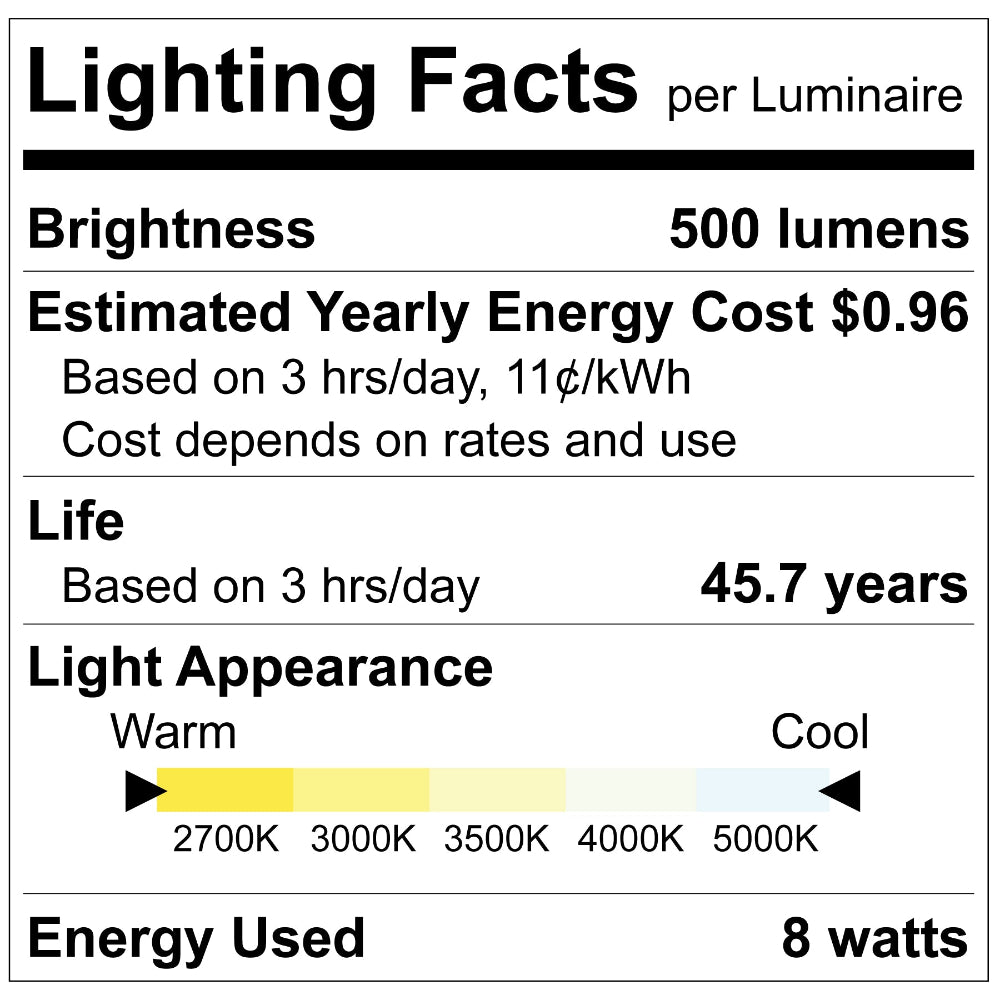

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 500
- Beam Angle: 120º
- CRI: 90
Electrical
- Power (Wattage): 8
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 69
- Operating Temp:
- Min: -4º
- Max: 104º
Product Files
Click forLuxrite LR23478 Specification Sheet
Click forLuxrite LR23478 Install Guide
