Description

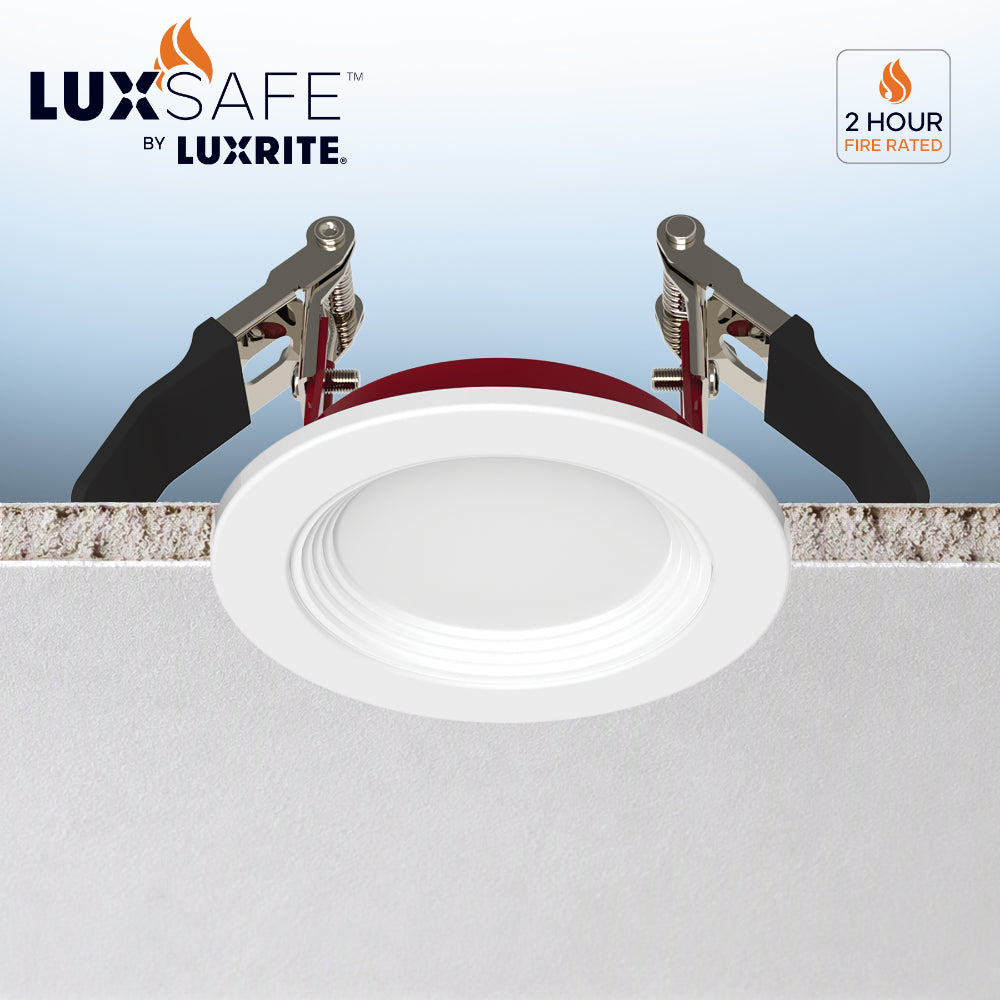

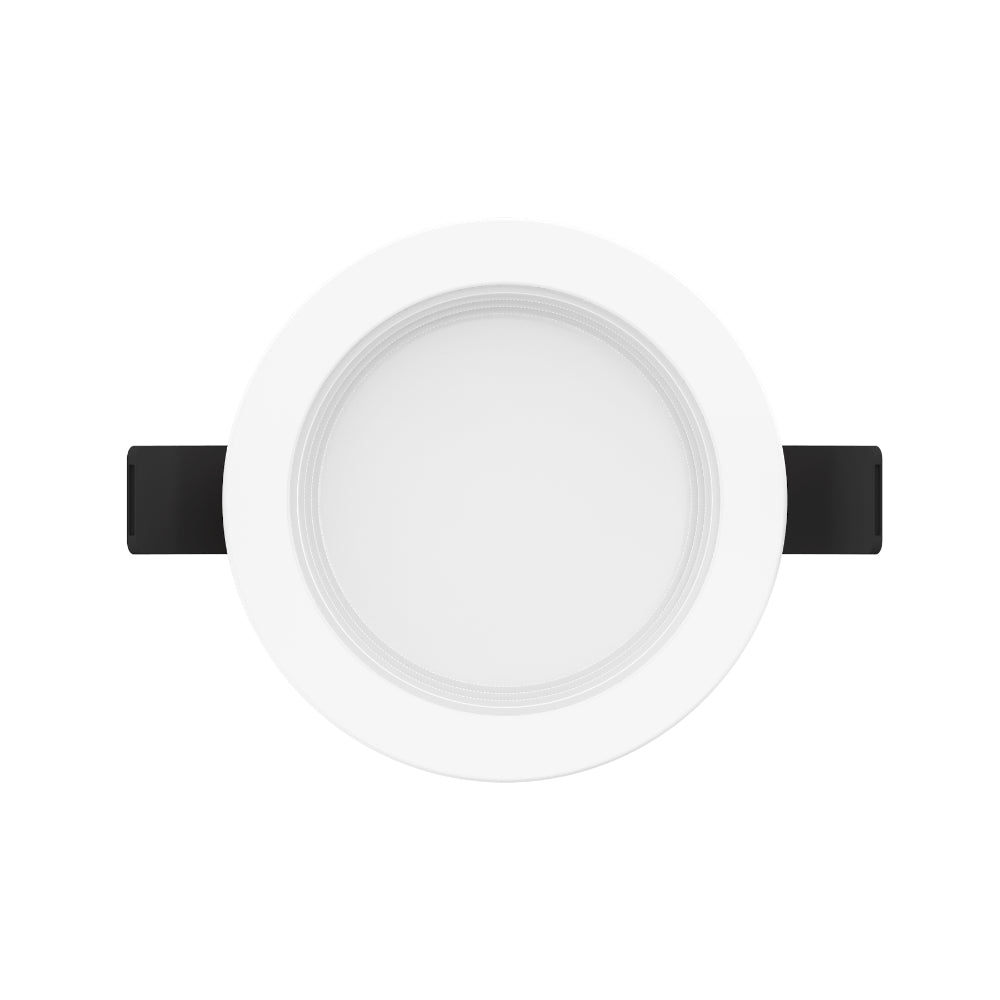

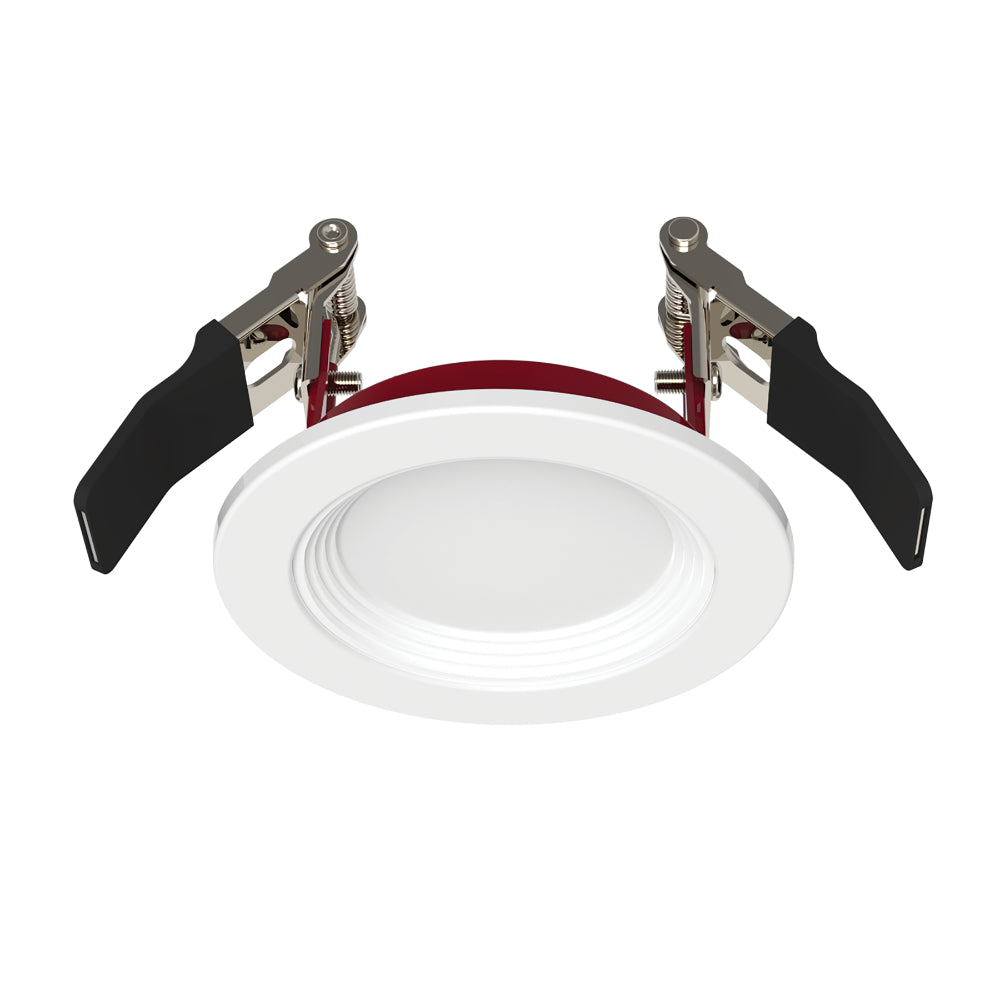

Luxrite 3" Fire Rated Step Baffled Canless Spotlight - 5CCT Selectable
Specifications
- Item description: LED/MINI3/FIRE/5CCT/RD/WT/B
- Size: 3 Inch
- Shape: 3 Inch Fire Rated Mini Panel

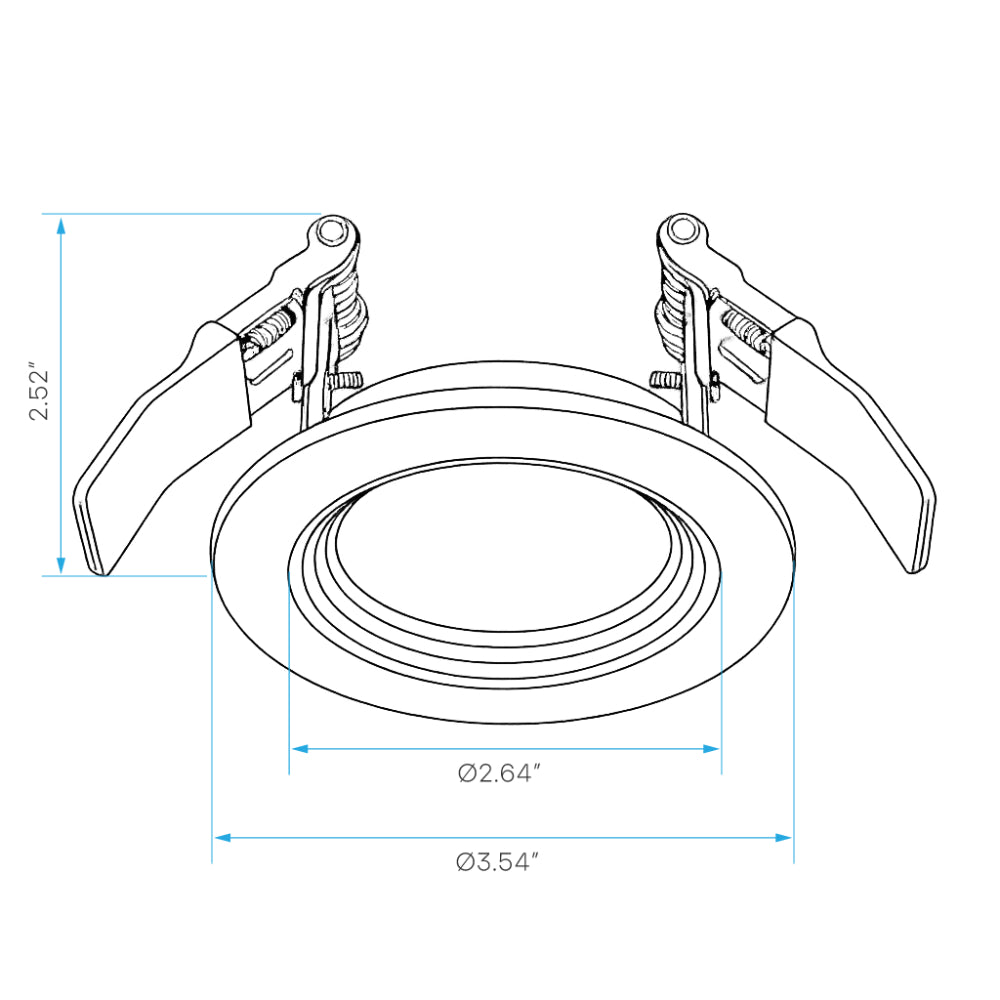

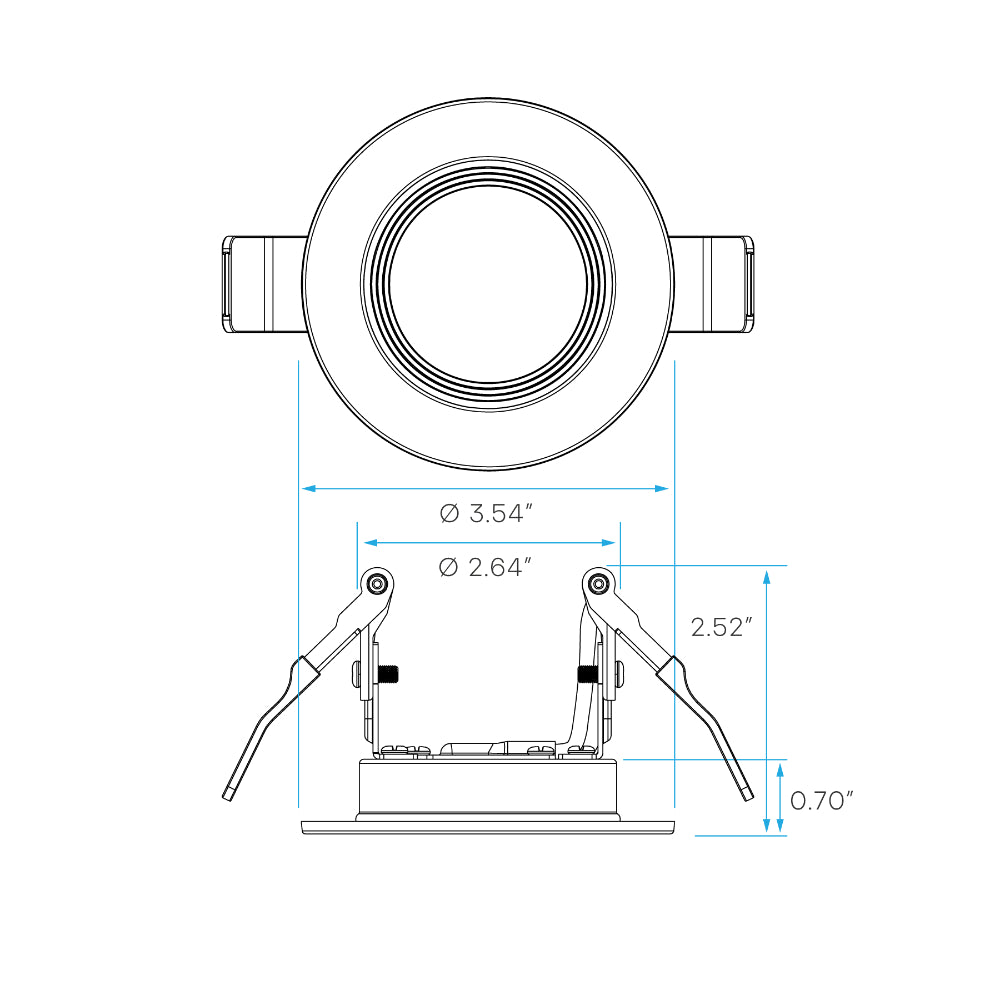

- Dimensions:
- Length: Ø3.54 Inch
- Height: 0.70 Inch
- Finish: White
- Cutout: Ø3 Inch
- Plate: LR41002 (#0), LR41004 (#2), LR41006 (#1), LR41010 (#R0), LR41011 (#2)

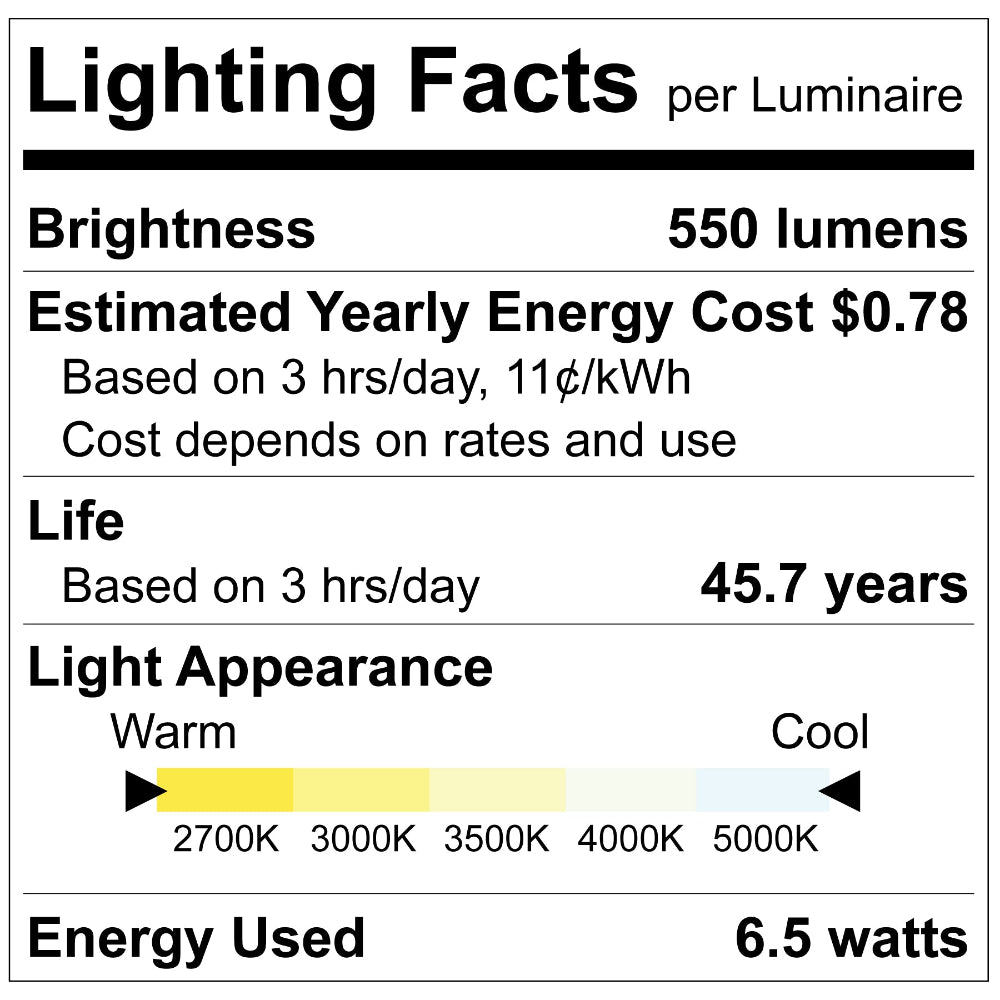

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 550
- Beam Angle: 110º
- CRI: 90
Electrical
- Power (Wattage): 6.5
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 85
- Operating Temp:
- Min: -22º
- Max: 104º
Product Files
Click forLuxrite LR23490 Specification Sheet
Click forLuxrite LR23490 Install Guide
