Luxrite 3" Flat Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage

LuxriteSKU: LR25454
Price:
$0.00 USD

Description

Luxrite 3" Flat Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/TLMD3/FLT/5CCT/RD/WT/UNV/DD
  • Size: 3 Inch
  • Shape: Flat Trimless Spotlight

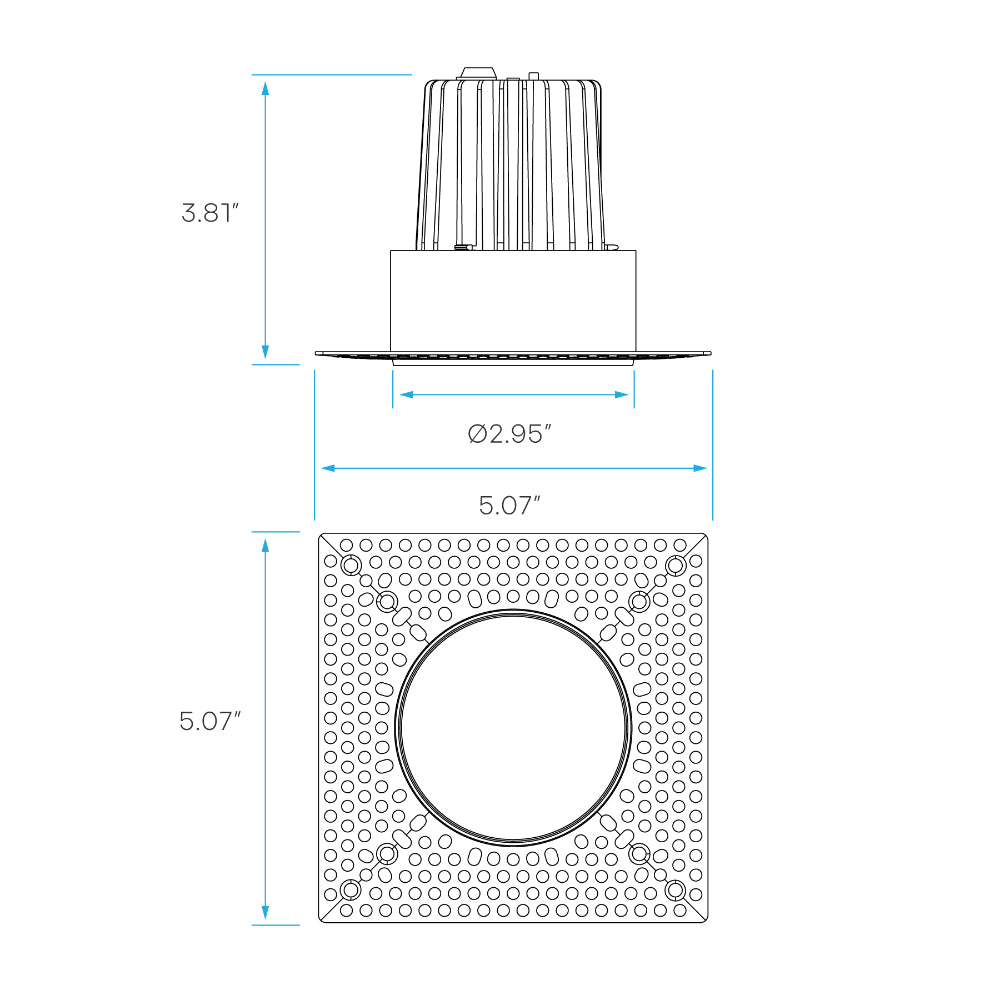

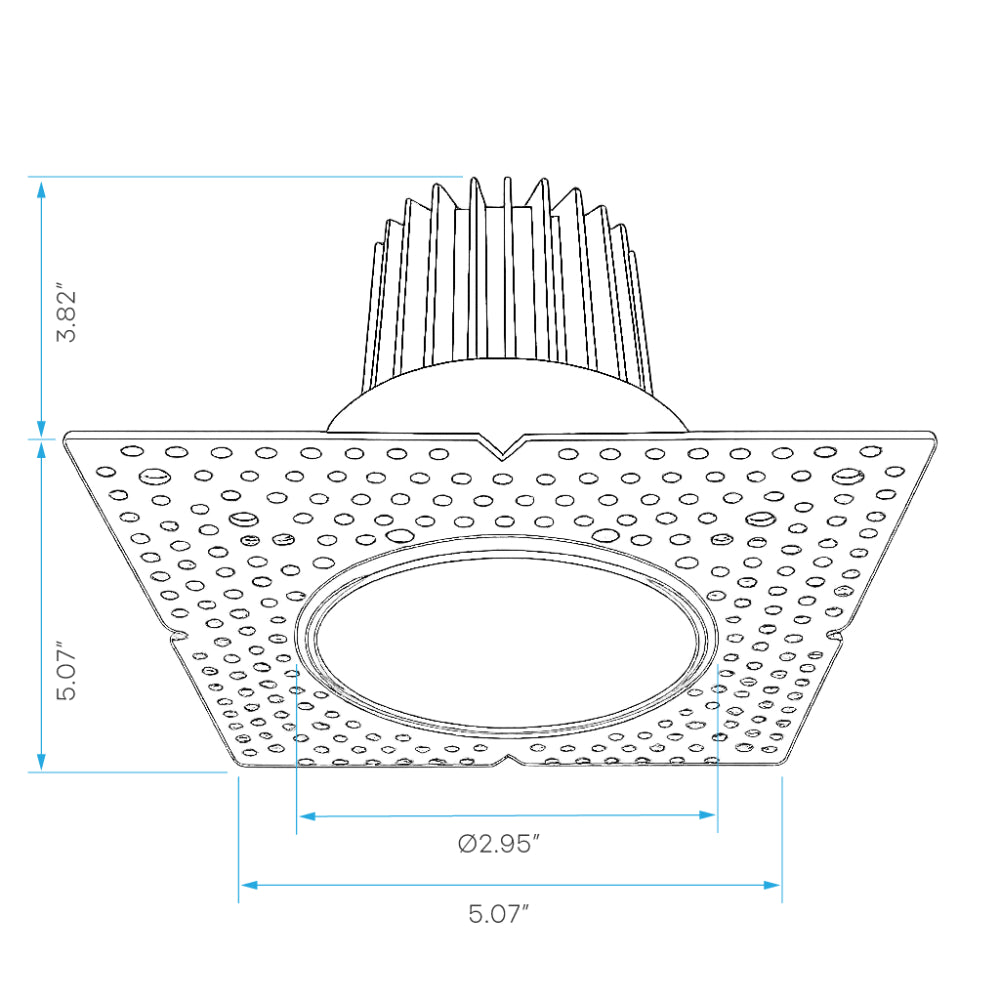

  • Dimensions:
    • Width: 5.07 Inch
    • Depth: 3.81 Inch
  • Finish: White
  • Cutout: Ø3.38 Inch
  • Plate: LR41004 (#2), LR41006 (#2), LR41010 (#L2), LR41011 (#2)

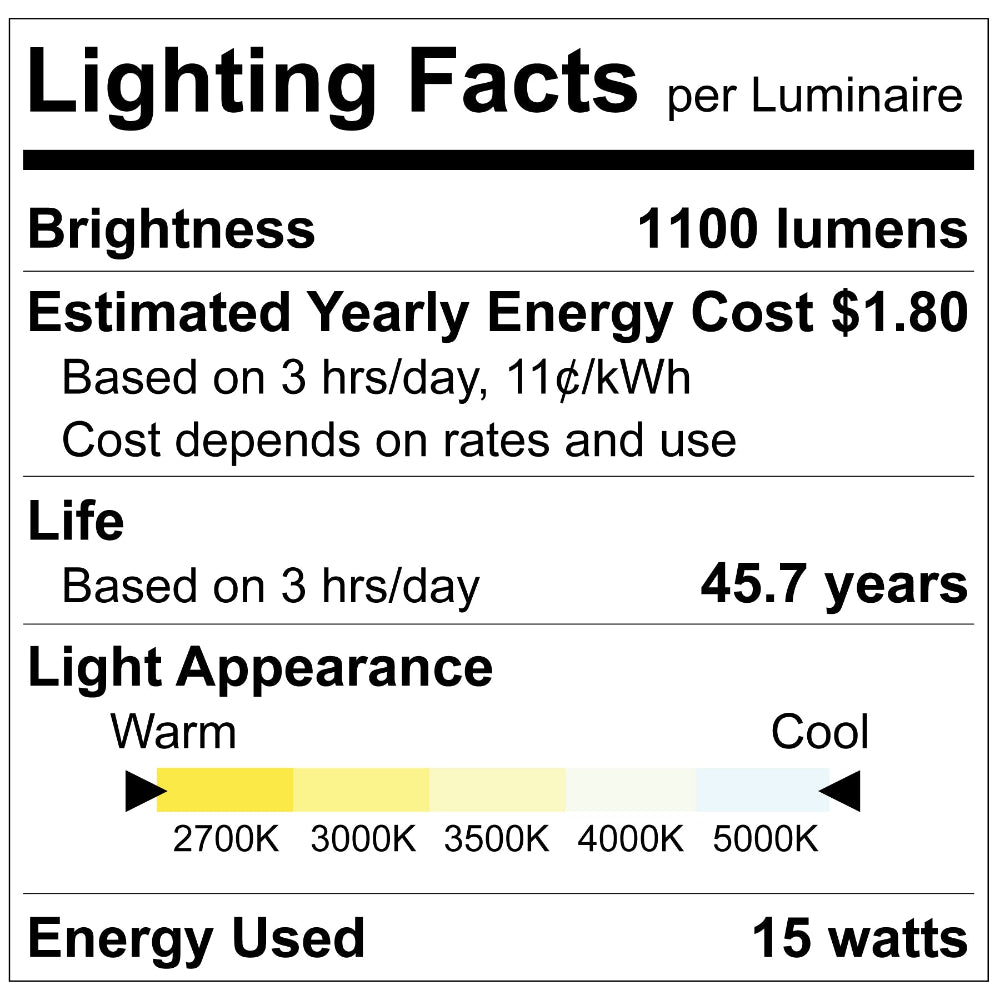

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1100
  • Beam Angle: 110º
  • CRI: 90

Electrical

  • Power (Wattage): 15
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Input Current: 280Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 73
  • Operating Temp:
    • Min: -4º
    • Max: 113º
Product Files

Click forLuxrite LR25454 Specification Sheet

Click forLuxrite LR25454 Family Specification Sheet

Click forLuxrite LR25454 Install Guide

Click forLuxrite LR25454 Dimmer Compatibility

Click forLuxrite LR25454 Warranty
