Description

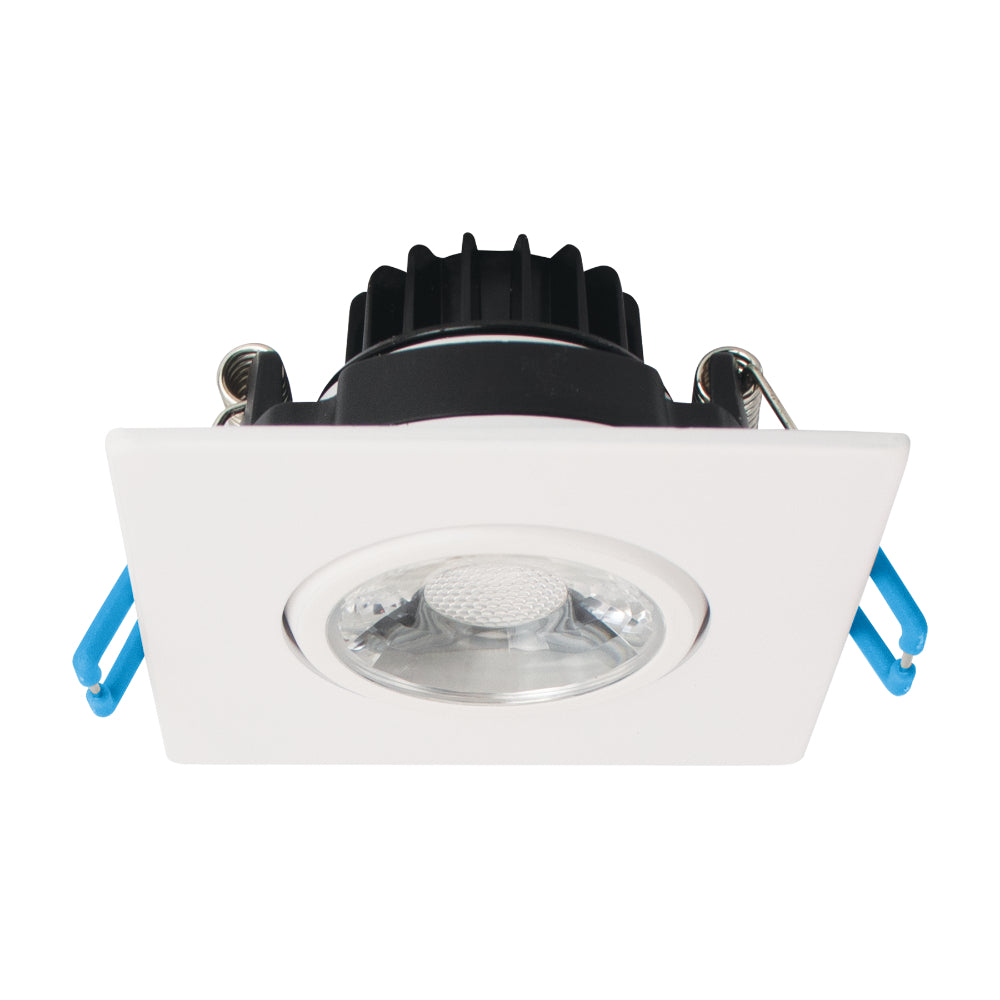

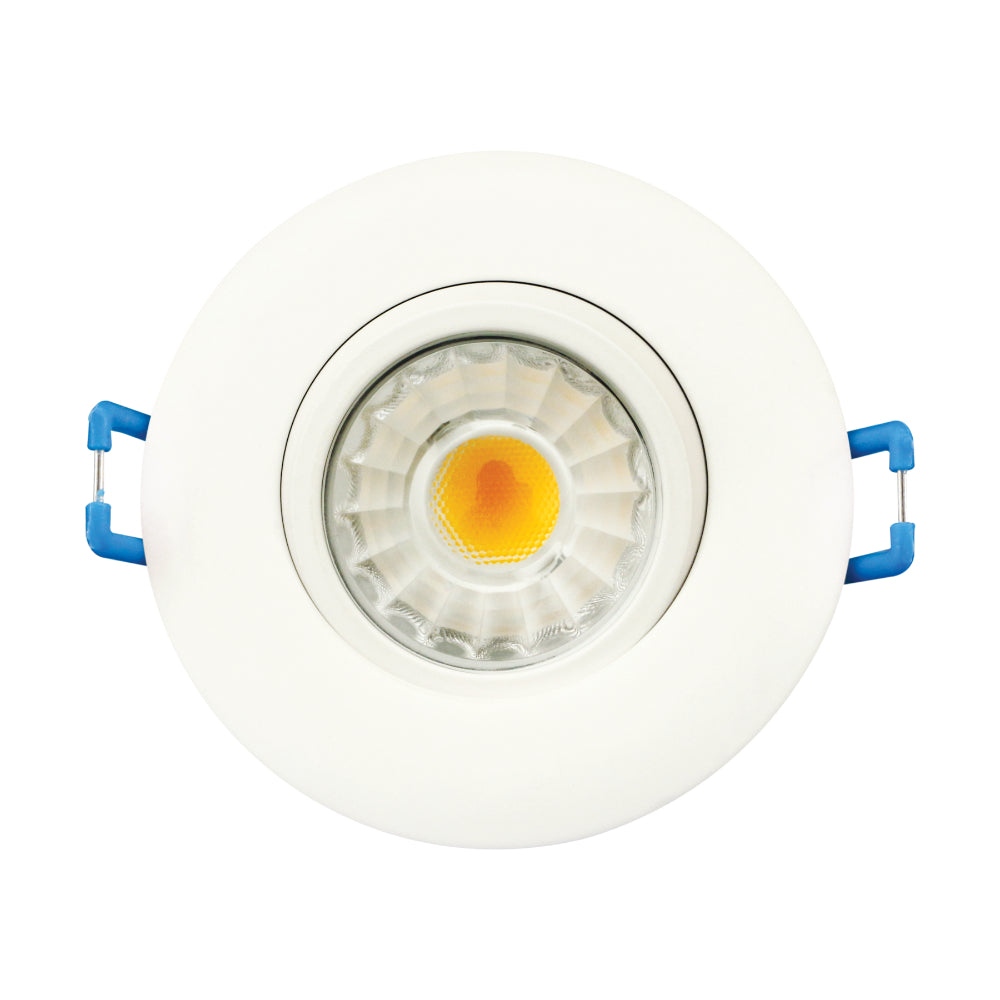

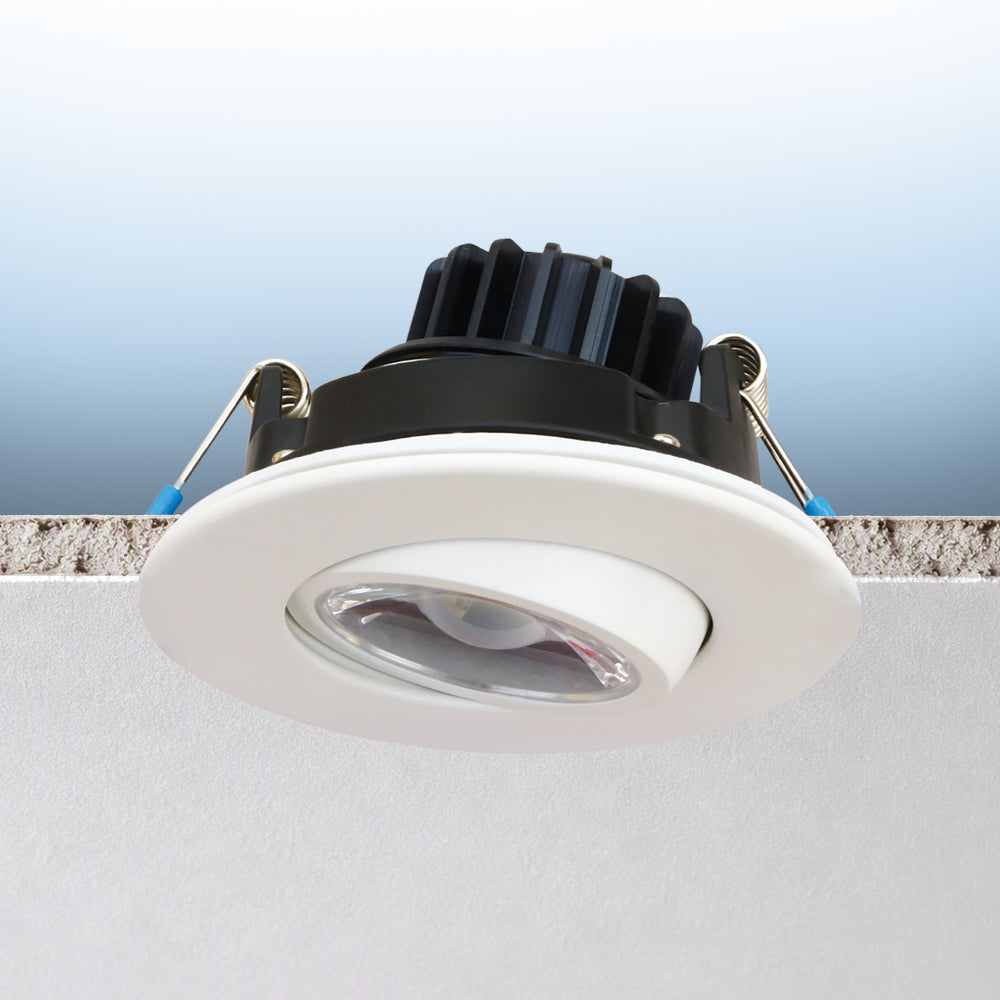

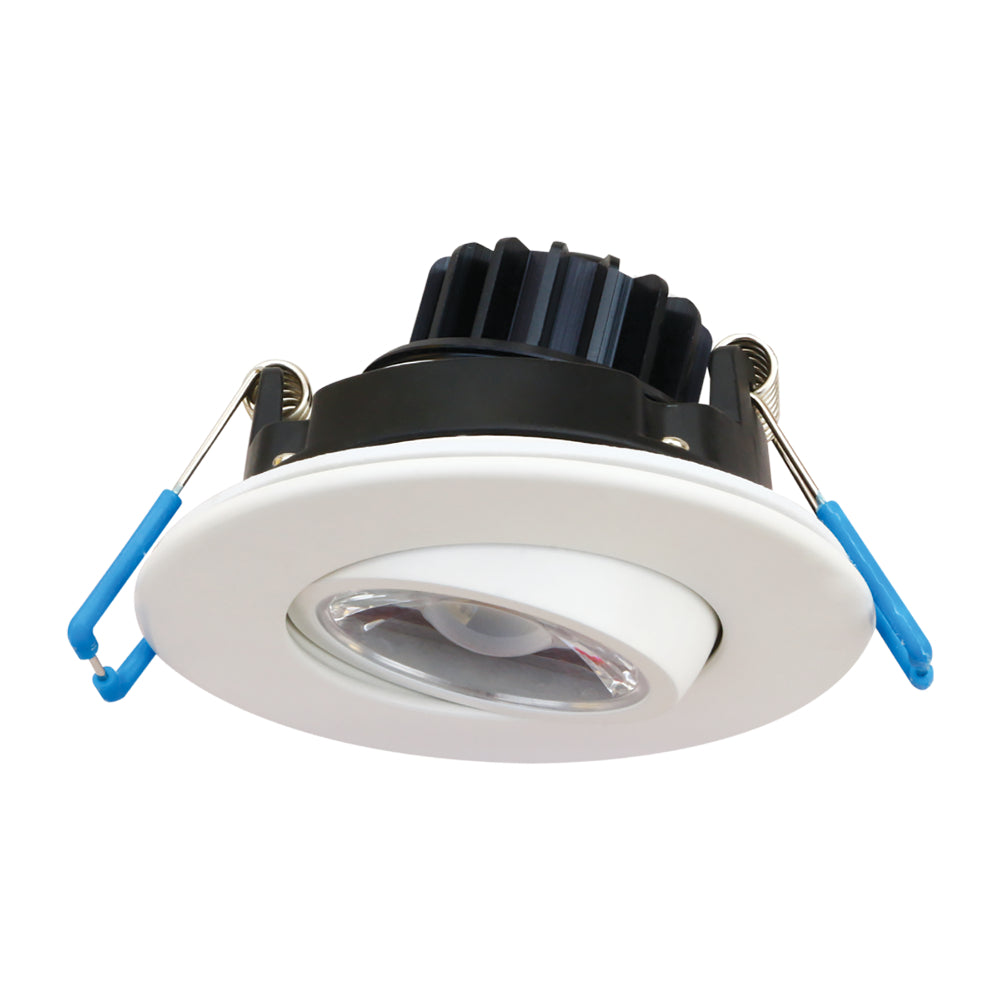

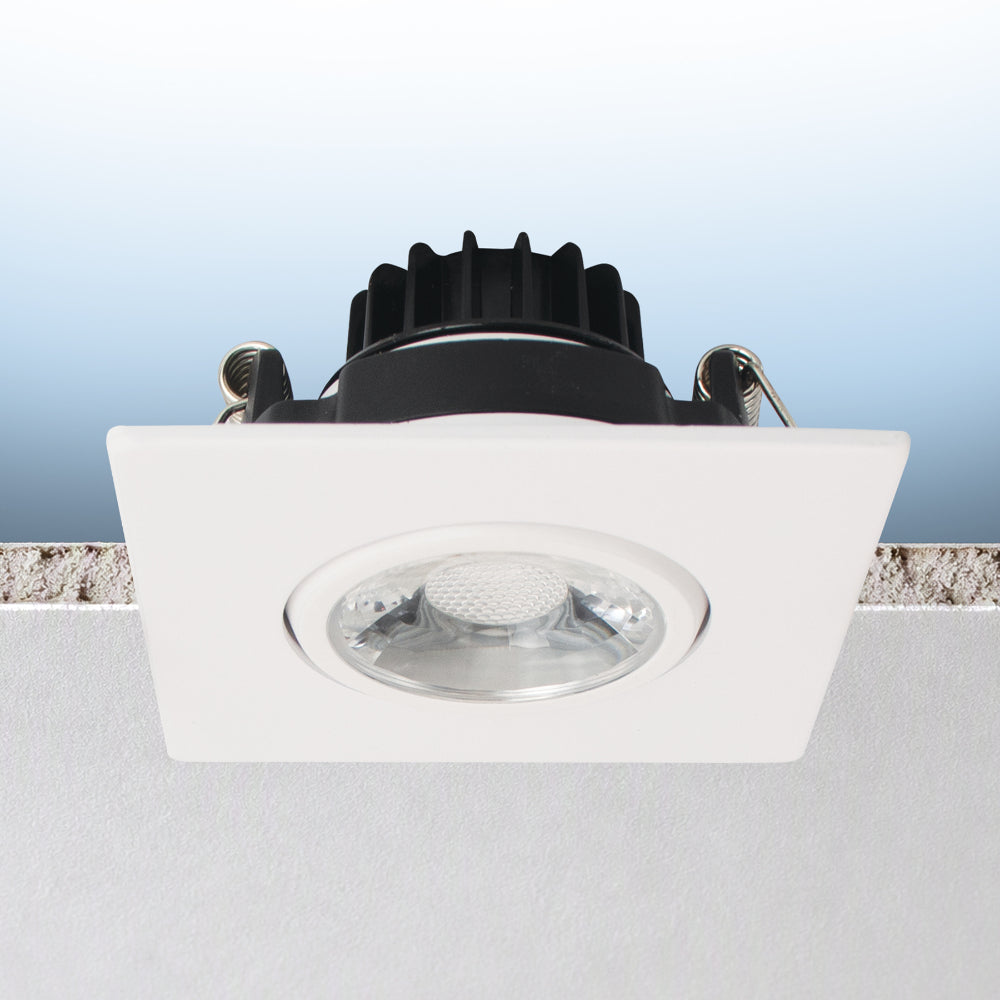

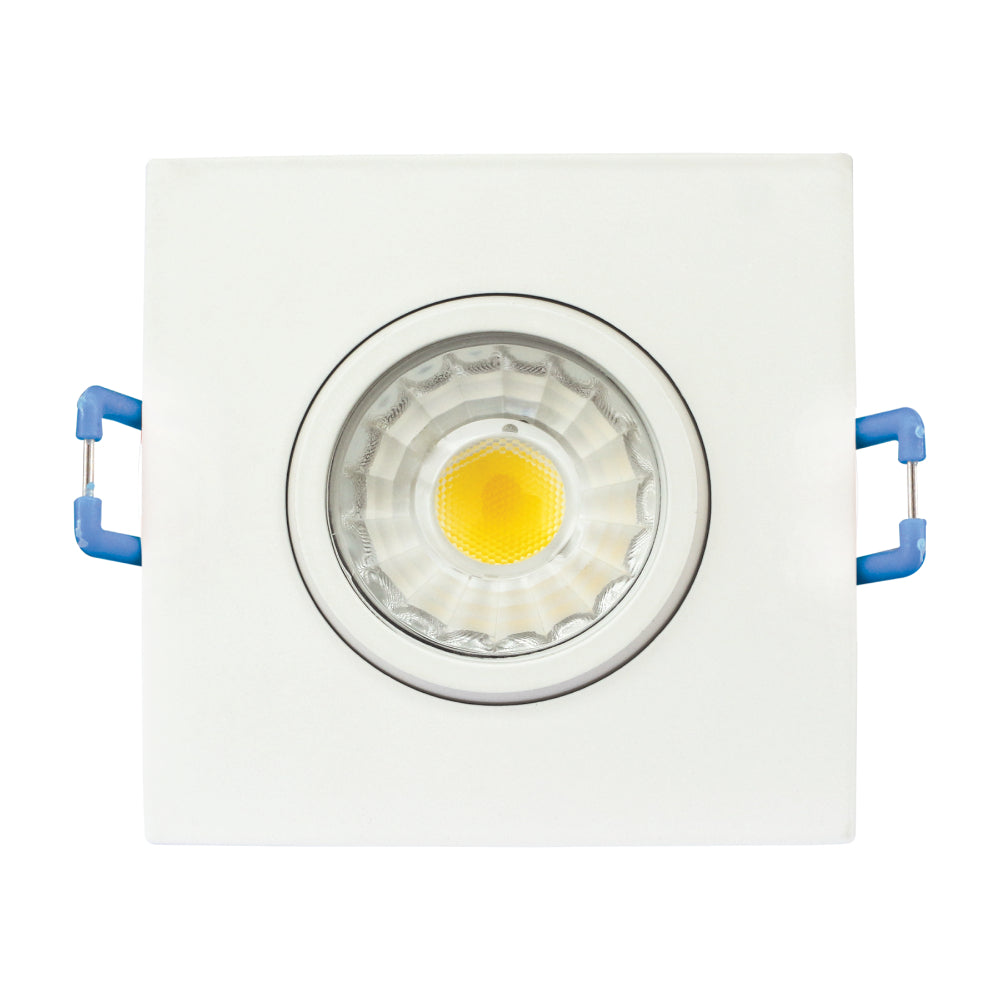

Luxrite 3" Gimbal 5CCT Canless Spotlight
Specifications
- Item description: LED8W/DL3/GB/5CCT/SQ
- Size: 3 Inch
- Shape: 3 Inch Gimbal

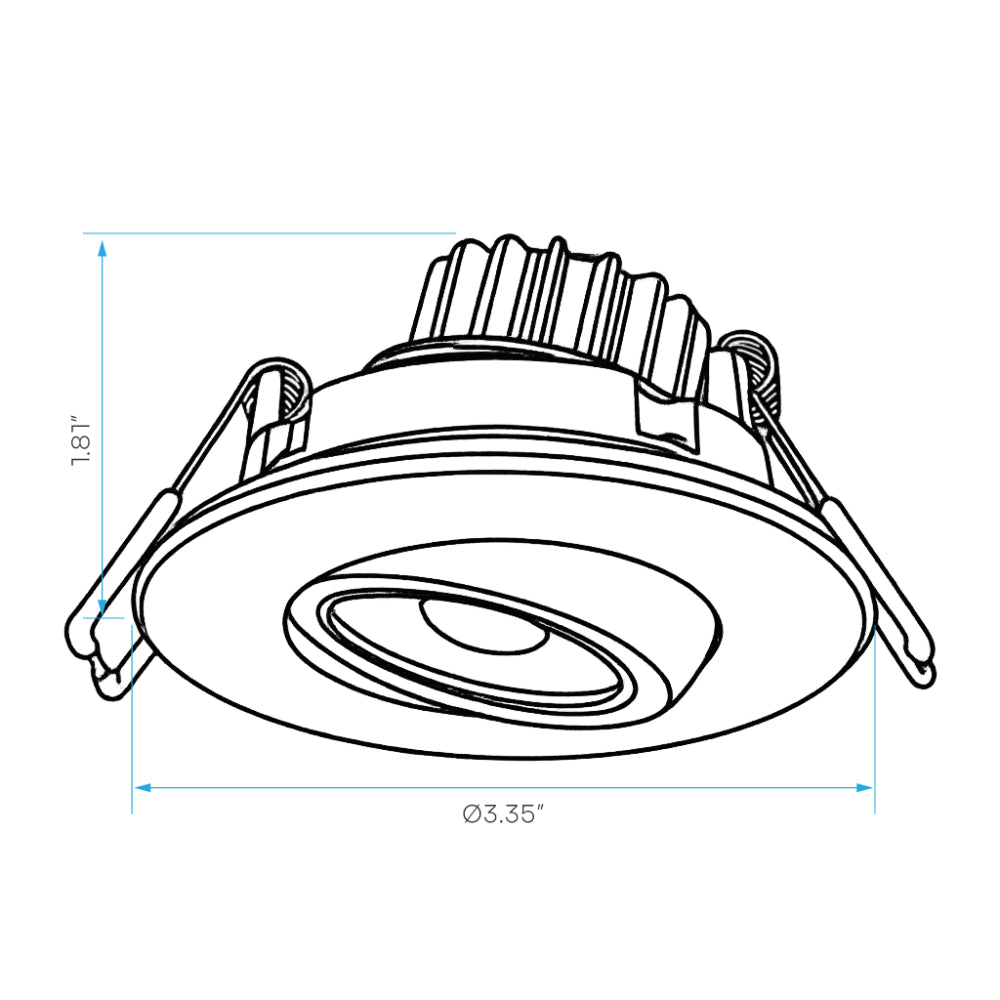

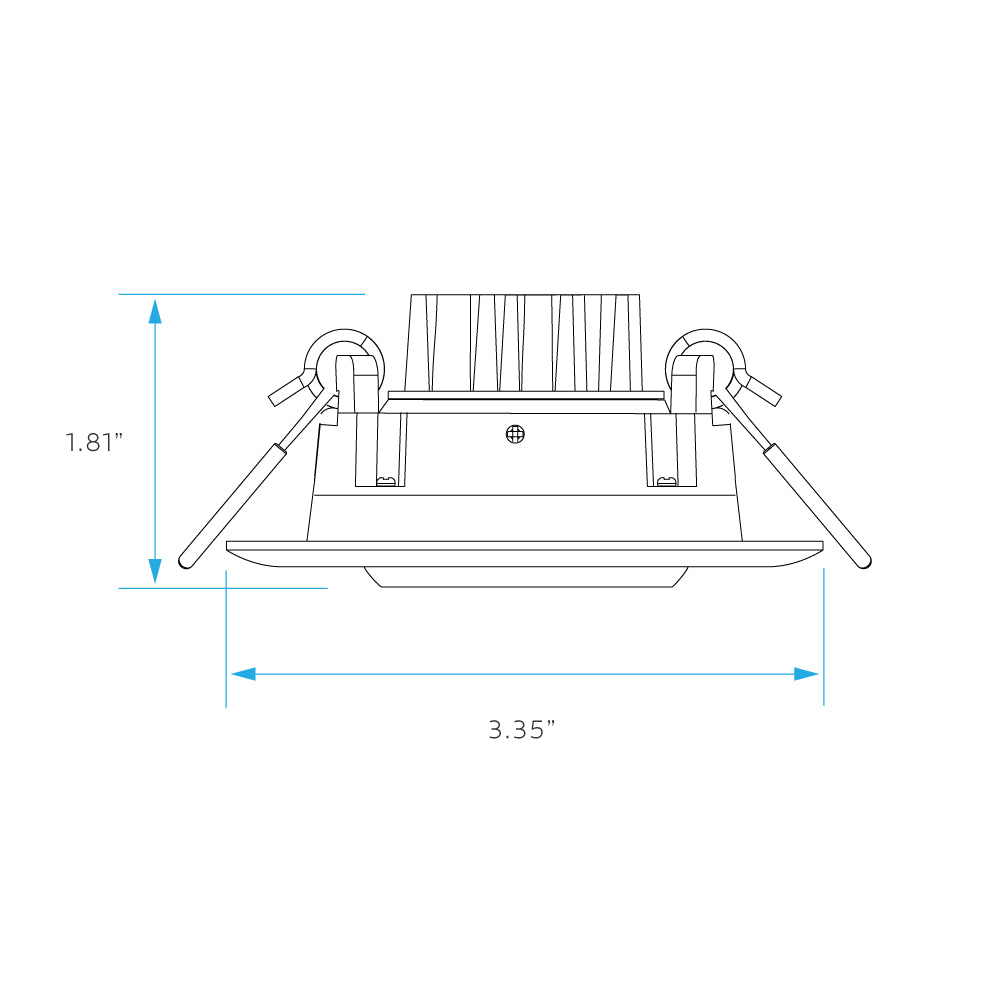

- Dimensions:
- Length: 3.25 Inch
- Width: 3.25 Inch
- Height: 1.81 Inch
- Finish: White
- Cutout: 2.75 Inch
- Plate: LR41004 (#1), LR41010 (#L1), LR41011 (#1)

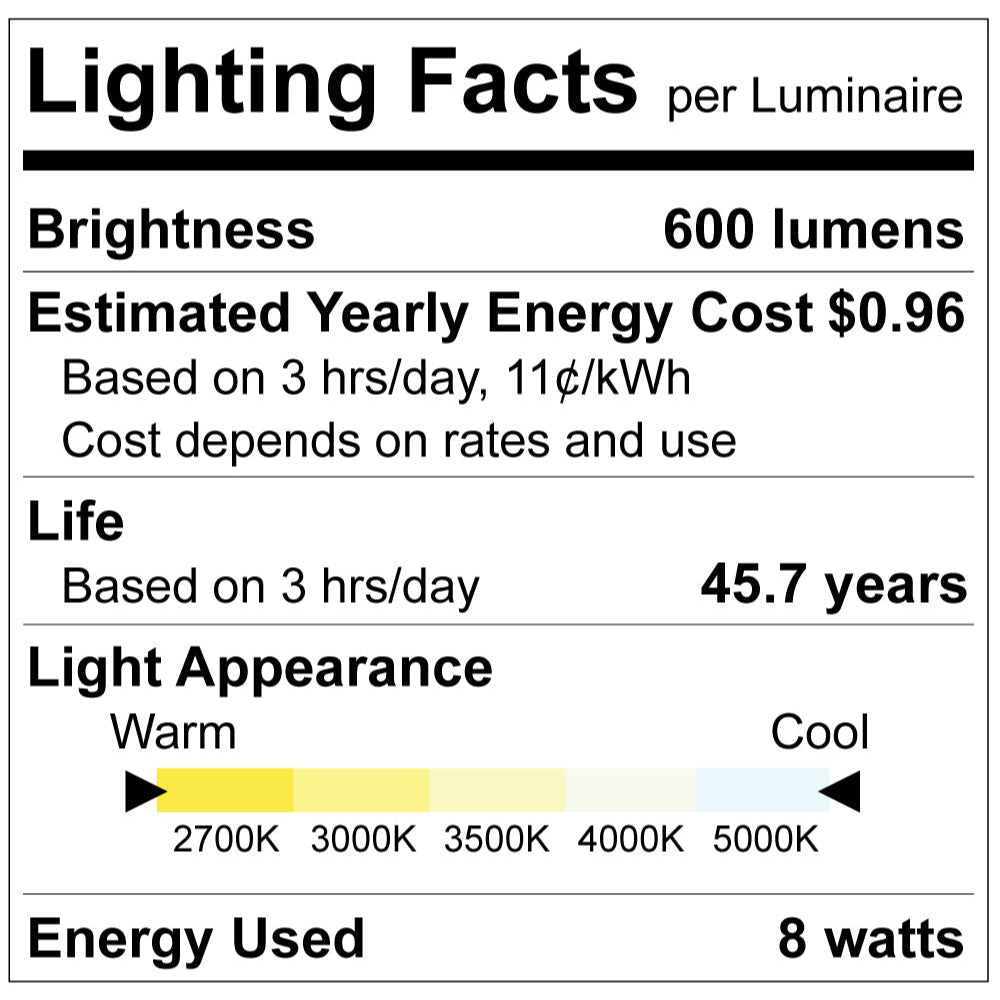

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 600
- Beam Angle: 40°
- CRI: 90
Electrical
- Power (Wattage): 8
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.98
- Input Current: 80Ma
- Frequency: 50/60Hz
- Watt Replacement: 50
- Lumen Efficacy: 75
- Operating Temp:
- Min: -40°
- Max: 104°
Product Files
Click forLuxrite LR23222 Specification Sheet
Click forLuxrite LR23222 Install Guide
Click forLuxrite LR23222 Dimmer Compatibility
Click forLuxrite LR23222 Warranty
