Luxrite 3" Interchangeable Module - 5CCT & 2 Wattage Selectable Very High Output - Universal Voltage/Dual Dimming

LuxriteSKU: LR25037
Select Beam Angle: 38 Degree
Price:
$0.00 USD

Description

Luxrite 3" Interchangeable Module - 5CCT & 2 Wattage Selectable Very High Output - Universal Voltage/Dual Dimming

Specifications

  • Item description: LED/DLMD3VHO/2WO/5CCT/DD/UNV/FL
  • Size: 3 Inch
  • Shape: 3 Inch Interchangable

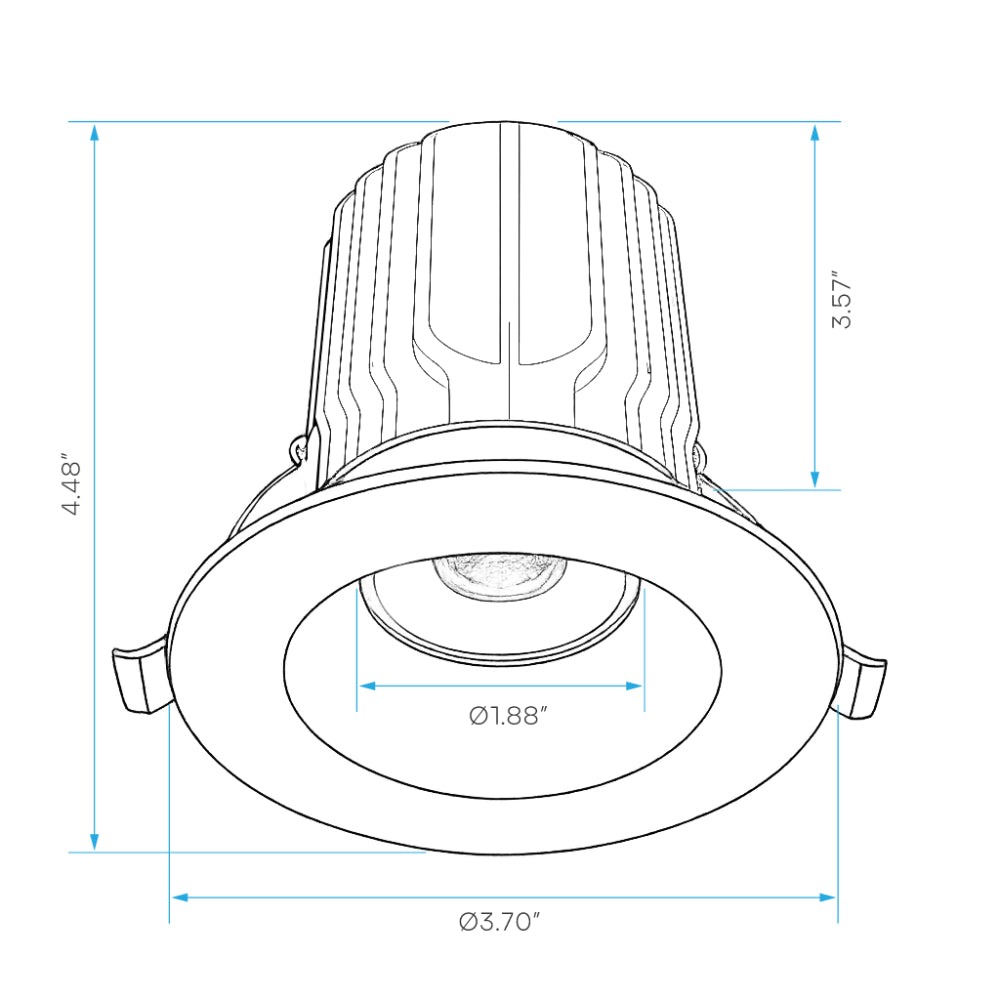

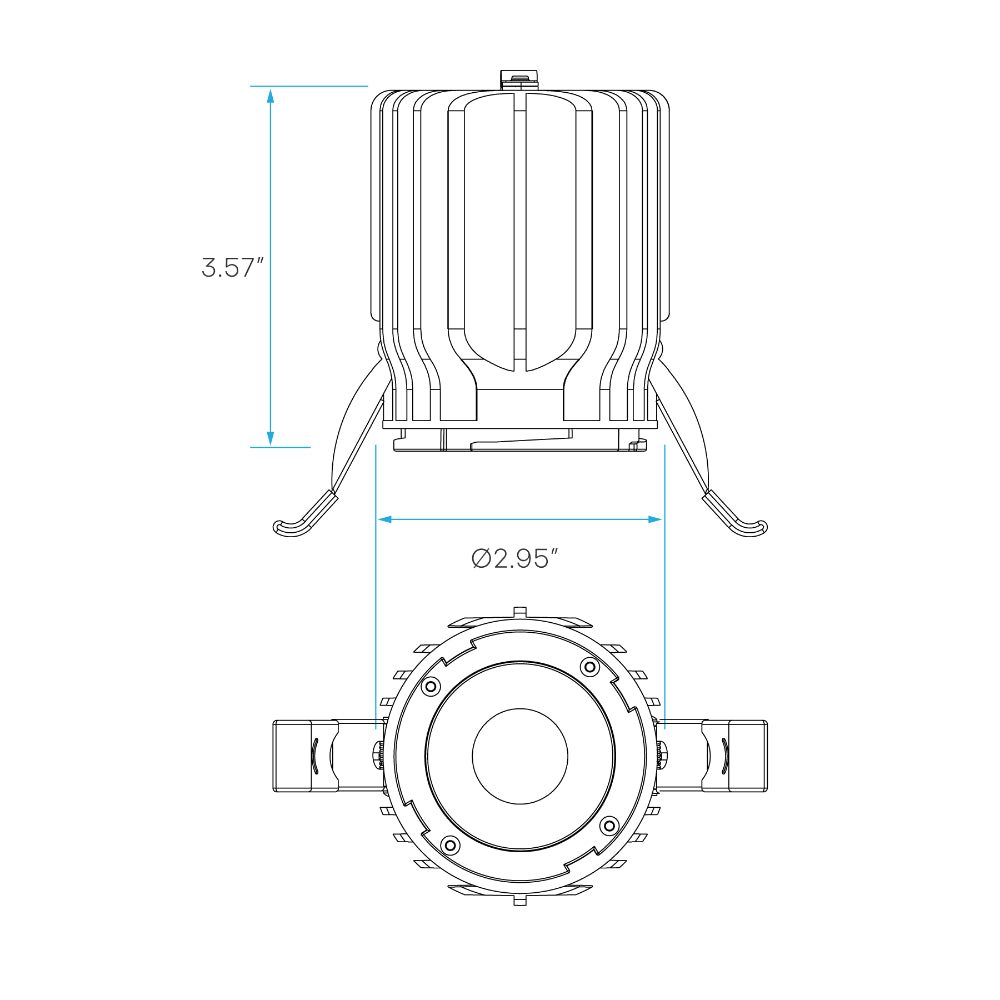

  • Dimensions:
    • Width: Ø 2.95 Inch (3.70 Inch w/Trim)
    • Depth: 3.57 Inch (4.48 Inch w/trim)
  • Finish: Black
  • Cutout: Ø3.22 Inch
  • Plate: LR41006 (#1), LR41010 (#R0), LR41011 (#2)

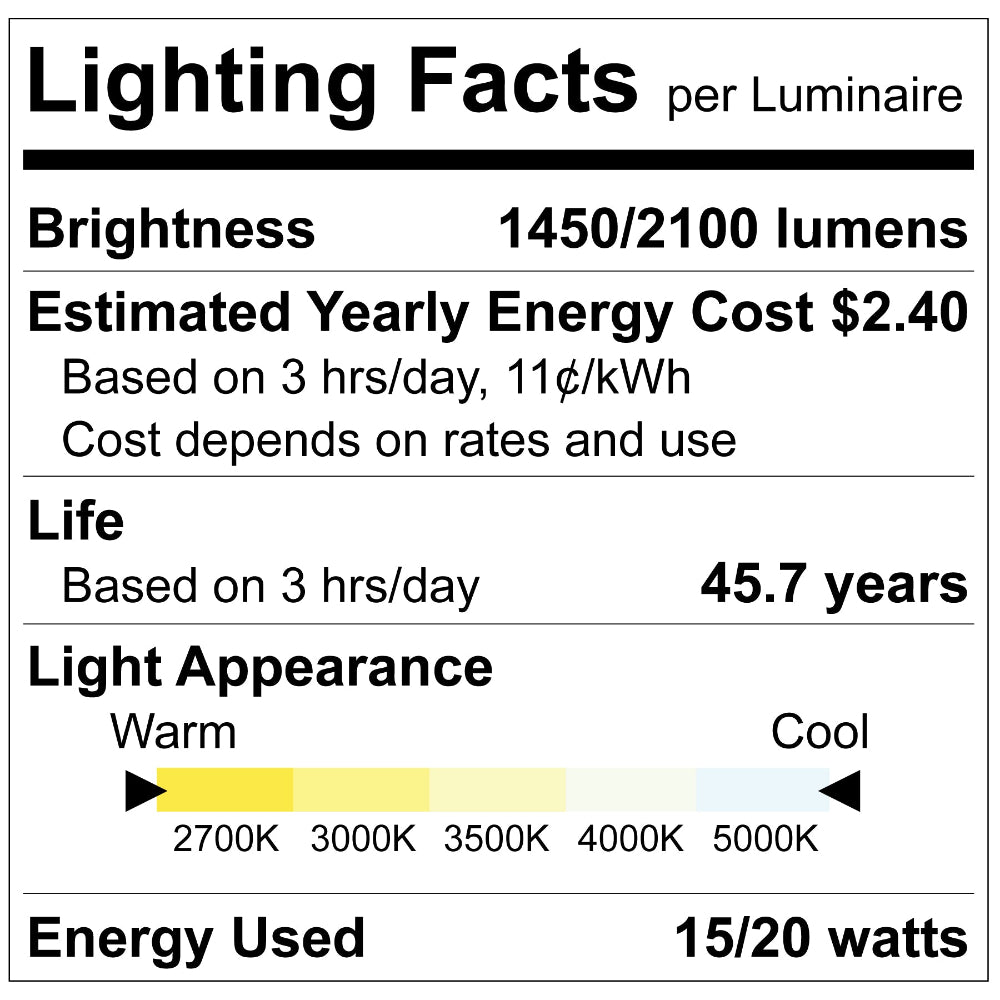

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1450@15W/2100@20W
  • CRI: 90

Electrical

  • Power (Wattage): 15/20
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: >0.9
  • Input Current: 340mA/460mA
  • Frequency: 60Hz
  • Lumen Efficacy: 105
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR25037 Specification Sheet

Click forLuxrite LR25037 Install Guide

Click forLuxrite LR25037 Dimmer Compatibility

Click forLuxrite LR25037 Warranty

Click forLuxrite LR25038 Warranty
