Description

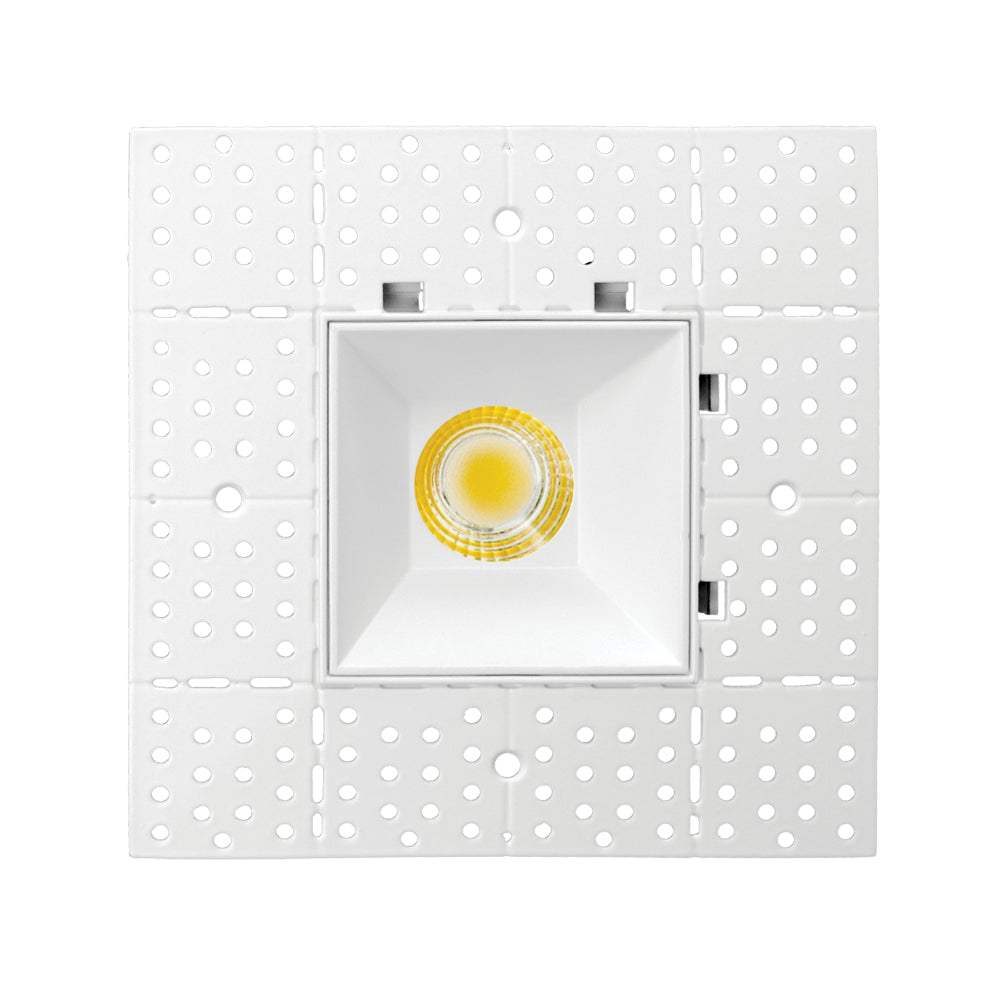

Luxrite 3" Interlocking Trimless Module Spotlight - 5CCT Selectable
Specifications
- Item description: LED/ITLMD3/5CCT/SQ/WT/D
- Size: 3 Inch
- Shape: Interlocking Trimless

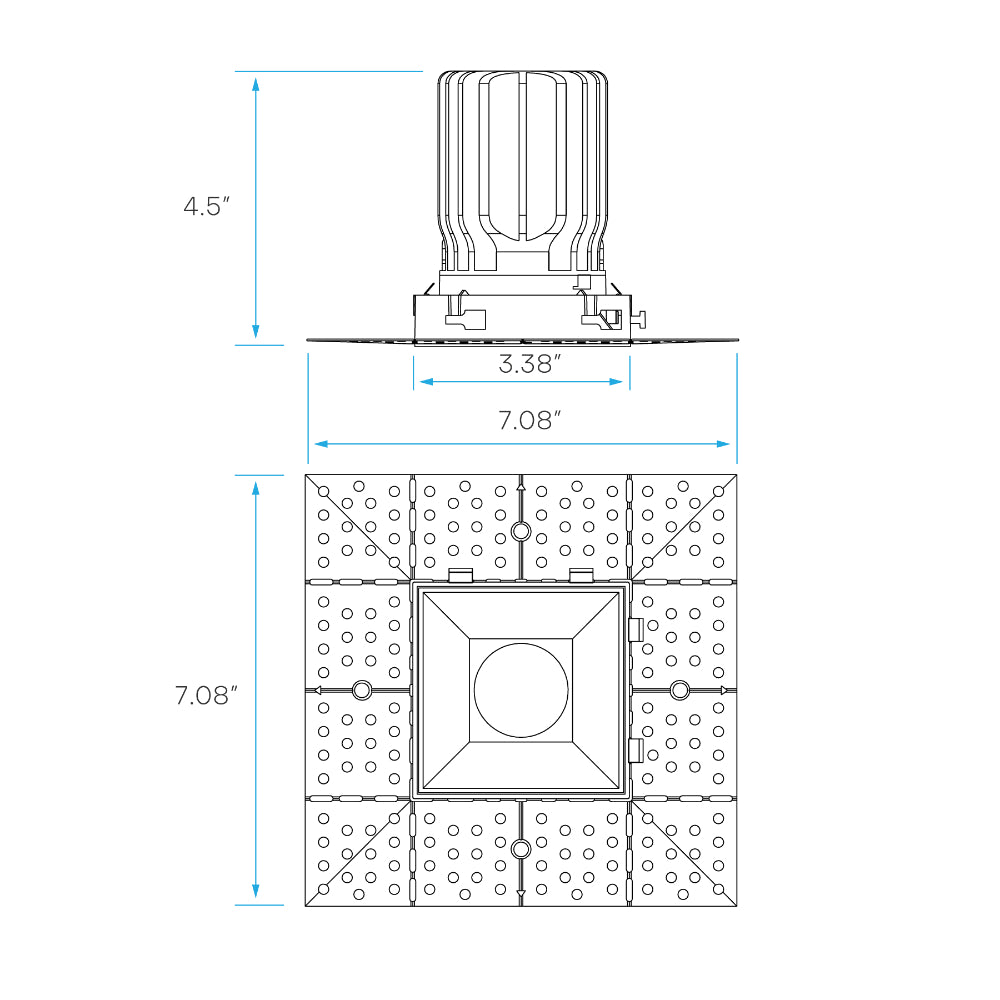

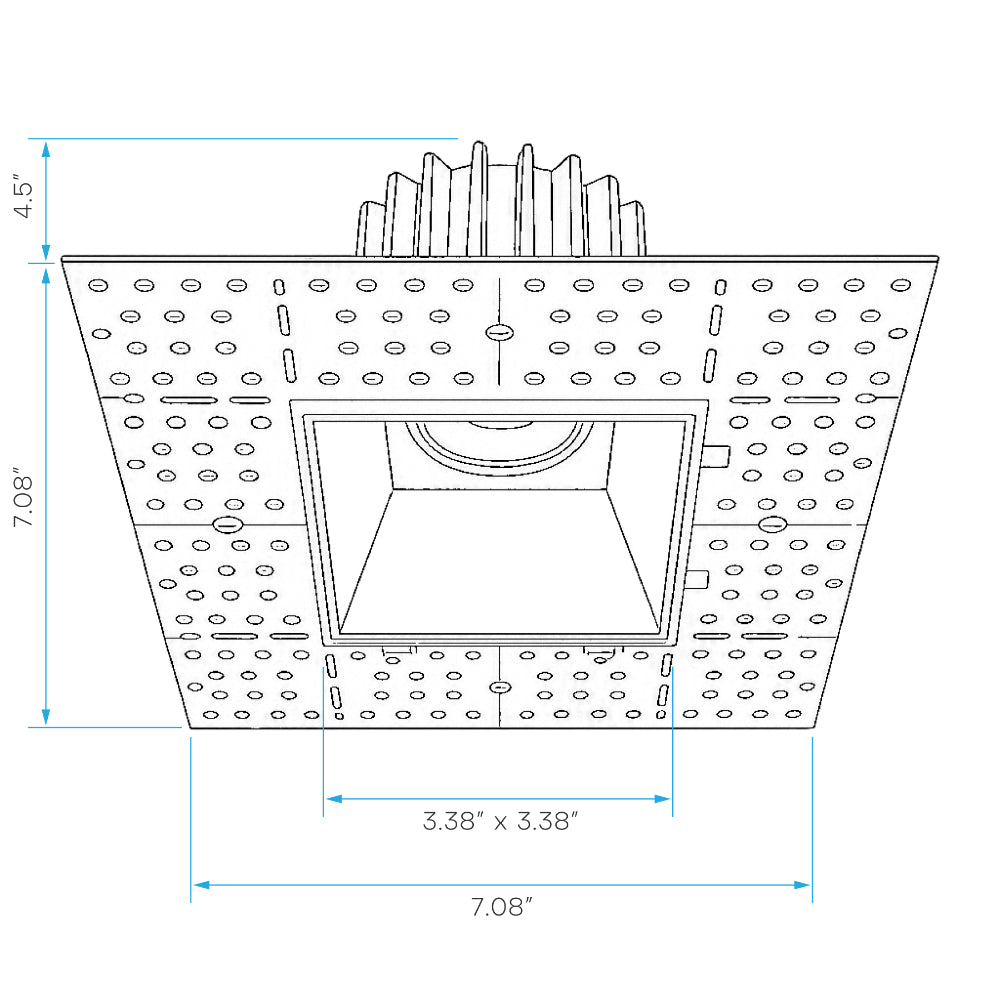

- Dimensions:
- Length: 7.08 Inch
- Width: 7.08 Inch
- Depth: 4.5 Inch
- Finish: White
- Cutout: 3.93 Inch x 3.93 Inch
- Plate: LR41005 (#1), LR41013 (#0)

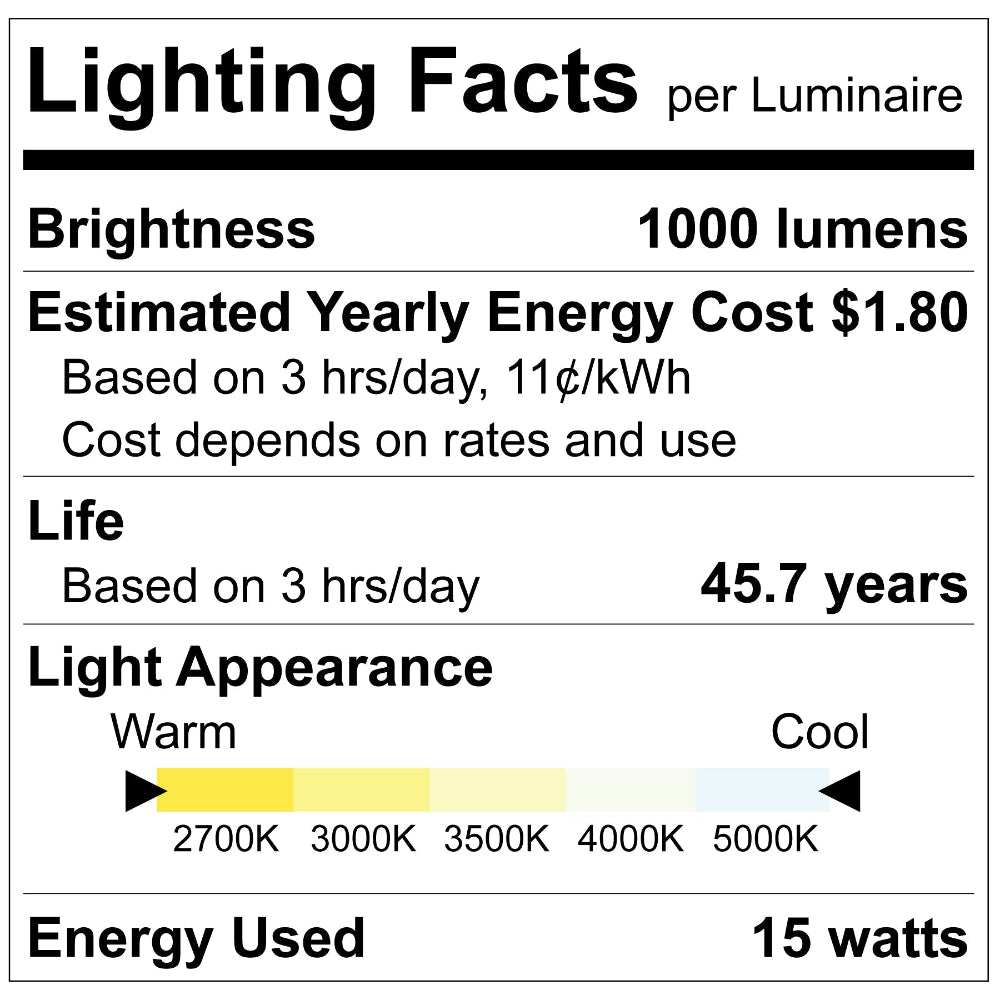

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1000
- Beam Angle: 38º
- CRI: 90
Electrical
- Power (Wattage): 15
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 67
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR25485 Specification Sheet
Click forLuxrite LR25485 Family Specification Sheet
Click forLuxrite LR25485 Install Guide
