Description

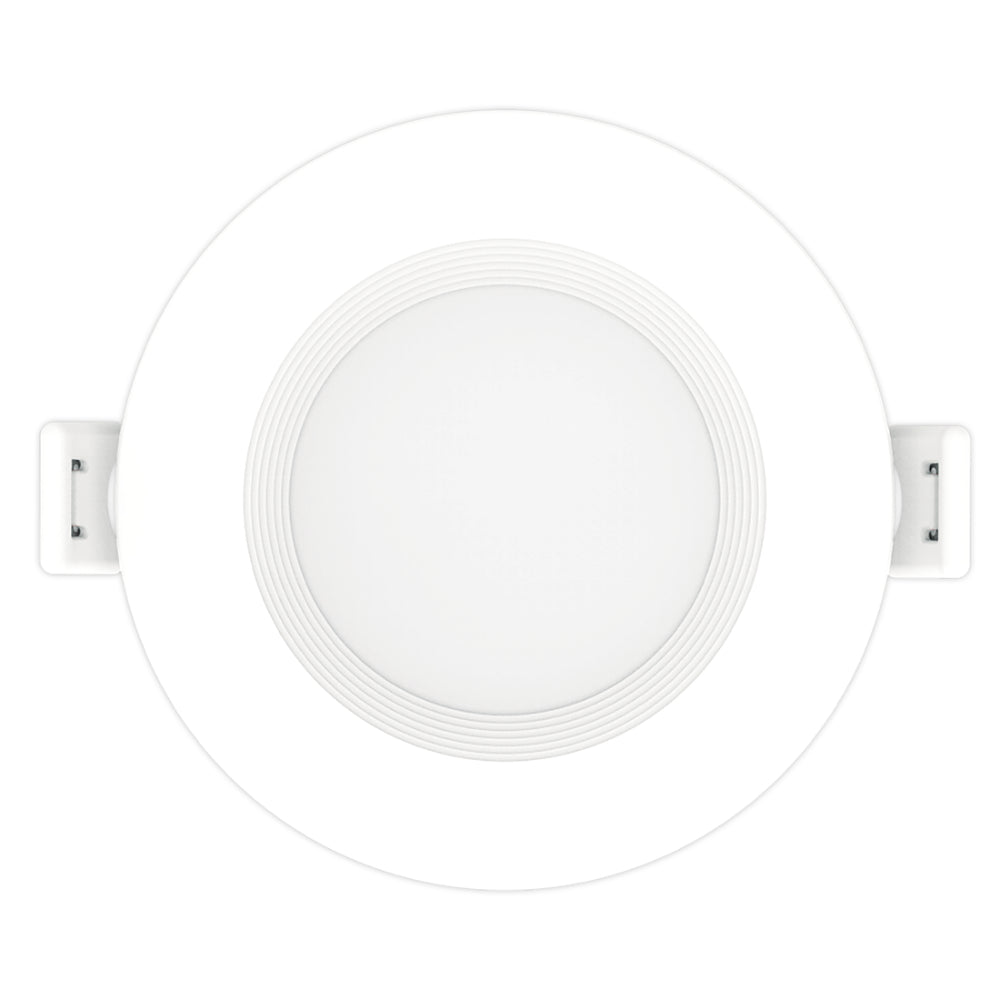

Luxrite 3" Mini Panel Round 5CCT Baffled Canless Wafer Spotlight
Specifications
- Item description: LED/MINI3/PANEL/5CCT/RD/B
- Size: 3 Inch
- Shape: 3 Inch Round Baffled

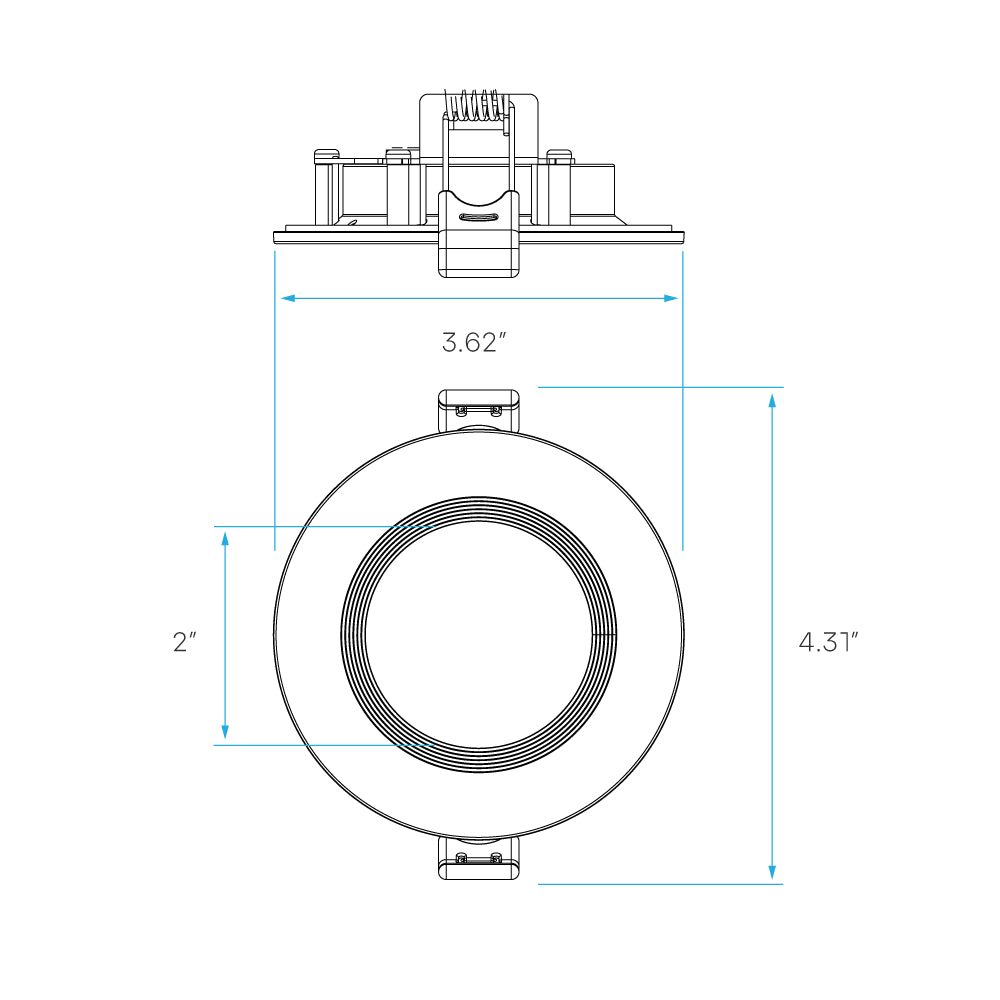

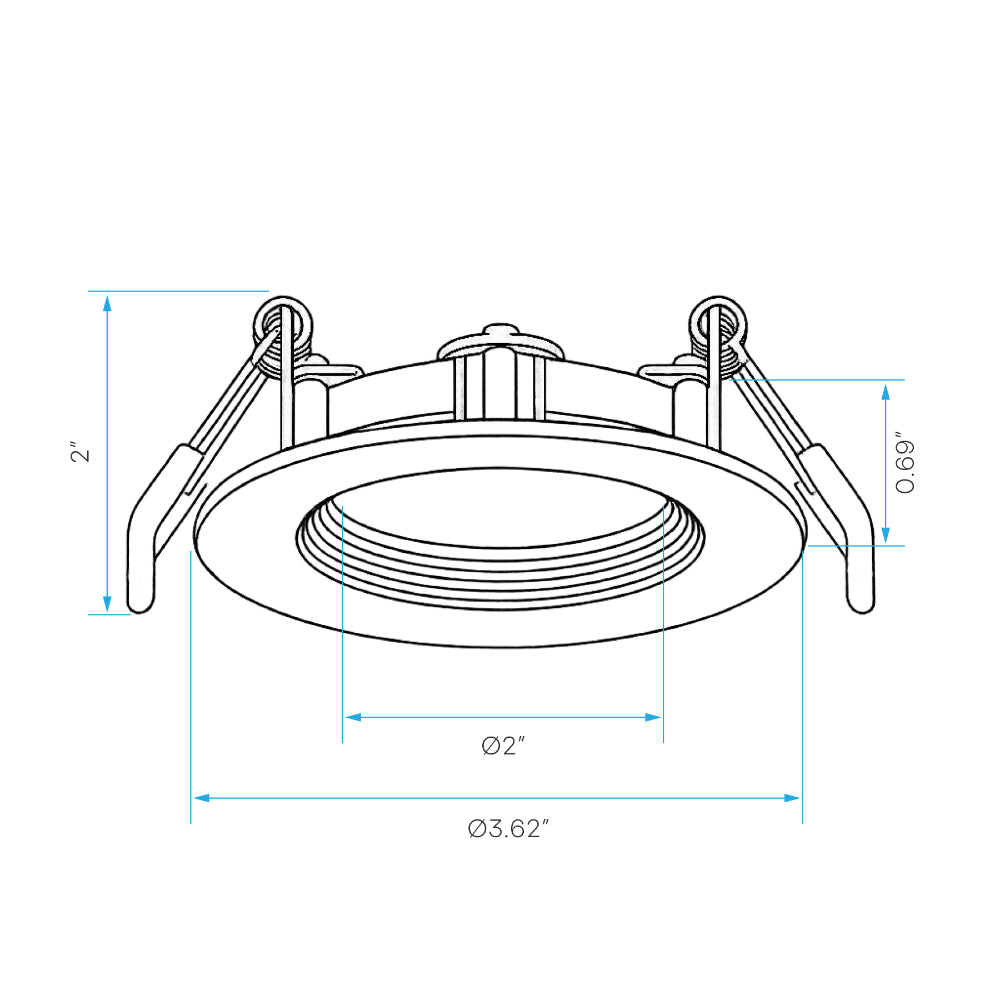

- Dimensions:
- Width: Ø 3.62 Inch
- Depth: 0.69 Inch
- Finish: White
- Cutout: 3 Inch
- Plate: LR41002 (#0), LR41006 (#1), LR41010 (#R0), LR41011 (#2)

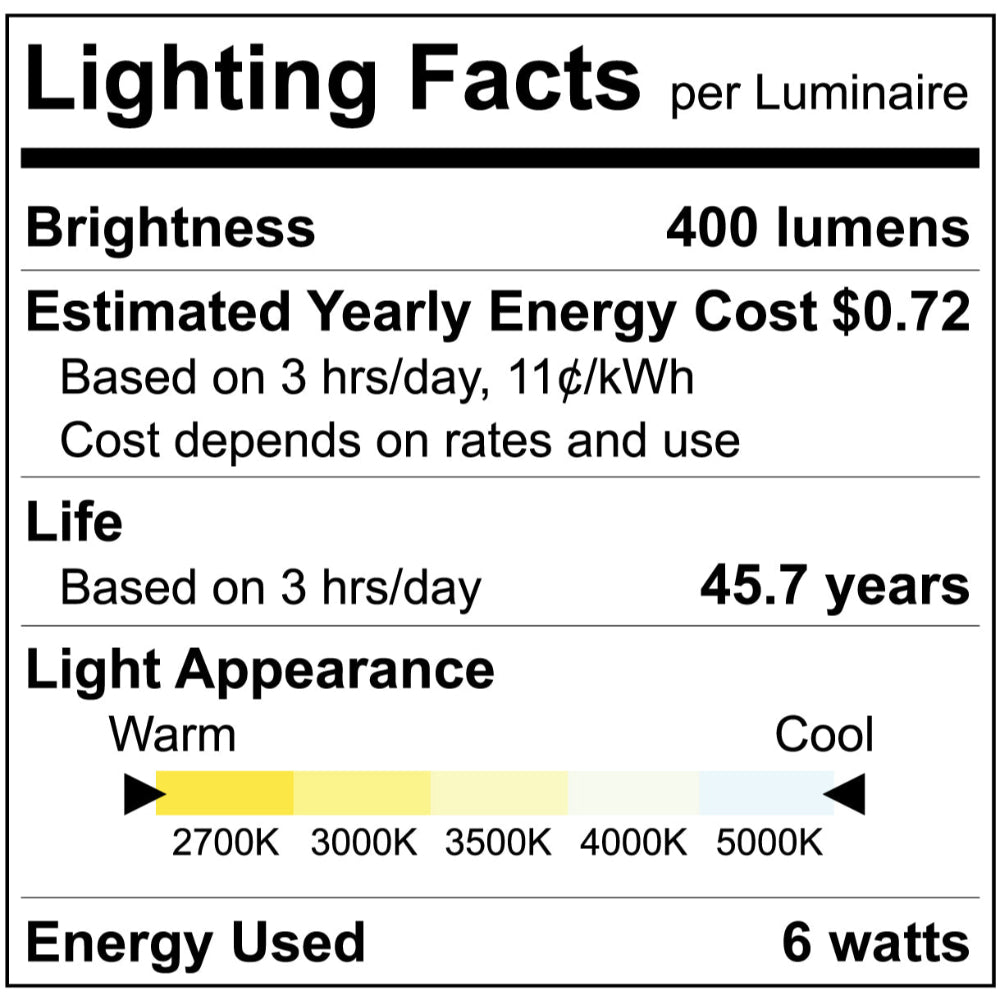

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 500
- Beam Angle: 110°
- CRI: 90
Electrical
- Power (Wattage): 6
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Input Current: 54Ma
- Frequency: 60Hz
- Lumen Efficacy: 66
- Operating Temp:
- Min: -22°
- Max: 104°
Product Files
Click forLuxrite LR23730 Specification Sheet
Click forLuxrite LR23730 Install Guide
Click forLuxrite LR23730 Dimmer Compatibility
