Description

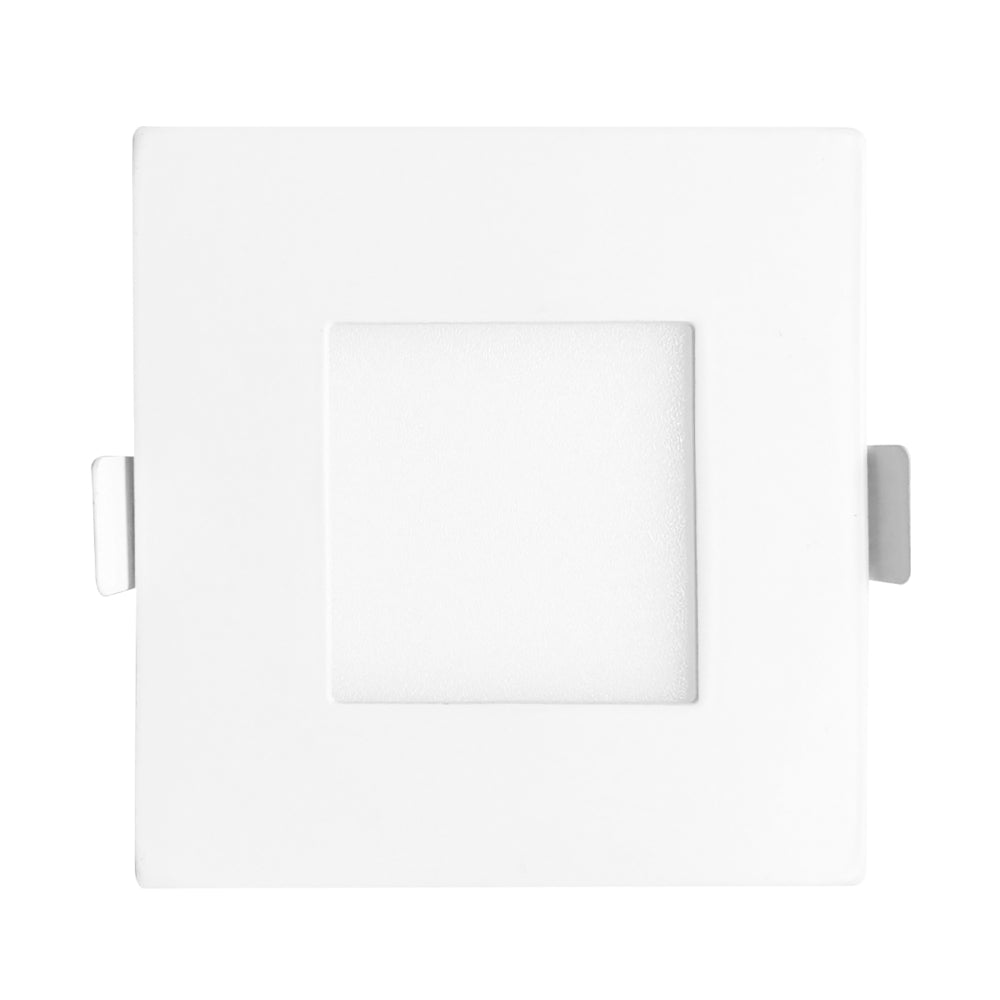

Luxrite 3" Mini Panel Square 5CCT Smooth Canless Wafer Spotlight
Specifications
- Item description: LED/MINI3/PANEL/5CCT/SQ2
- Size: 3 Inch
- Shape: 3 Inch Square Smooth

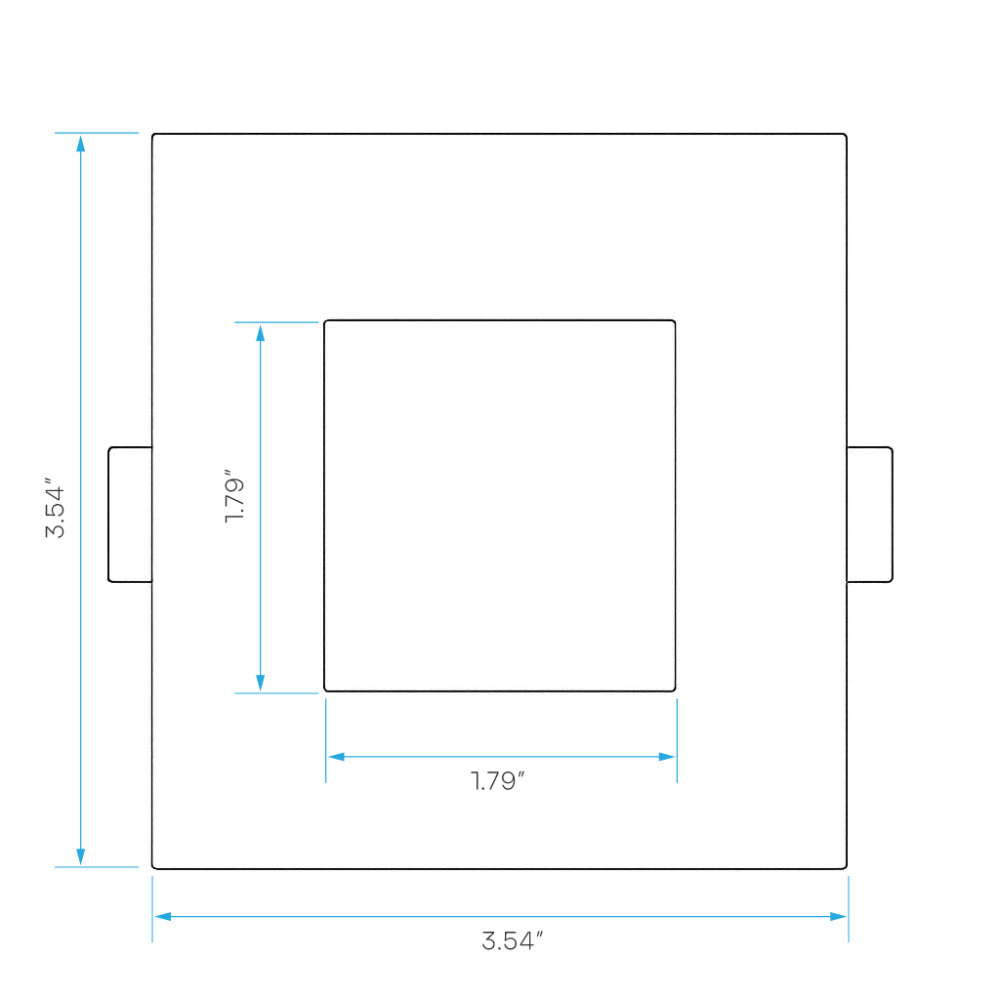

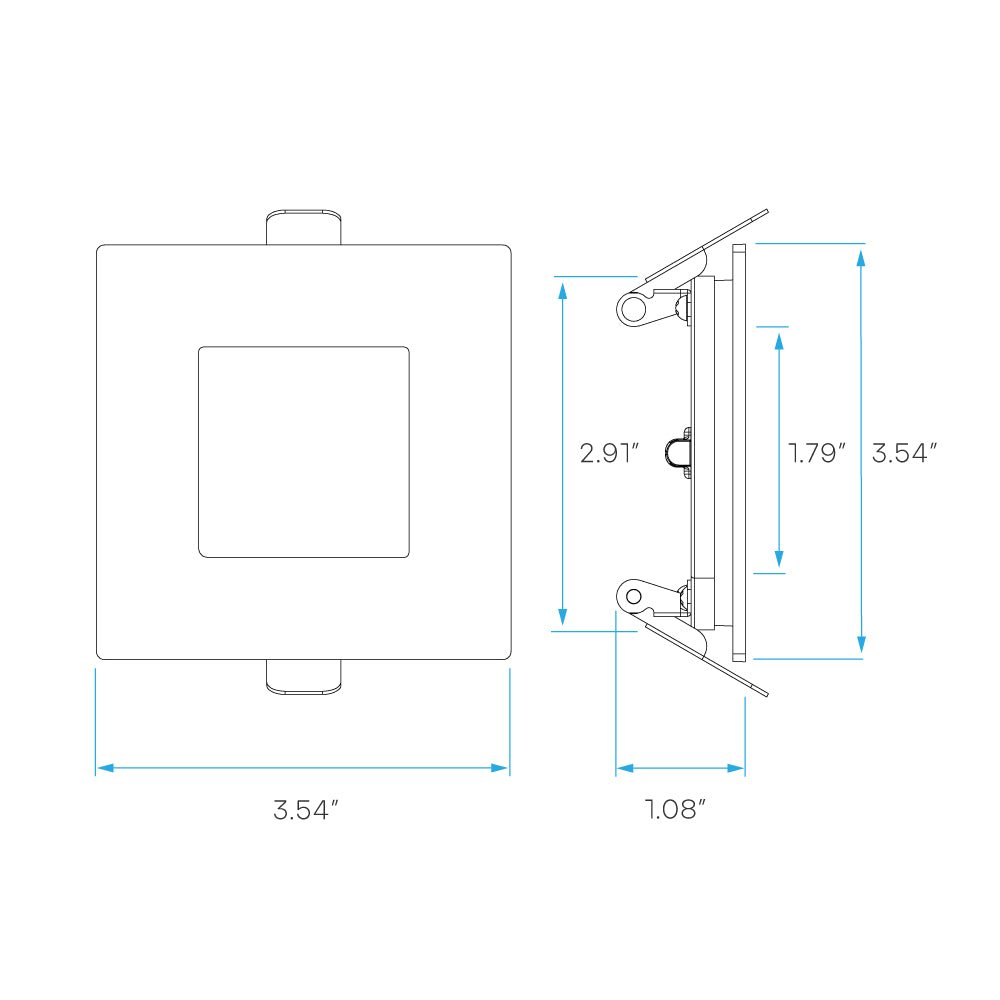

- Dimensions:
- Length: 3.54 Inch
- Width: 3.54 Inch
- Height: 1.08 Inch
- Finish: White
- Cutout: 3.03 Inch
- Plate: LR41002 (#0), LR41006 (#1), LR41010 (#R0)

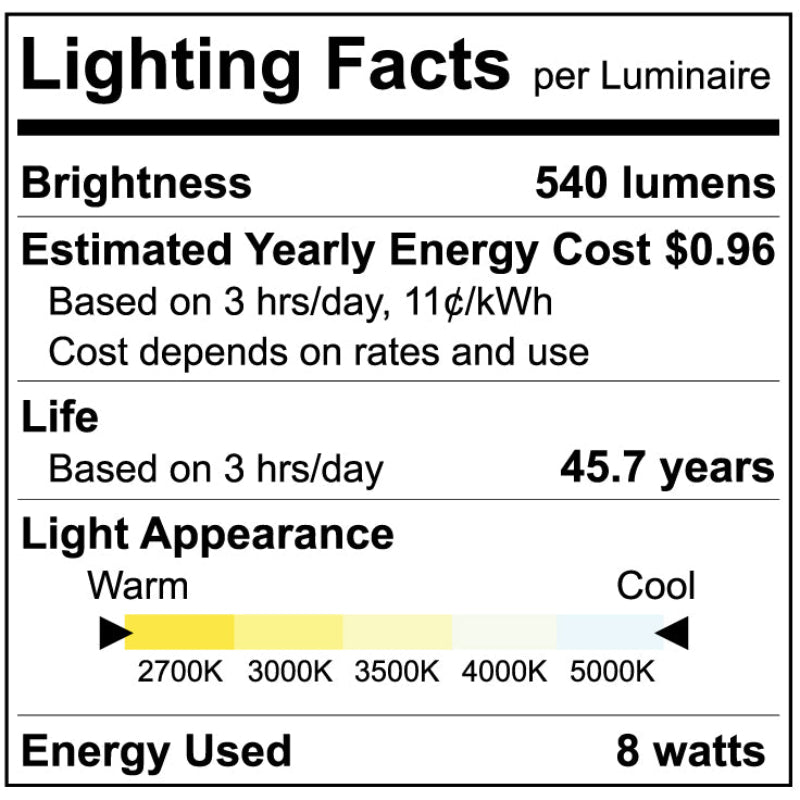

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 540
- Beam Angle: 180°
- CRI: 80
Electrical
- Power (Wattage): 6.5
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 50/60Hz
- Lumen Efficacy: 68
- Operating Temp:
- Min: -4°
- Max: 113°
Product Files
Click forLuxrite LR23754 Specification Sheet
Click forLuxrite LR23754 Install Guide
Click forLuxrite LR23754 Dimmer Compatibility
