Description

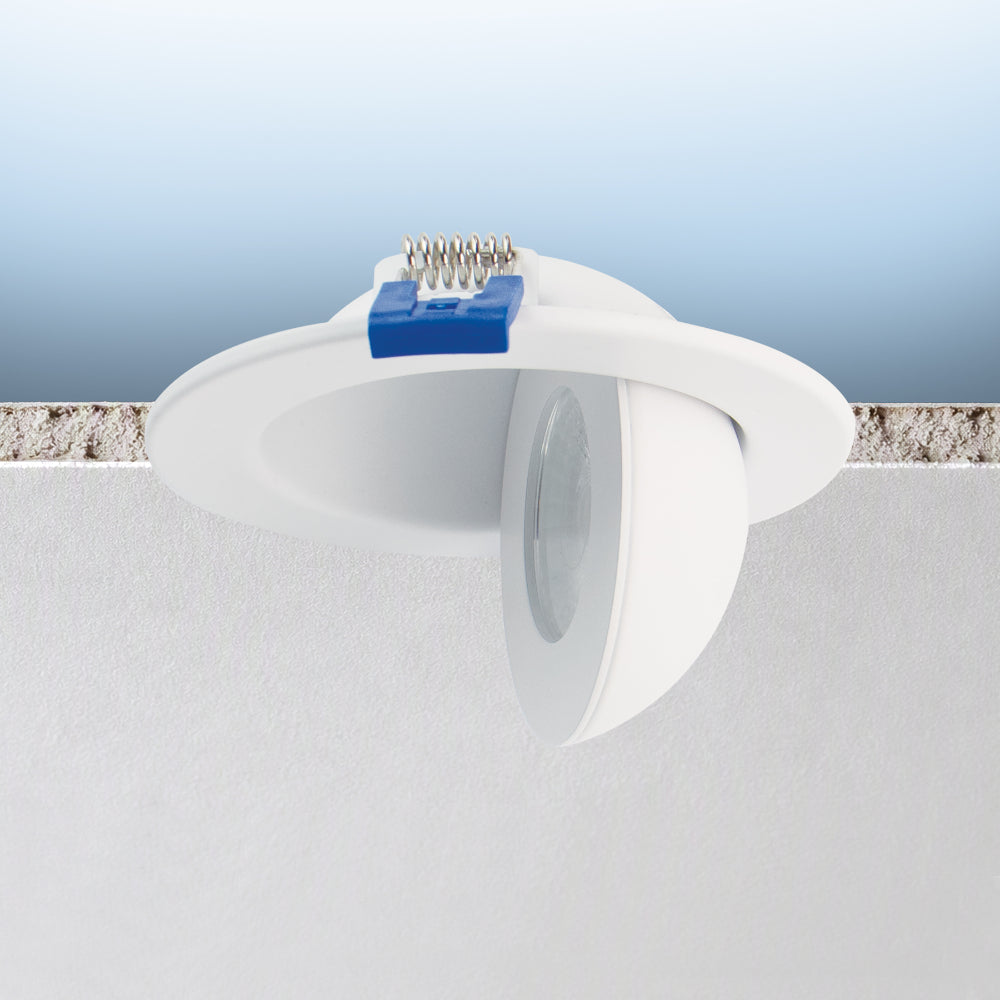

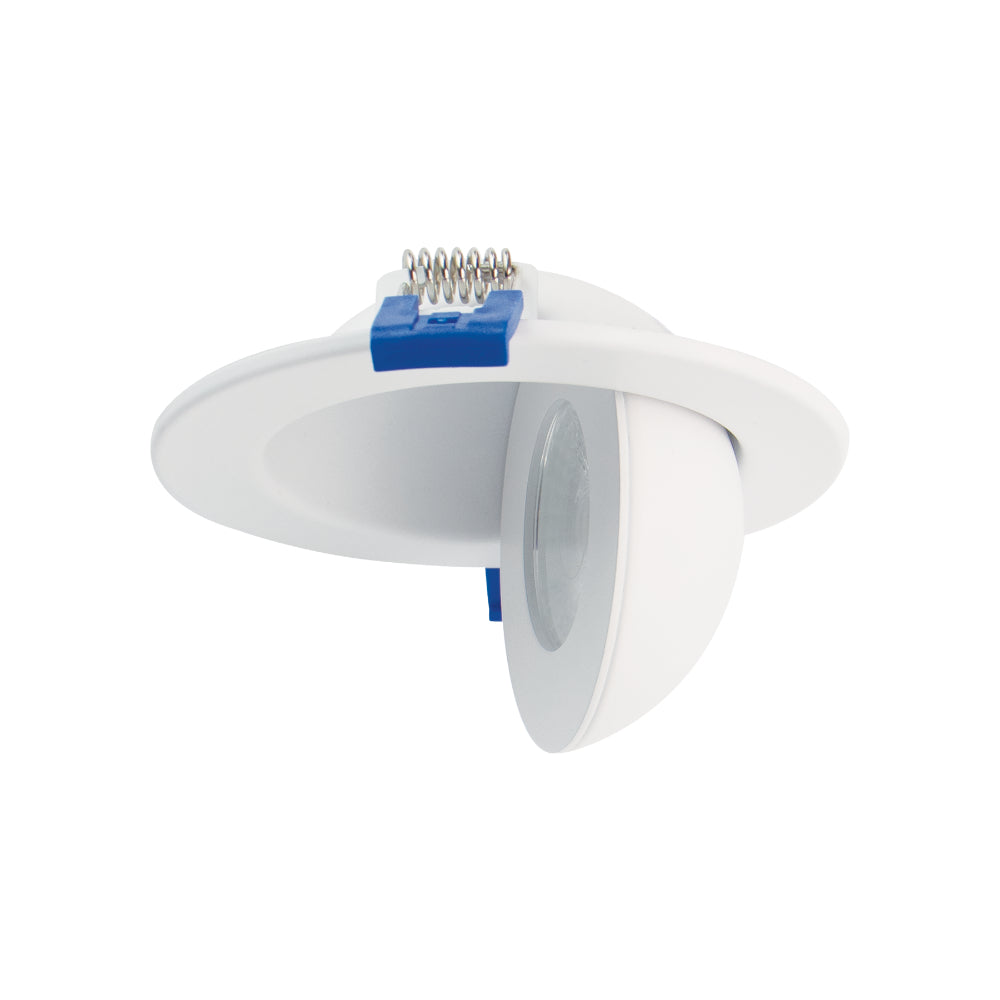

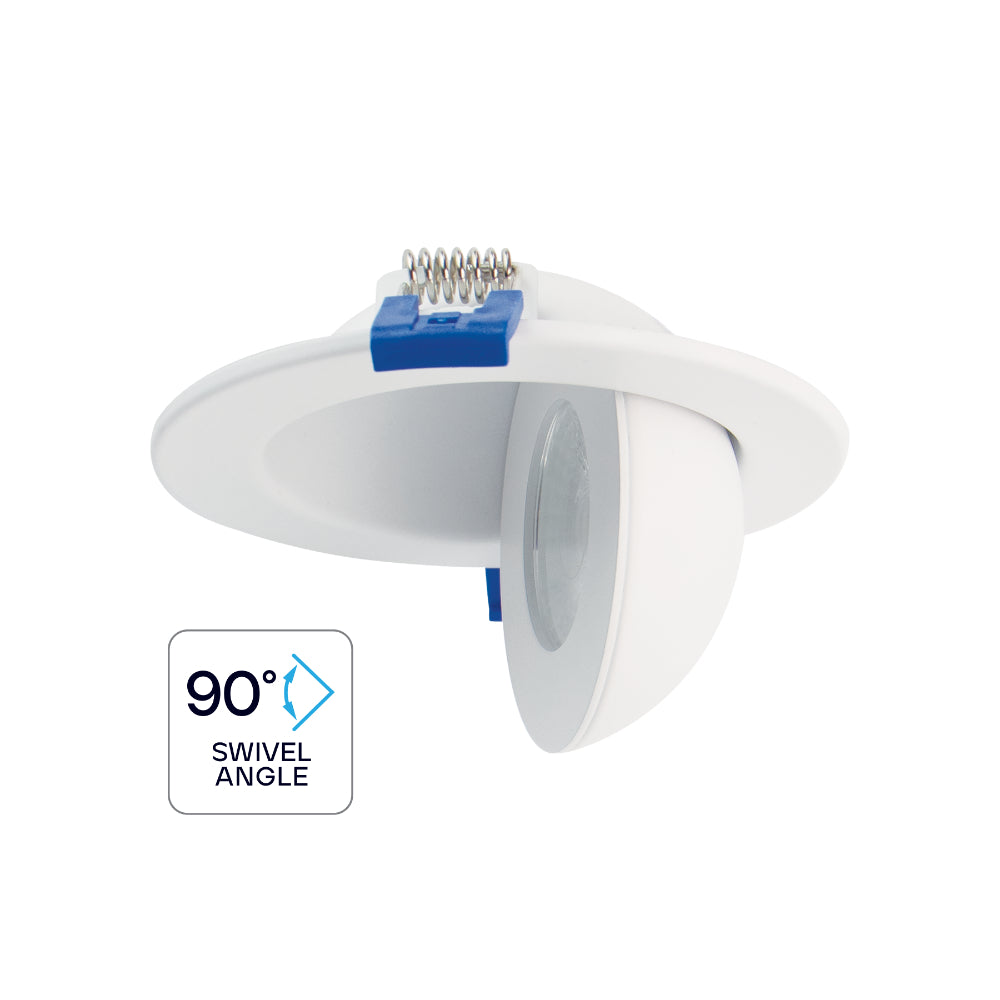

Luxrite 3" Recessed Floating Gimbal - 5 CCT Selectable
Specifications
- Item description: LED6W/DL3/FGB/5CCT/RD
- Size: 3 Inch
- Shape: Floating Gimbal

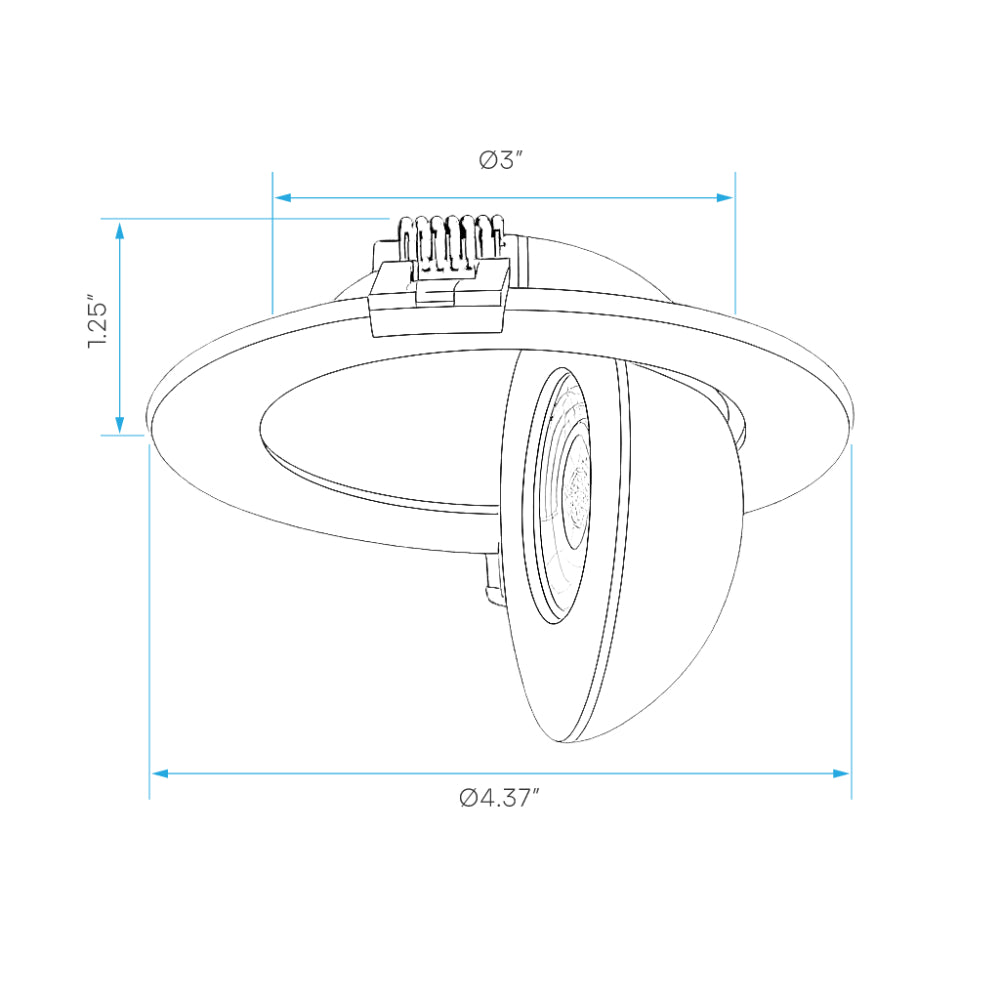

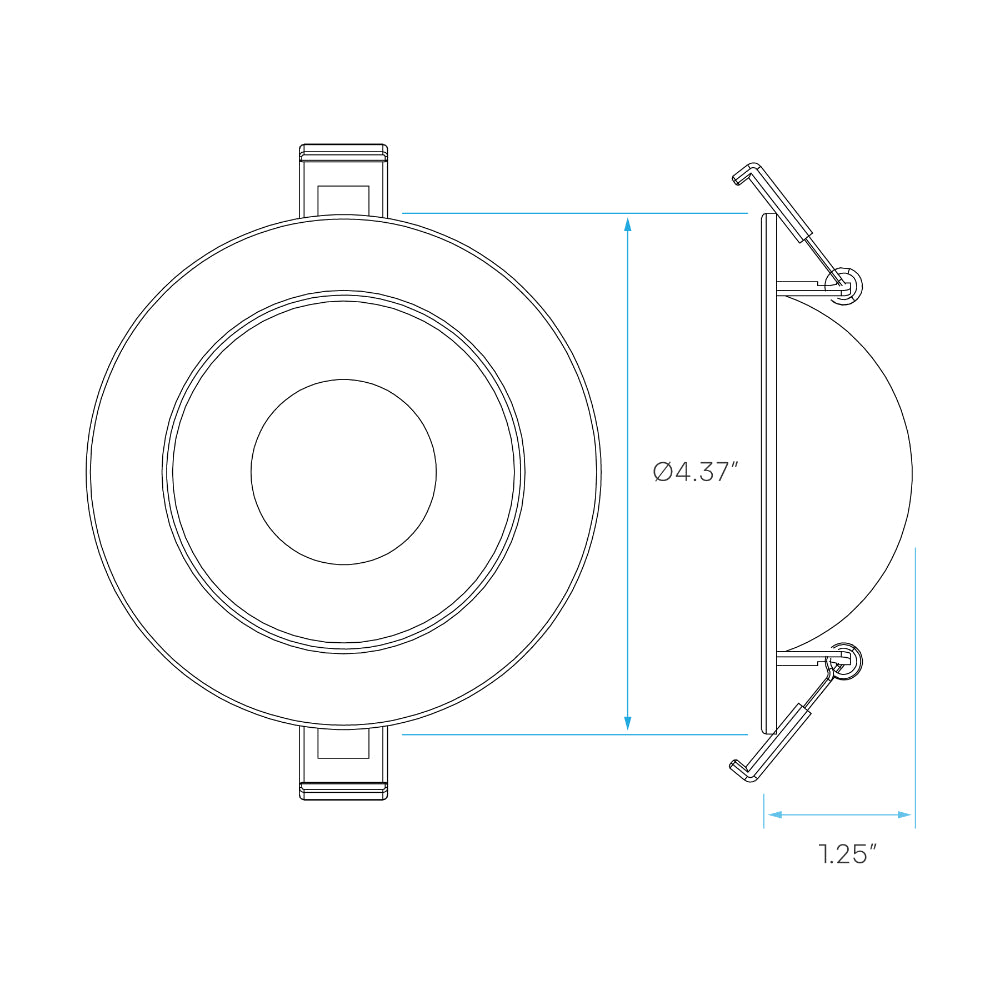

- Dimensions:
- Width: Ø4.37 Inch
- Depth: 1.25 Inch
- Finish: White
- Cutout: Ø3.5 Inch
- Plate: LR41004 (#2), LR41006 (#2), LR41010 (#L2), LR41011 (#3)

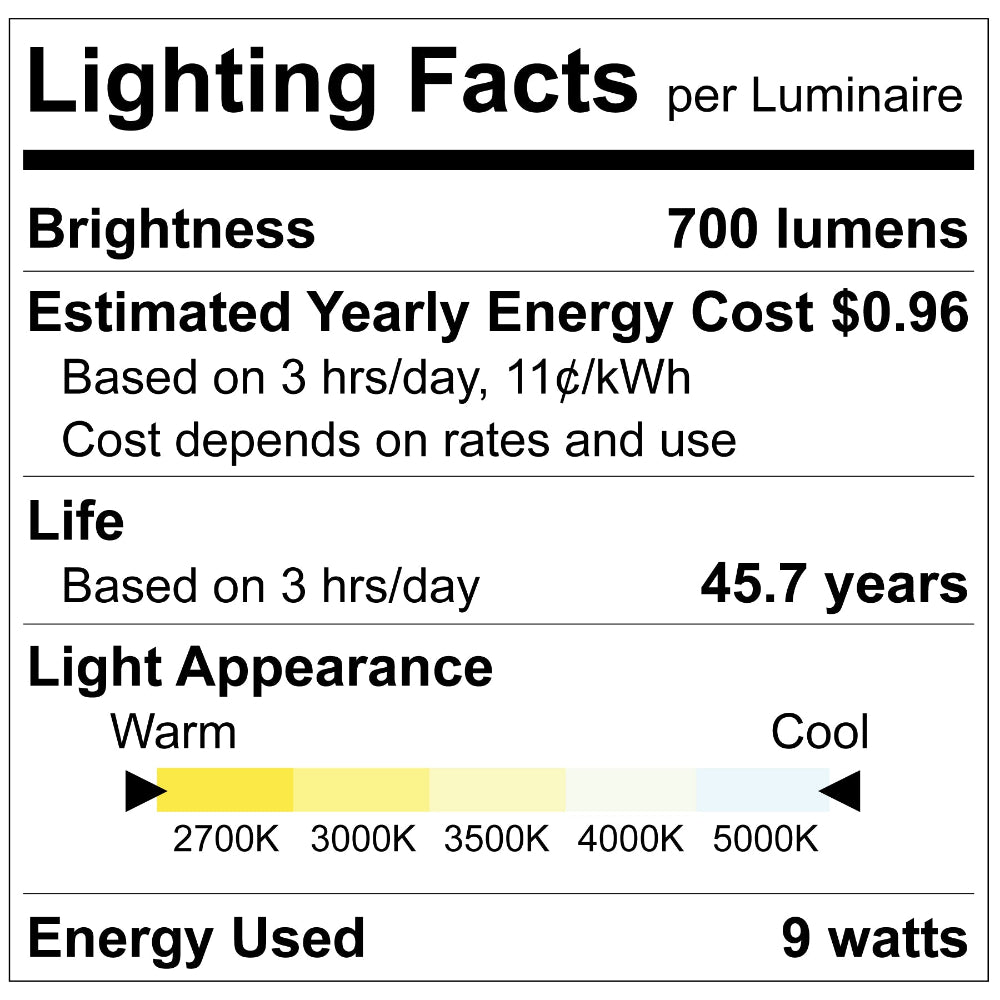

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 700
- Beam Angle: 38°
- CRI: 90
Electrical
- Power (Wattage): 8
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 88
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR23216 Specification Sheet
Click forLuxrite LR23216 Install Guide
