Luxrite 3" Regressed Canless Spotlight - Round - 5 CCT Select Universal Voltage/Dual Dimming

LuxriteSKU: LR23365
Select Finish: Black
Price:
$0.00 USD

Description

Luxrite 3" Regressed Canless Spotlight - Round - 5 CCT Select Universal Voltage/Dual Dimming

Specifications

  • Item description: LED/RDL3/5CCT/RD/UNV/DD/BK
  • Size: 3 Inch
  • Shape: 3 Inch Round Regressed

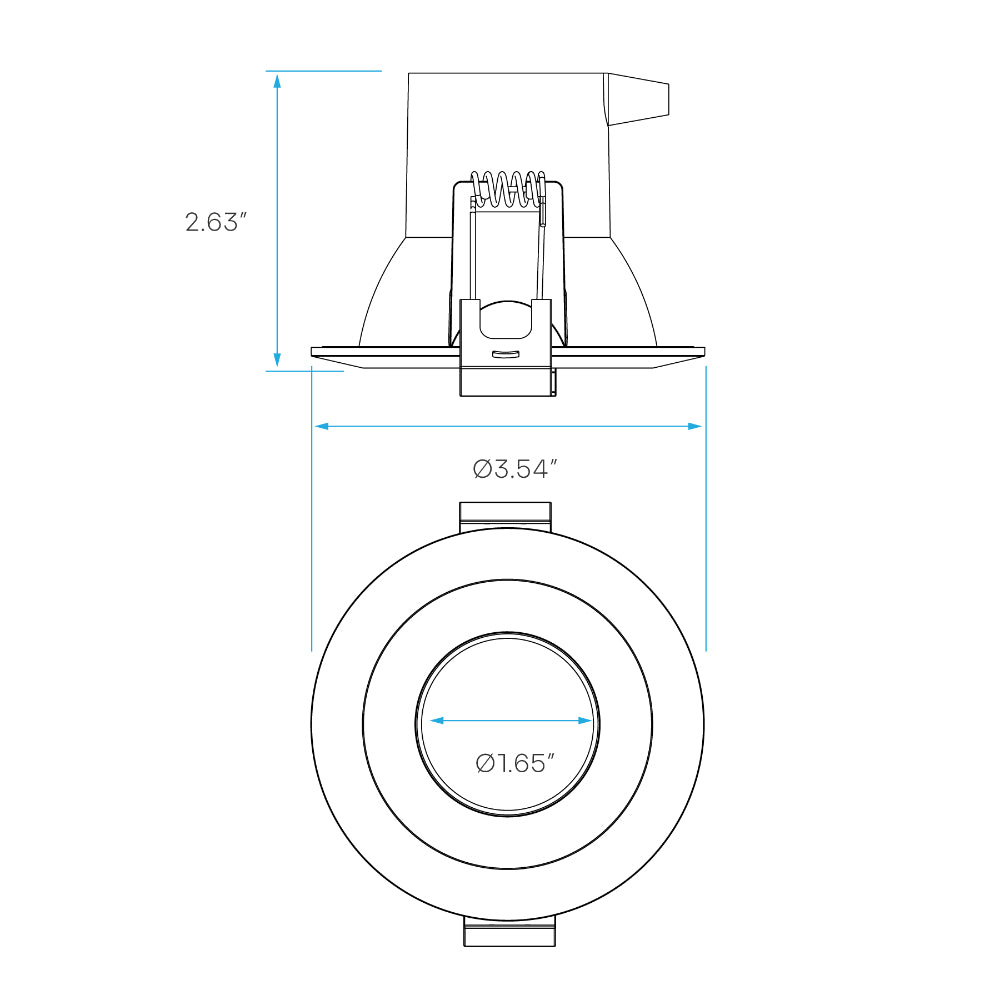

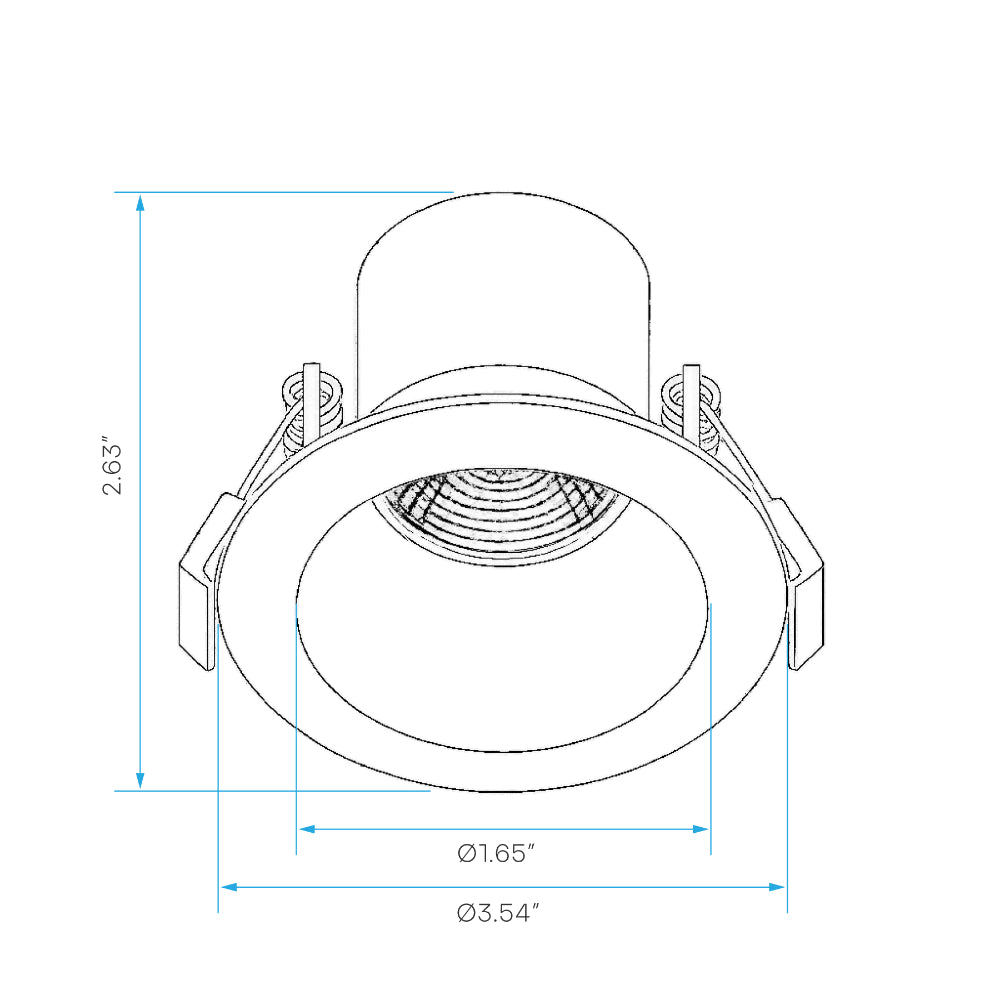

  • Dimensions:
    • Width: Ø3.54 Inch
    • Depth: 2.63 Inch
  • Cutout: Ø3 Inch
  • Plate: LR41002 (#0), LR41006 (#1), LR41010 (R0)

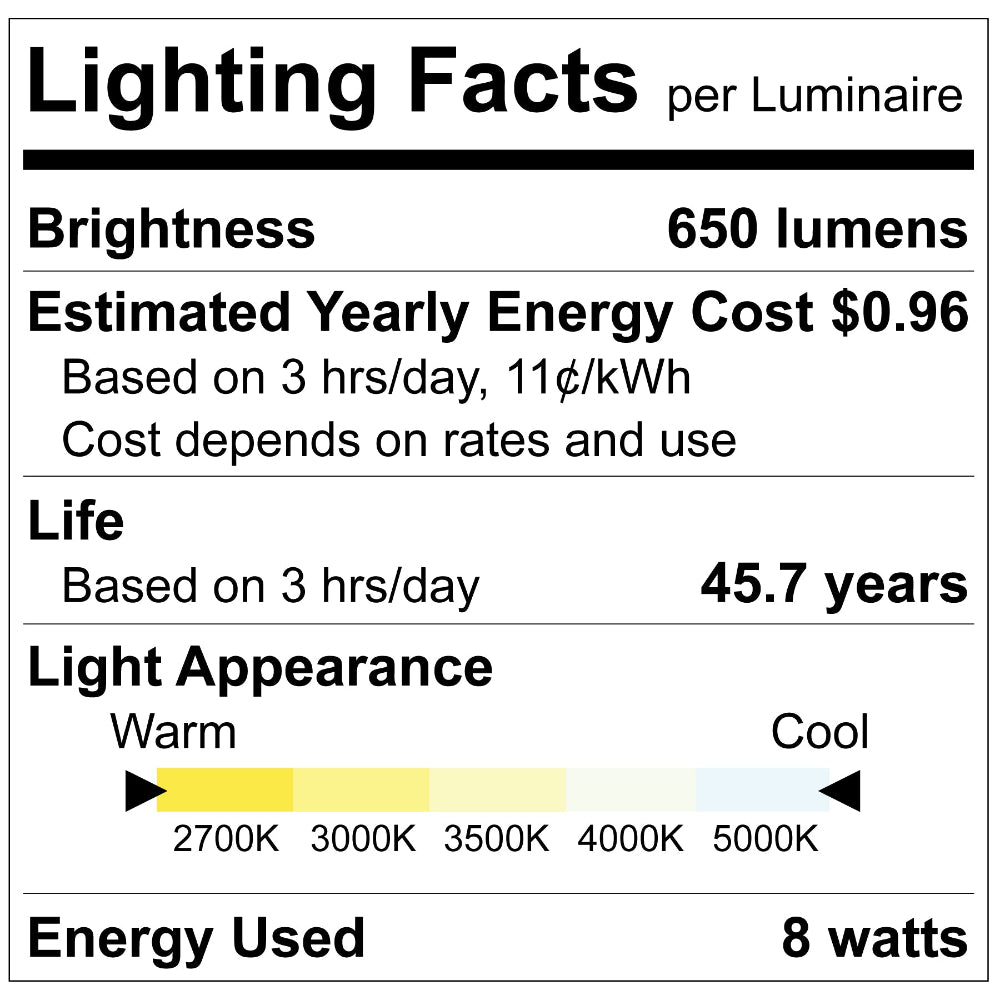

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 650
  • Beam Angle: 45º
  • CRI: 90

Electrical

  • Power (Wattage): 8
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Input Current: 0.07A
  • Frequency: 60Hz
  • Lumen Efficacy: 100
  • Operating Temp:
    • Min: -4º
    • Max: 104º
Product Files

Click forLuxrite LR23365 Specification Sheet

Click forLuxrite LR23365 Family Specification Sheet

Click forLuxrite LR23365 Install Guide

Click forLuxrite LR23365 Dimmer Compatibility

Click forLuxrite LR23365 Warranty

Click forLuxrite LR23364 Dimmer Compatibility

Click forLuxrite LR23364 Warranty
