Description

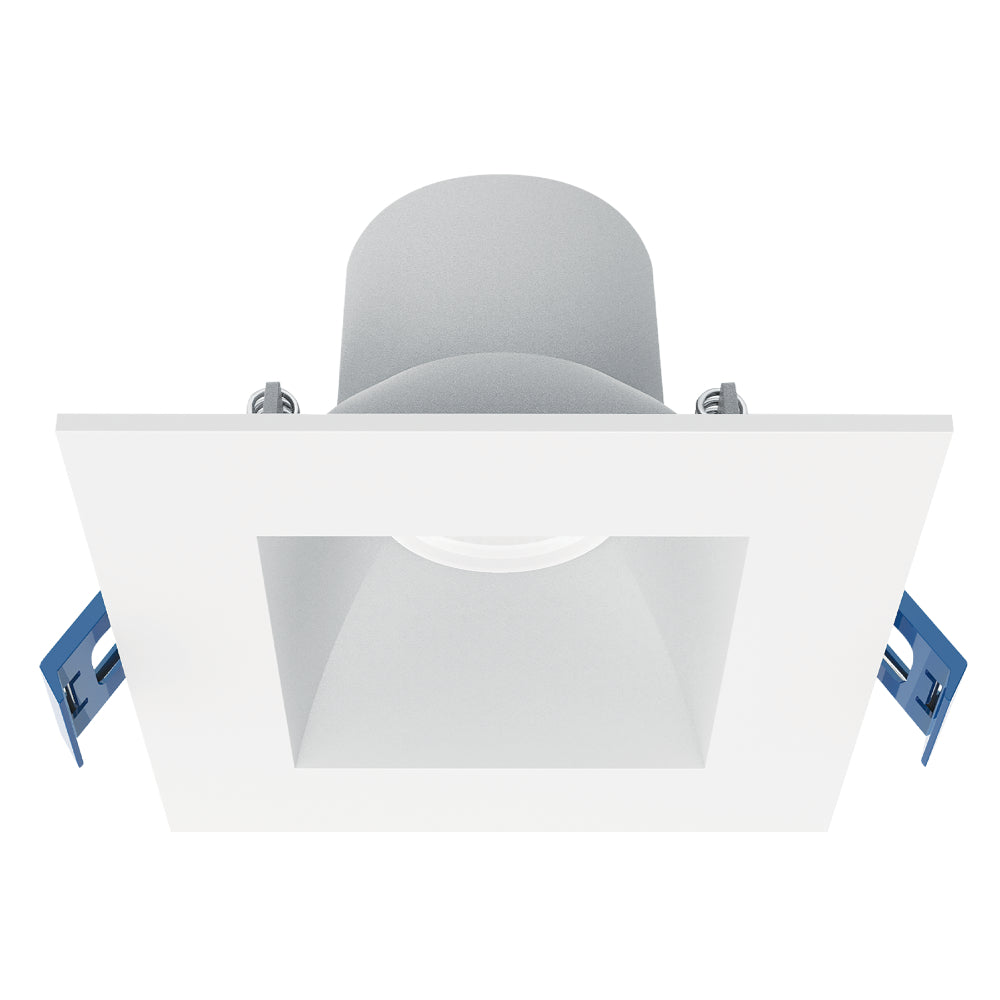

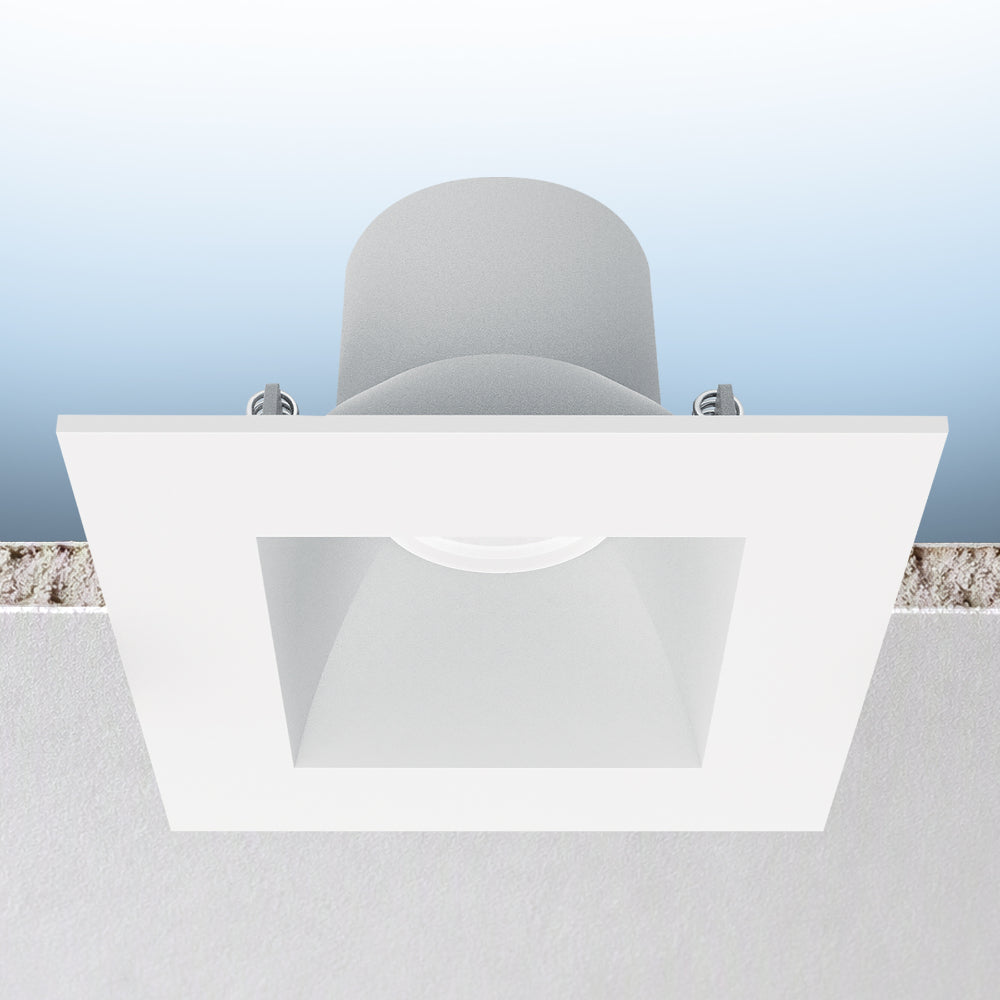

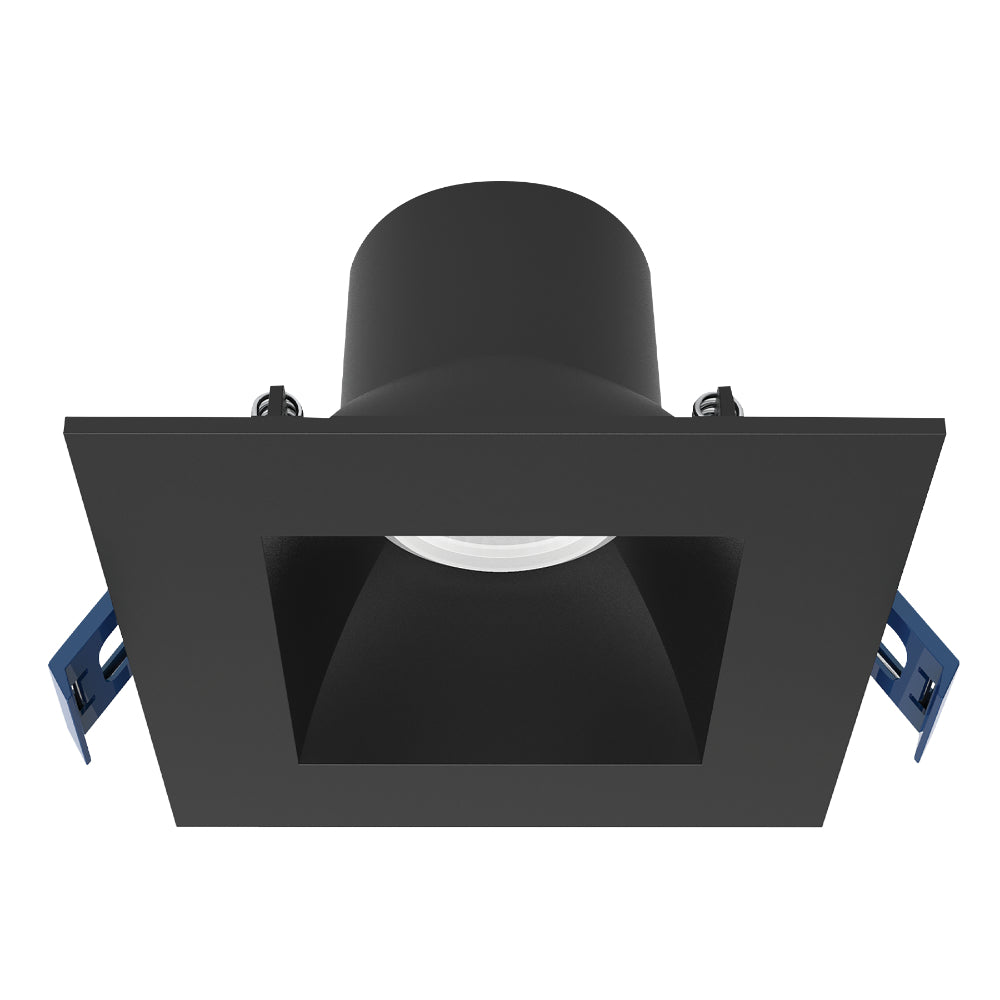

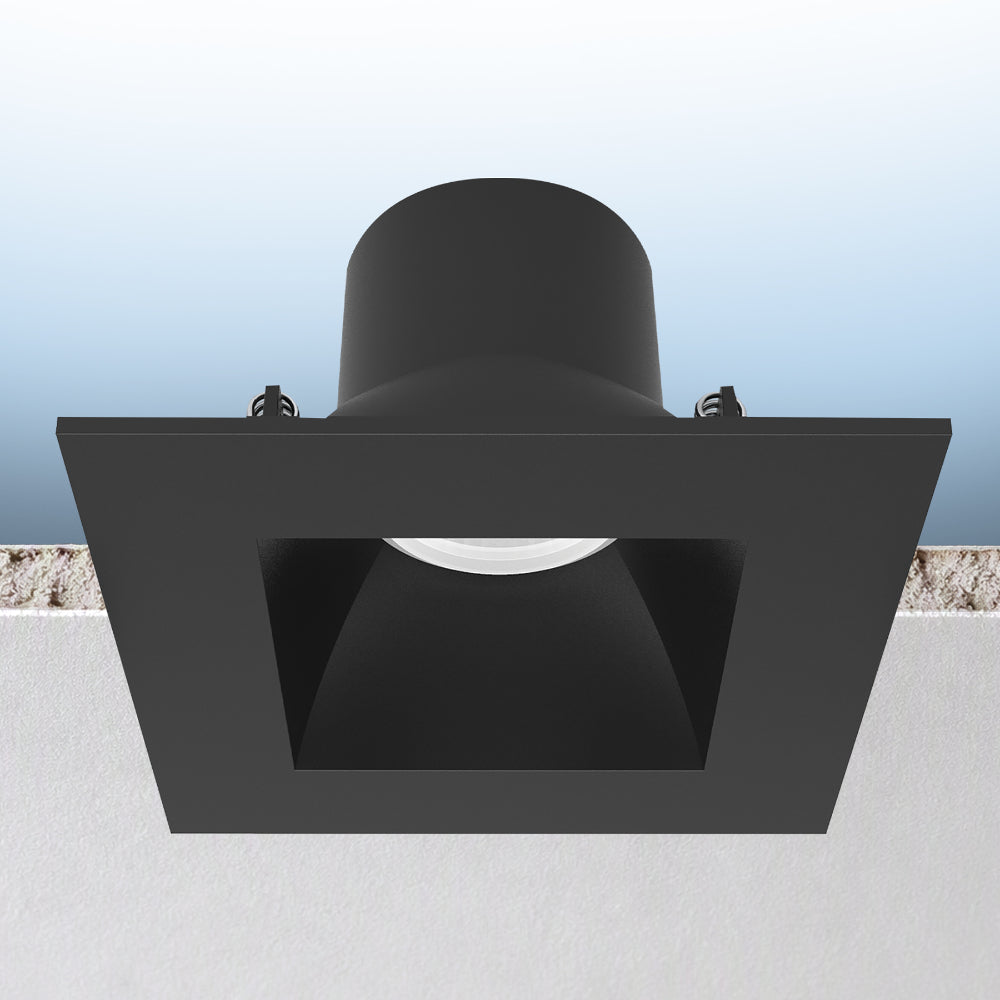

Luxrite 3" Regressed Canless Spotlight - Square - 5 CCT Selectable
Specifications
- Item description: LED/RDL3/5CCT/SQ/BK2
- Size: 3 Inch
- Shape: 3 Inch Square Regressed

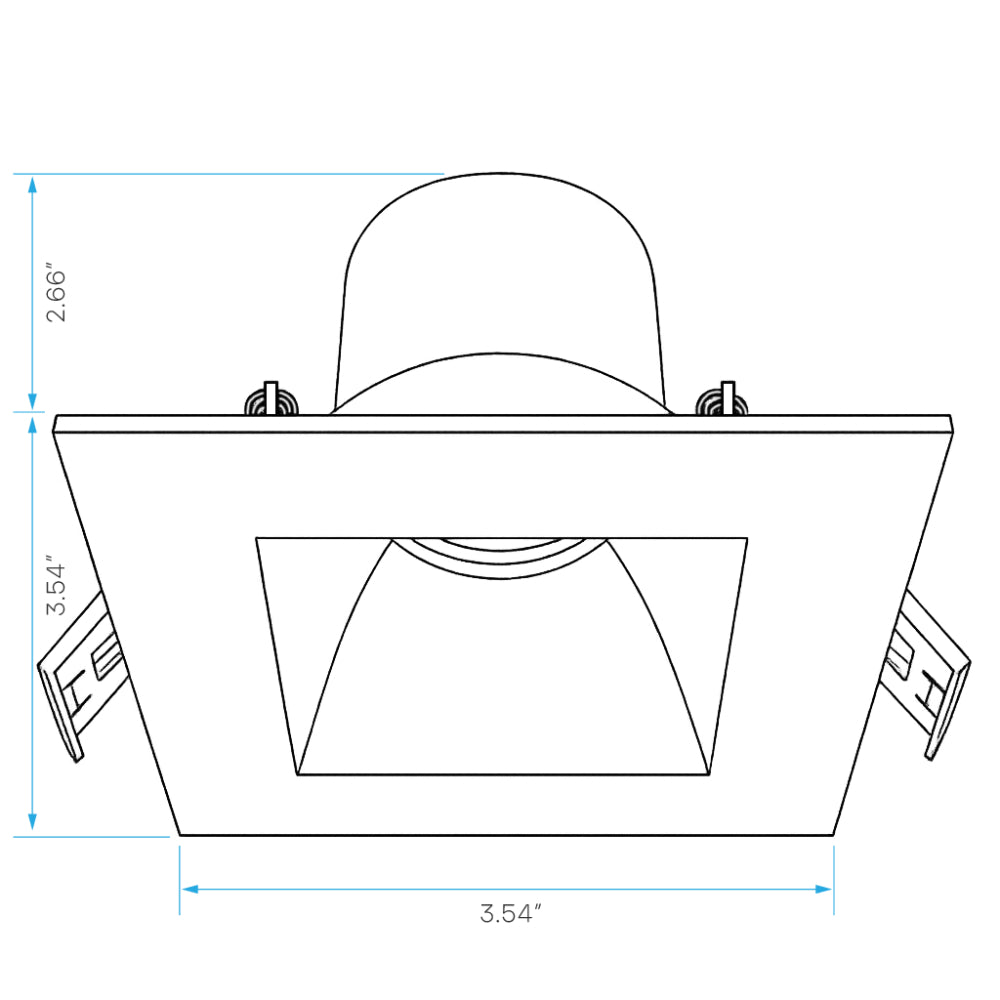

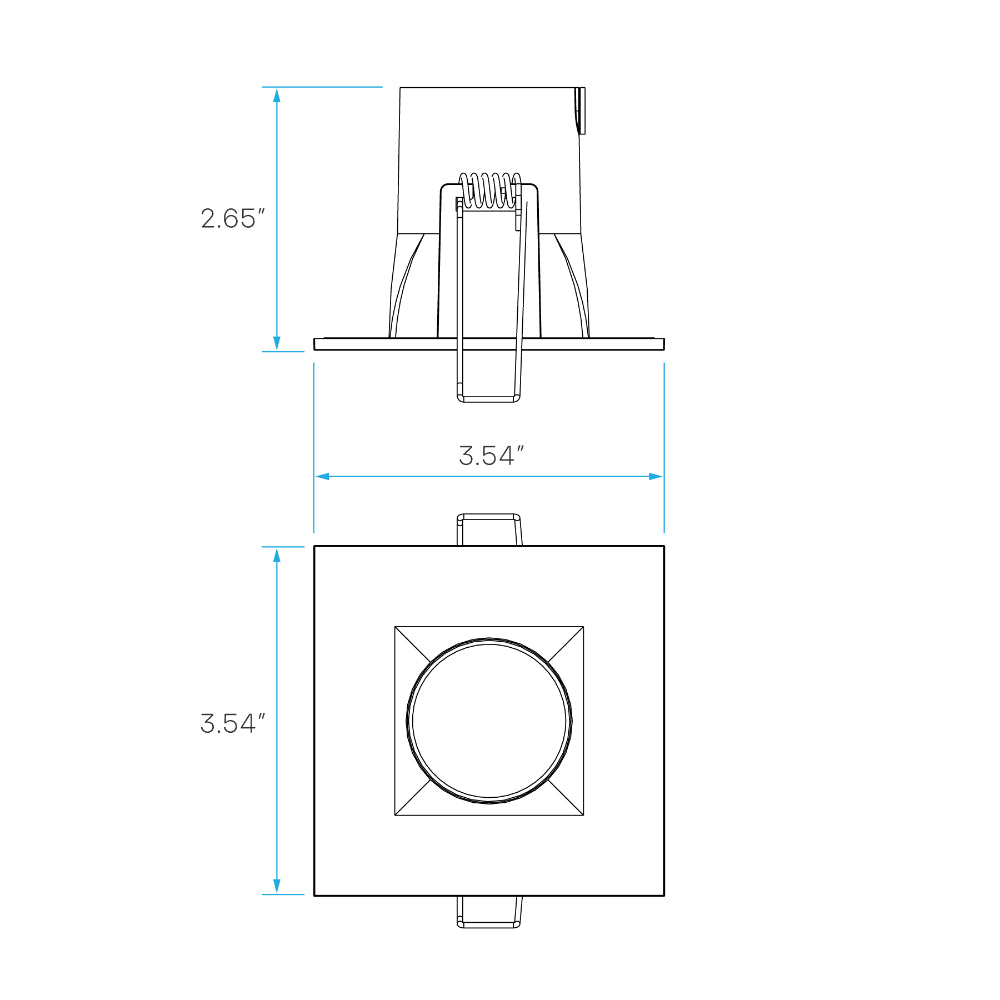

- Dimensions:
- Length: 3.54 Inch
- Width: 3.54 Inch
- Depth: 2.65 Inch
- Cutout: 3 Inch
- Plate: LR41002 (#0), LR41006 (#1), LR41010 (#R0), LR41011 (#2)

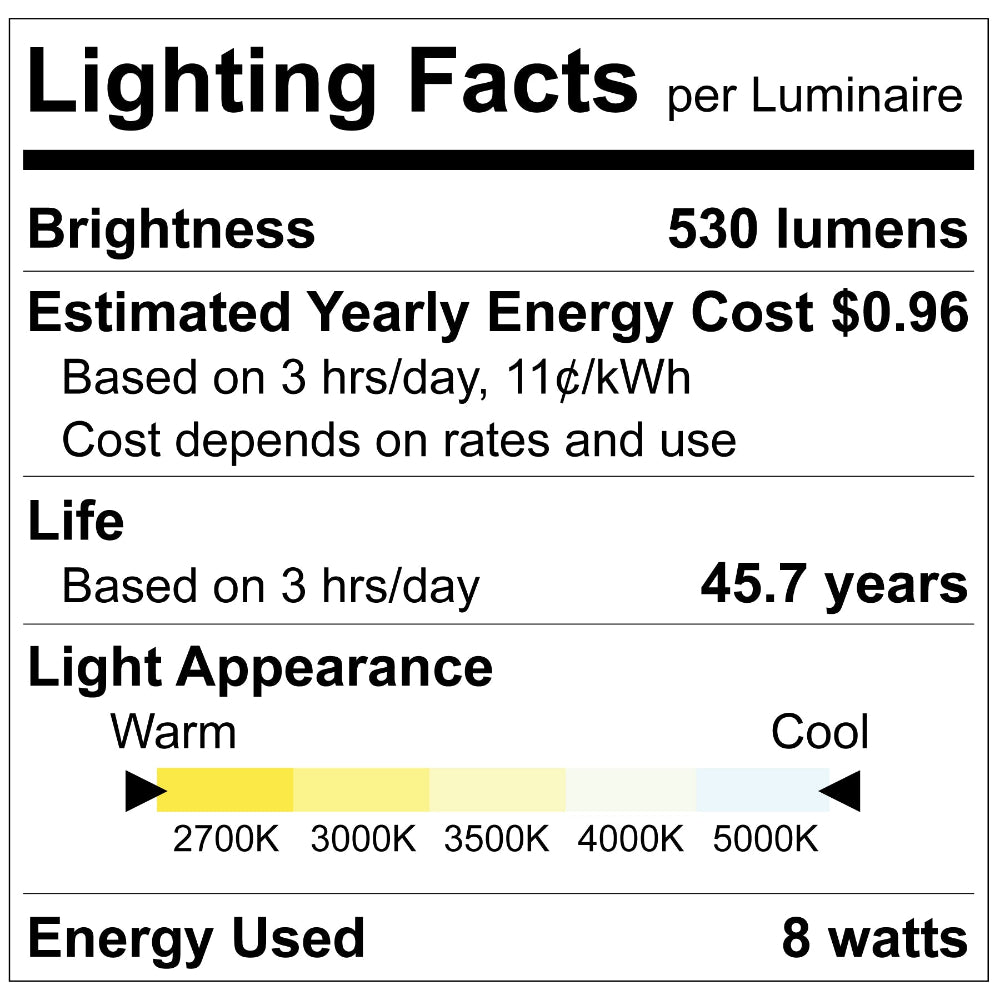

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 530
- Beam Angle: 45º
- CRI: 90
Electrical
- Power (Wattage): 8
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Input Current: 0.70A
- Frequency: 60Hz
- Lumen Efficacy: 66
- Operating Temp:
- Min: -4º
- Max: 104º
Product Files
Click forLuxrite LR23323 Specification Sheet
Click forLuxrite LR23323 Install Guide
Click forLuxrite LR23323 Dimmer Compatibility
Click forLuxrite LR23323 Warranty
