Description

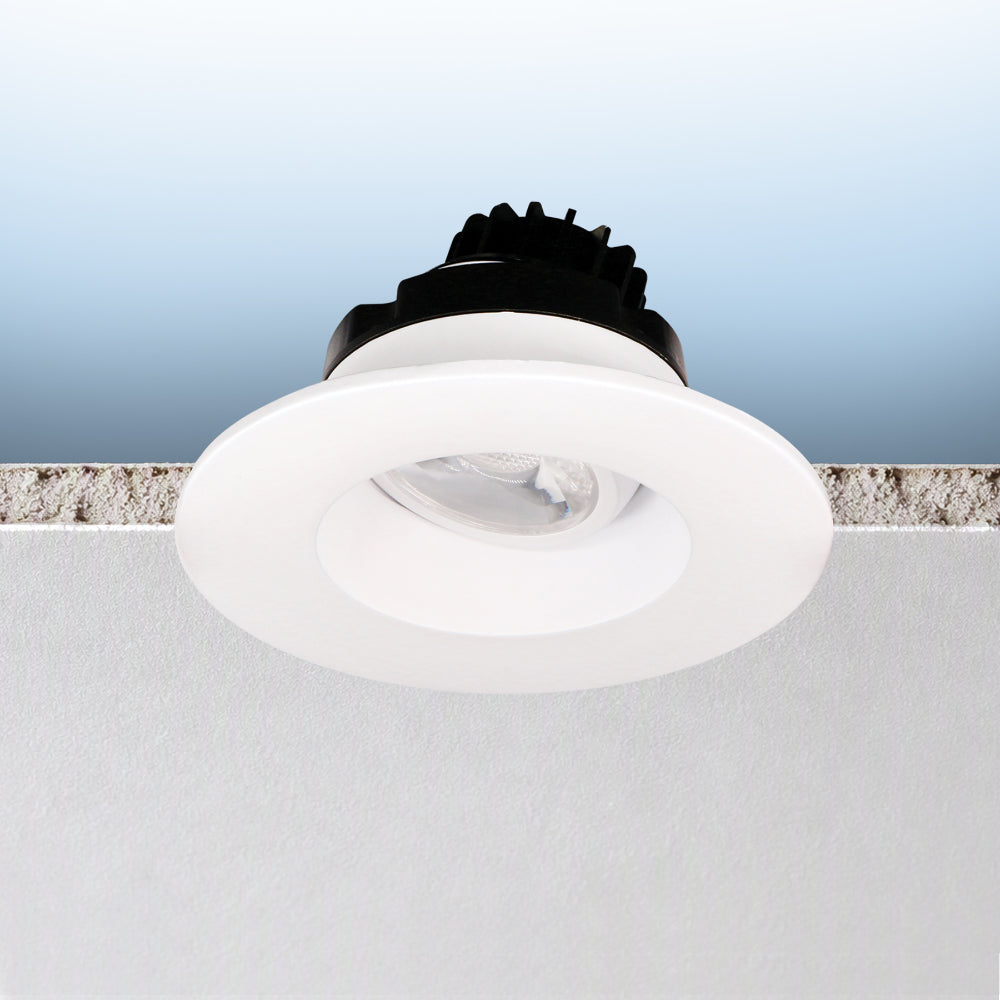

Luxrite 3" Regressed Gimbal Round 5CCT Canless Spotlight
Specifications
- Item description: LED8W/RDL3/GB/5CCT/FL
- Size: 3 Inch
- Shape: 3 Inch Deep Gimbal

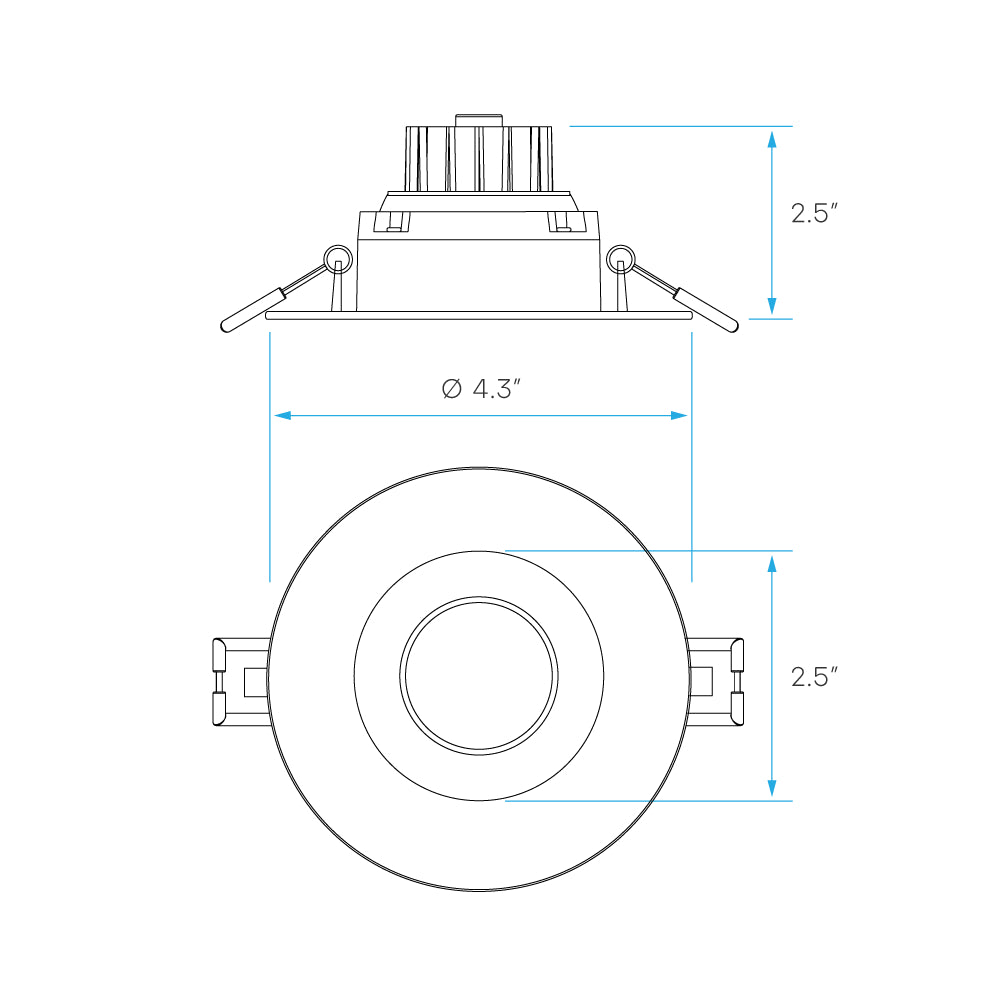

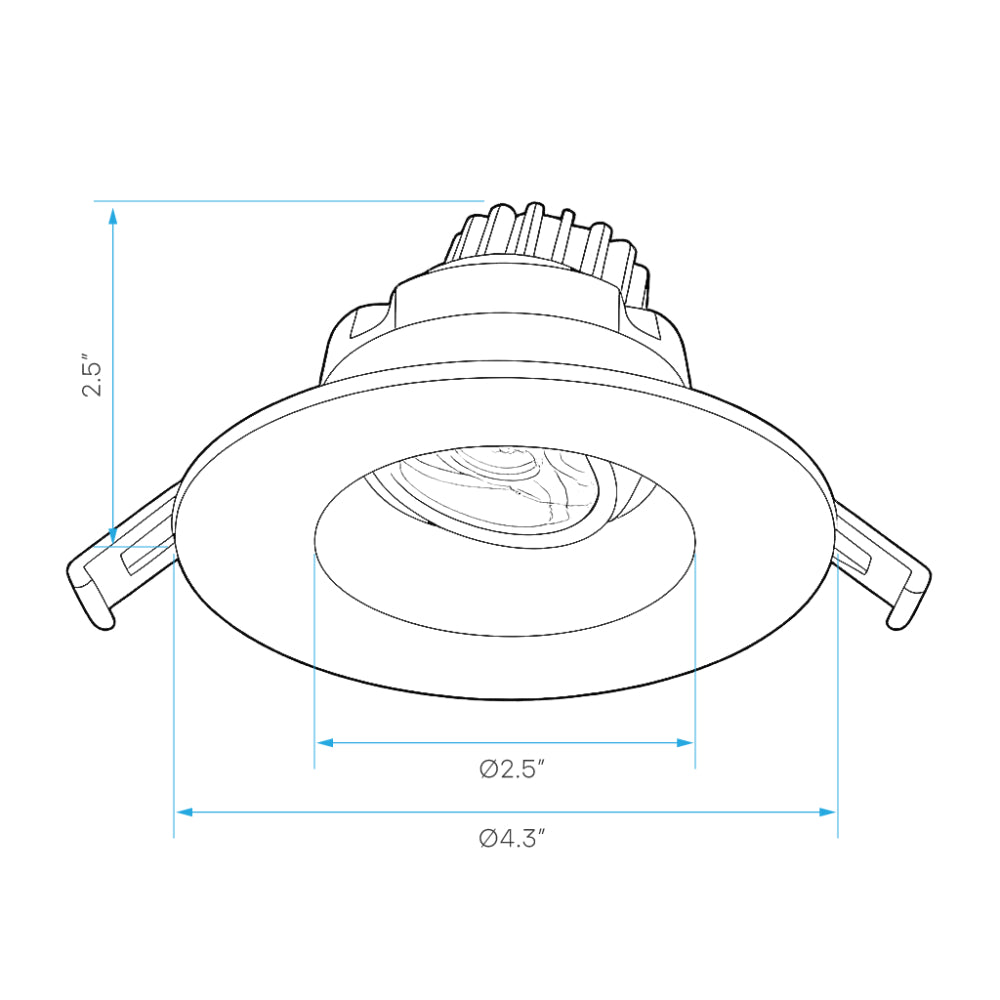

- Dimensions:
- Width: Ø 4.3 Inch
- Height: 2.5 Inch
- Finish: White
- Cutout: 3.37 Inch
- Plate: LR41004 (#2), LR41006 (#2), LR41010 (#L2), LR41011 (#2)

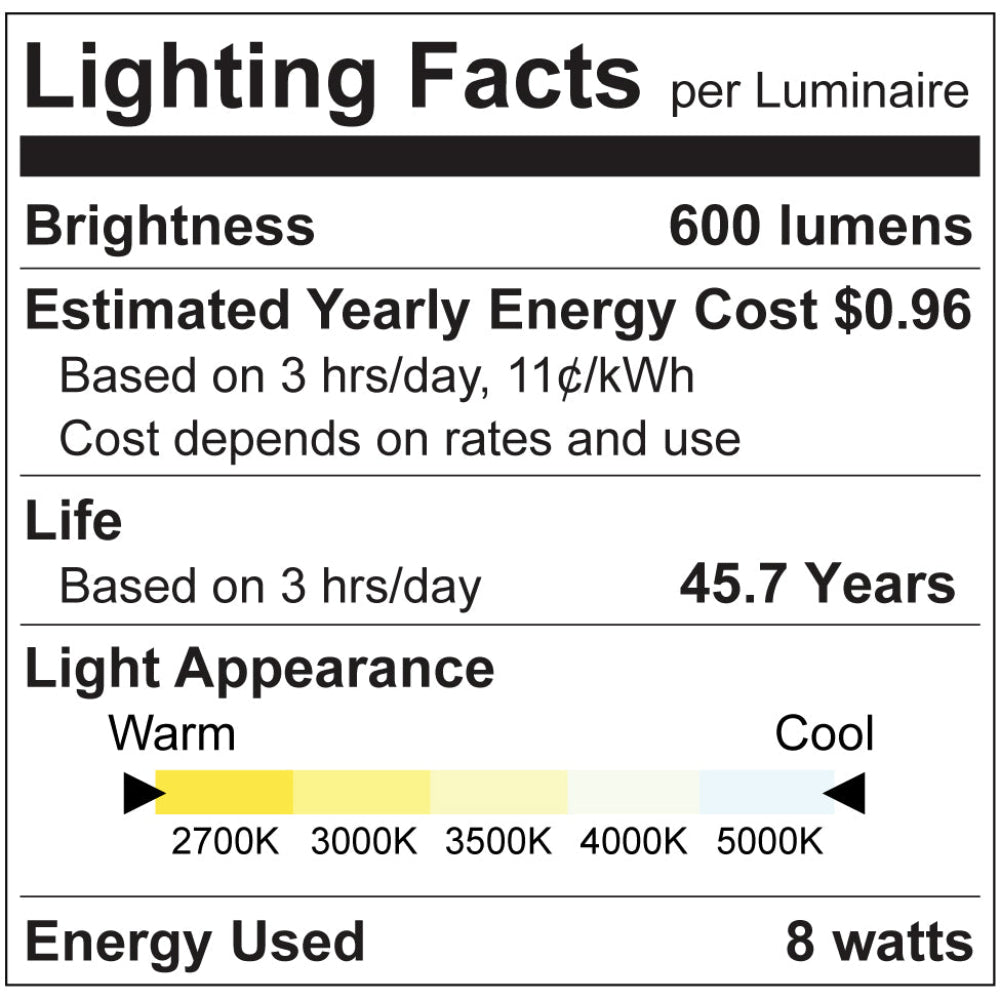

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 600
- Beam Angle: 40°
- CRI: 90
Electrical
- Power (Wattage): 8
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.98
- Input Current: 80Ma
- Frequency: 60Hz
- Watt Replacement: 75
- Lumen Efficacy: 75
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR23268 Specification Sheet
Click forLuxrite LR23268 Install Guide
Click forLuxrite LR23268 Dimmer Compatibility
