Description

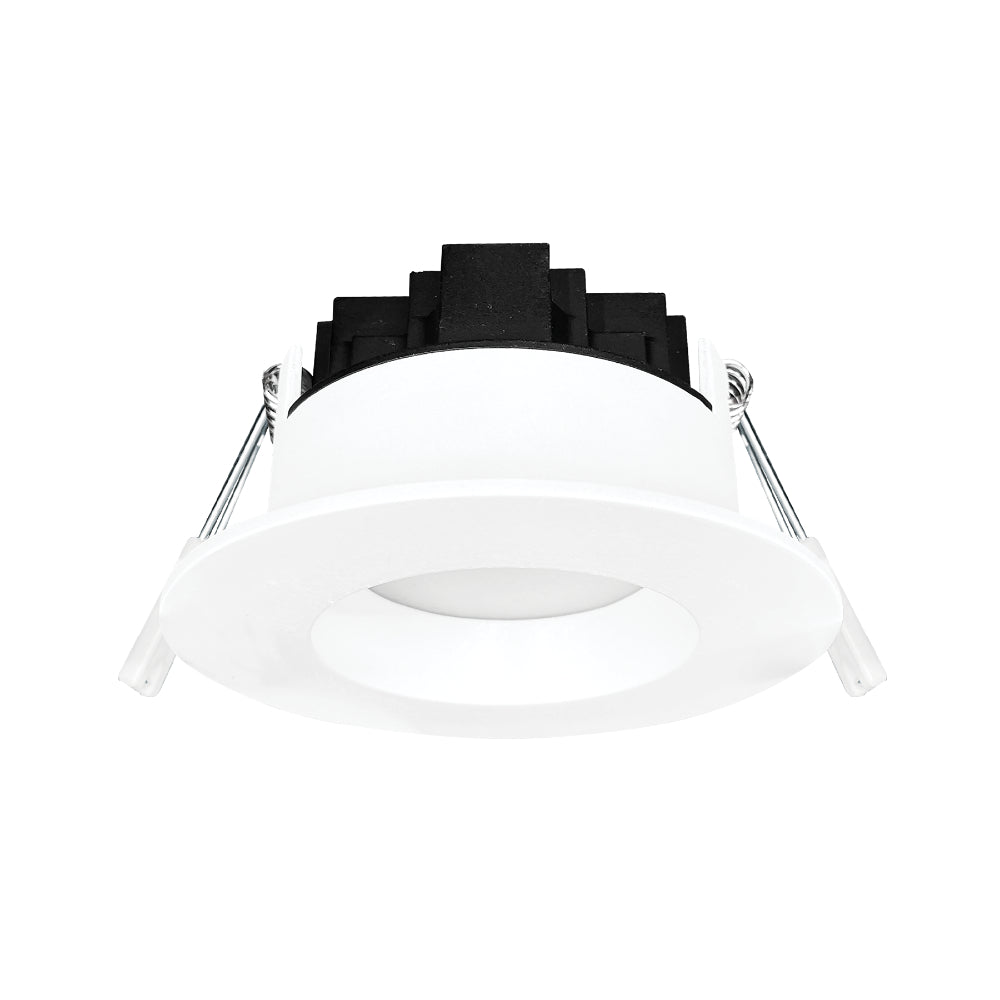

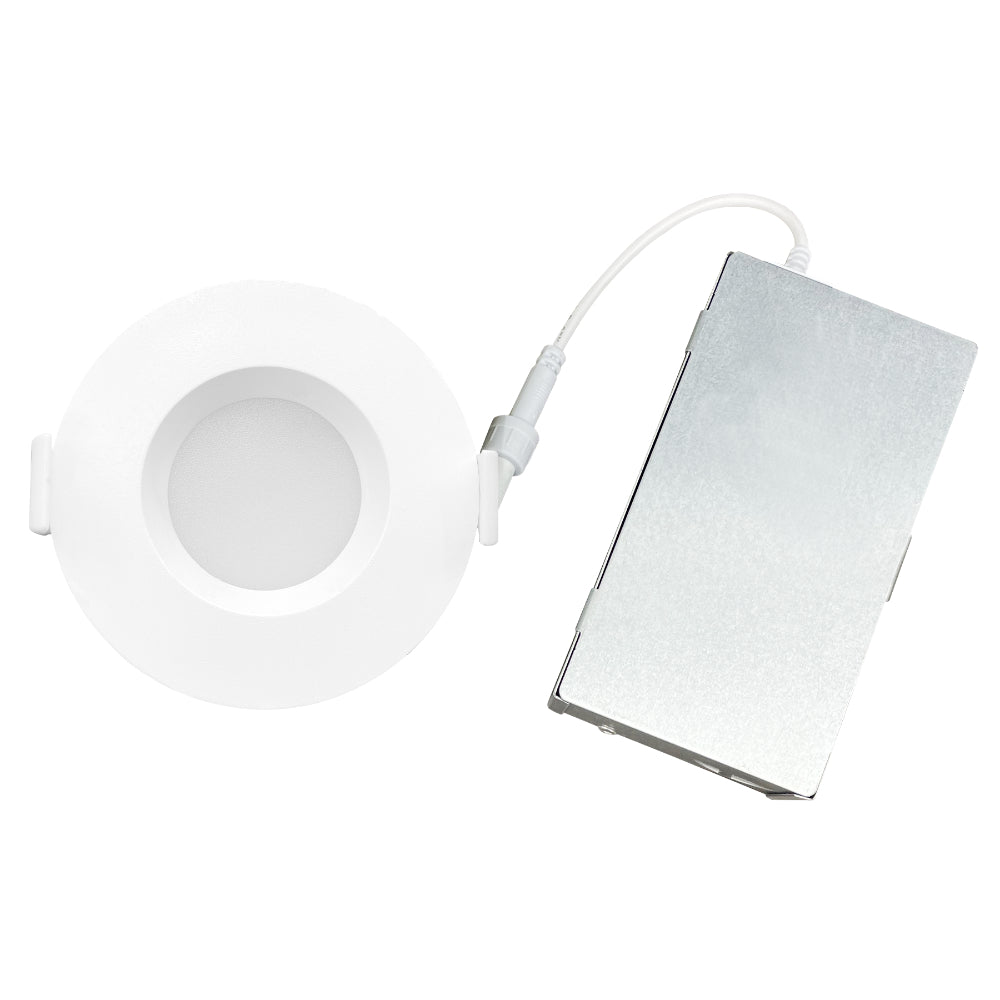

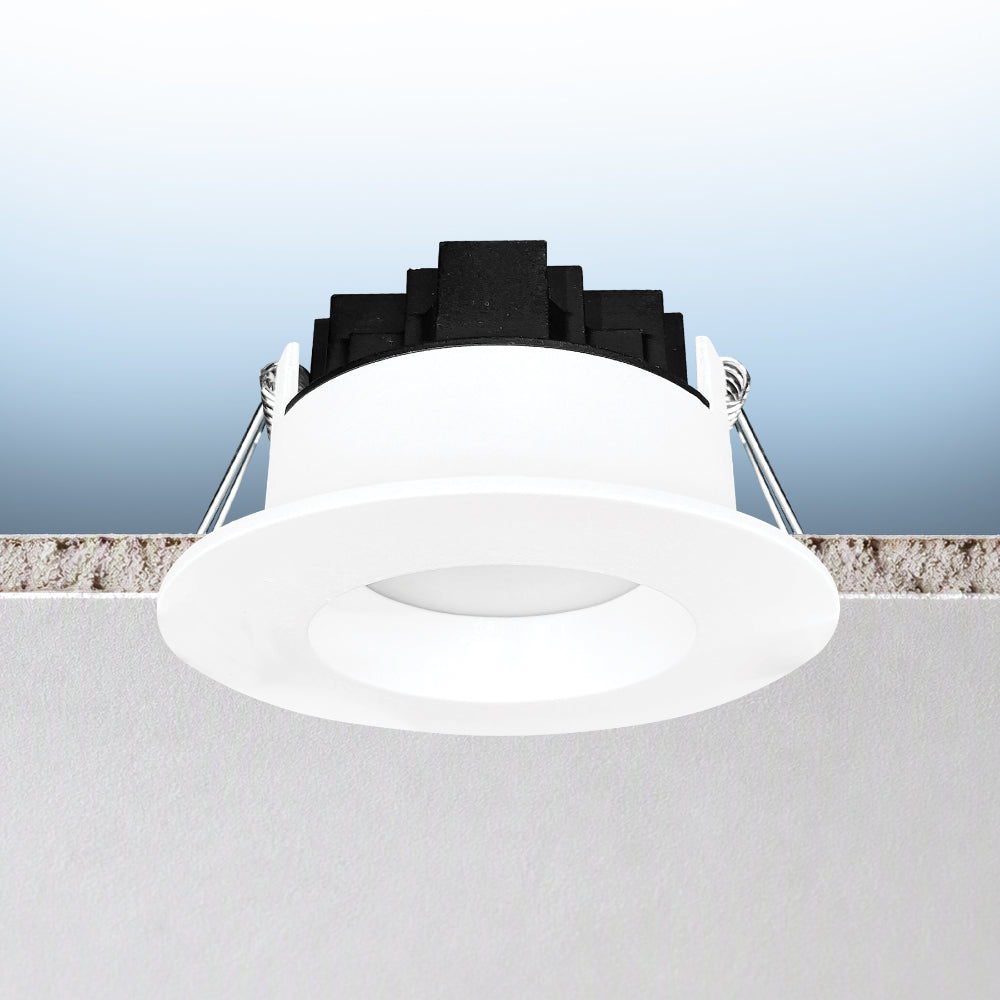

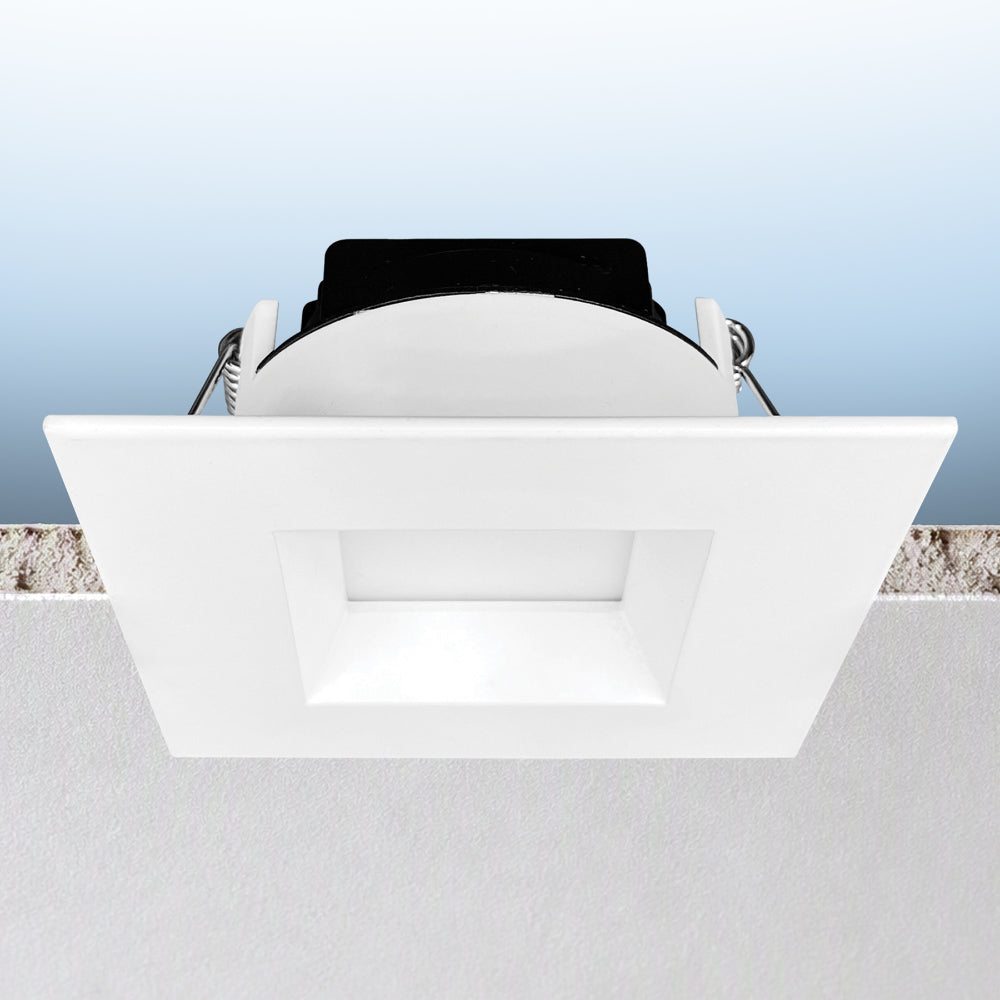

Luxrite 3" Regressed Mini Panel 5CCT - High Output
Specifications
- Item description: LEDRMP3/HO/5CCT/RD/WT/D
- Size: 3 Inch
- Shape: 3 Inch Regressed Mini Panel

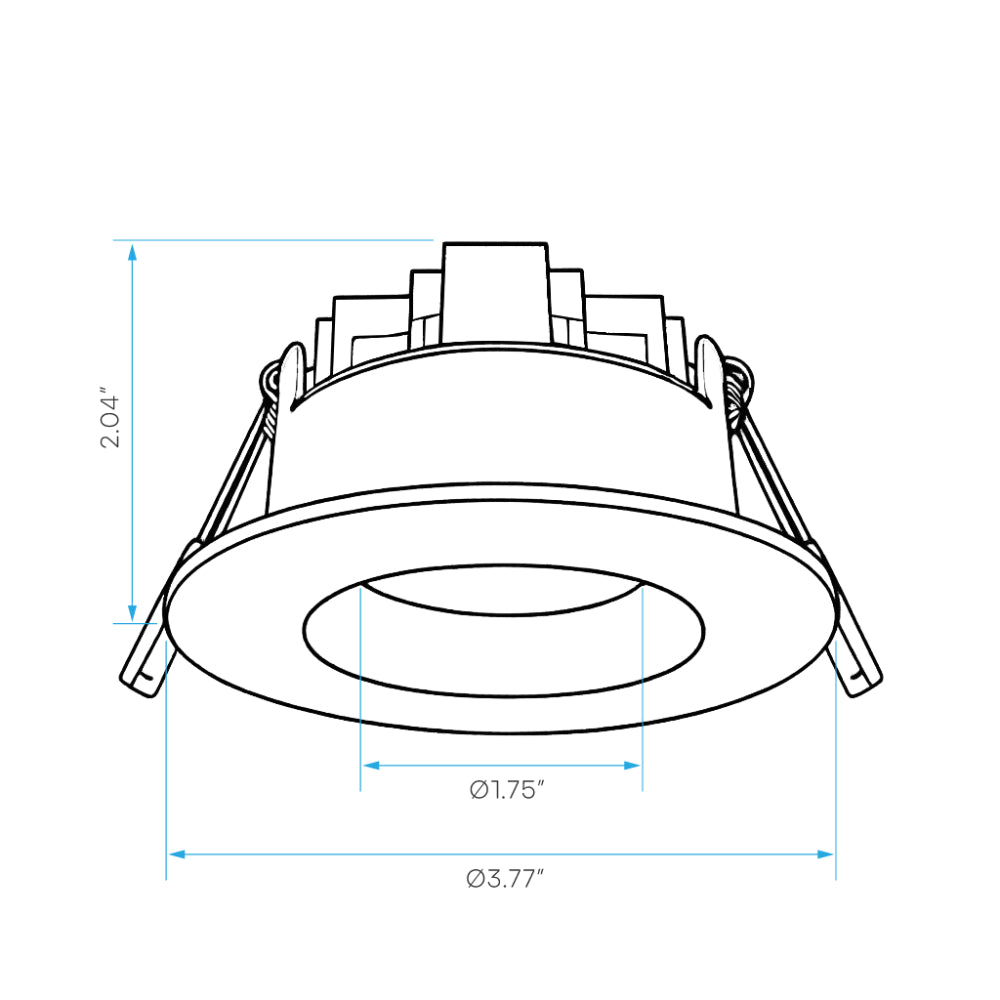

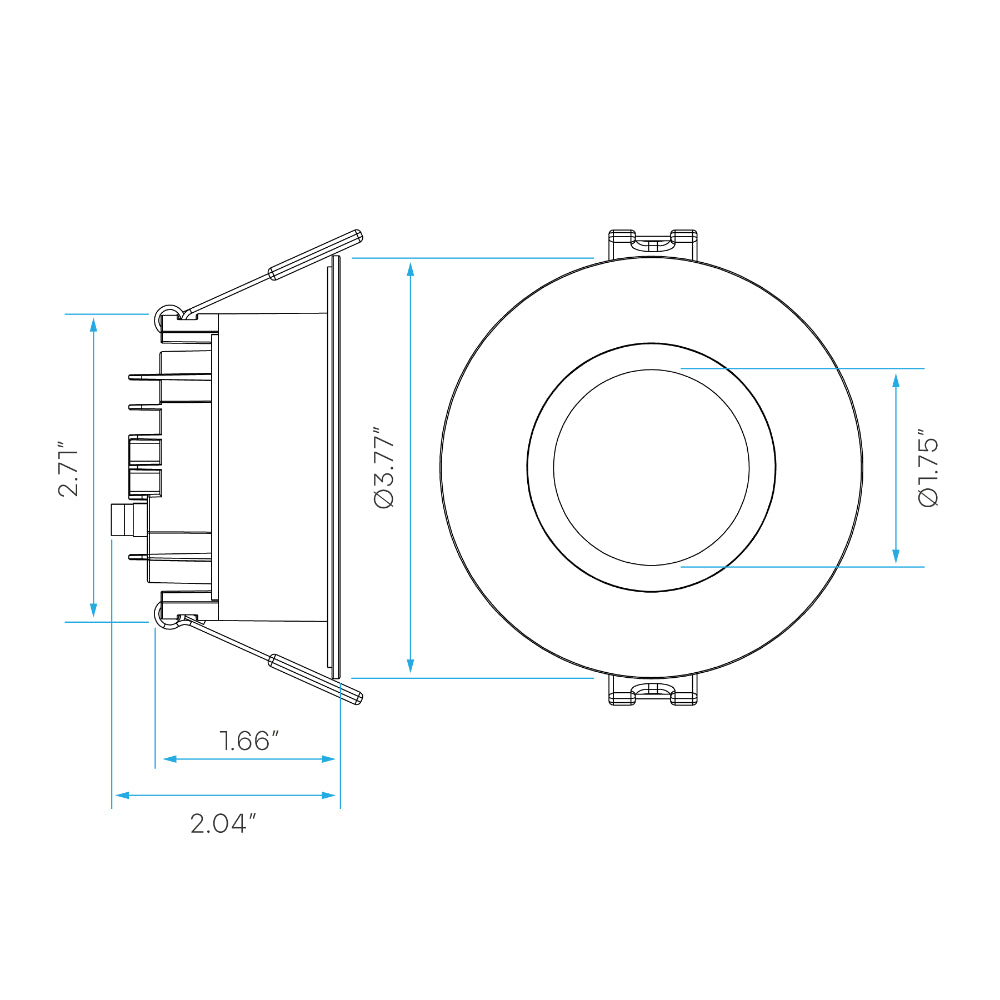

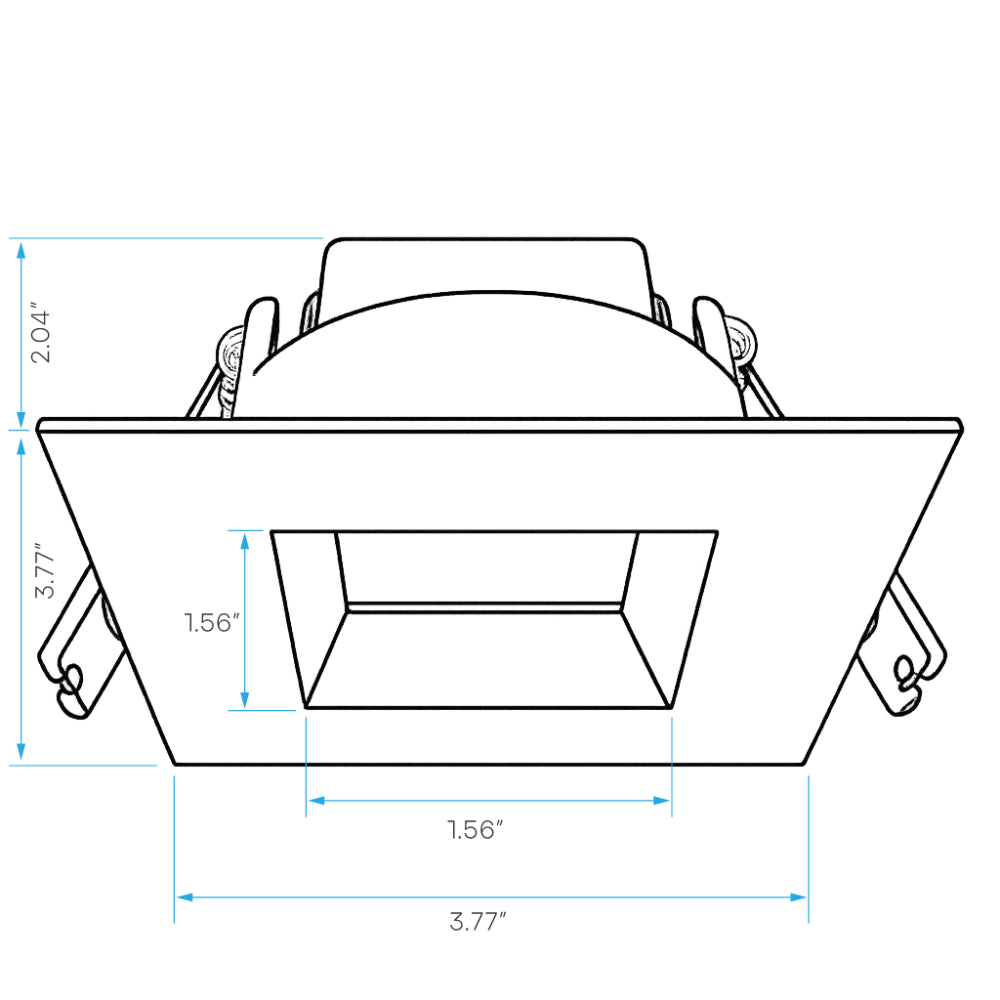

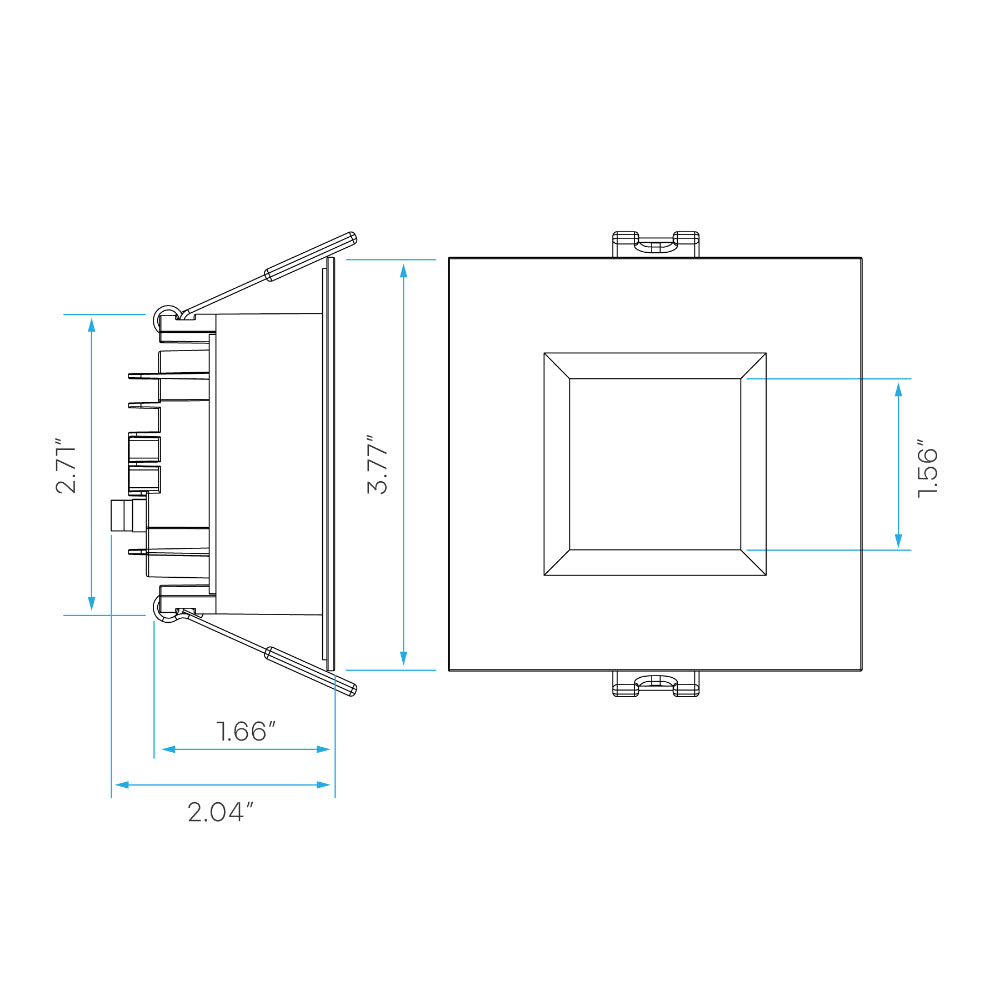

- Dimensions:
- Width: Ø3.77 Inch
- Height: 2.04 Inch
- Finish: White
- Cutout: Ø3.22 Inch
- Plate: LR41006 (#1), LR41010 (#R0), LR41011 (#2)

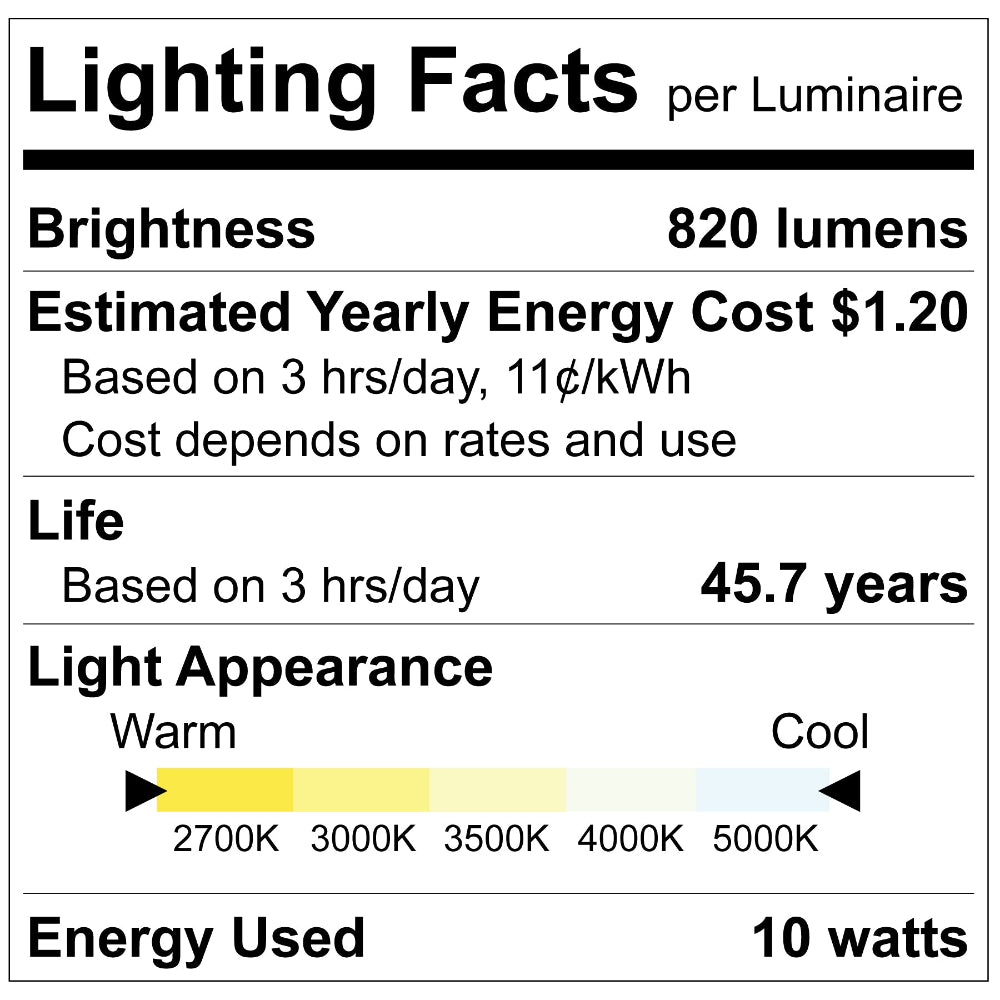

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 820
- Beam Angle: 100°
- CRI: 80
Electrical
- Power (Wattage): 10
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 80
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR22630 Specification Sheet
Click forLuxrite LR22630 Install Guide
Click forLuxrite LR22630 Dimmer Compatibility
Click forLuxrite LR22630 Warranty
Click forLuxrite LR22630 Certificate Of Compliance
Click forLuxrite LR22638 Specification Sheet
Click forLuxrite LR22638 Install Guide
Click forLuxrite LR22638 Dimmer Compatibility
