Description

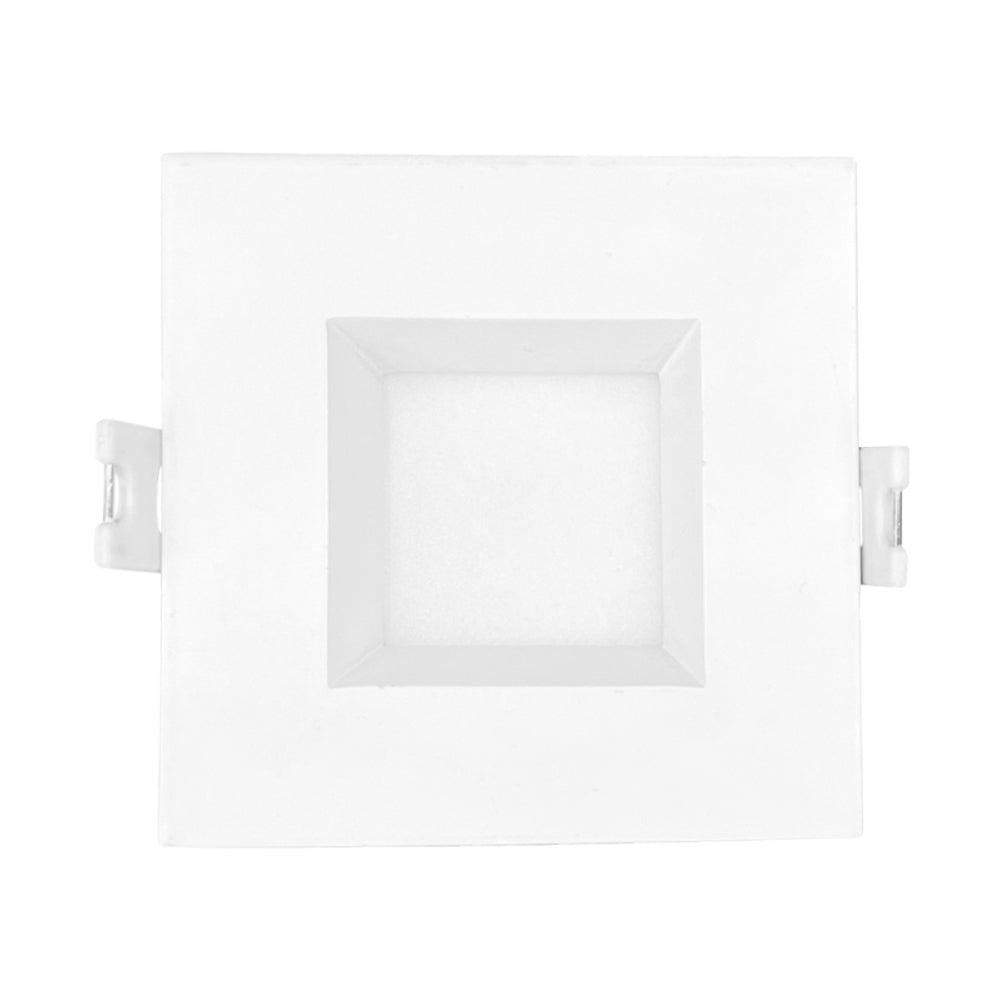

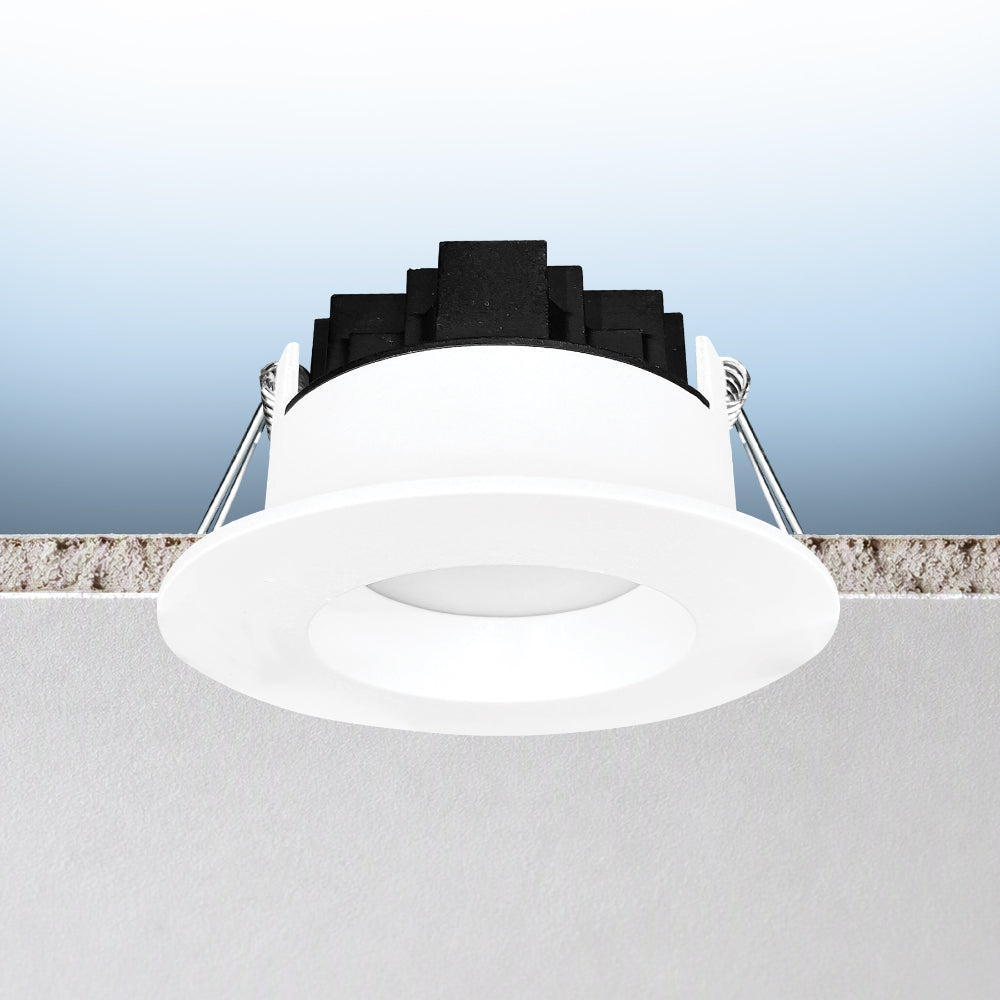

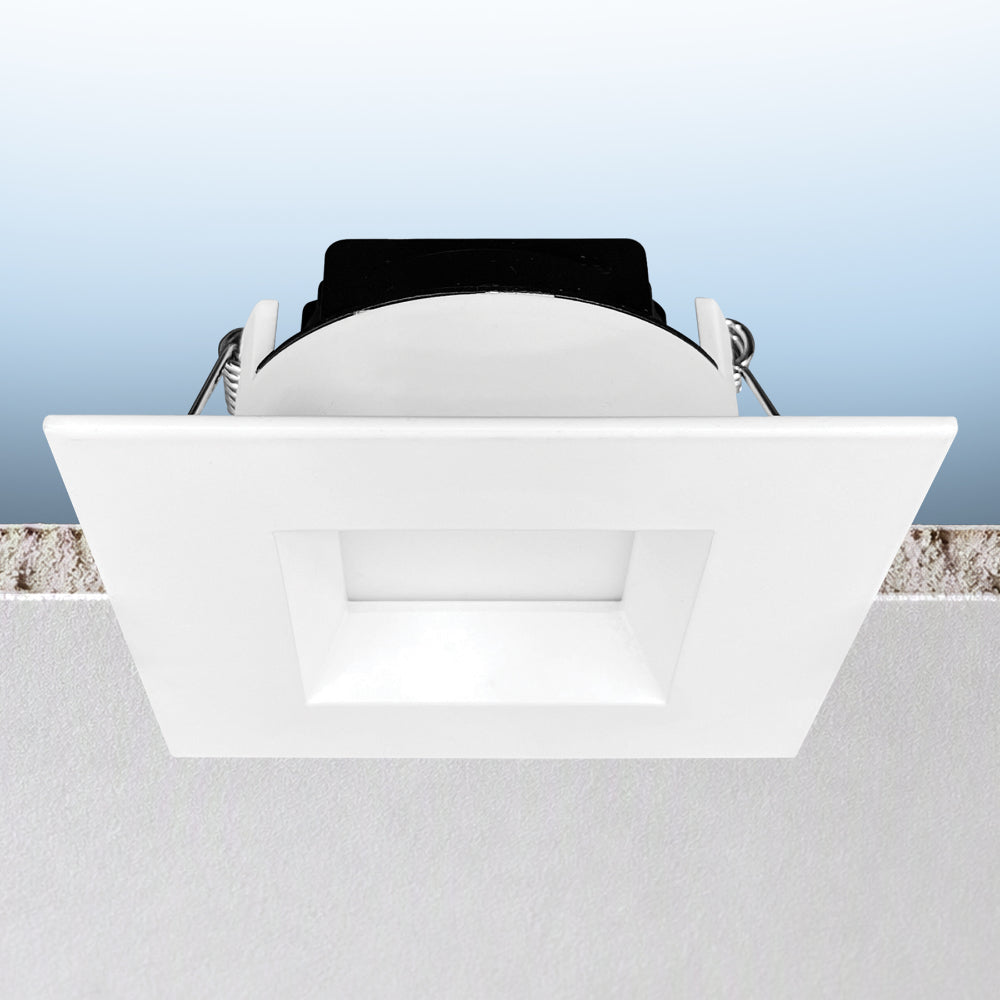

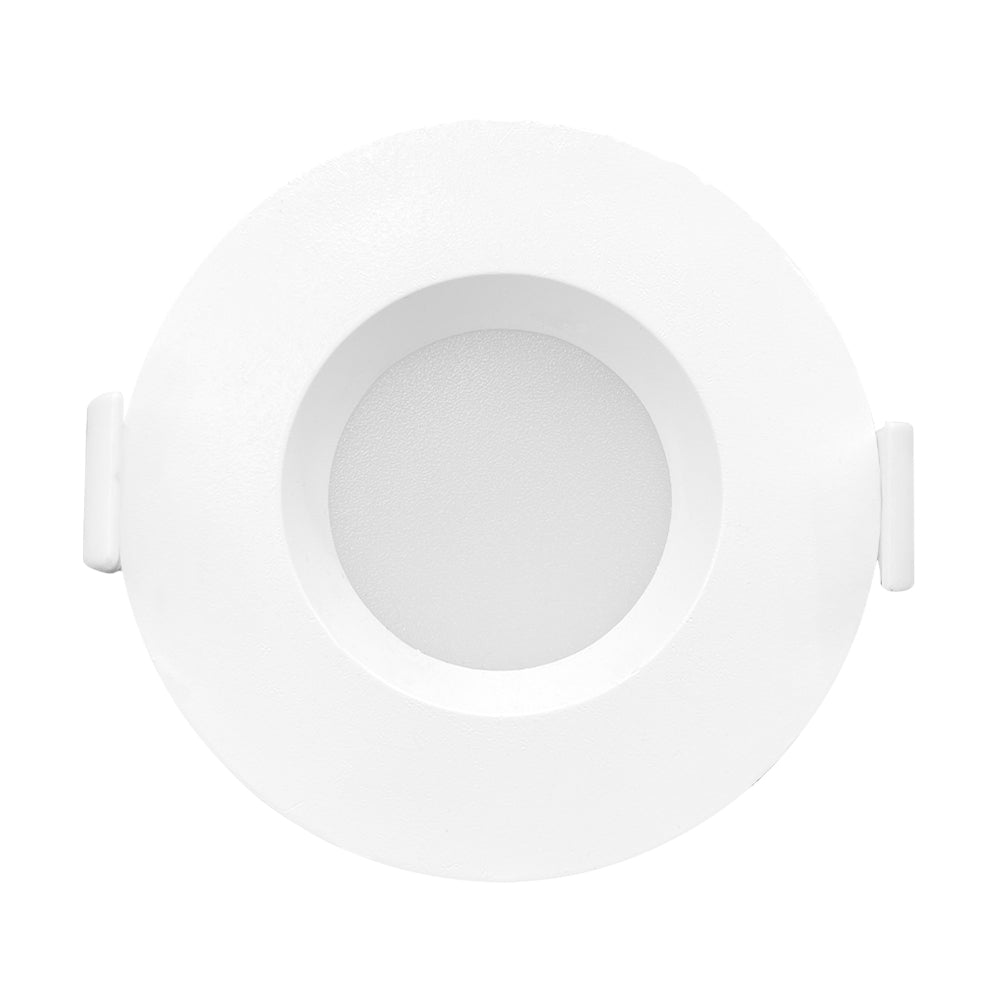

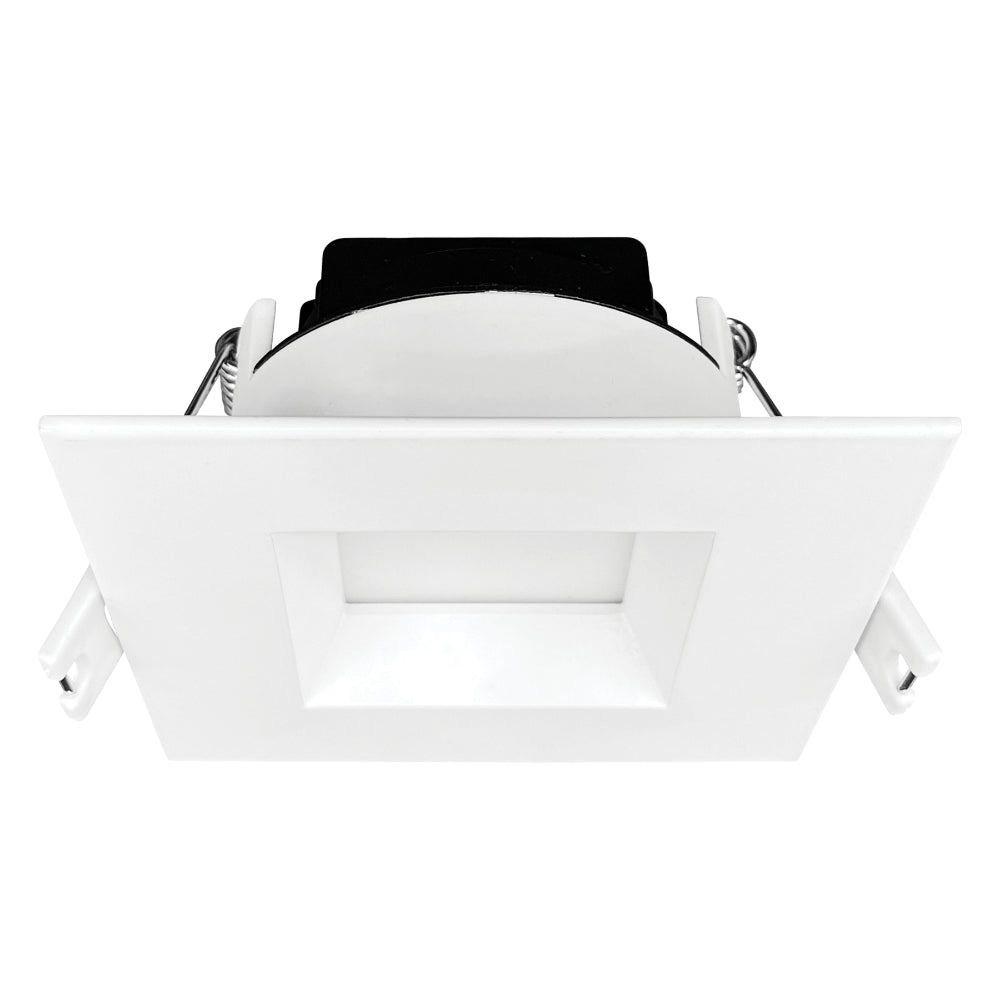

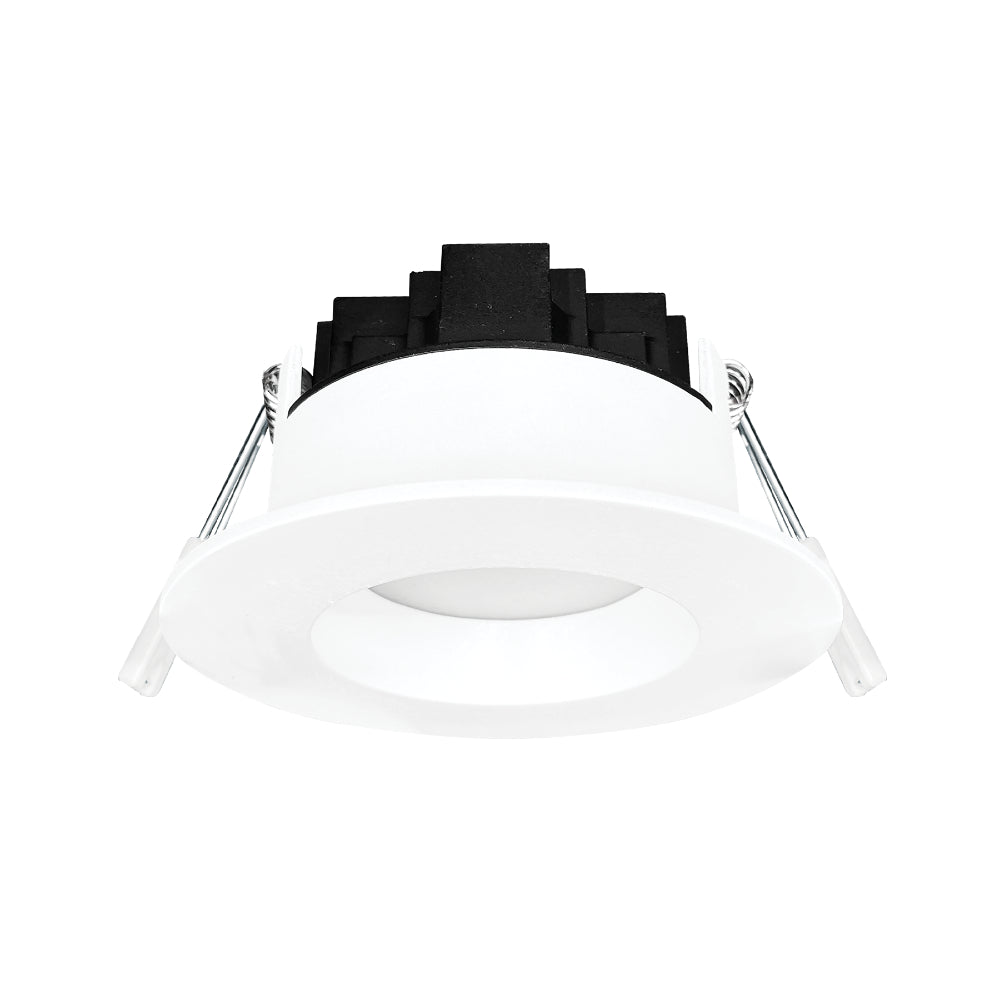

Luxrite 3" Regressed Mini Panel - CCT & Wattage Selectable - Dual Dimming/Universal Voltage
Specifications
- Item description: LEDRMP3/2WO/5CCT/SQ/WT/UNV/DD
- Size: 3 Inch
- Shape: Regressed Mini Panel

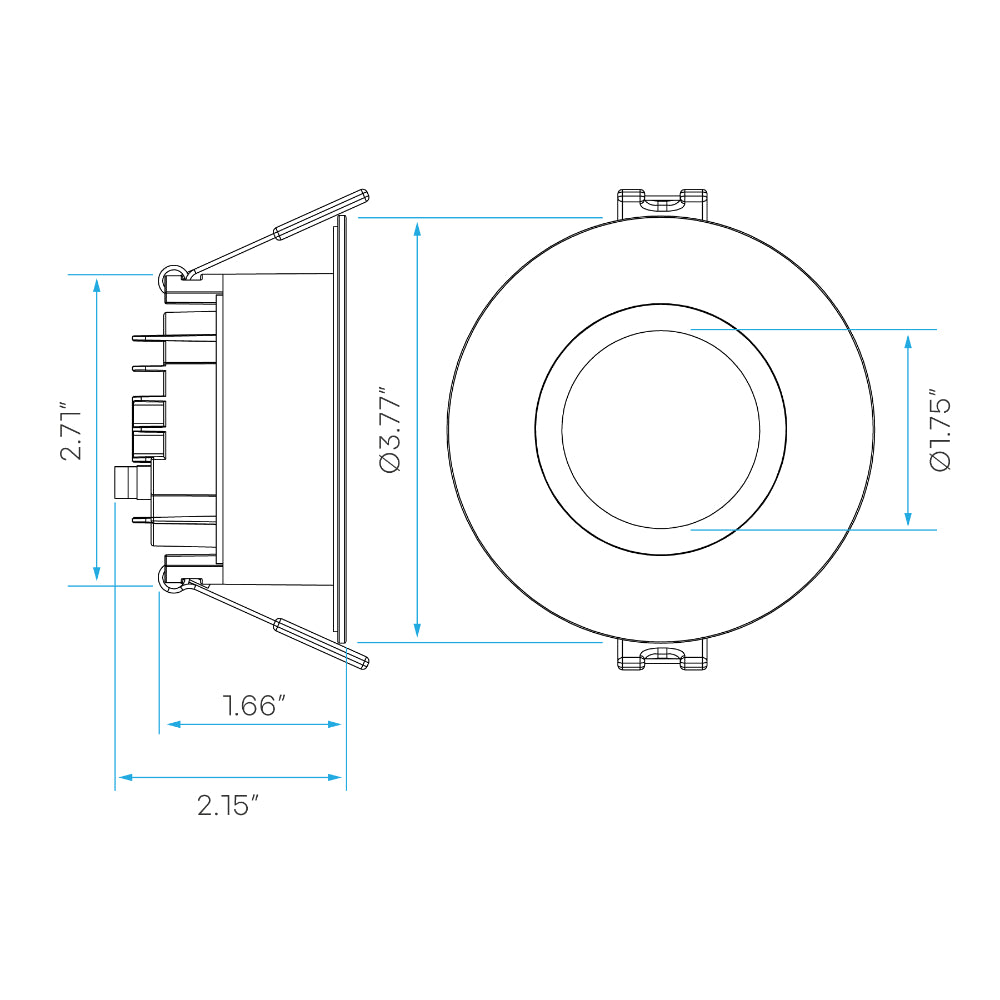

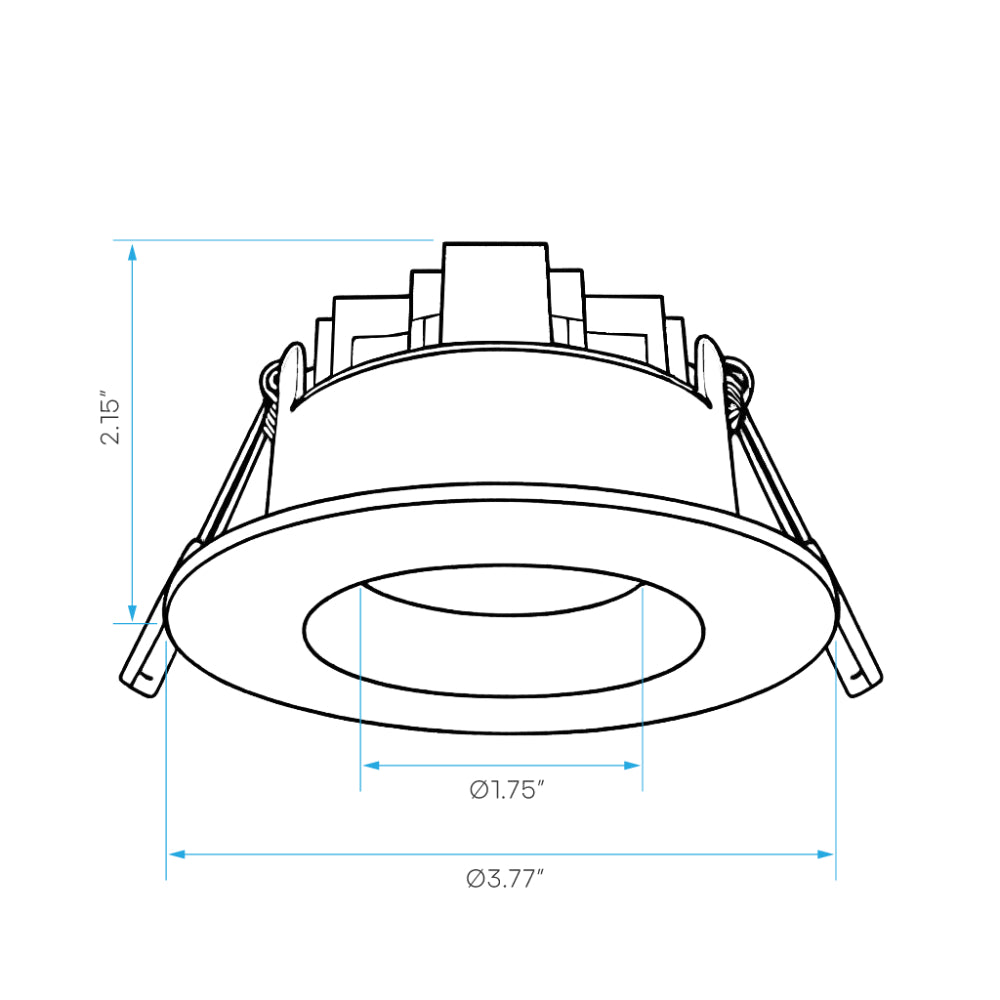

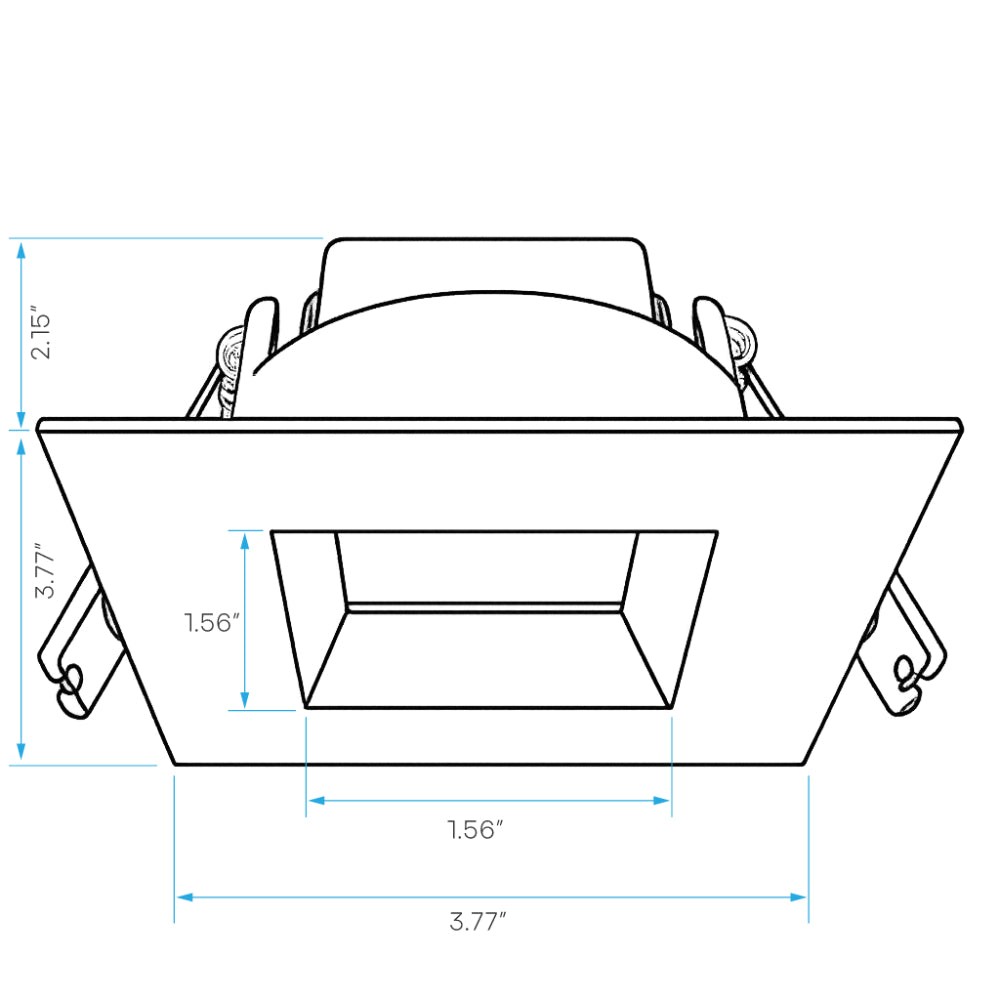

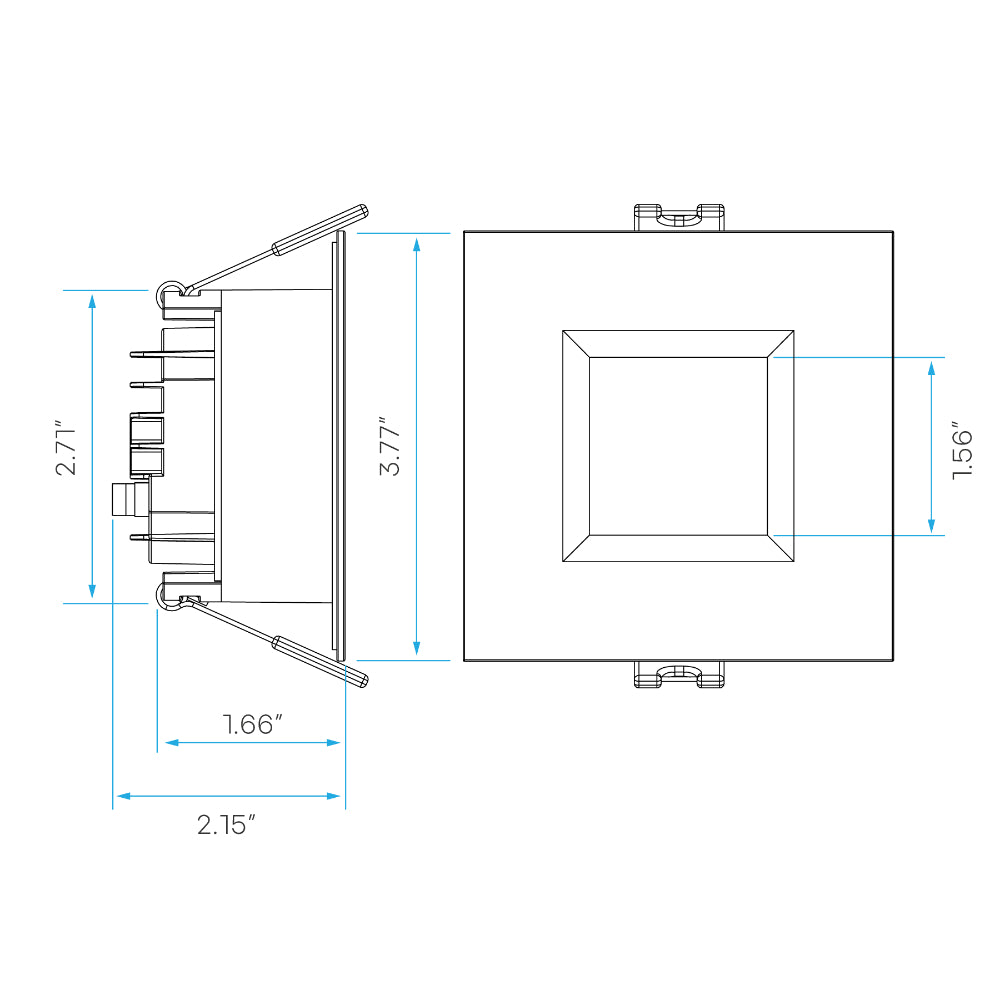

- Dimensions:
- Length: 3.77 Inch
- Width: 3.77 Inch
- Depth: 2.15 Inch
- Finish: White
- Cutout: Ø3.22 Inch
- Plate: LR41006 (#1), LR41010 (#R0), LR41011 (#2)

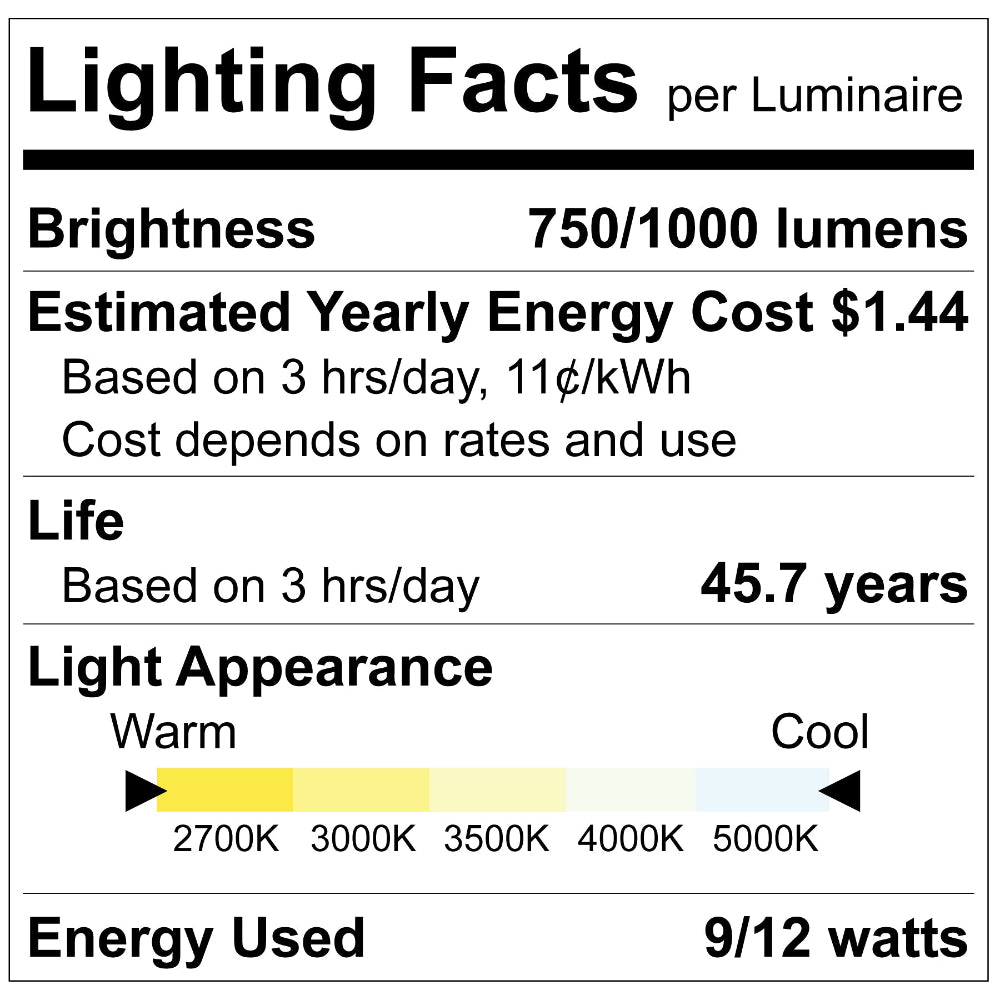

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 750/1000
- Beam Angle: 90°
- CRI: 80
Electrical
- Power (Wattage): 9/12
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: Dual Dimming TRIAC/0-10V
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 83
- Operating Temp:
- Min: -4°
- Max: 104°
Product Files
Click forLuxrite LR22679 Specification Sheet
Click forLuxrite LR22679 Install Guide
Click forLuxrite LR22679 Dimmer Compatibility
Click forLuxrite LR22679 Warranty
Click forLuxrite LR22679 Certificate Of Compliance
Click forLuxrite LR22671 Dimmer Compatibility
