Description

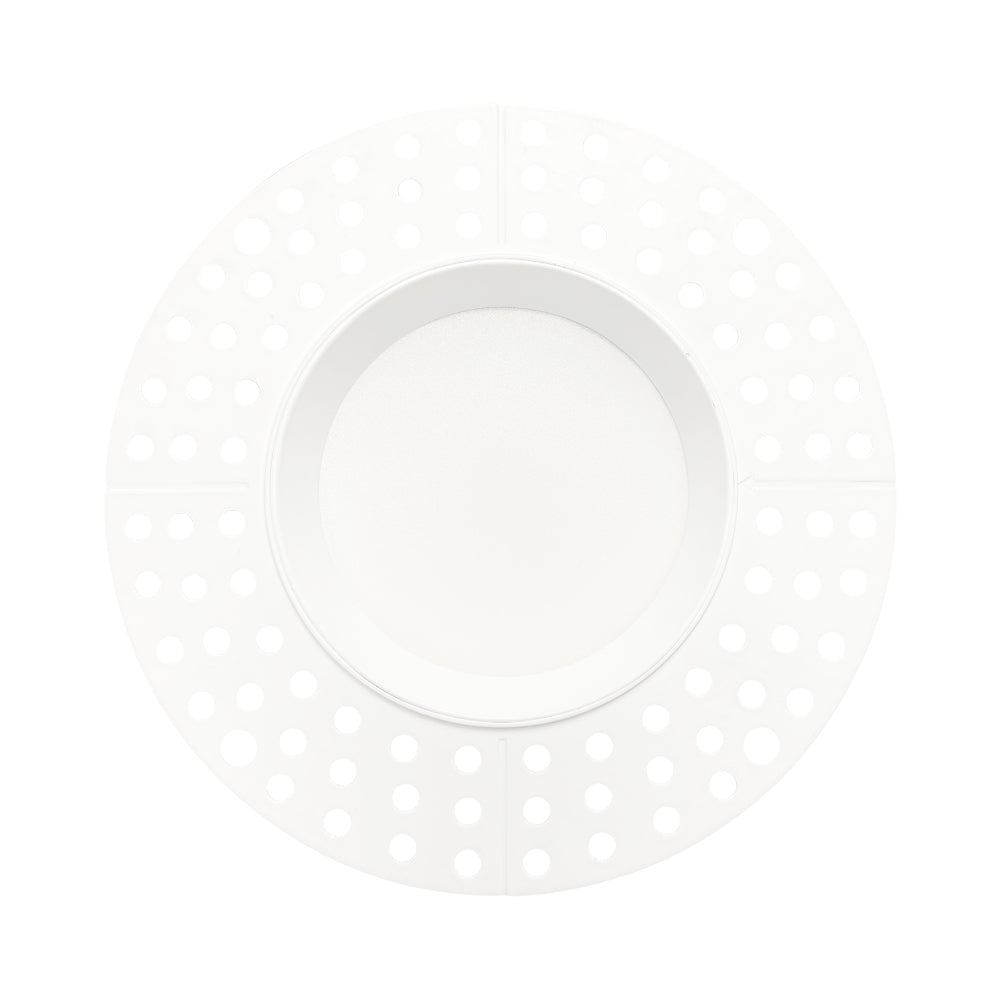

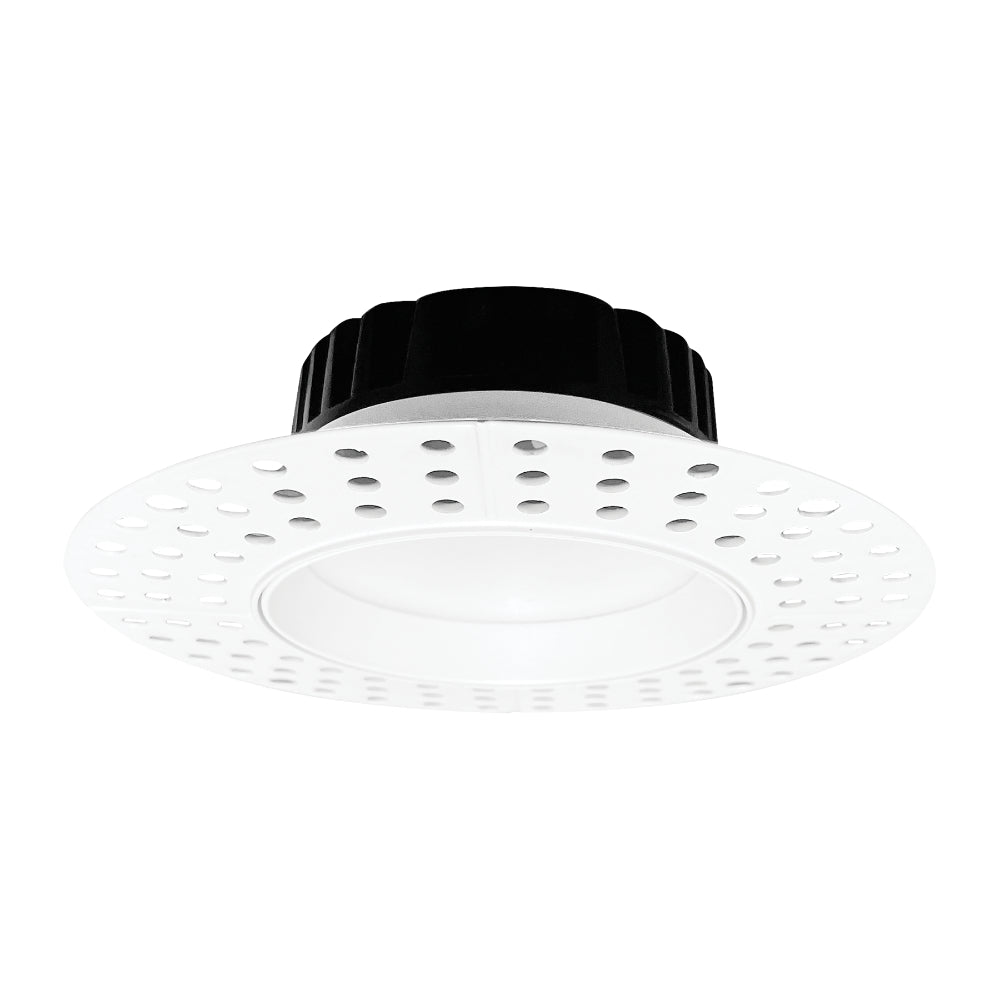

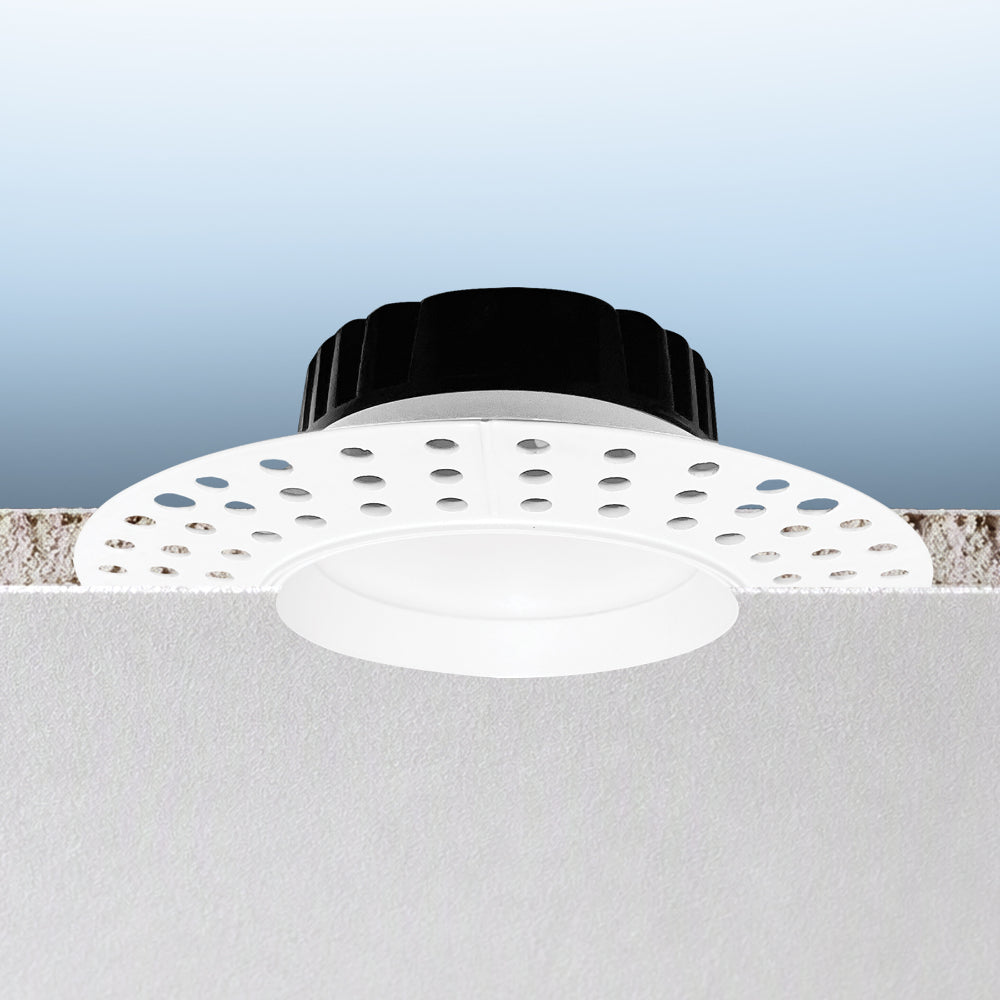

Luxrite 3" Regressed Mini Panel Trimless Spotlight - CCT Selectable
Specifications
- Item description: LED/RMP3/5CCT/TL/RD/WT
- Size: 3 Inch
- Shape: Mini Panel Trimless

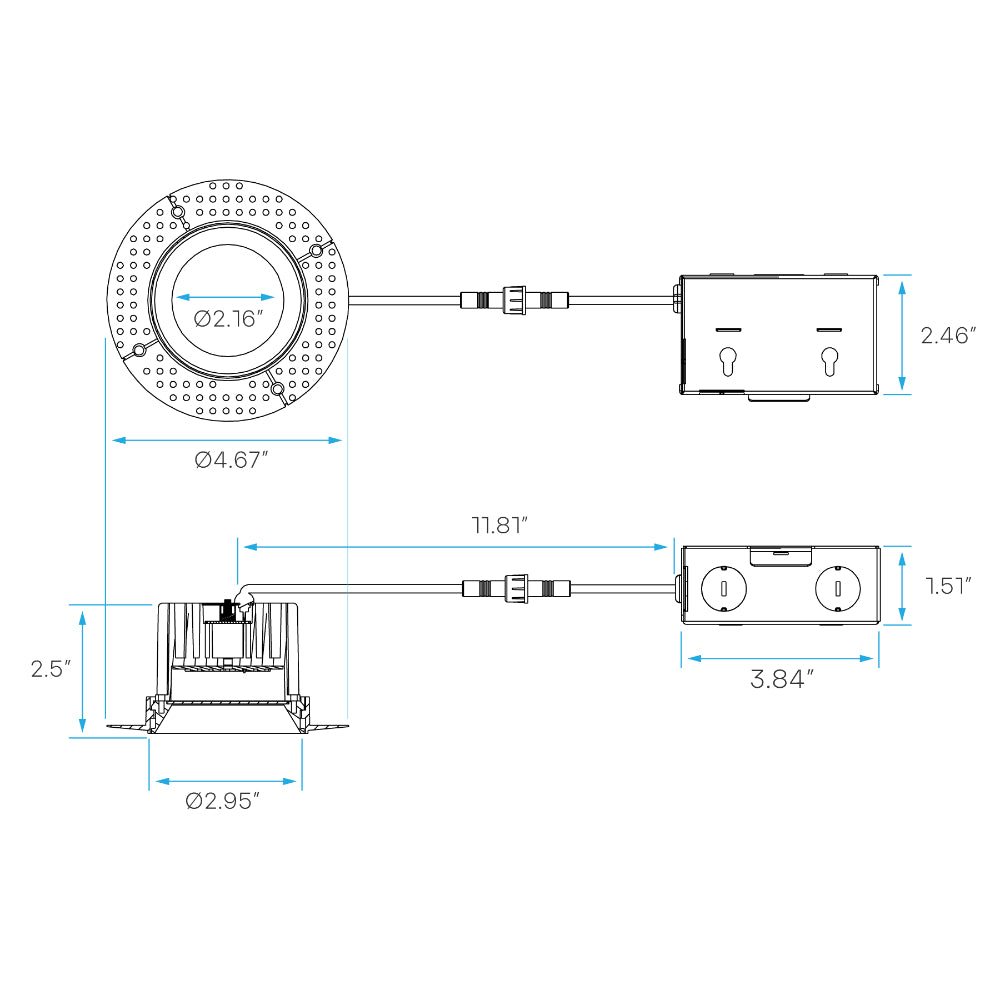

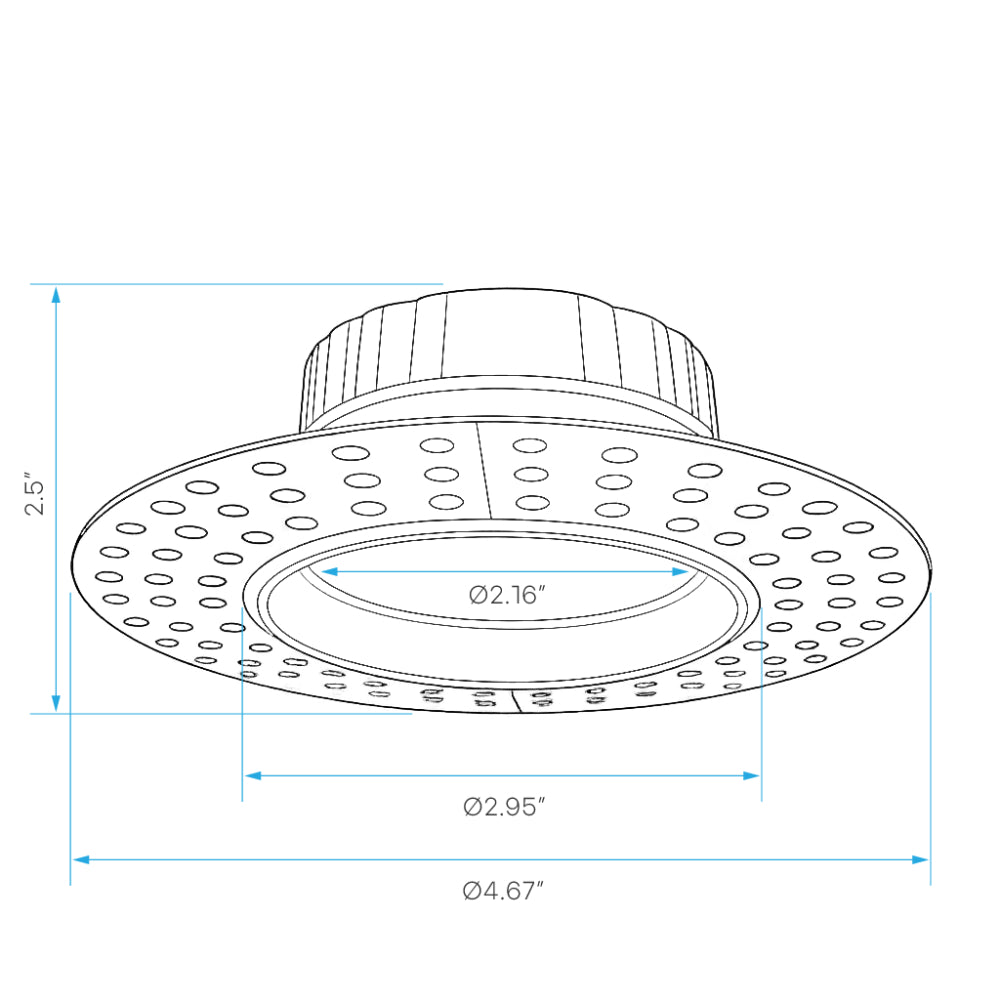

- Dimensions:
- Width: Ø4.67 Inch
- Depth: 2.5 Inch
- Finish: White
- Cutout: Ø3.23 Inch
- Plate: LR41004 (#2), LR41006 (#2), LR41010 (#R0), LR41011 (#2)

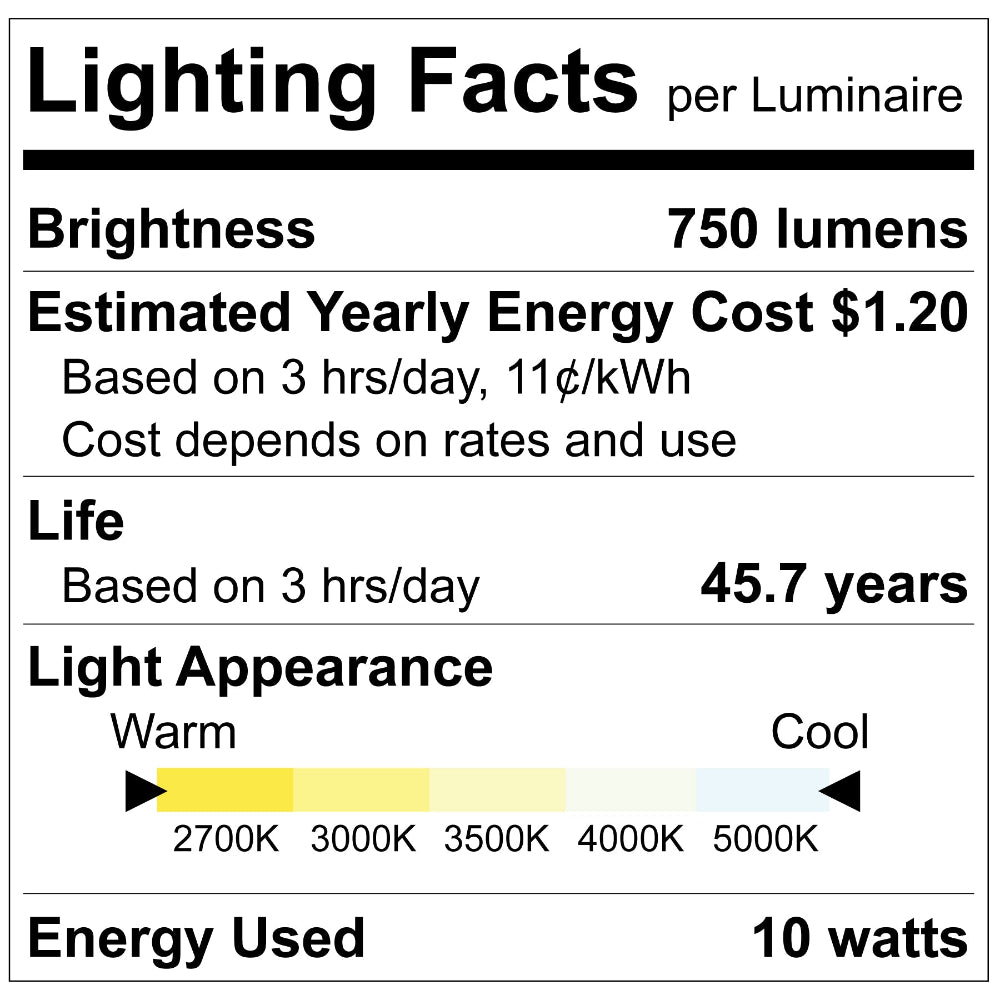

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 750
- Beam Angle: 110º
- CRI: 90
Electrical
- Power (Wattage): 10
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Input Current: 83Ma
- Frequency: 50/60Hz
- Operating Temp:
- Min: -4º
- Max: 104º
Product Files
Click forLuxrite LR24927 Specification Sheet
Click forLuxrite LR24927 Family Specification Sheet
Click forLuxrite LR24927 Install Guide
