Description

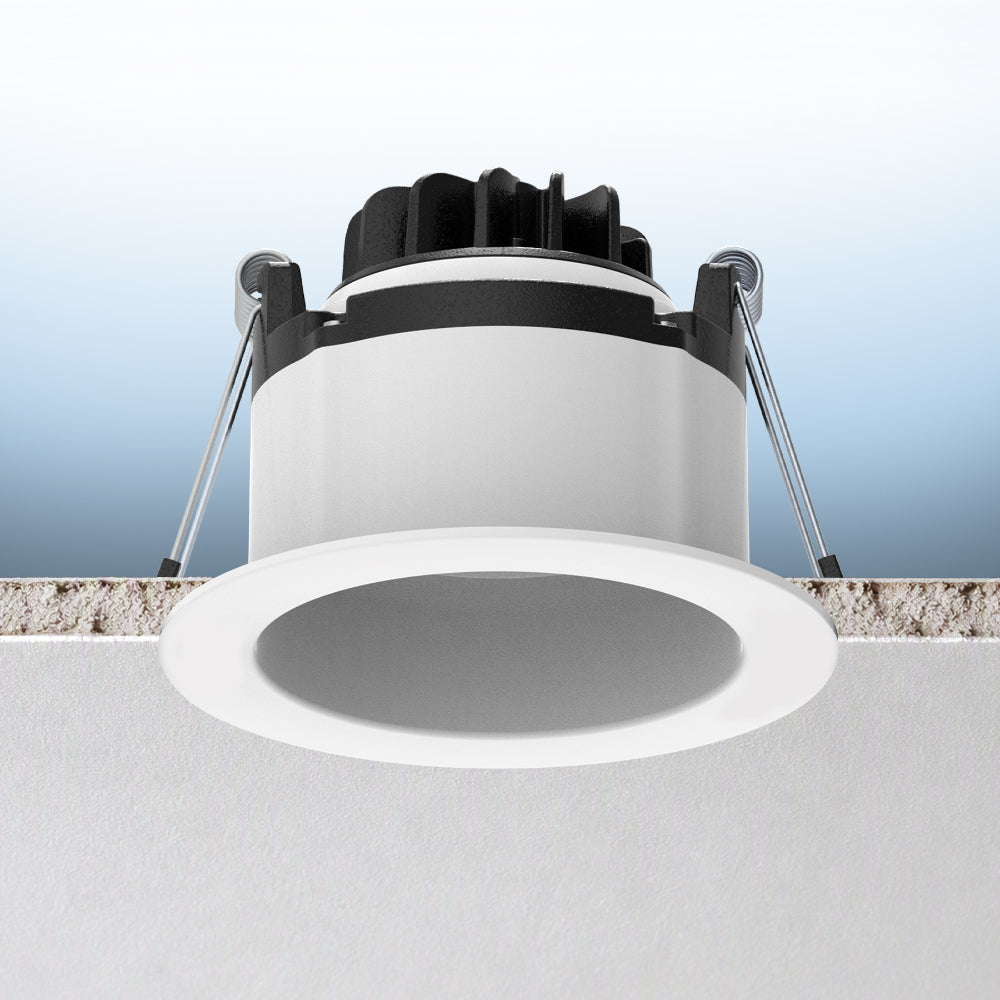

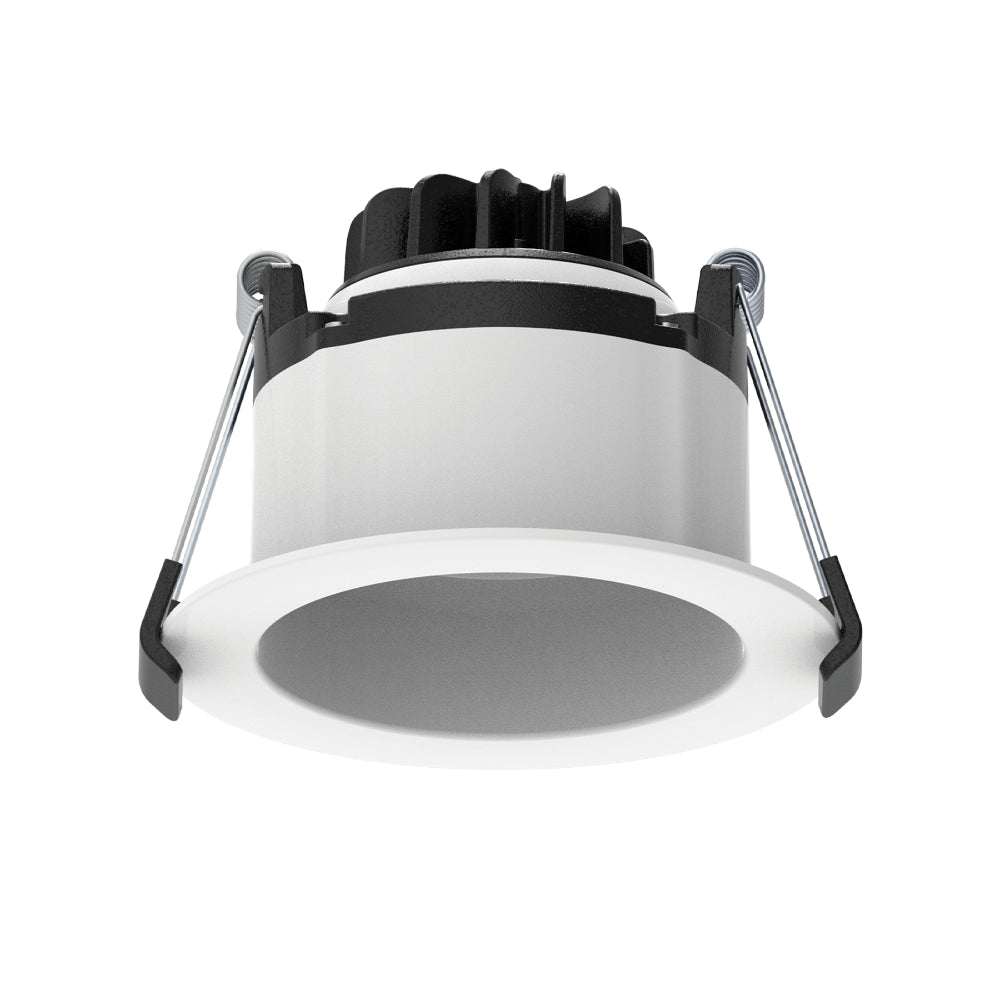

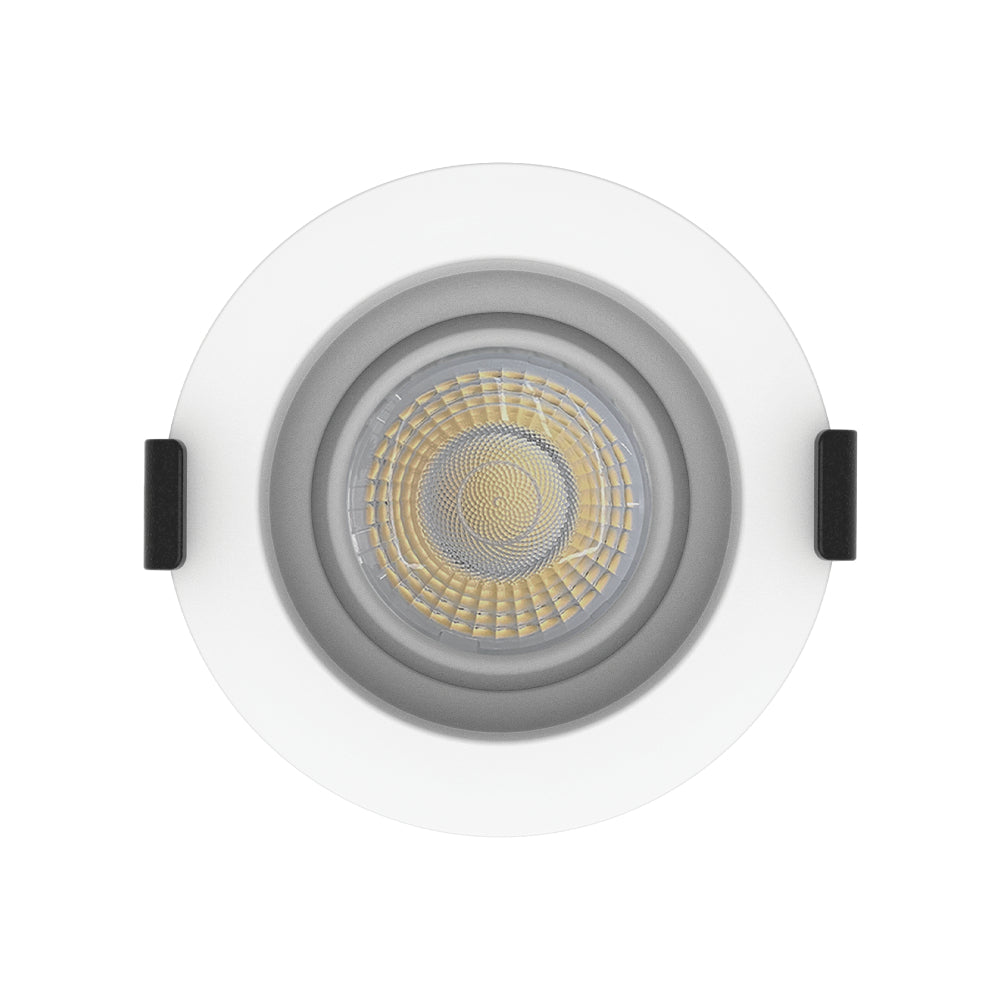

Luxrite 3" Regressed Recessed Gimbal - 5 CCT Selectable
Specifications
- Item description: LED9W/RDL3/GB/5CCT/RD/WT
- Size: 3 Inch
- Shape: 3 Inch Regressed Gimbal

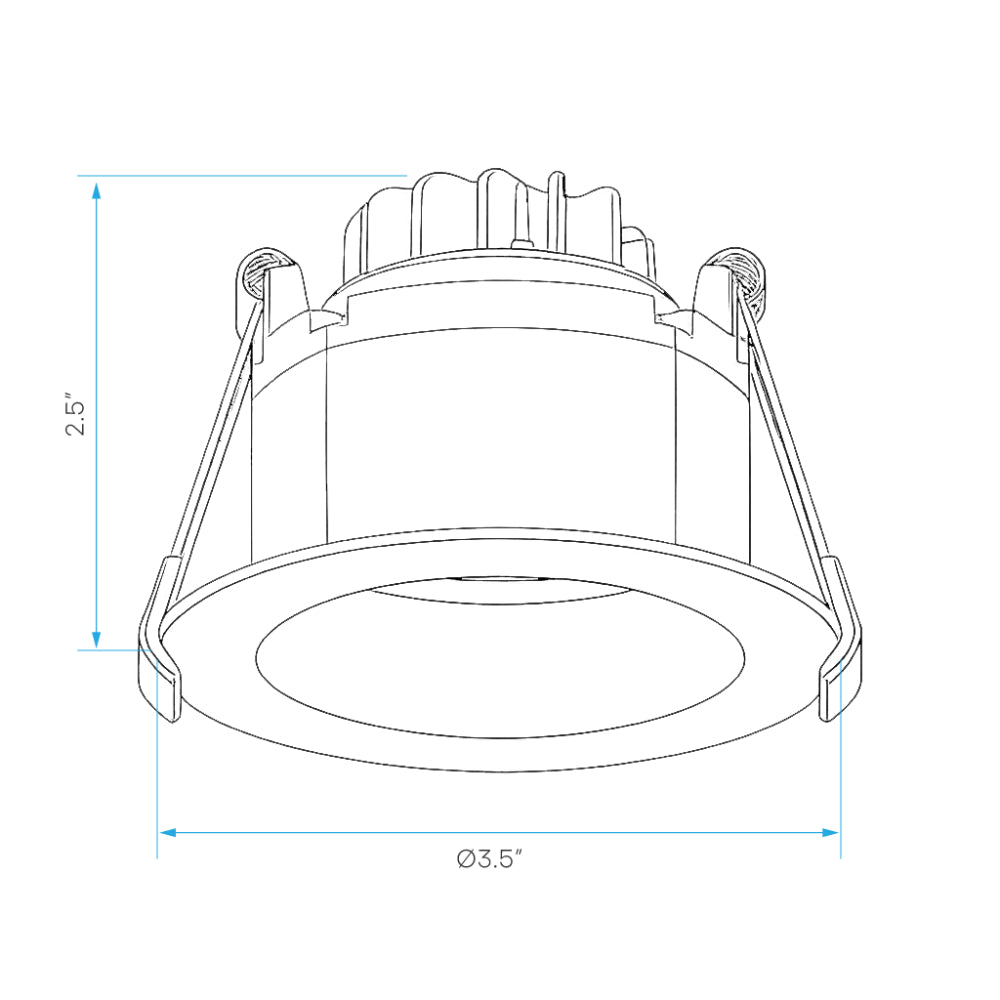

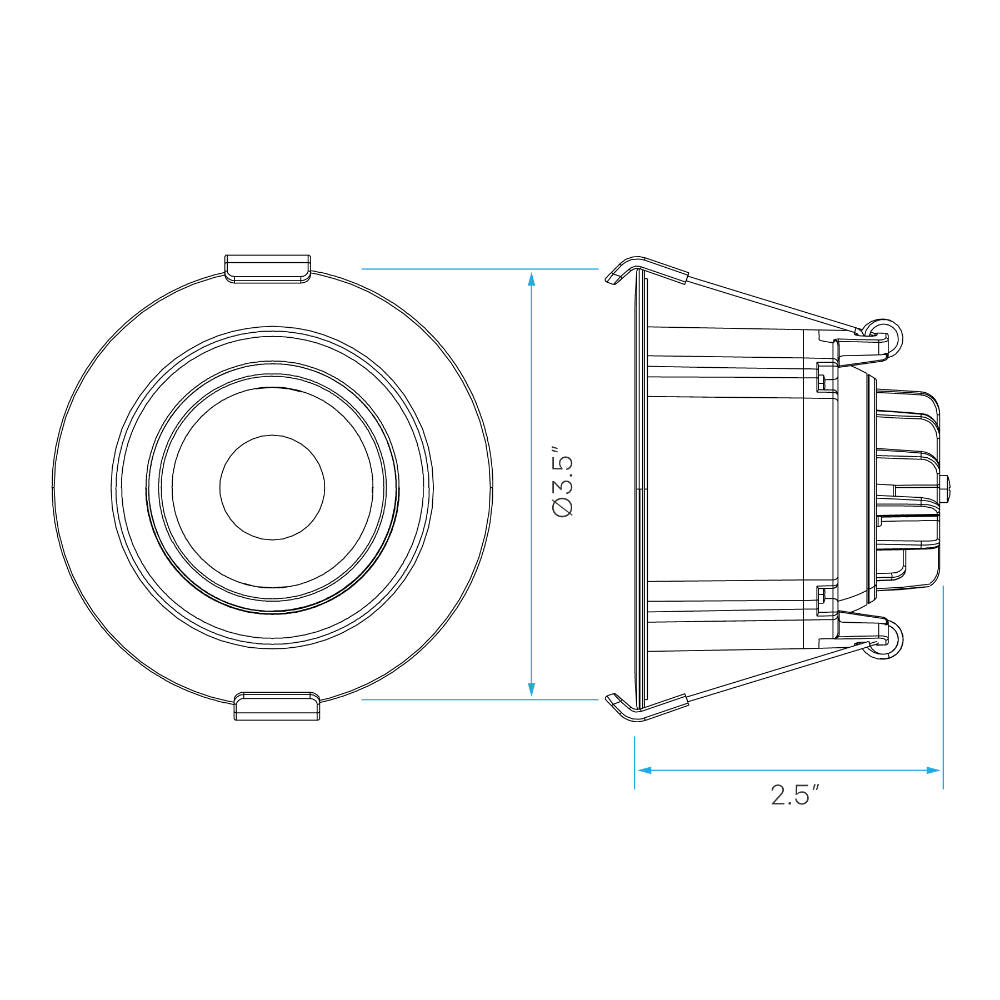

- Dimensions:
- Width: Ø3.5 Inch
- Depth: 2.5 Inch
- Finish: White
- Cutout: Ø3 Inch
- Plate: LR41002 (#0), LR41006 (#1)

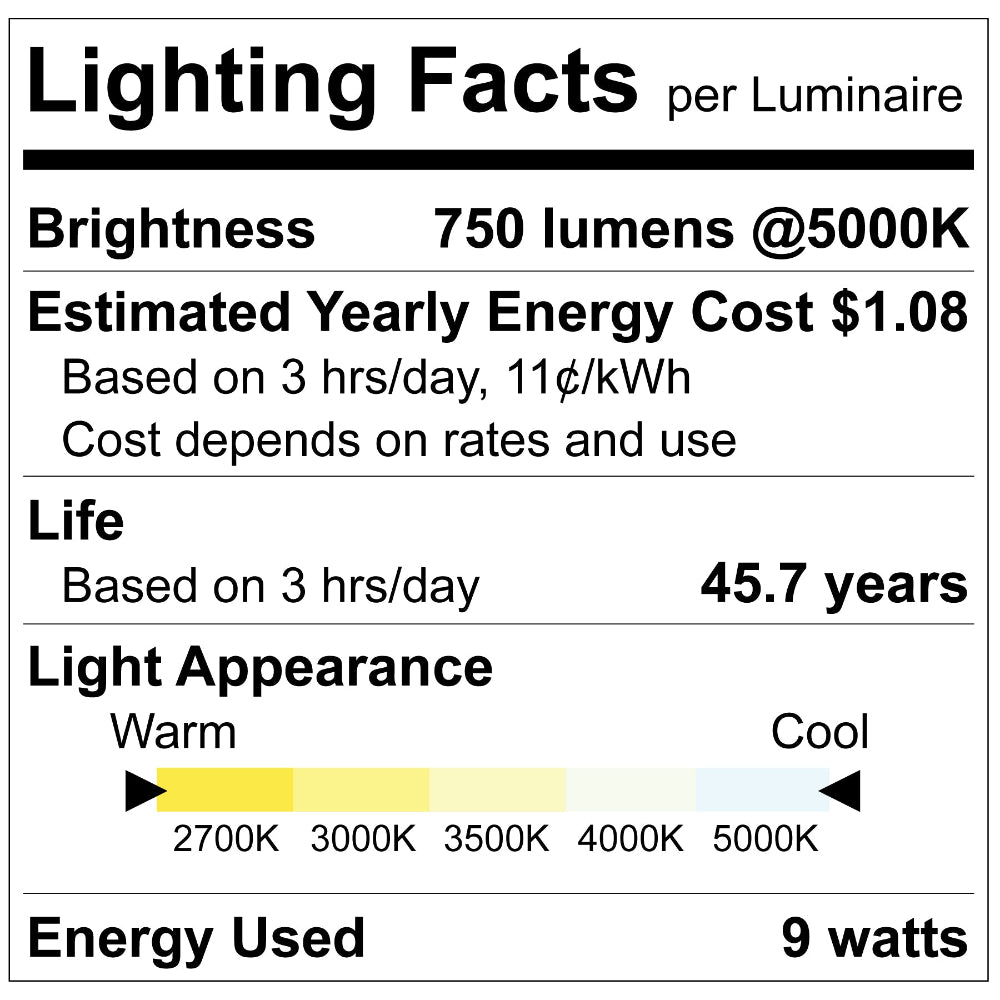

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 730
- Beam Angle: 38º
- CRI: 90
Electrical
- Power (Wattage): 9
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 50/60Hz
- Lumen Efficacy: 83
- Operating Temp:
- Min: -13º
- Max: 104º
Product Files
Click forLuxrite LR23311 Specification Sheet
Click forLuxrite LR23311 Install Guide
Click forLuxrite LR23311 Dimmer Compatibility
