Description

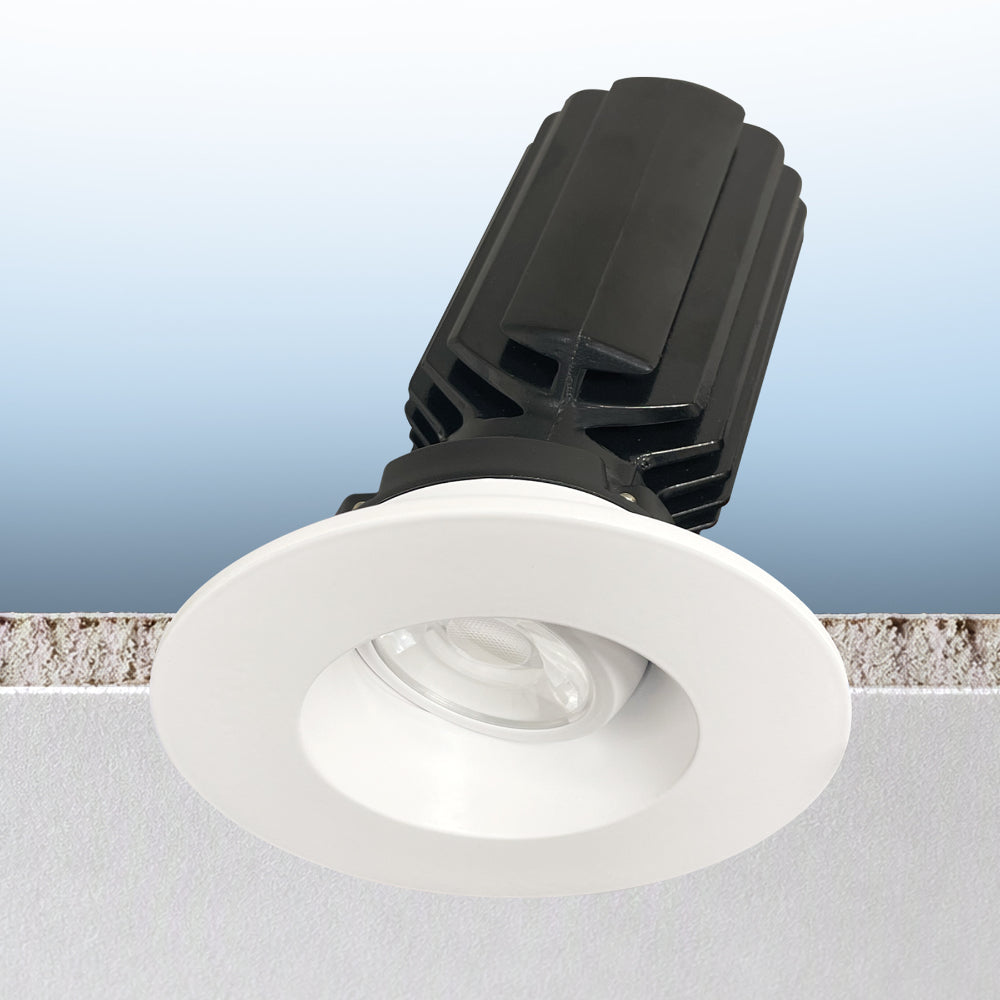

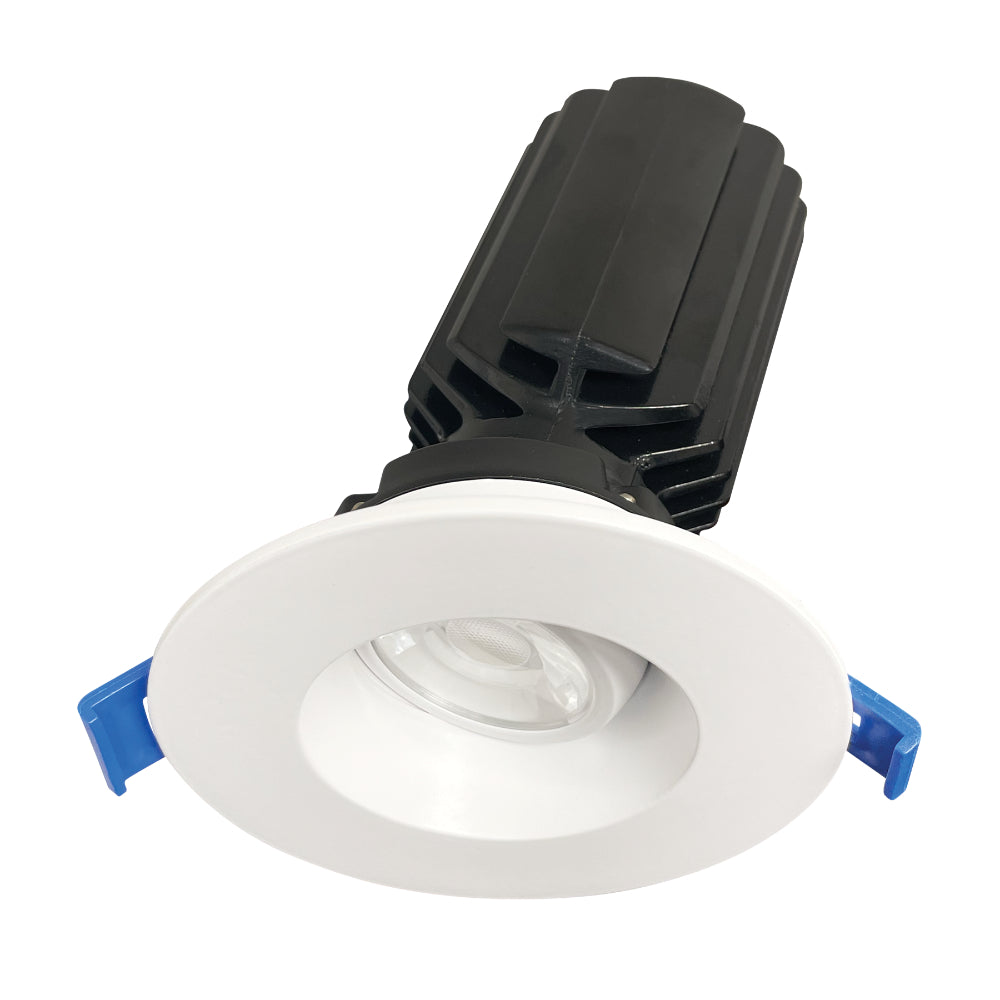

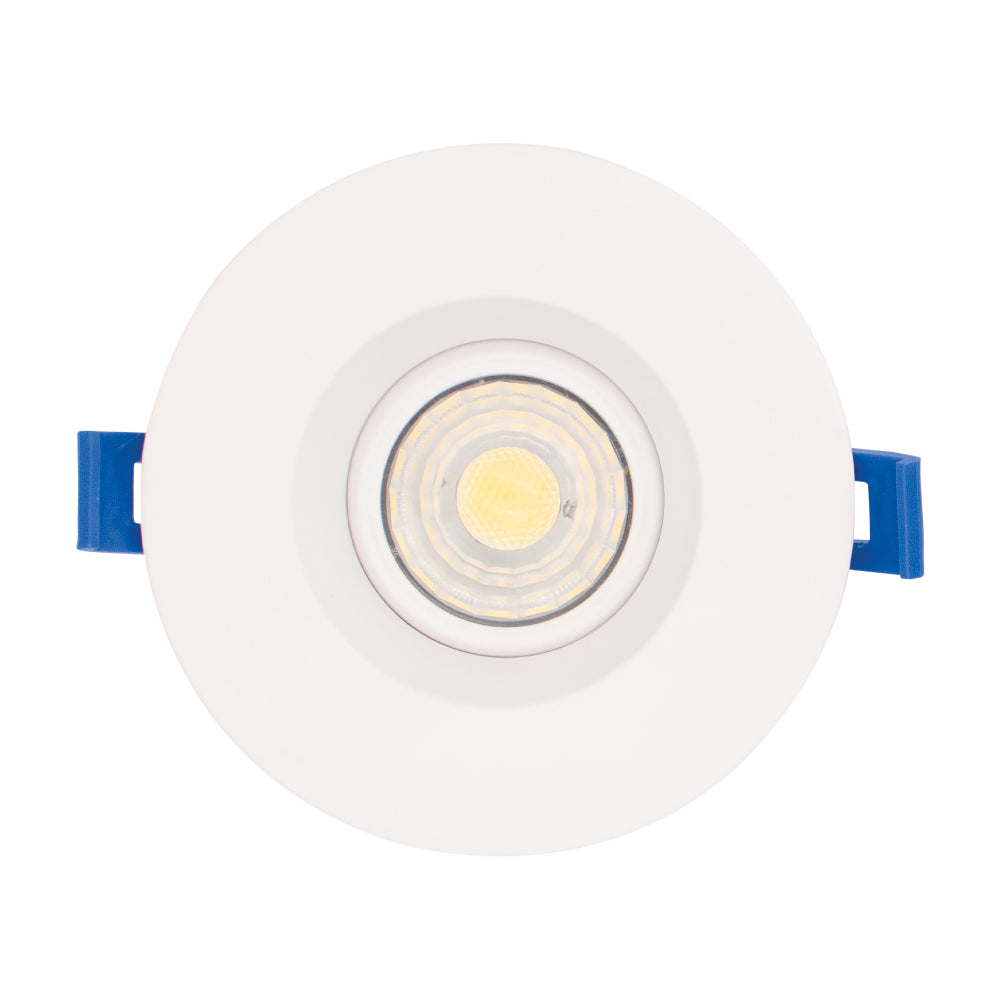

Luxrite 3" Regressed Recessed Gimbal - High Output
Specifications
- Item description: LED12W/RDL3/GB/HO/5CCT/FL
- Size: 3 Inch
- Shape: 3 Inch Deep Gimbal

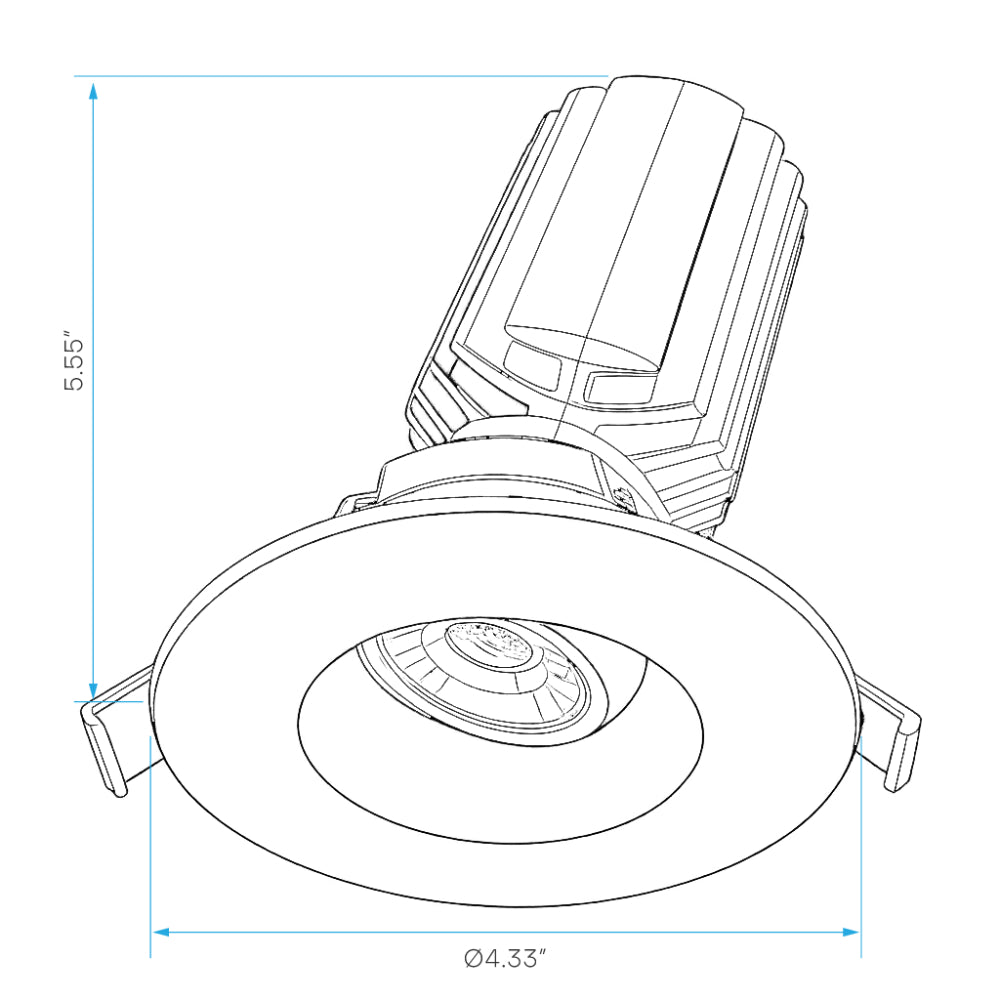

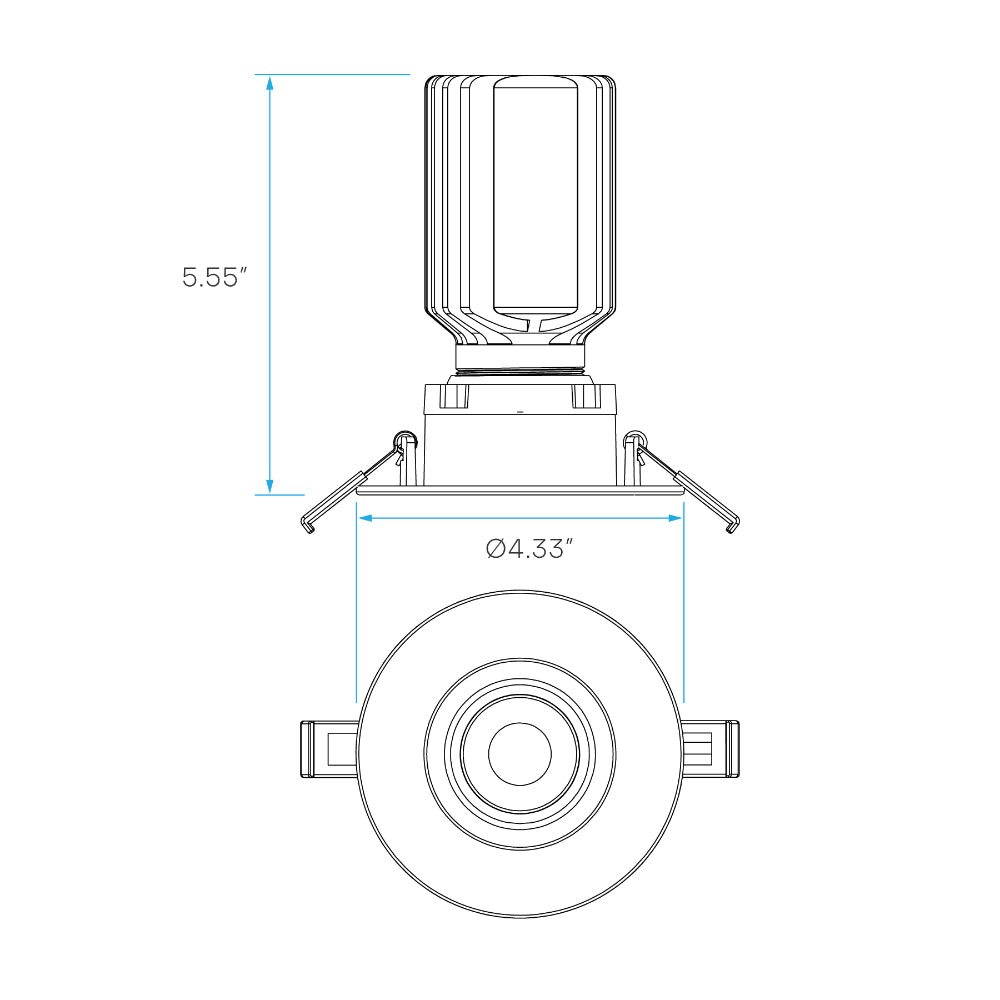

- Dimensions:
- Width: Ø4.33 Inch
- Depth: 5.55 Inch
- Finish: White
- Cutout: Ø3.34 Inch
- Plate: LR41004 (#2), LR41006 (#2), LR41010 (#L2), LR41011 (#2)

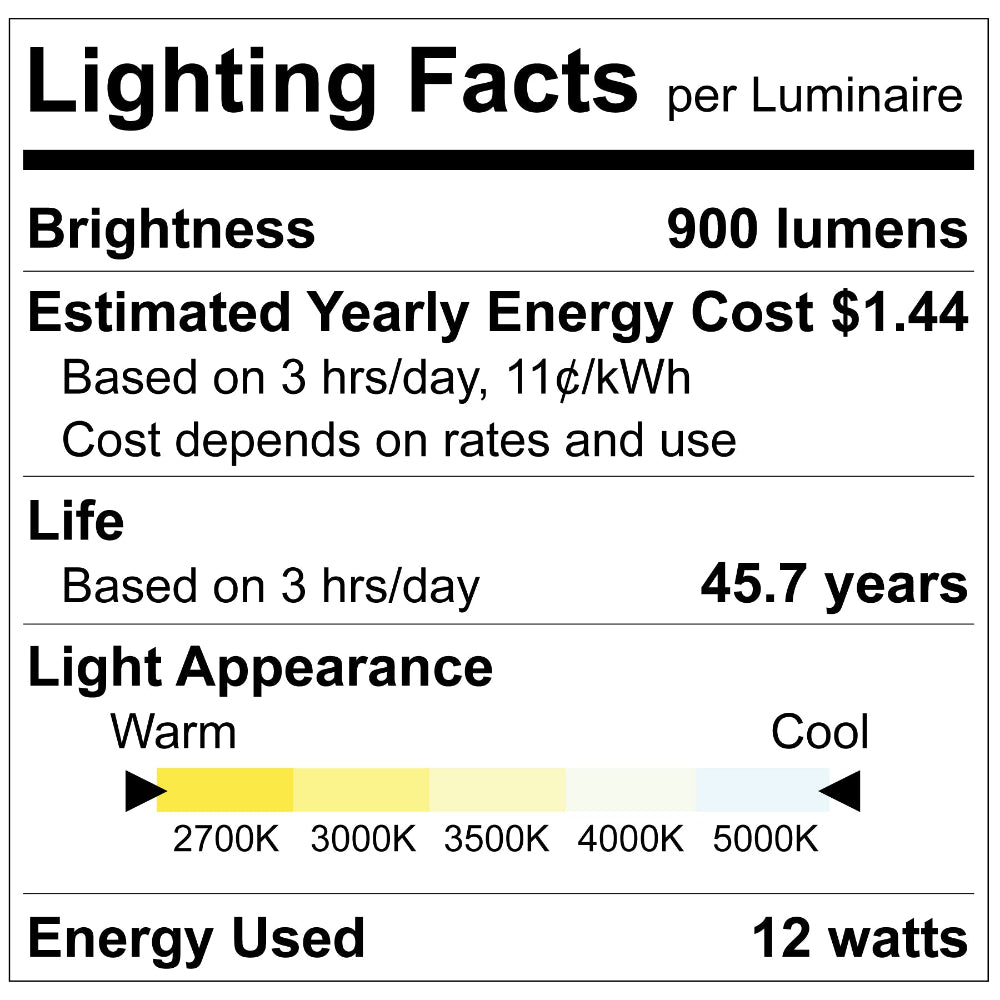

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 900
- Beam Angle: 60º
- CRI: 90
Electrical
- Power (Wattage): 12
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 75
- Operating Temp:
- Min: -4º
- Max: 104º
Product Files
Click forLuxrite LR23227 Specification Sheet
Click forLuxrite LR23227 Install Guide
