Luxrite 3" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage

LuxriteSKU: LR25450
Select Beam Angle: 38 Degree
Price:
$0.00 USD

Description

Luxrite 3" Regressed Trimless Push N' Lock Spotlight - CCT Selectable Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/TLMD3/5CCT/RD/WT/UNV/DD/FL
  • Size: 3 Inch
  • Shape: Regressed Trimless

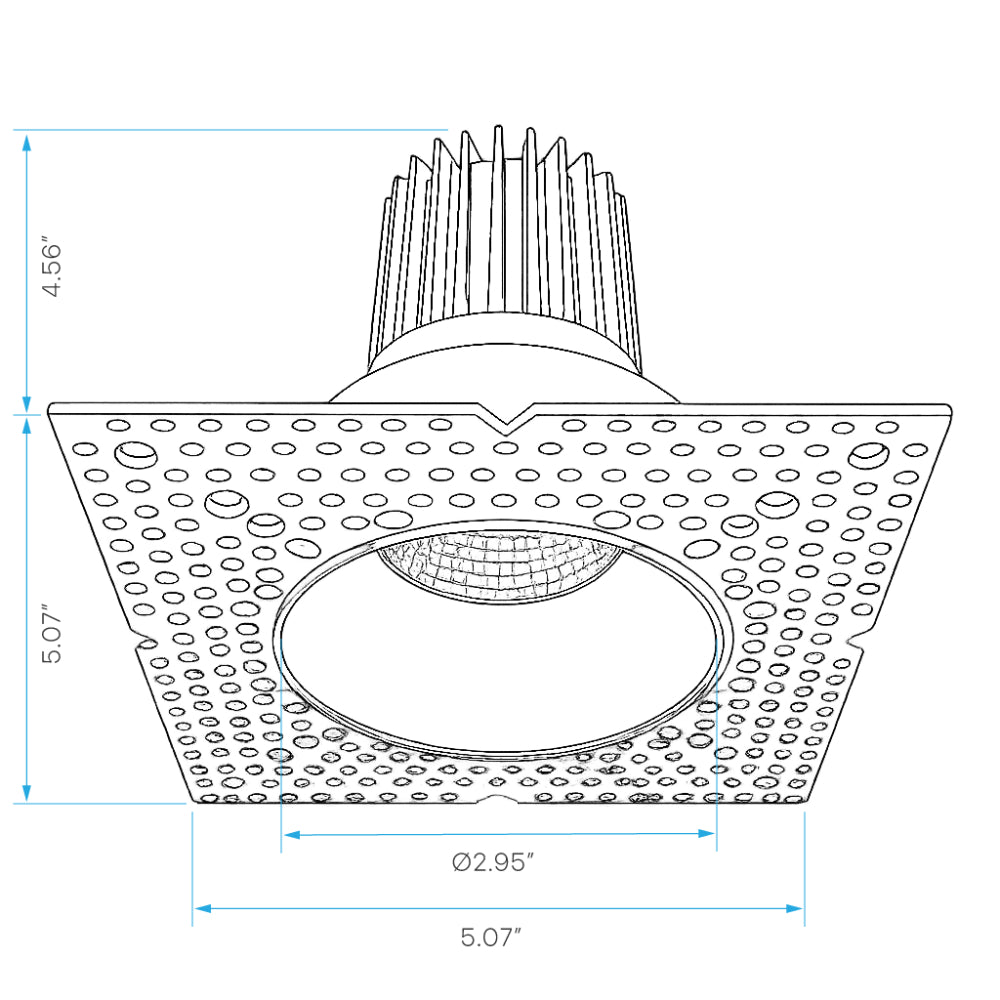

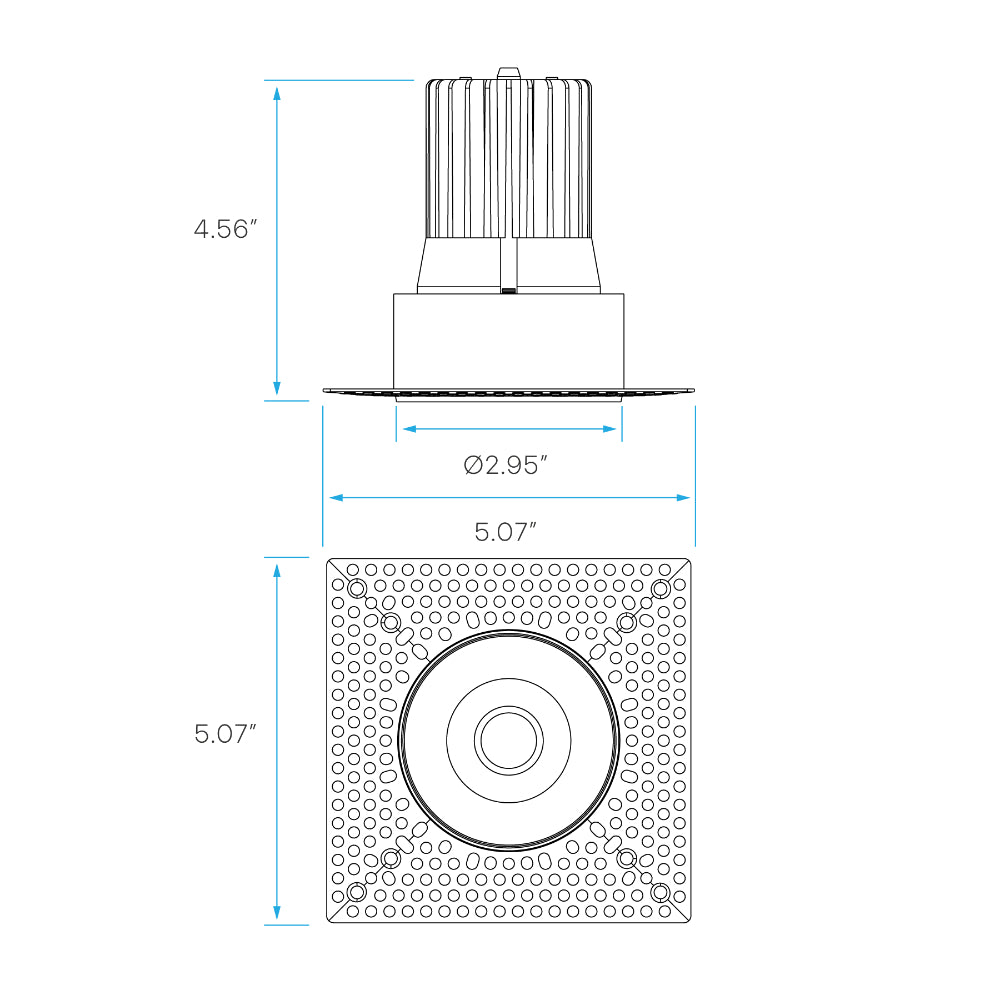

  • Dimensions:
    • Width: 5.07 Inch
    • Depth: 4.56 Inch
  • Finish: White
  • Cutout: Ø3.38 Inch
  • Plate: LR41004 (#2), LR41006 (#2), LR41010 (#L2), LR41011 (#2)

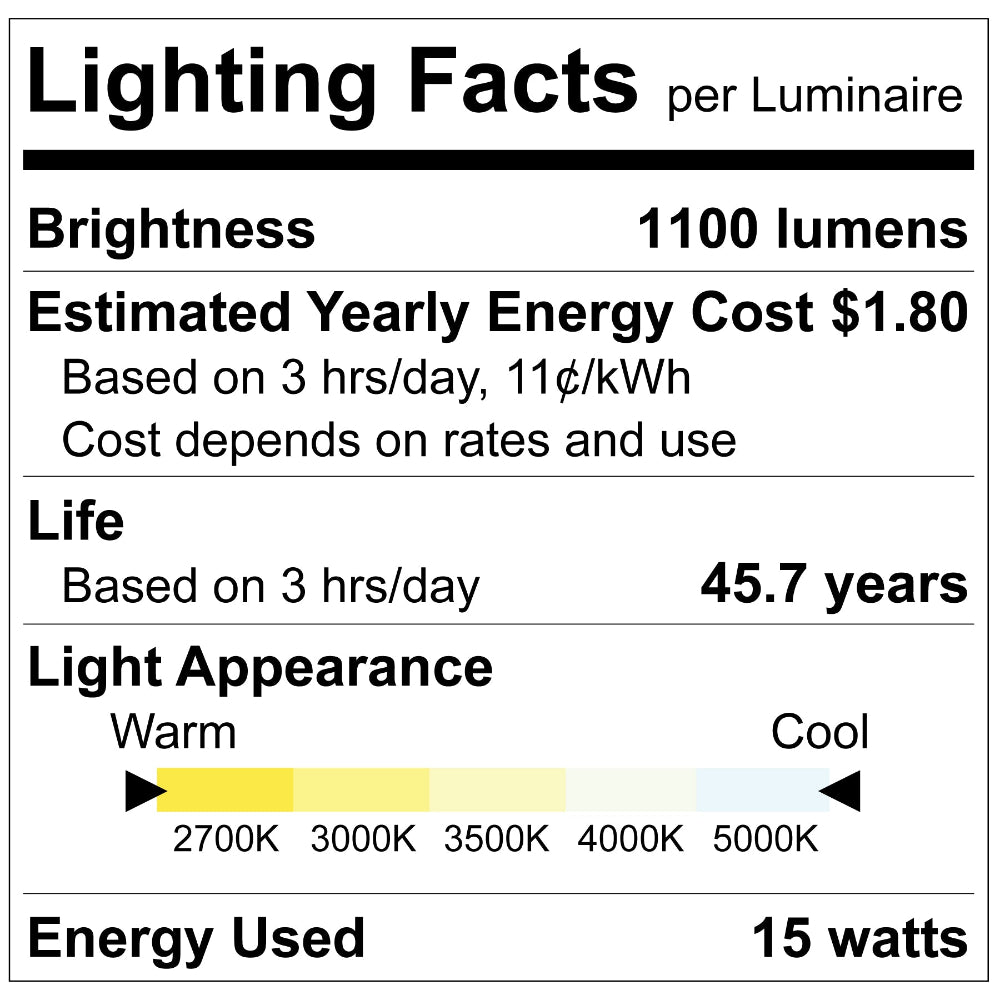

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1100
  • CRI: 90

Electrical

  • Power (Wattage): 15
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Input Current: 280Ma
  • Frequency: 60Hz
  • Lumen Efficacy: 73
  • Operating Temp:
    • Min: -4º
    • Max: 113º
Product Files

Click forLuxrite LR25450 Specification Sheet

Click forLuxrite LR25450 Family Specification Sheet

Click forLuxrite LR25450 Install Guide

Click forLuxrite LR25450 Dimmer Compatibility

Click forLuxrite LR25450 Warranty

Click forLuxrite LR25455 Install Guide

Click forLuxrite LR25455 Dimmer Compatibility

Click forLuxrite LR25455 Warranty
