Luxrite 4" 5 CCT & 3 Wattage Selectable - Universal Voltage/Dual Dimming High Output Commercial Downlight

LuxriteSKU: LR23980
Price:
$0.00 USD

Description

Luxrite 4" 5 CCT & 3 Wattage Selectable - Universal Voltage/Dual Dimming High Output Commercial Downlight

Specifications

  • Item description: LED/CDL4/VHO/3WO/5CCT/JB/UNV/DD
  • Size: 4 Inch
  • Shape: 4 Inch Round

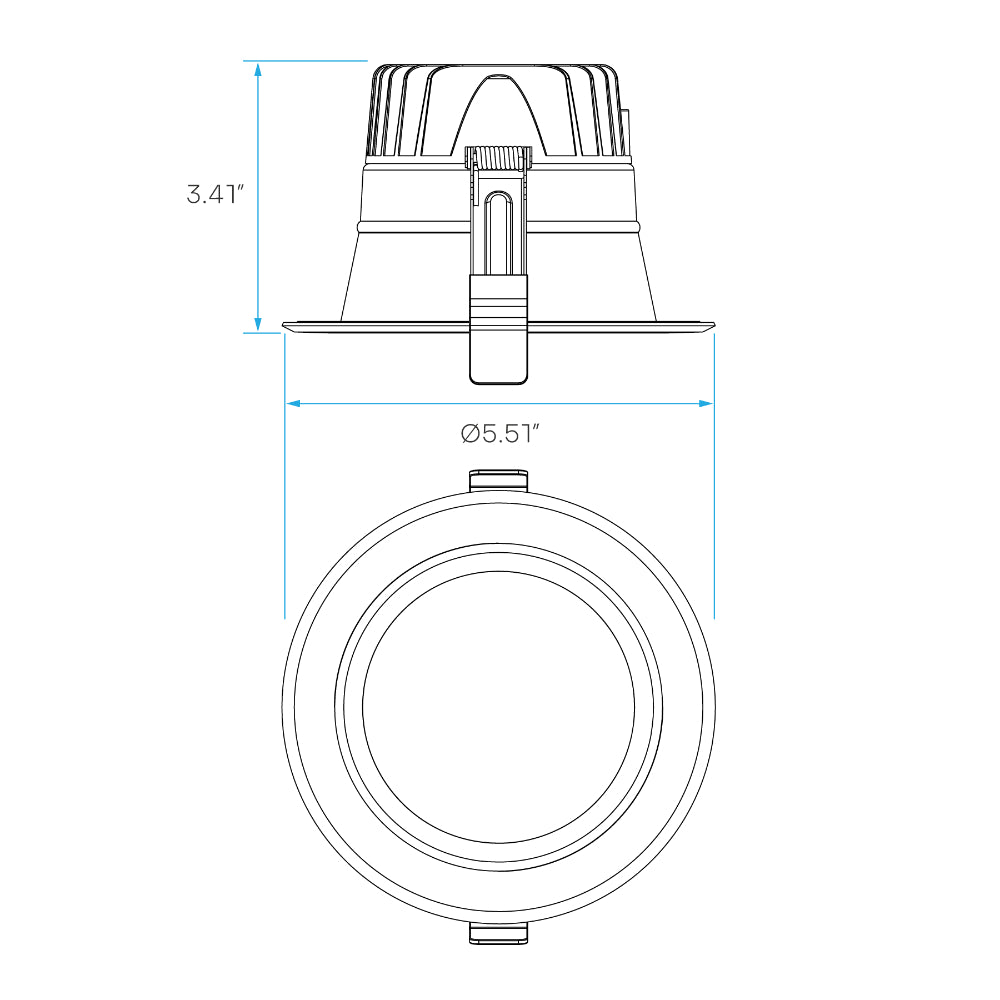

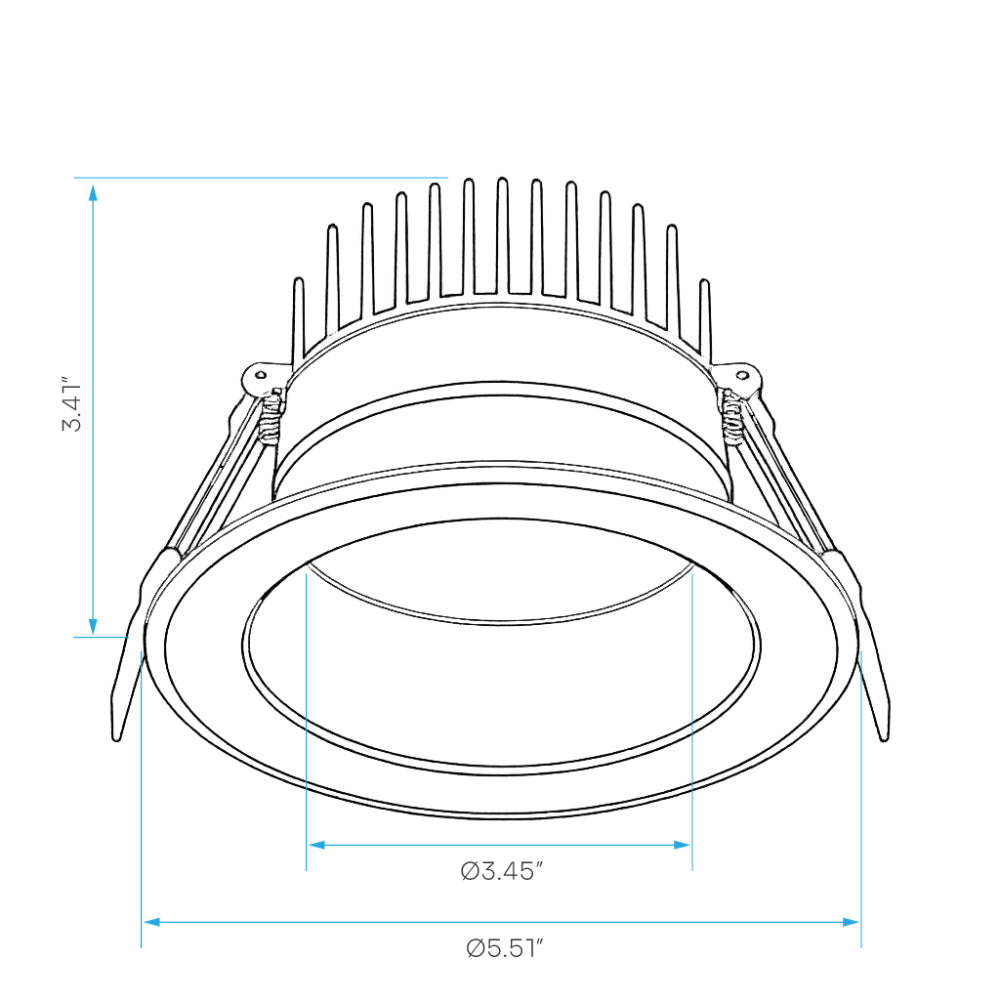

  • Dimensions:
    • Width: Ø 5.51 Inch
    • Depth: 3.41 Inch
  • Finish: White
  • Cutout: Ø4.125 Inch
  • Plate: LR41002 (#1), LR41004 (#3), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K

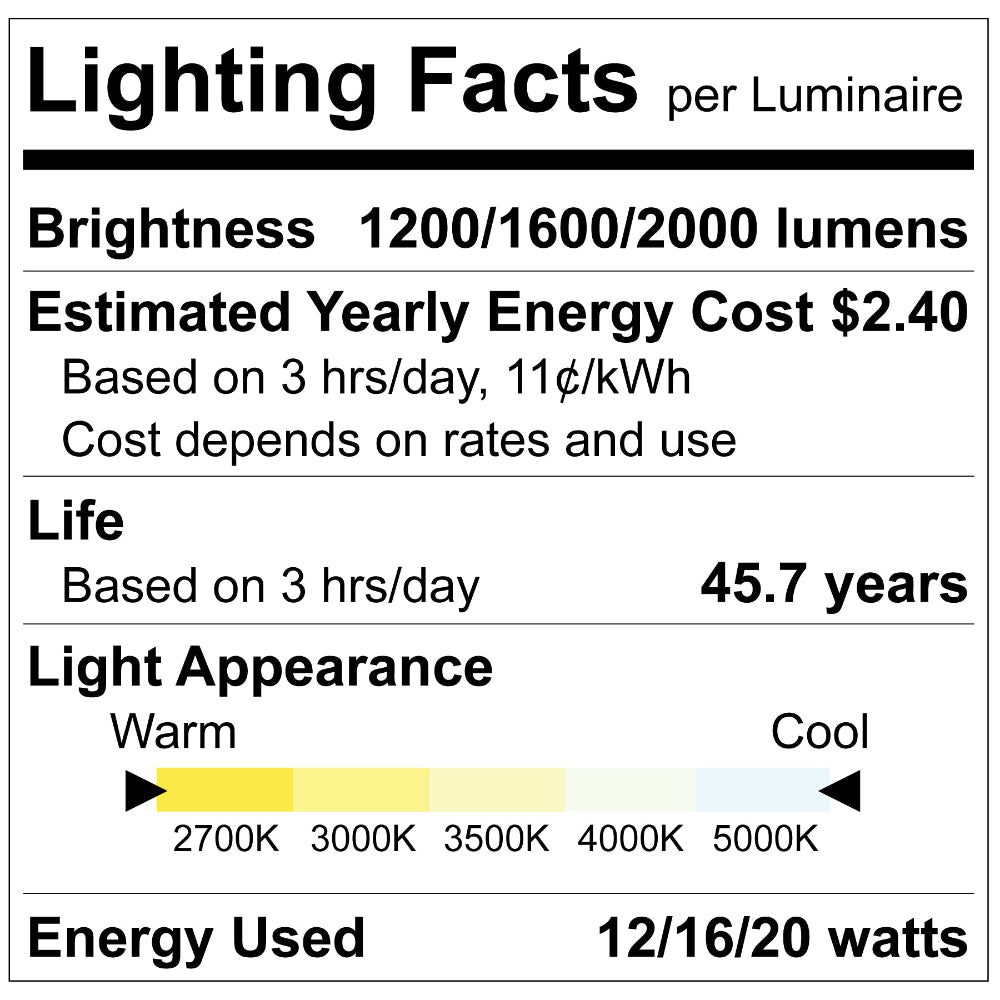

  • Lumen: 1200/1600/2000
  • Beam Angle: 80°
  • CRI: 90

Electrical

  • Power (Wattage): 12/16/20
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: TRIAC/0-10V
  • Power Factor: 0.9@120V 0.7@277V
  • Input Current: 190Ma
  • Frequency: 50/60Hz
  • Lumen Efficacy: 100
  • Operating Temp:
    • Min: -13°
    • Max: 104°
Product Files

Click forLuxrite LR23980 Specification Sheet

Click forLuxrite LR23980 Install Guide

Click forLuxrite LR23980 Dimmer Compatibility

Click forLuxrite LR23980 Warranty
