Description

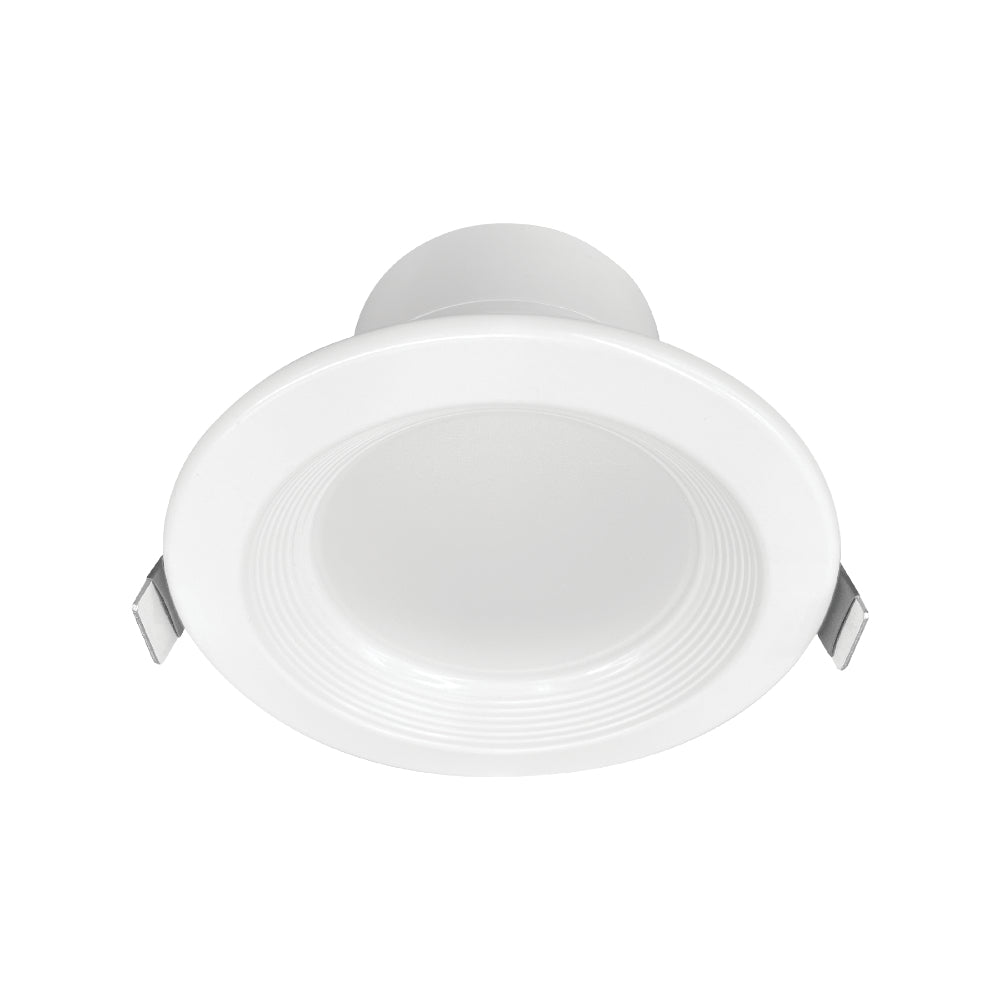

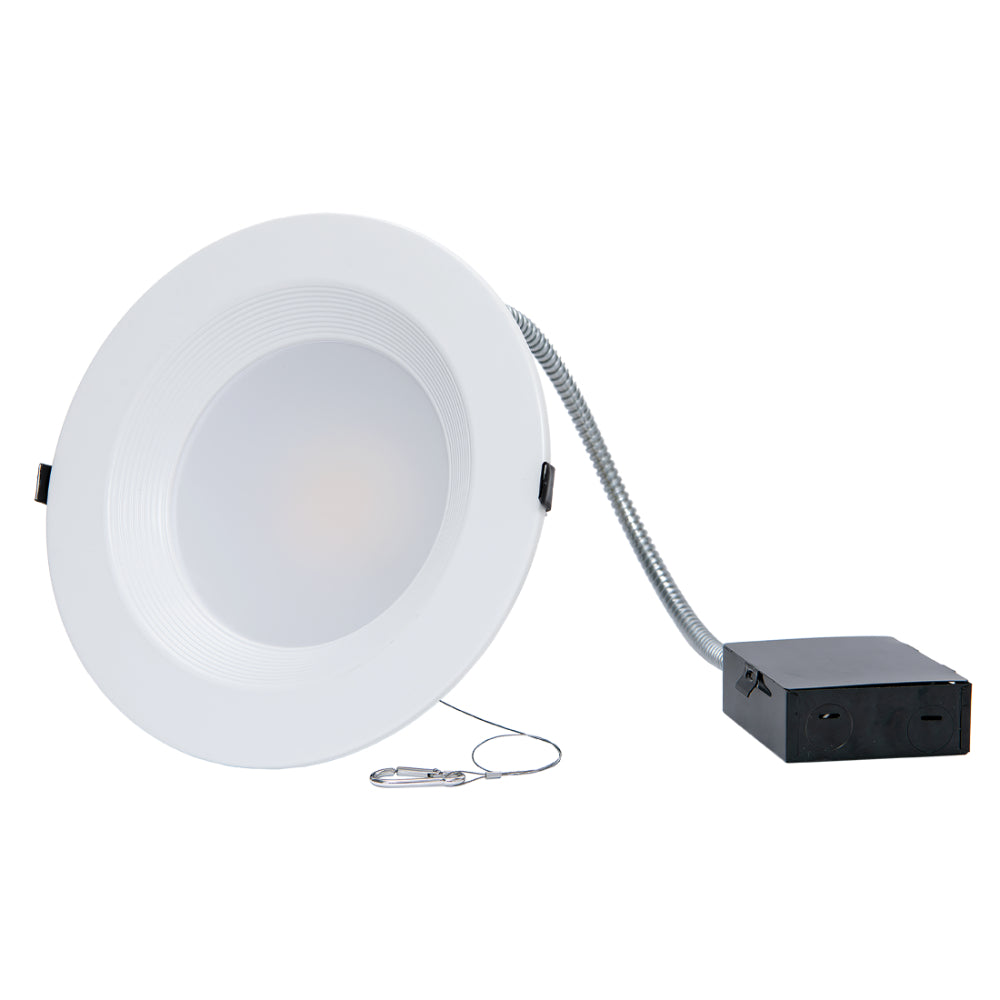

Luxrite 4" Baffled CCT & Wattage Selectable Universal Voltage Dual Dimming Commercial Downlight
Specifications
- Item description: LED/CDL4HO/3WO/5CCT/B/JB/UNV/DD
- Size: 4 Inch
- Shape: 4 Inch Round

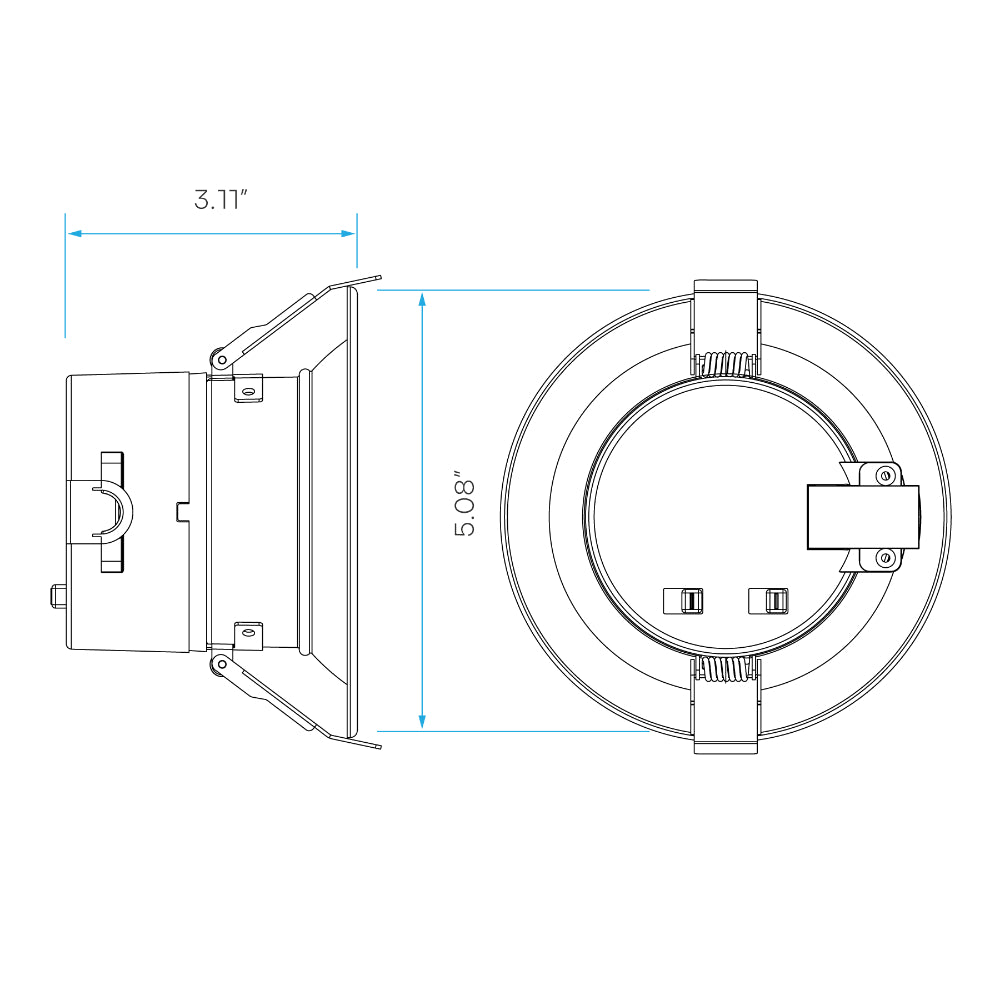

- Dimensions:
- Width: Ø 5.08 Inch
- Height: 3.11 Inch
- Finish: White
- Cutout: 4.3 Inch
- Plate: LR41002 (#1), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

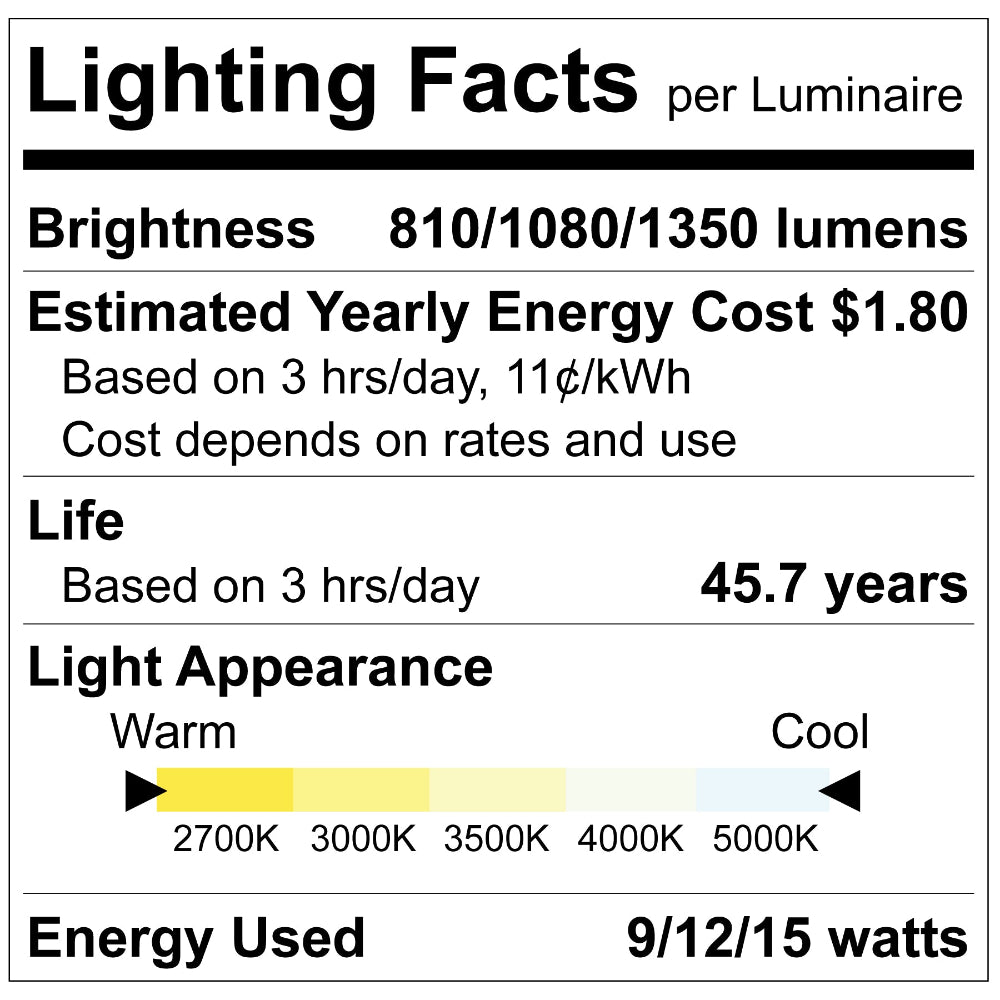

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 810/1080/1350
- Beam Angle: 100º
- CRI: 80
Electrical
- Power (Wattage): 9/12/15
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: Dual Dimming TRIAC/0-10V
- Power Factor: 0.9
- Input Current: 140Ma
- Frequency: 50/60Hz
- Lumen Efficacy: 90
- Operating Temp:
- Min: -13°
- Max: 104°
Product Files
Click forLuxrite LR23975 Specification Sheet
Click forLuxrite LR23975 Install Guide
