Description

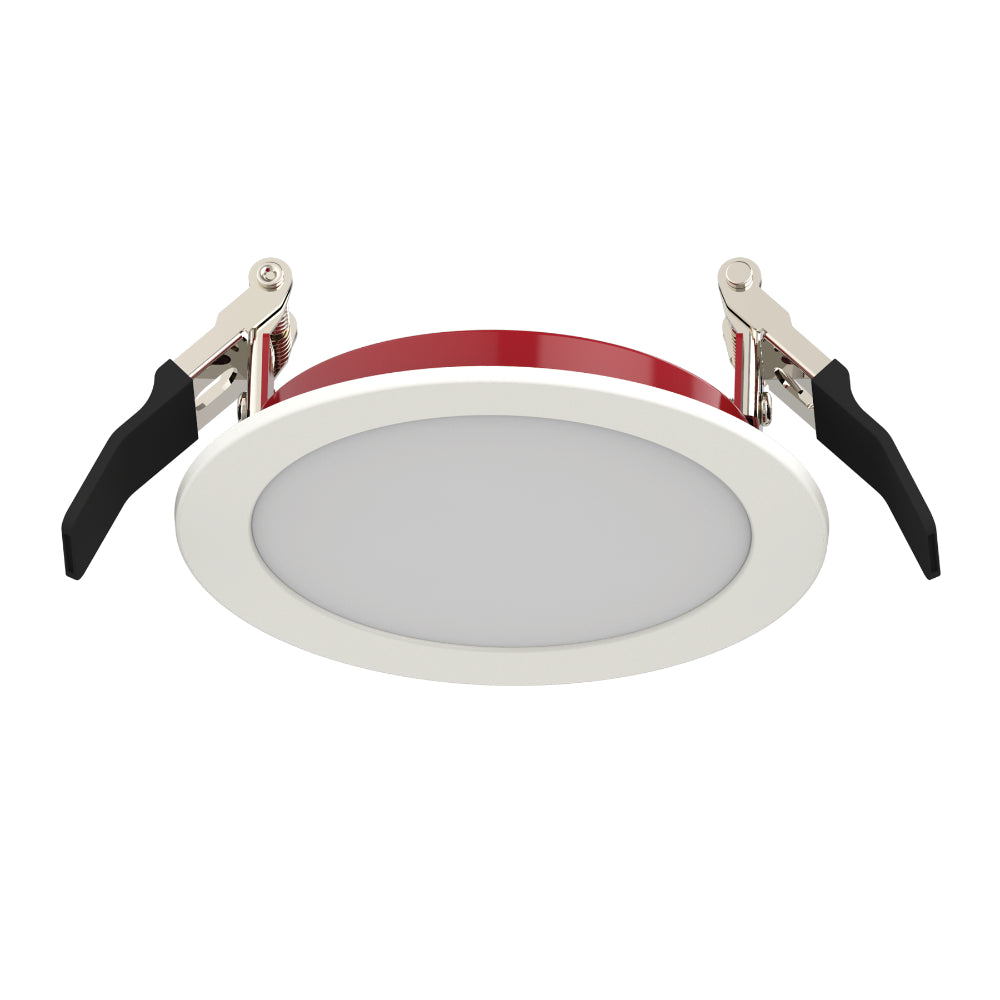

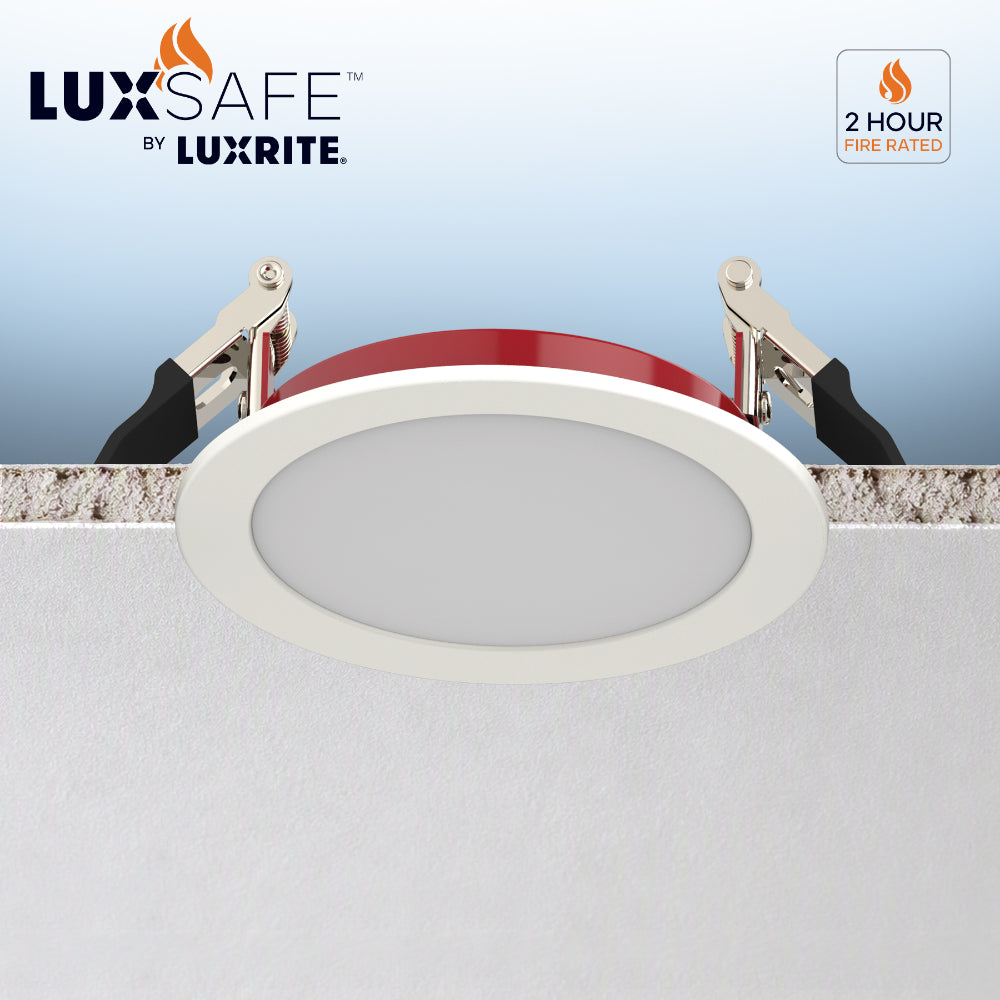

Luxrite 4" Fire Rated Canless Wafer Spotlight - 5 CCT Selectable
Specifications
- Item description: LED/MINI4/FIRE/5CCT/RD/WT/2
- Size: 4 Inch
- Shape: 4 Inch Fire Rated Mini Panel

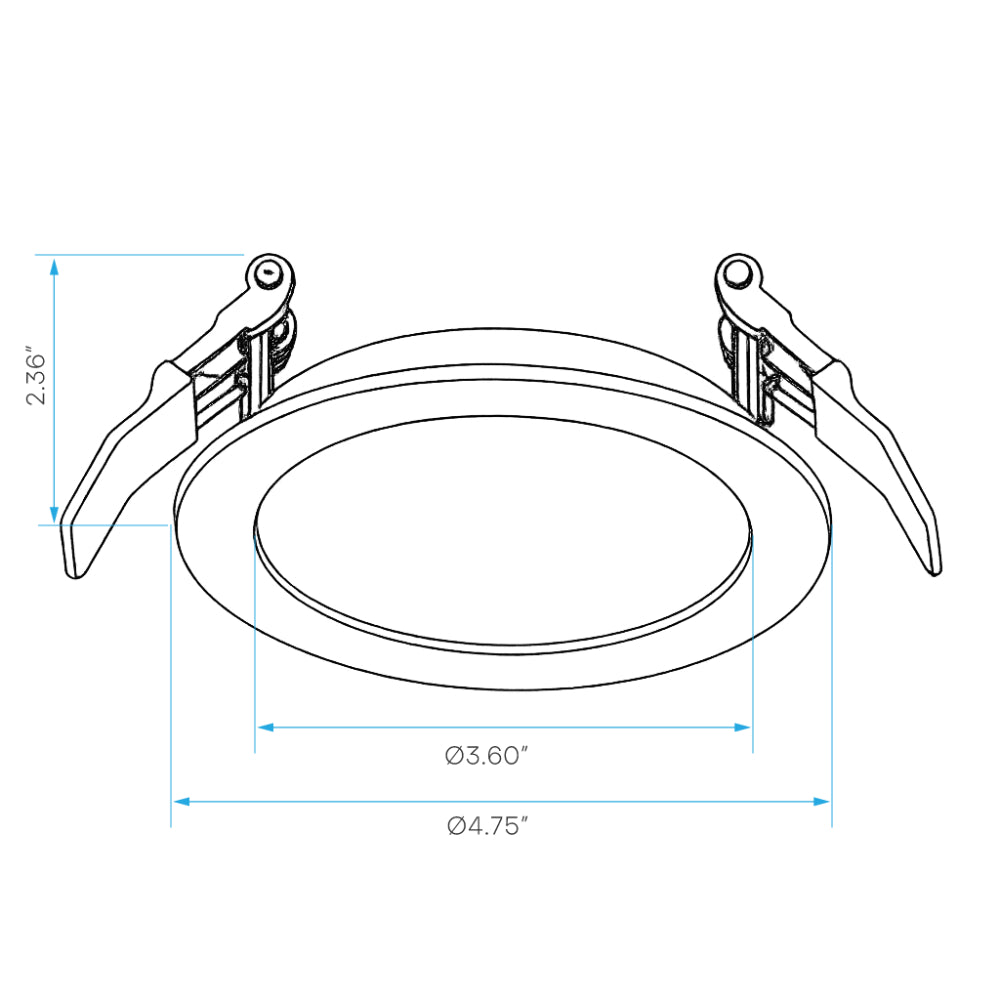

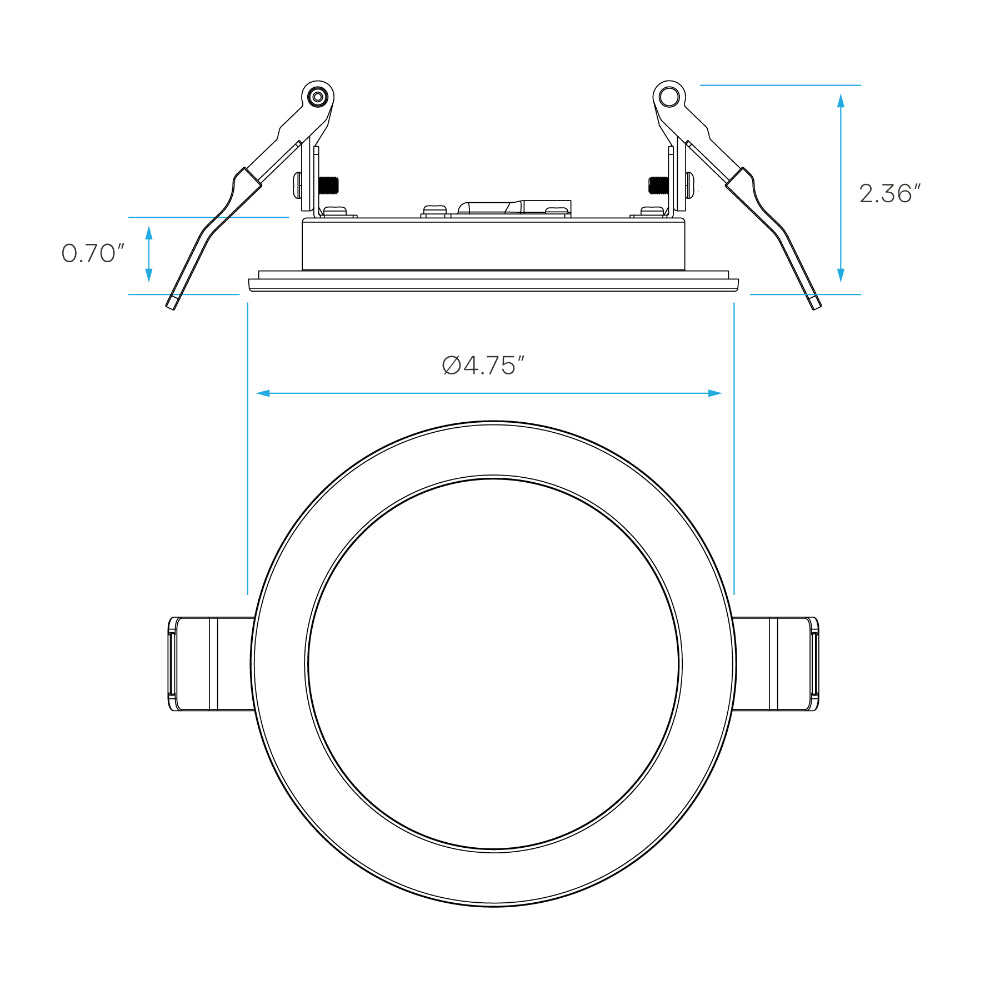

- Dimensions:
- Length: Ø4.75 Inch
- Height: 2.36 Inch
- Finish: White
- Cutout: Ø3.89 Inch
- Plate: LR41002 (#1), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

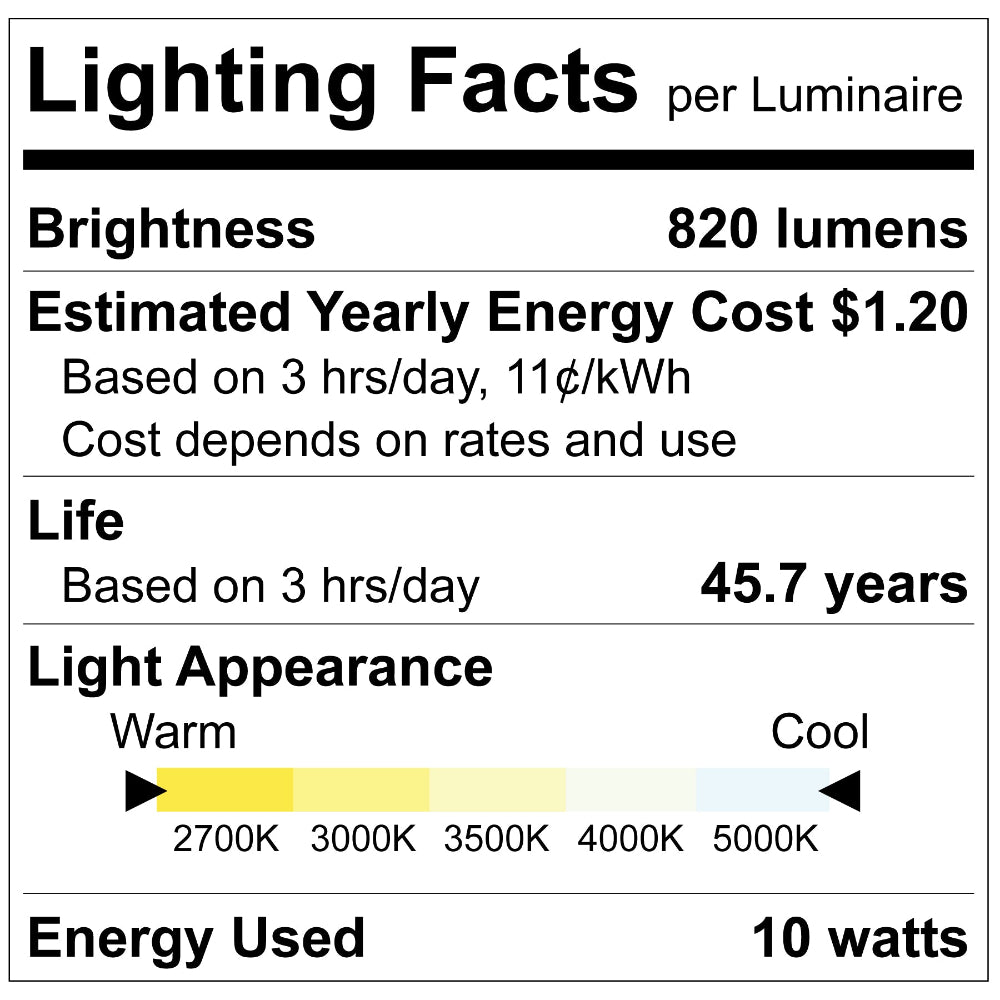

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 820
- Beam Angle: 110º
- CRI: 90
Electrical
- Power (Wattage): 10
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 50/60Hz
- Lumen Efficacy: 82
- Operating Temp:
- Min: -4º
- Max: 104º
Product Files
Click forLuxrite LR23496 Specification Sheet
Click forLuxrite LR23496 Install Guide
