Luxrite 4" Fire Rated Interchangeable Module - 5CCT Selectable

LuxriteSKU: LR24910

Select Beam Angle: 38 Degree
Price:
Sale price$0.00 USD

Description

Luxrite 4" Fire Rated Interchangeable Module - 5CCT Selectable

Specifications

  • Item description: LED/DLMD4/FIRE/5CCT/D
  • Size: 4 Inch
  • Shape: 4 Inch Interchangeable

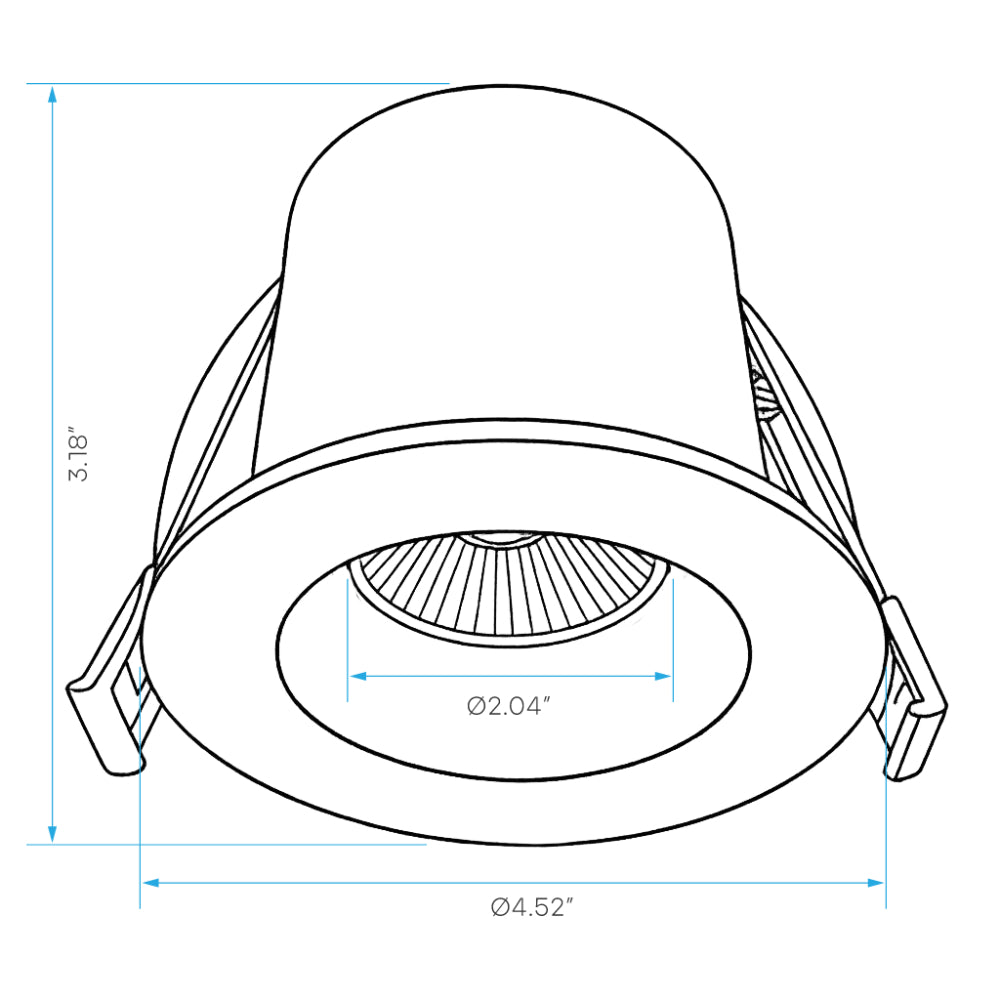

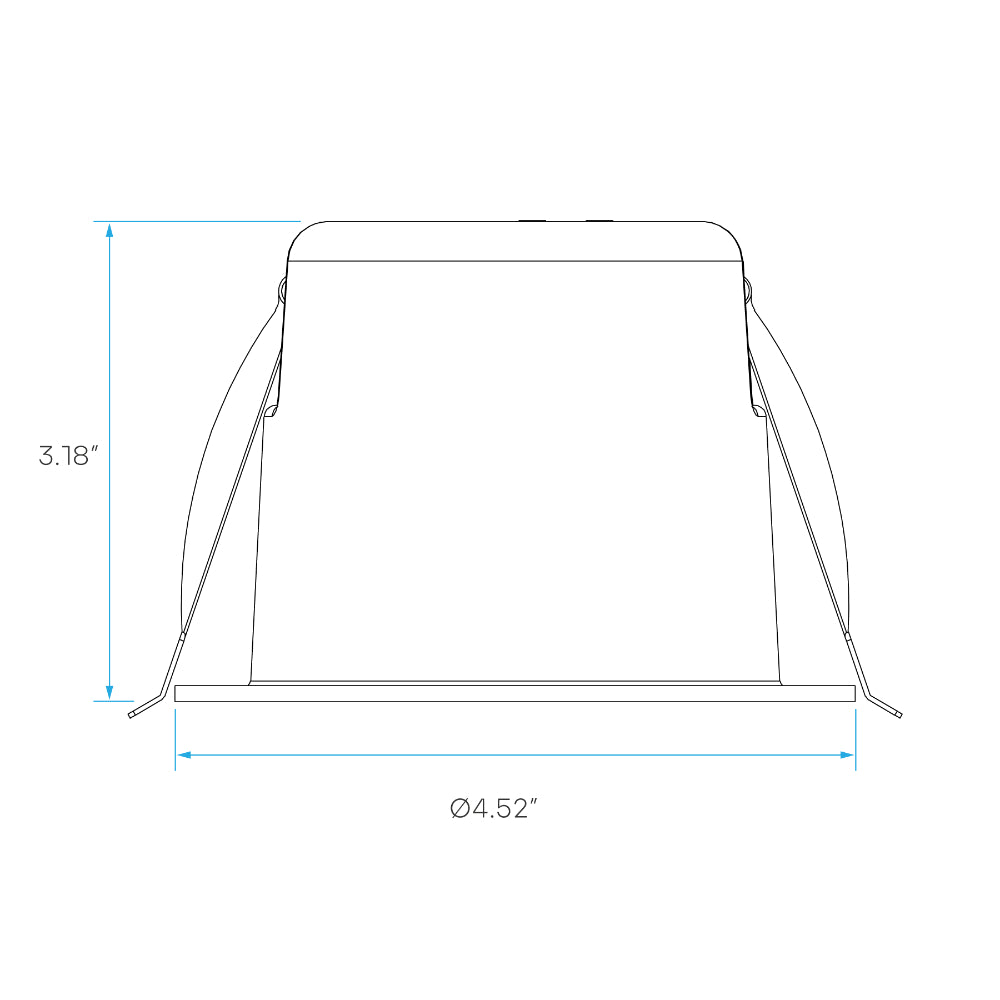

  • Dimensions:
    • Width: Ø4.52 Inch
    • Depth: 3.18 Inch
  • Finish: Red
  • Cutout: 3.75 Inch
  • Plate: LR41004 (#2), LR41006 (#2), LR41010 (#L2), LR41011 (#3)

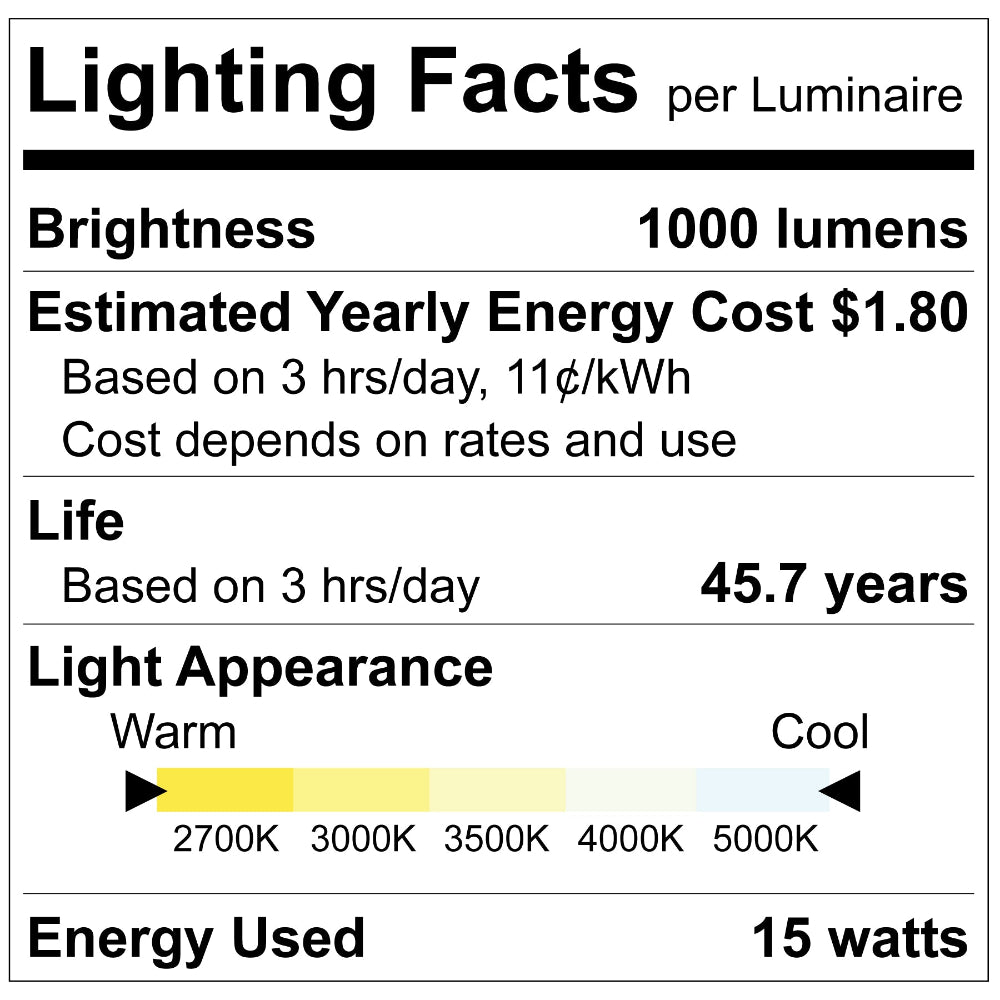

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1000
  • CRI: 90

Electrical

  • Power (Wattage): 15
  • Input Volts: 120
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Power Factor: 0.9
  • Frequency: 60Hz
  • Lumen Efficacy: 67
  • Operating Temp:
    • Min: -4º
    • Max: 104º
Product Files

Click forLuxrite LR24910 Specification Sheet

Click forLuxrite LR24910 Install Guide

Click forLuxrite LR24910 Dimmer Compatibility

Click forLuxrite LR24910 Warranty

Click forLuxrite LR24910 Certificate Of Compliance

Click forLuxrite LR24911 Dimmer Compatibility

Click forLuxrite LR24911 Warranty

Click forLuxrite LR24911 Certificate Of Compliance
