Luxrite 4" Gimbal Push N' Lock Trimless Spotlight - CCT Selectable Dual Dimming/Universal Voltage

LuxriteSKU: LR25434
Price:
$0.00 USD

Description

Luxrite 4" Gimbal Push N' Lock Trimless Spotlight - CCT Selectable Dual Dimming/Universal Voltage

Specifications

  • Item description: LED/TLMD4HO/GB/5CCT/RD/WT/UNV/DD/FL
  • Size: 4 Inch
  • Shape: Floating Gimbal Trimless

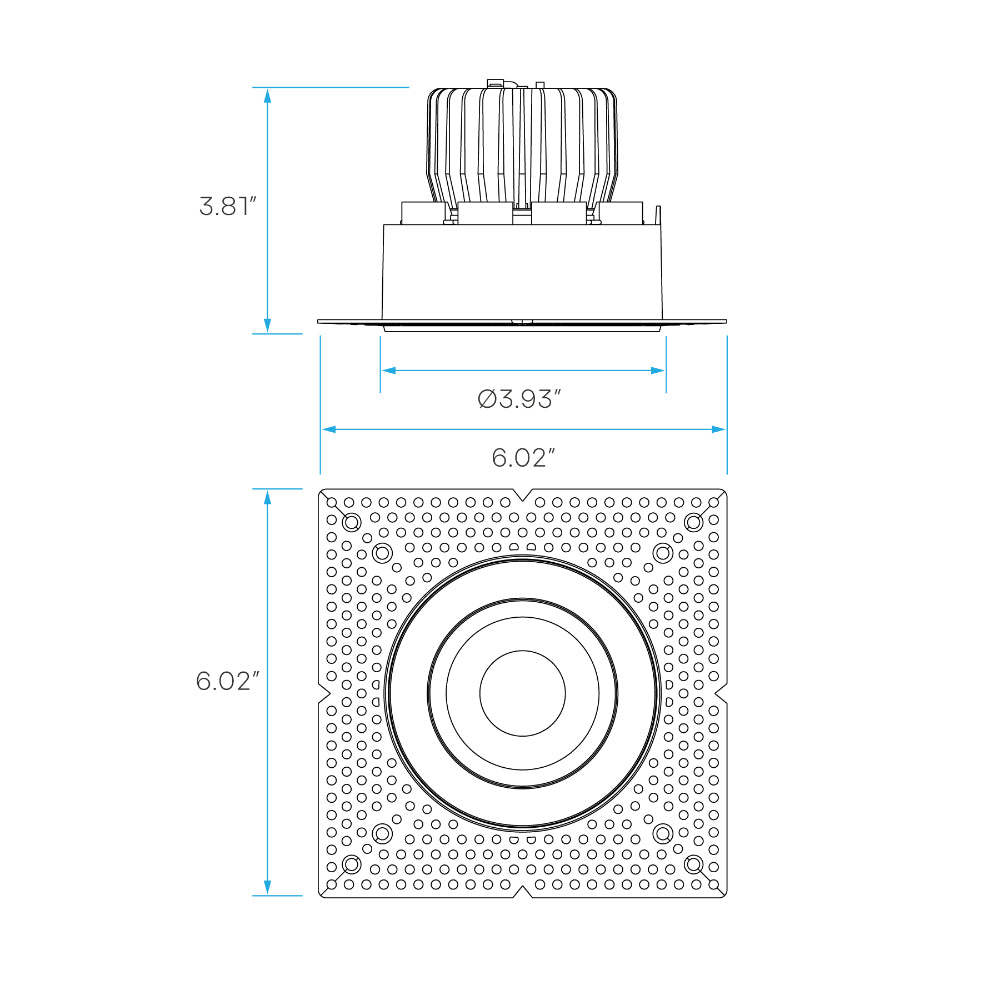

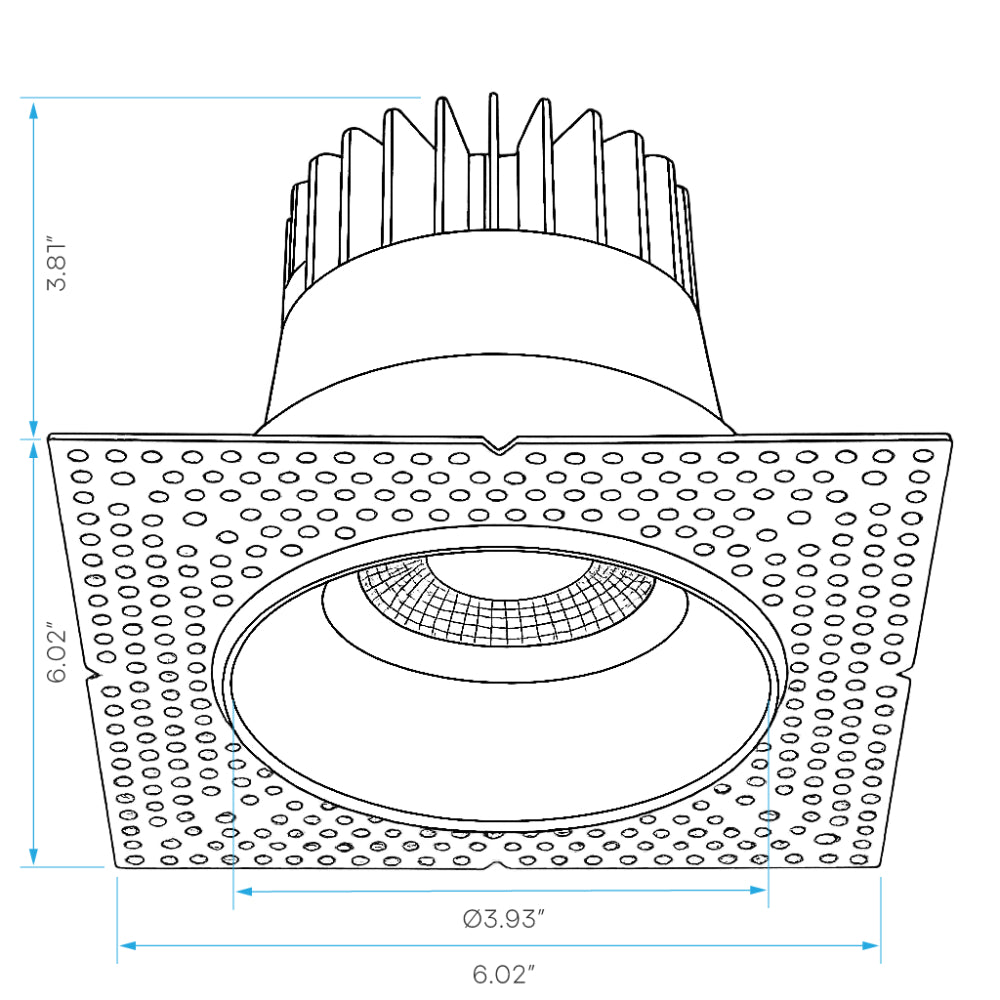

  • Dimensions:
    • Length: 6.02 Inch
    • Width: 6.02 Inch
    • Depth: 3.81 Inch
  • Finish: White
  • Cutout: Ø4.25 Inch
  • Plate: LR41002 (#1), LR41004 (#3), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 2000
  • Beam Angle: 36º
  • CRI: 90

Electrical

  • Power (Wattage): 20
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Frequency: 60Hz
  • Lumen Efficacy: 100
  • Operating Temp:
    • Min: -4º
    • Max: 113º
Product Files

Click forLuxrite LR25434 Specification Sheet

Click forLuxrite LR25434 Family Specification Sheet

Click forLuxrite LR25434 Install Guide

Click forLuxrite LR25434 Dimmer Compatibility

Click forLuxrite LR25434 Warranty
