Luxrite 4" Interlocking Trimless Module - 5CCT Selectable

LuxriteSKU: LR25490
Price:
$0.00 USD

Description

Luxrite 4" Interlocking Trimless Module - 5CCT Selectable

Specifications

  • Item description: LED/ITLMD4/5CCT/SQ/WT/D
  • Size: 4 Inch
  • Shape: Interlocking Trimless

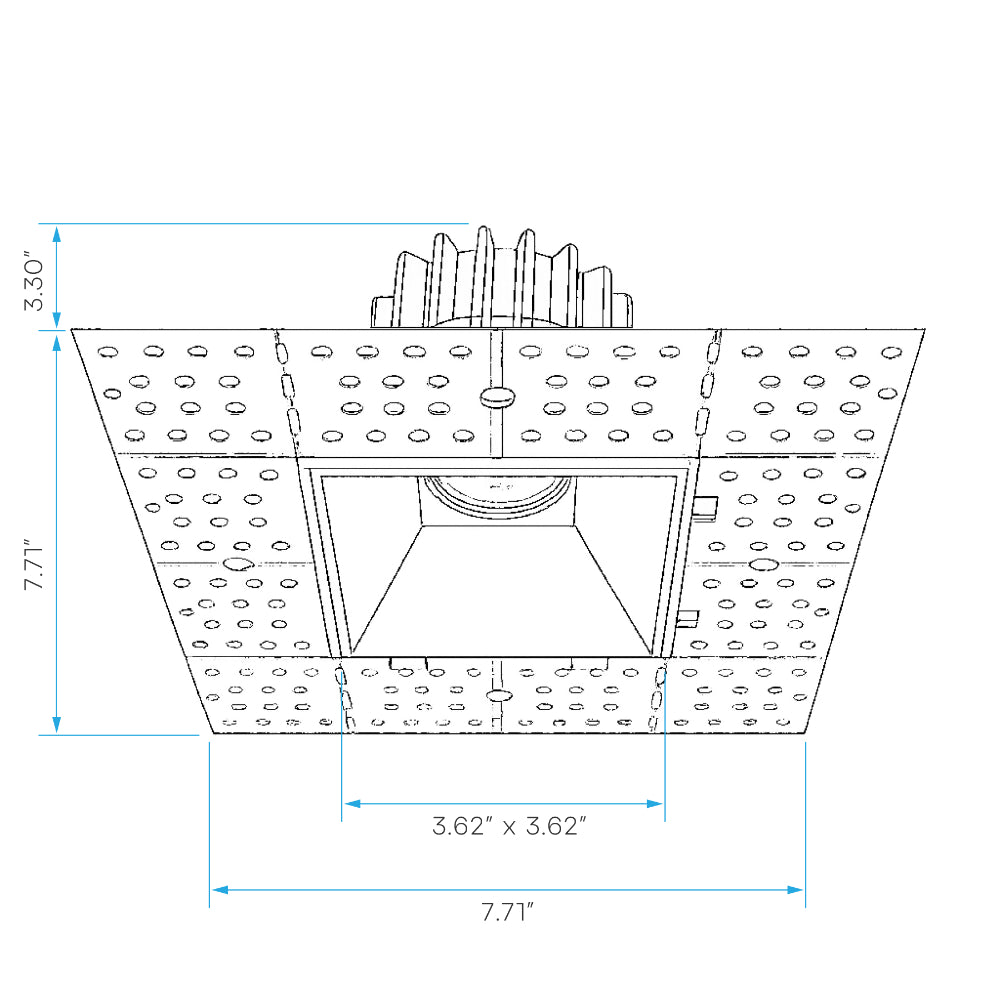

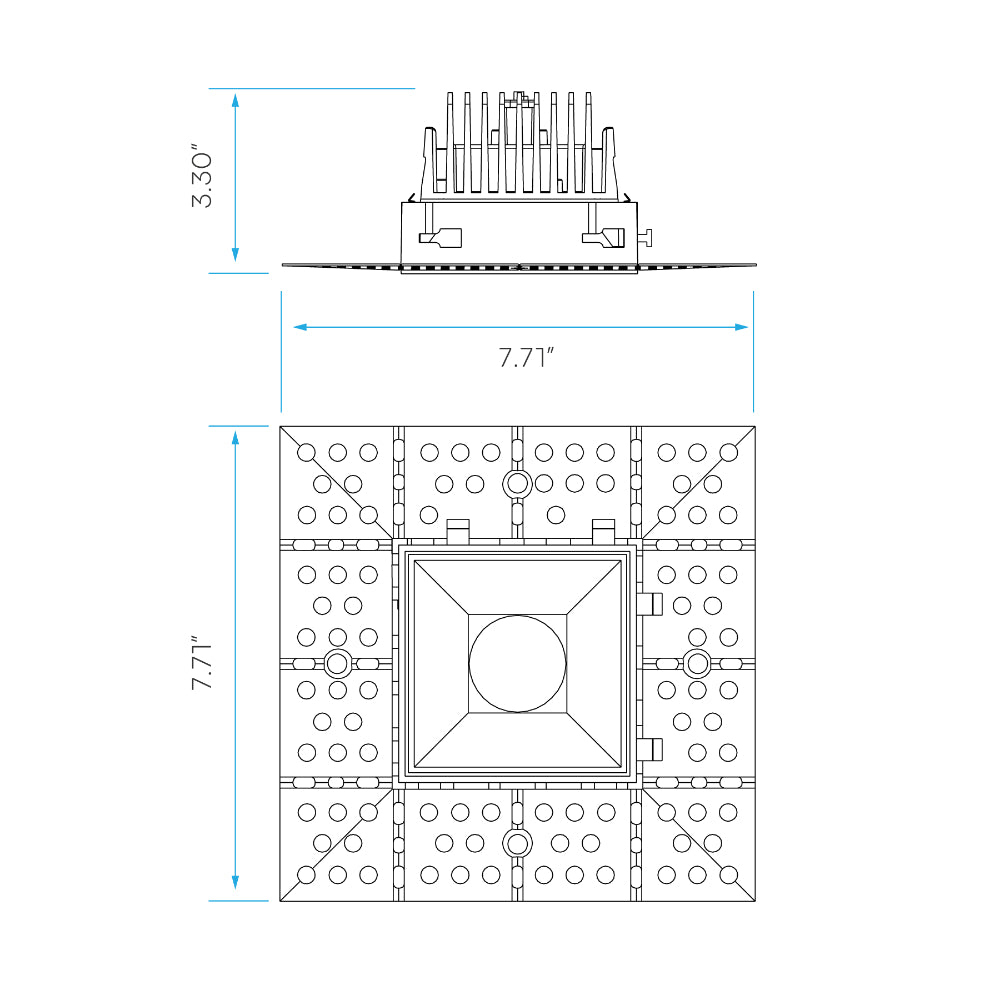

  • Dimensions:
    • Length: 7.71 Inch
    • Width: 7.71 Inch
    • Depth: 3.30 Inch
  • Finish: White
  • Cutout: 4.25 Inch x 4.25 Inch
  • Plate: LR41005 (#1), LR41013 (#0)

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1000
  • Beam Angle: 38º
  • CRI: 90

Electrical

  • Power (Wattage): 15
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Power Factor: 0.9
  • Frequency: 60Hz
  • Lumen Efficacy: 67
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR25490 Specification Sheet

Click forLuxrite LR25490 Family Specification Sheet

Click forLuxrite LR25490 Install Guide

Click forLuxrite LR25490 Dimmer Compatibility

Click forLuxrite LR25490 Warranty
