Luxrite 4" Mini Panel Canless Spotlight - CCT & Wattage Selectable Dual Dimming/Universal Voltage - High Output

LuxriteSKU: LR23931

Select Shape: Round
Price:
Sale price$0.00 USD

Description

Luxrite 4" Mini Panel Canless Spotlight - CCT & Wattage Selectable Dual Dimming/Universal Voltage - High Output

Specifications

  • Item description: LED/MINI4/PNL/3WO/5CCT/RD/UNV/DD
  • Size: 4 Inch
  • Shape: 4 Inch Mini Panel

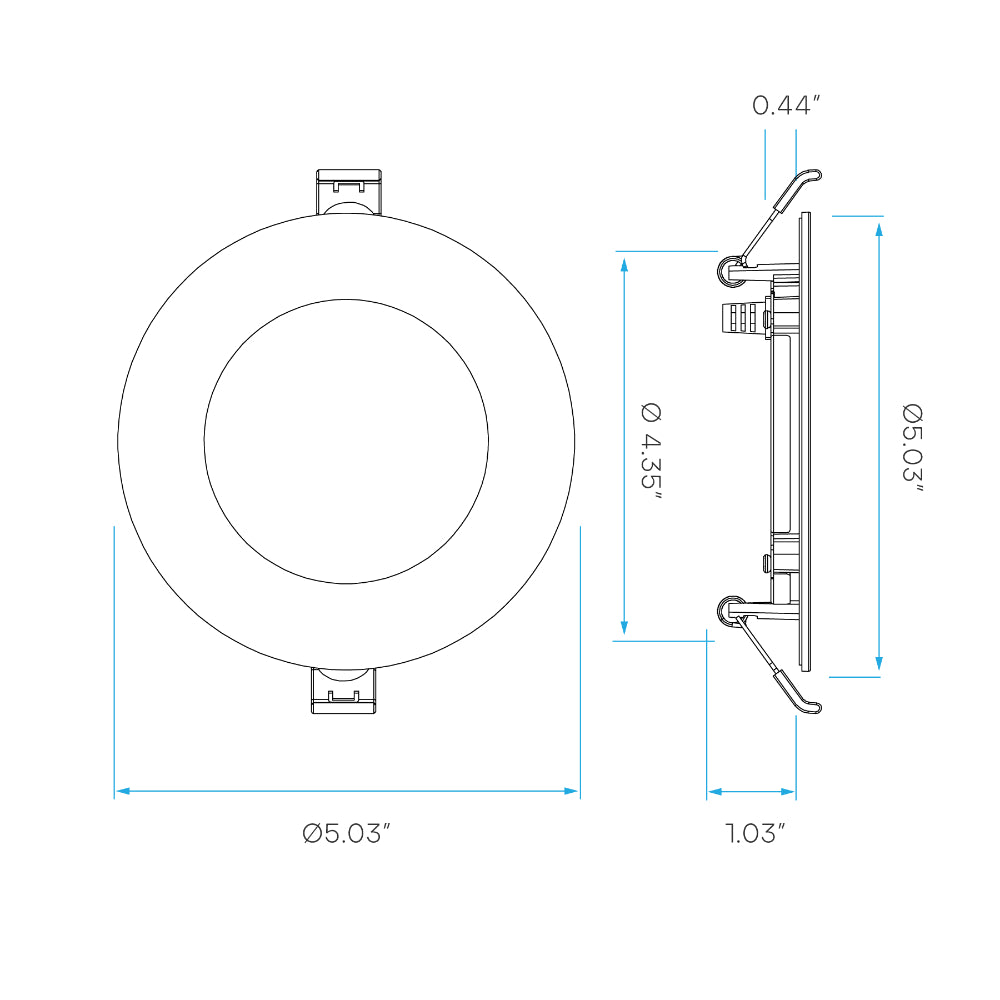

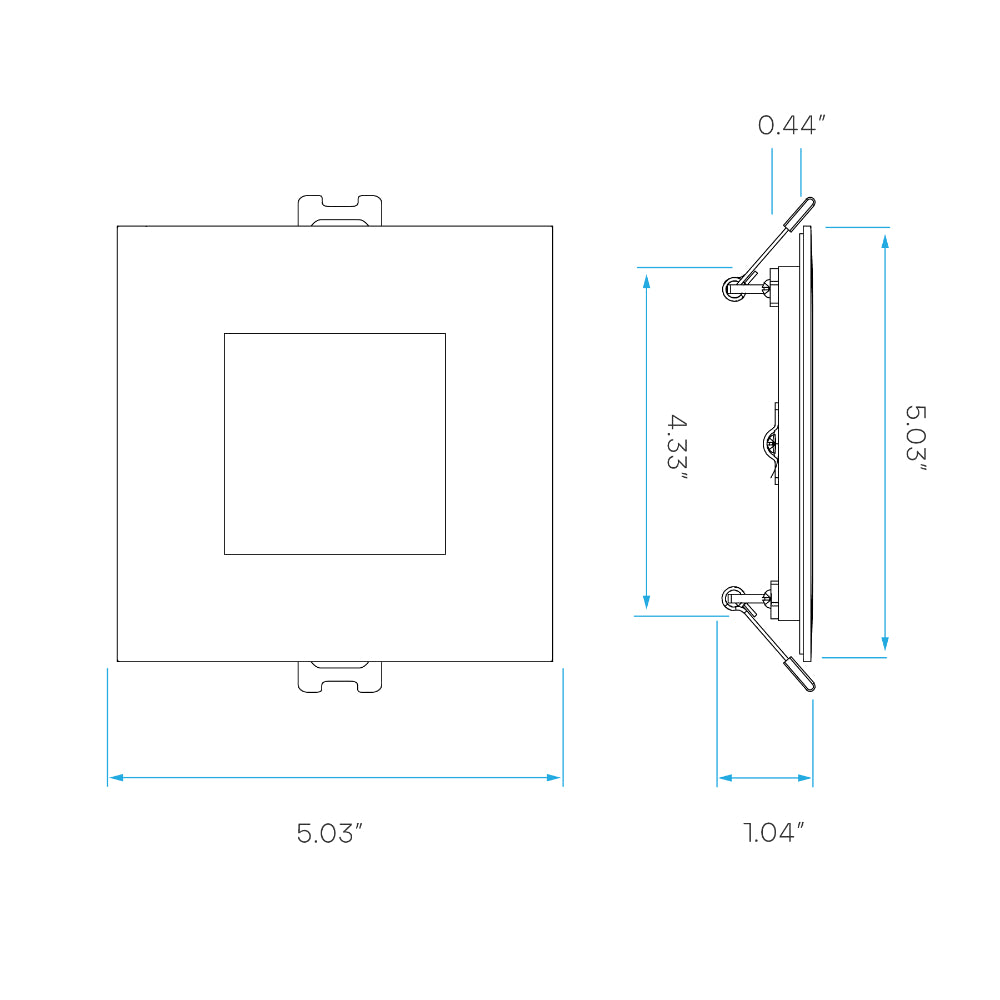

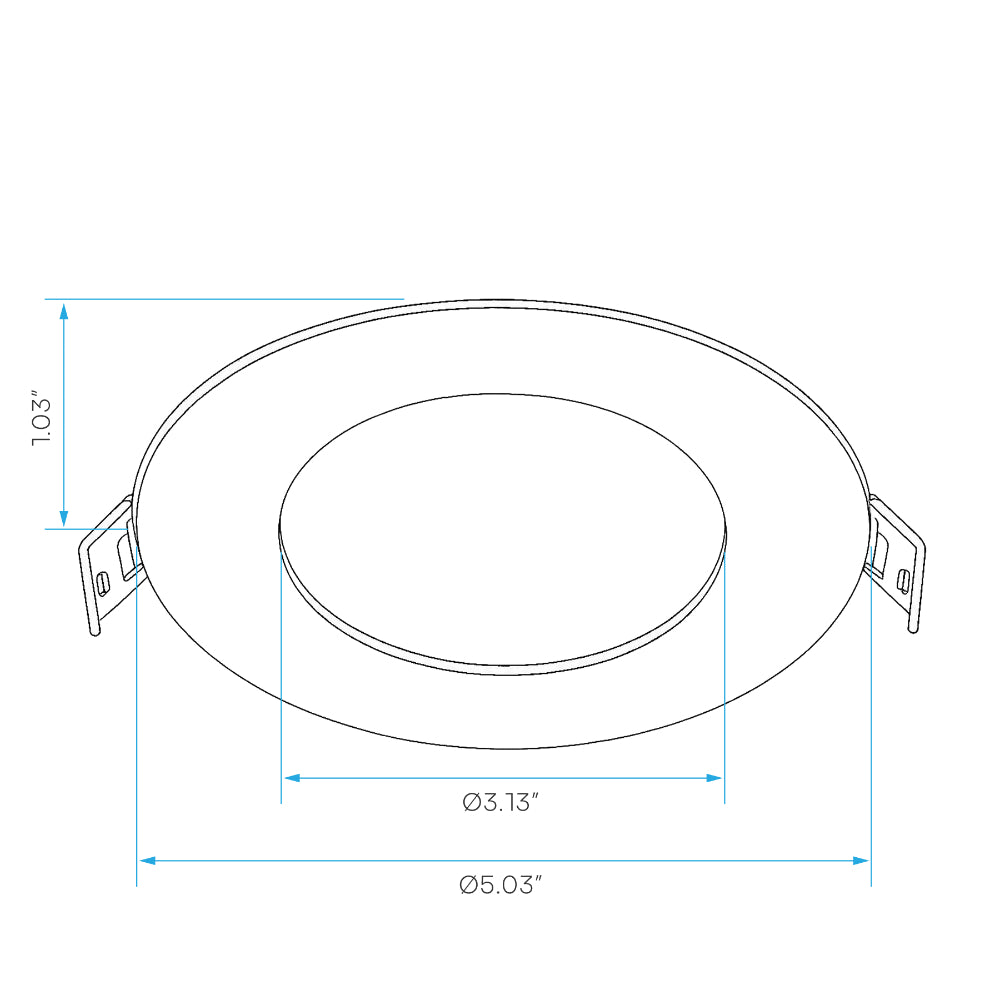

  • Dimensions:
    • Width: Ø5.03 Inch
    • Depth: 0.44 Inch
  • Finish: White
  • Cutout: Ø4.33 Inch
  • Plate: LR41002 (#1), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

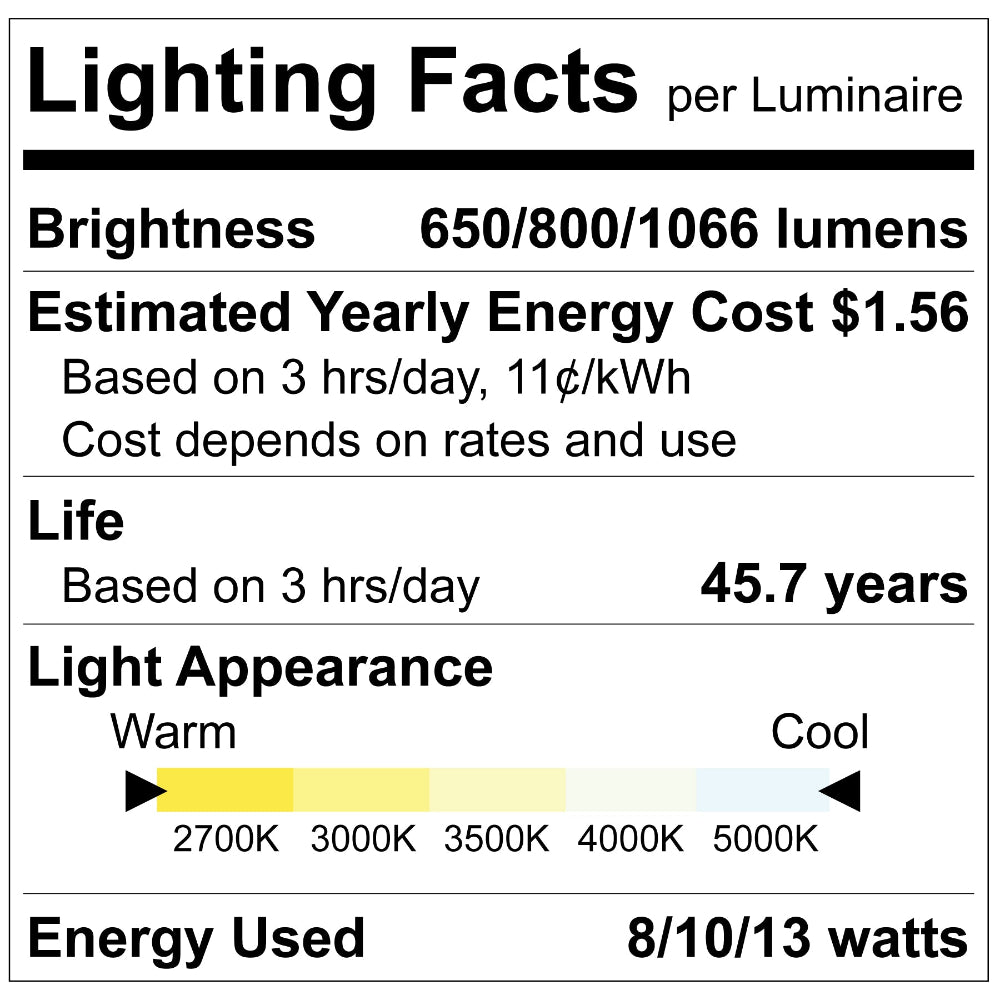

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 650/800/1066
  • Beam Angle: 105°
  • CRI: 90

Electrical

  • Power (Wattage): 8/10/13
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: TRIAC/0-10V
  • Power Factor: 0.9
  • Frequency: 50/60Hz
  • Lumen Efficacy: 82
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR23931 Specification Sheet

Click forLuxrite LR23931 Install Guide

Click forLuxrite LR23931 Dimmer Compatibility

Click forLuxrite LR23931 Warranty

Click forLuxrite LR23931 Certificate Of Compliance

Click forLuxrite LR23933 Install Guide

Click forLuxrite LR23933 Dimmer Compatibility

Click forLuxrite LR23933 Warranty

Click forLuxrite LR23933 Certificate Of Compliance
