Description

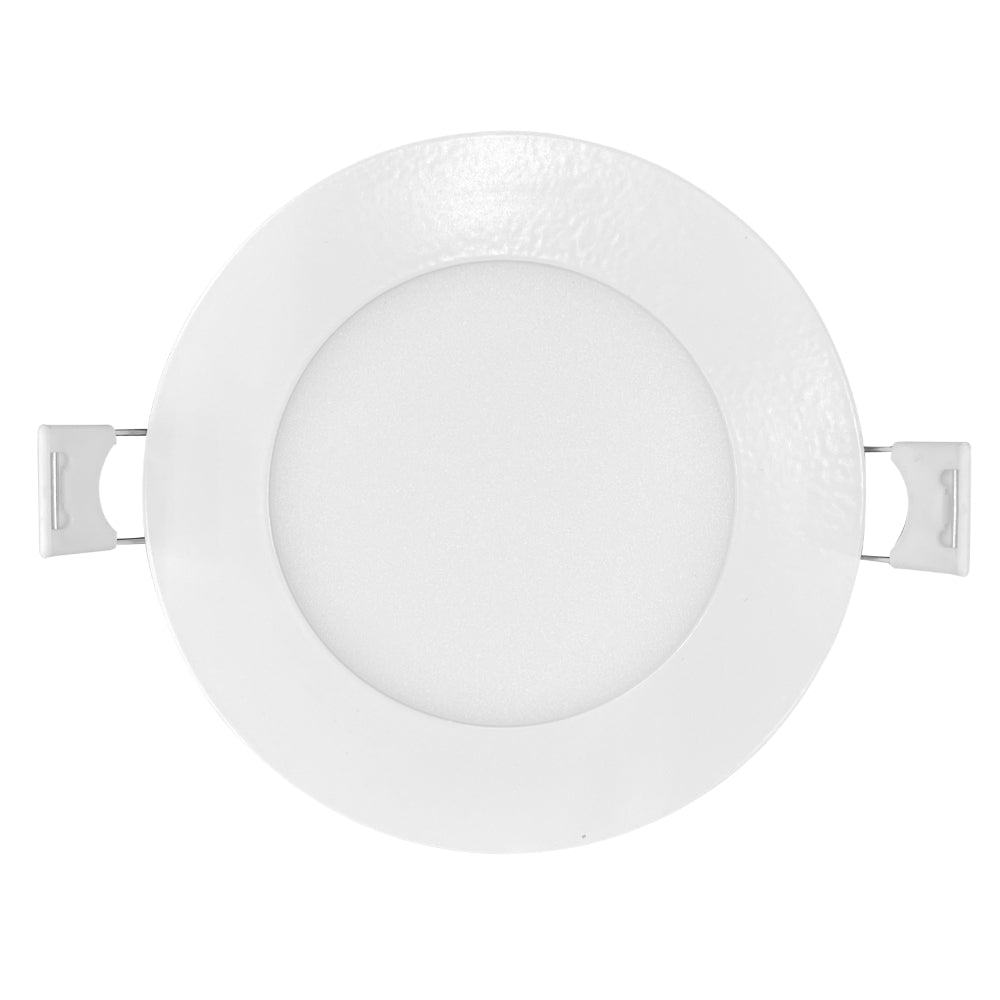

Luxrite 4" Mini Panel Round 5CCT Smooth Canless Wafer Spotlight
Specifications
- Item description: LED/MINI4/PANEL/5CCT/RD2
- Size: 4 Inch
- Shape: 4 Inch Round Smooth

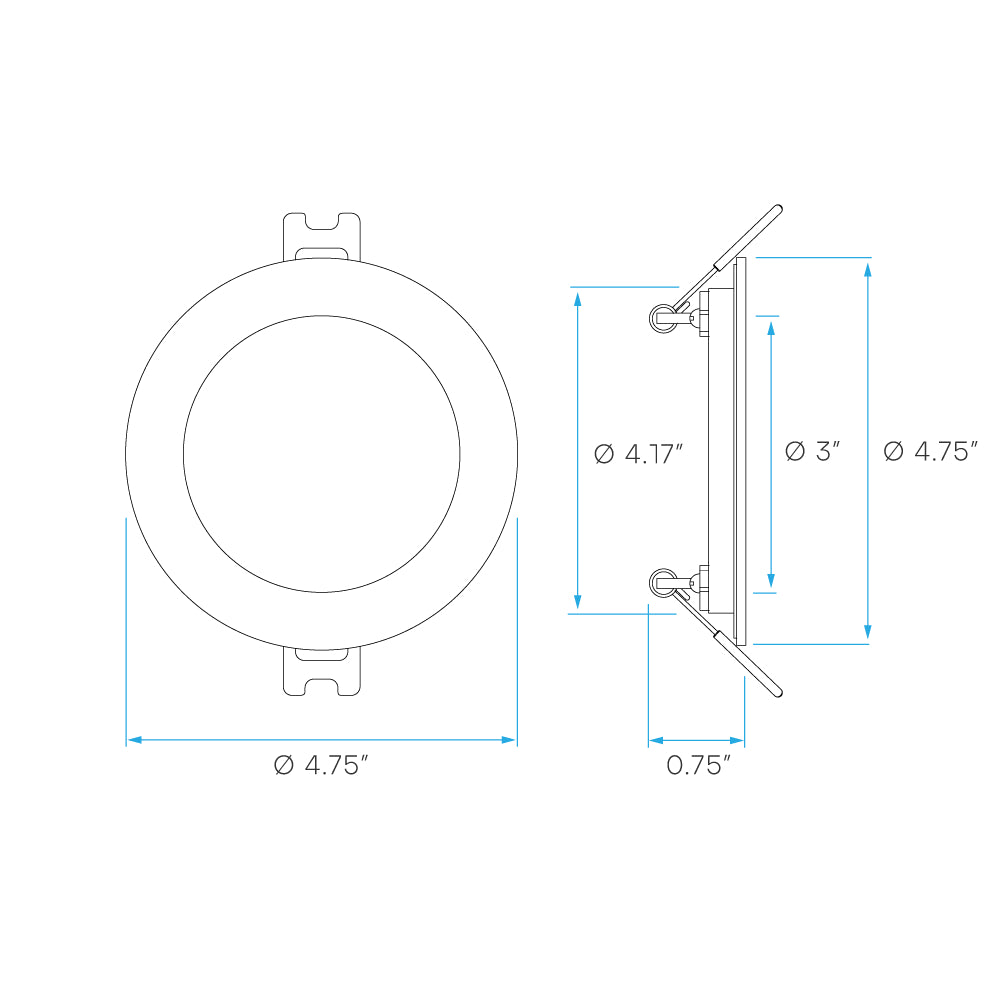

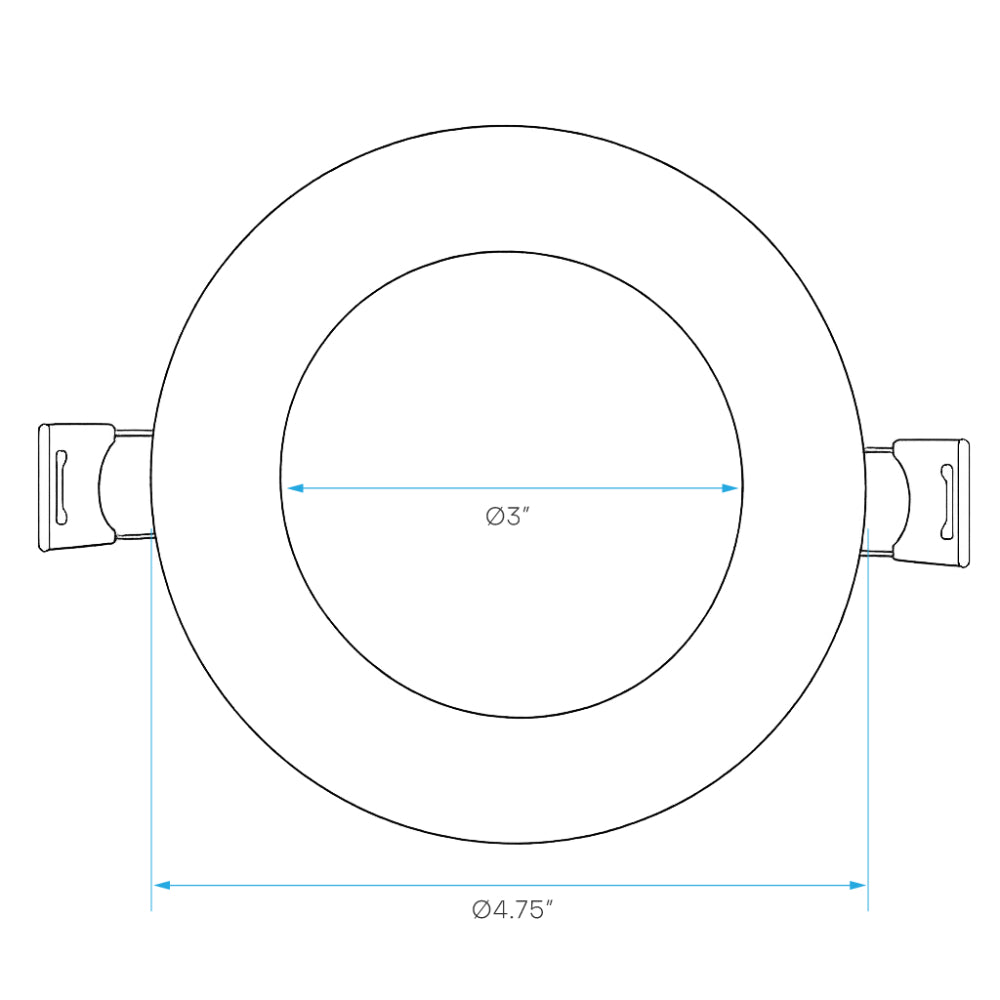

- Dimensions:
- Width: Ø 4.75 Inch
- Depth: 0.75 Inch
- Finish: White
- Cutout: 4.33 Inch
- Plate: LR41002 (#1), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

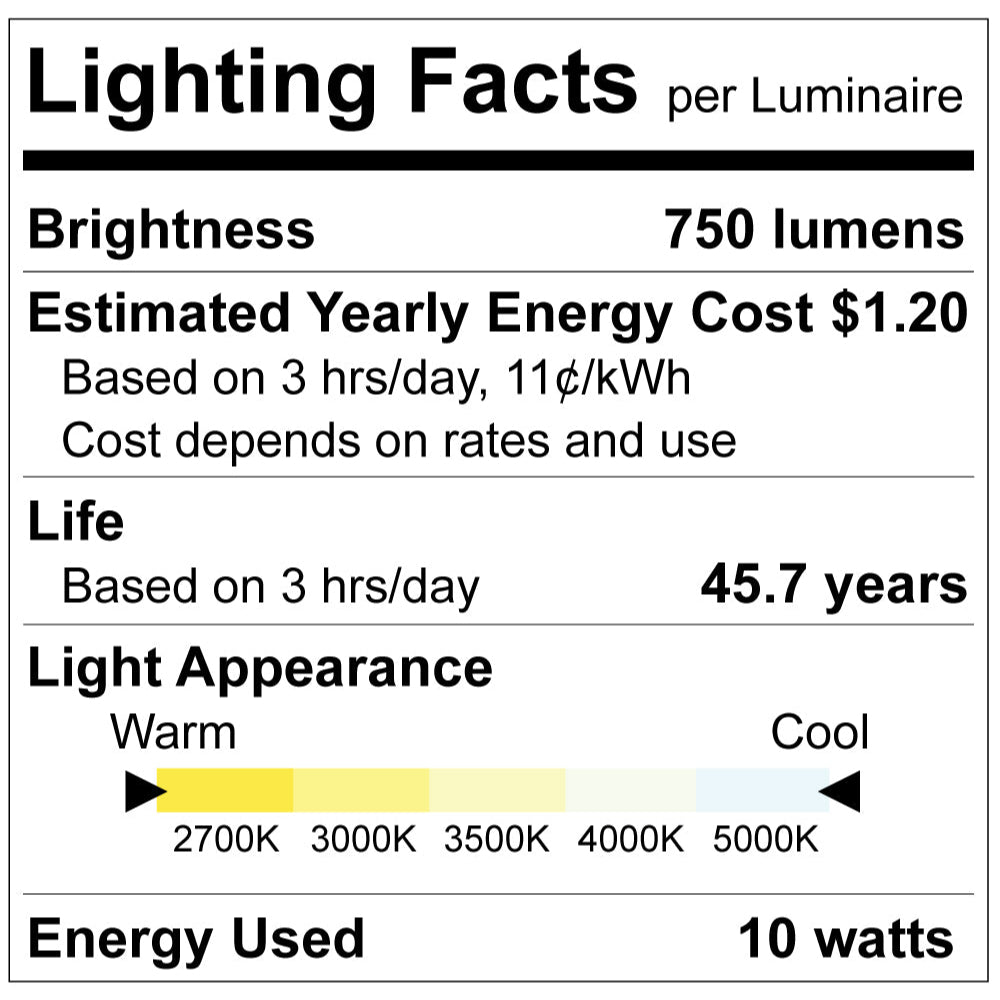

Photometric

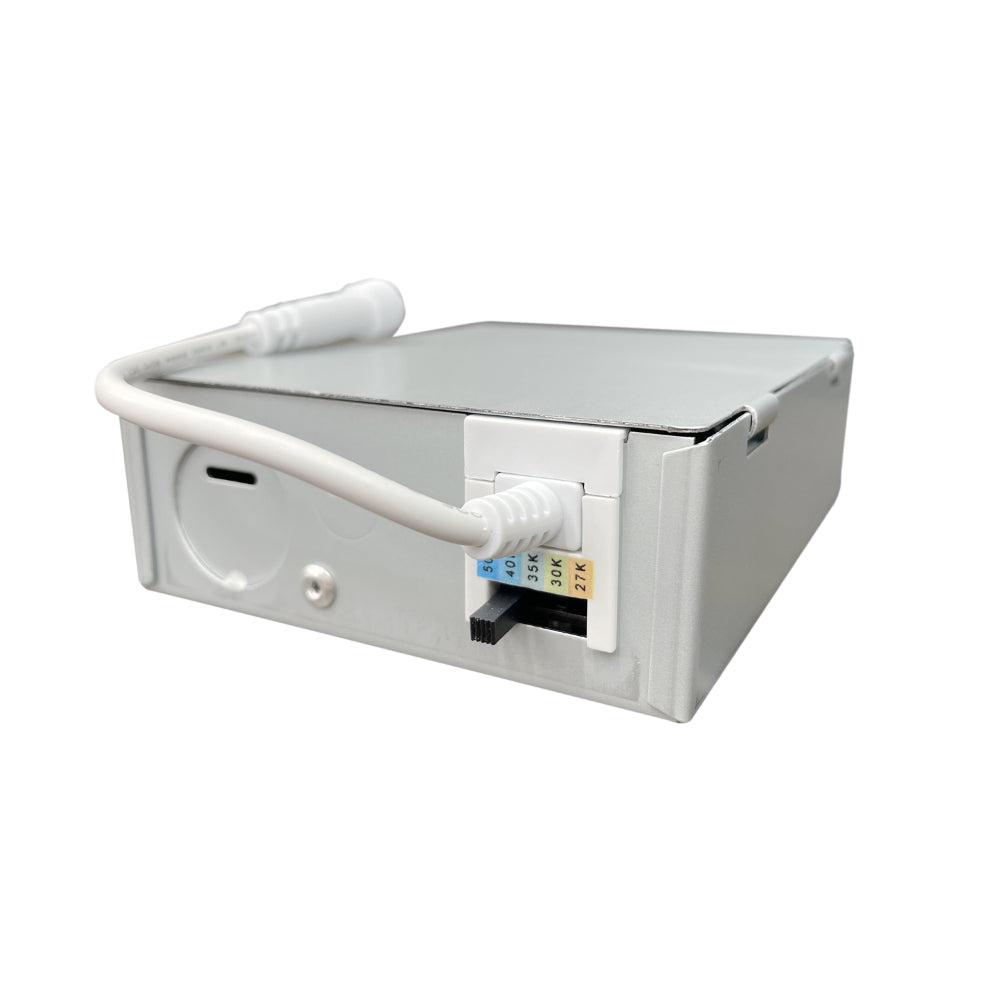

- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 750
- Beam Angle: 180°
- CRI: 80
Electrical
- Power (Wattage): 9
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 50/60Hz
- Lumen Efficacy: 70
- Operating Temp:
- Min: -4°
- Max: 113°
Product Files
Click forLuxrite LR23756 Specification Sheet
Click forLuxrite LR23756 Install Guide
Click forLuxrite LR23756 Dimmer Compatibility
