Description

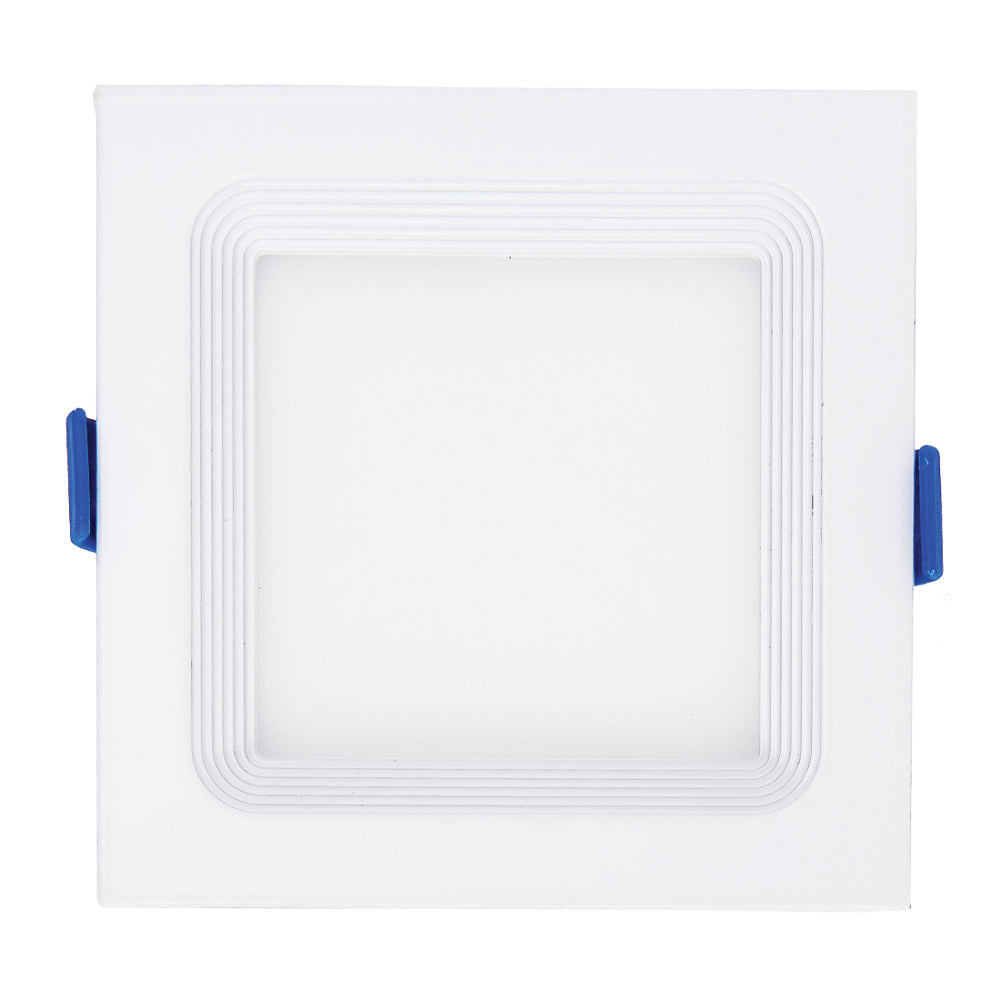

Luxrite 4" Mini Panel Square 5CCT High Output - Step Baffled Trim
Specifications
- Item description: LED/MINI4/PANEL/5CCT/SQ/B/HO
- Size: 4 Inch
- Shape: Baffled Square Wafer

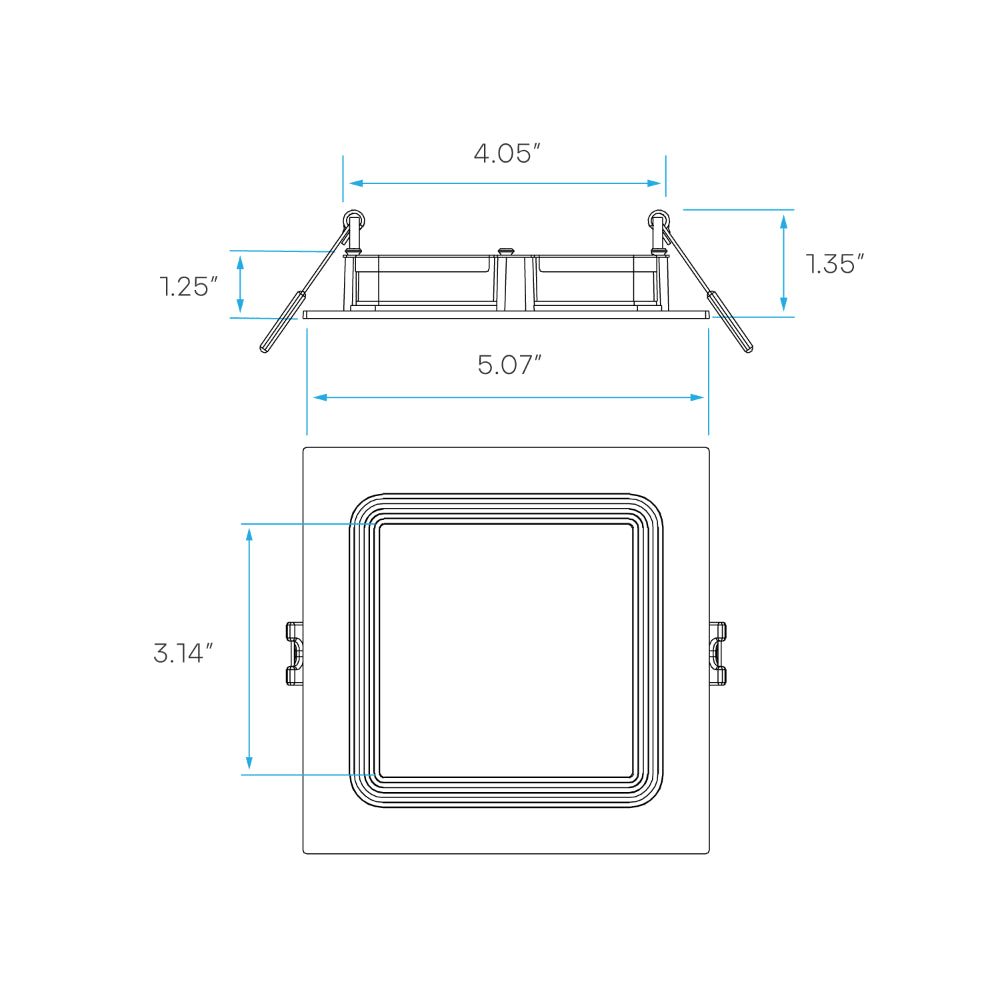

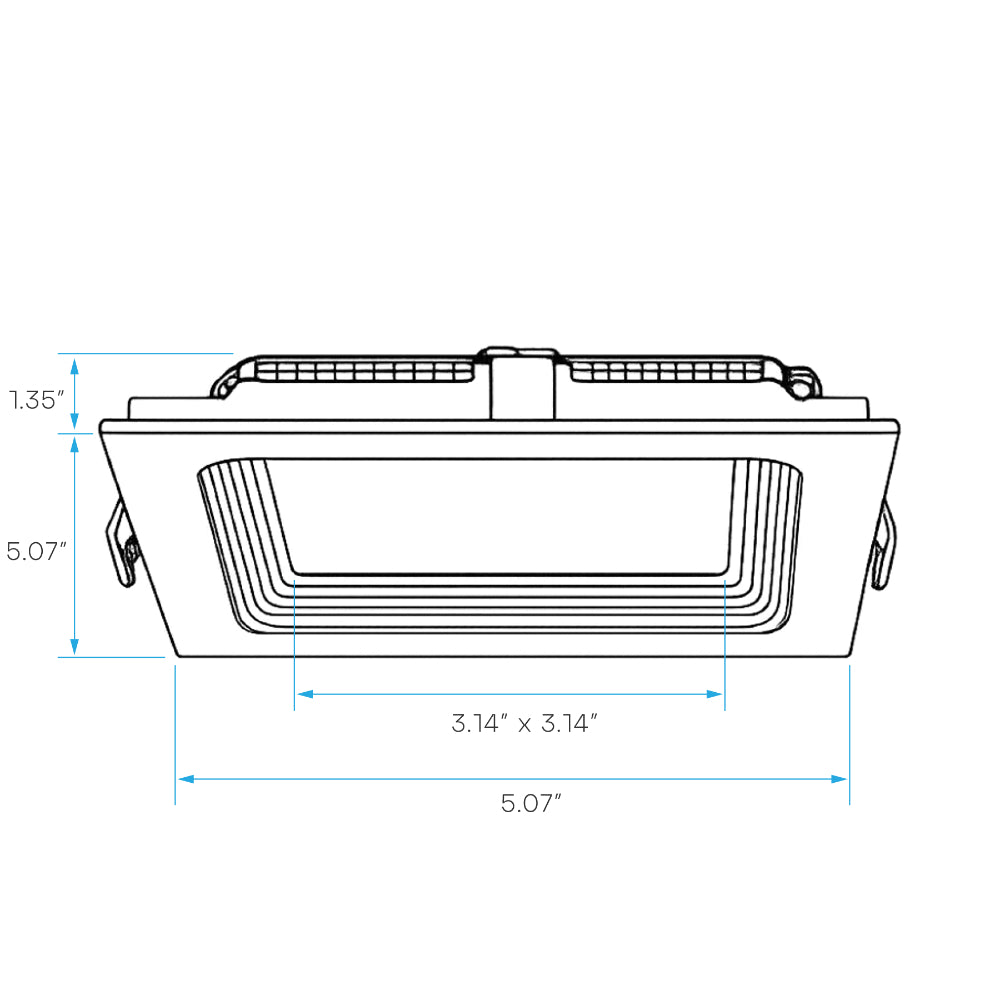

- Dimensions:
- Length: 5.04 Inch
- Width: 5.04 Inch
- Height: 1.42
- Finish: White
- Cutout: 4.33 Inch x 4.33 Inch
- Plate: LR41005 (#1), LR41013 (#0)
- MOL: 5.04 Inch

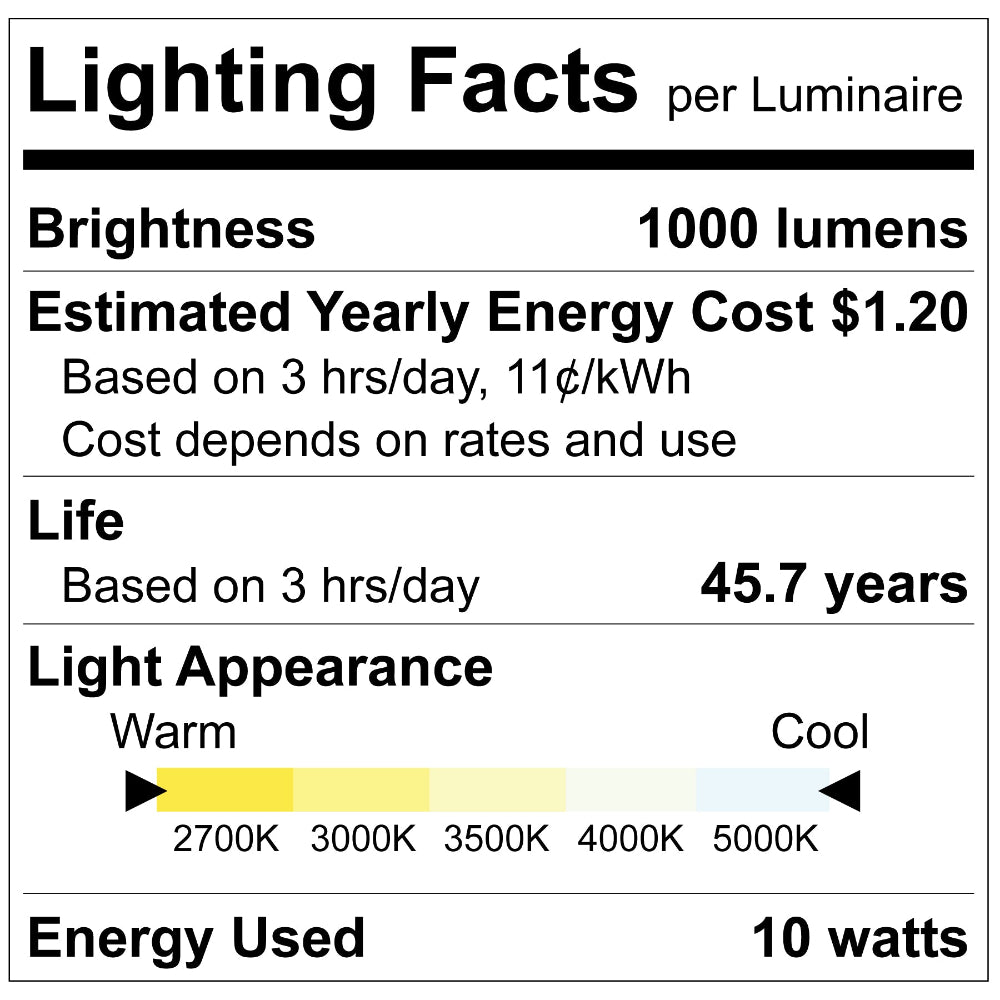

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 1000
- Beam Angle: 110º
- CRI: 80
Electrical
- Power (Wattage): 12
- Input Volts: 120V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.98
- Frequency: 60Hz
- Lumen Efficacy: 70
- Operating Temp:
- Min: -4°
- Max: 113°
Product Files
Click forLuxrite LR23739 Specification Sheet
Click forLuxrite LR23739 Install Guide
Click forLuxrite LR23739 Dimmer Compatibility
