Luxrite 4" Recessed Floating Gimbal - 5 CCT Selectable Trim

LuxriteSKU: LR23332
Select Shape: Round
Price:
$0.00 USD

Description

Luxrite 4" Recessed Floating Gimbal - 5 CCT Selectable Trim

Specifications

  • Item description: LED10W/DL4/FGB/5CCT/RD
  • Size: 4 Inch
  • Shape: Floating Gimbal

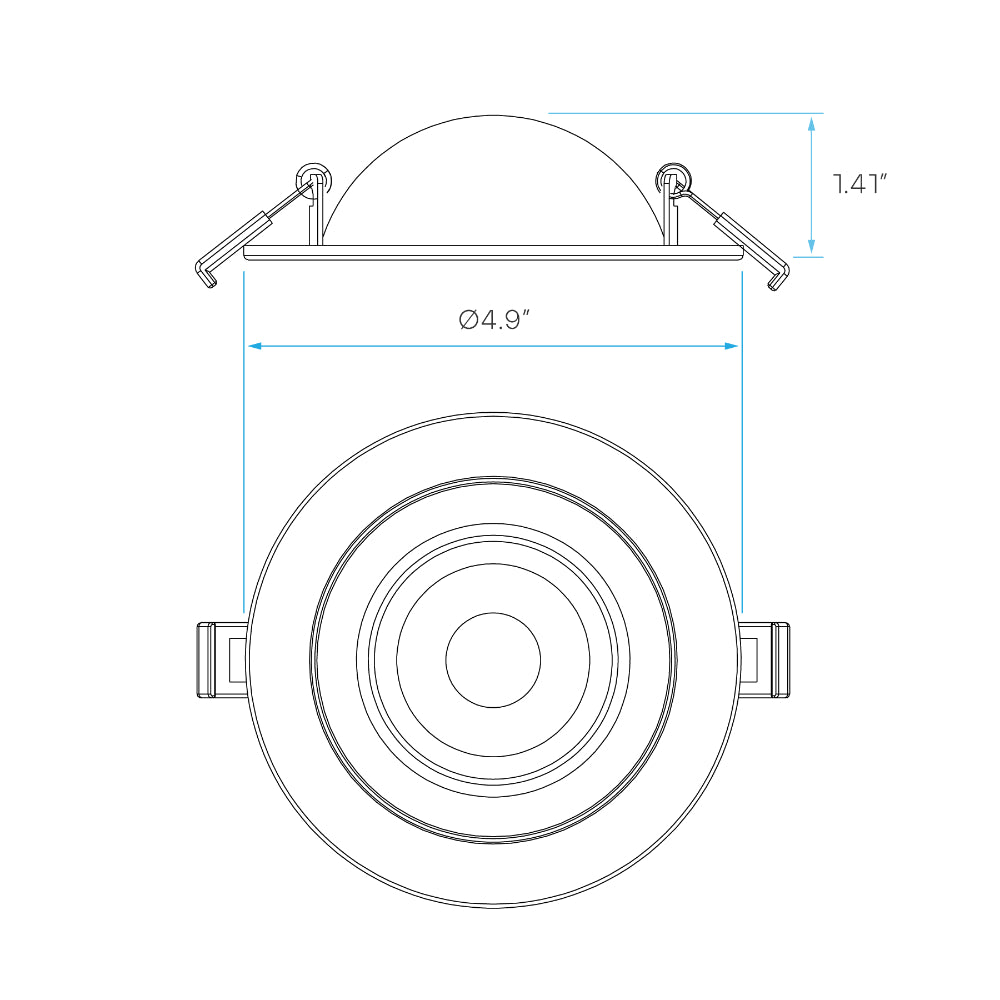

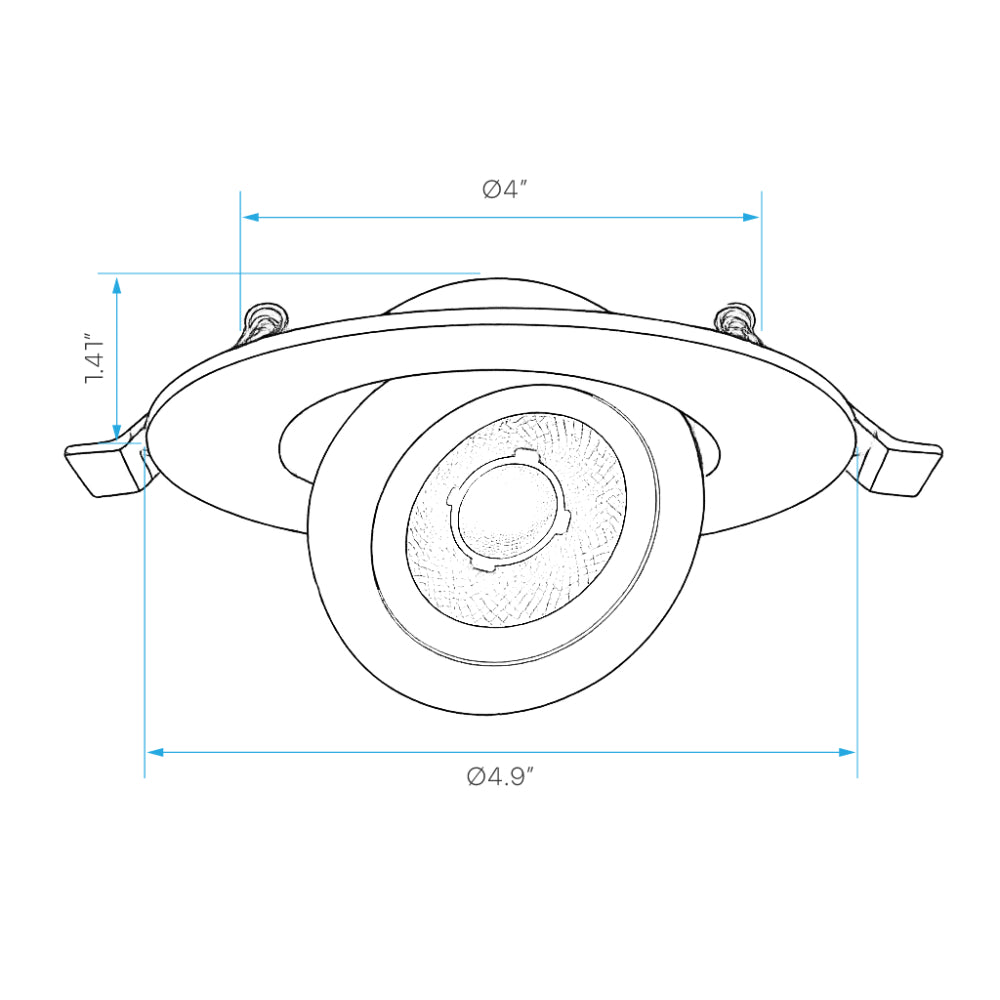

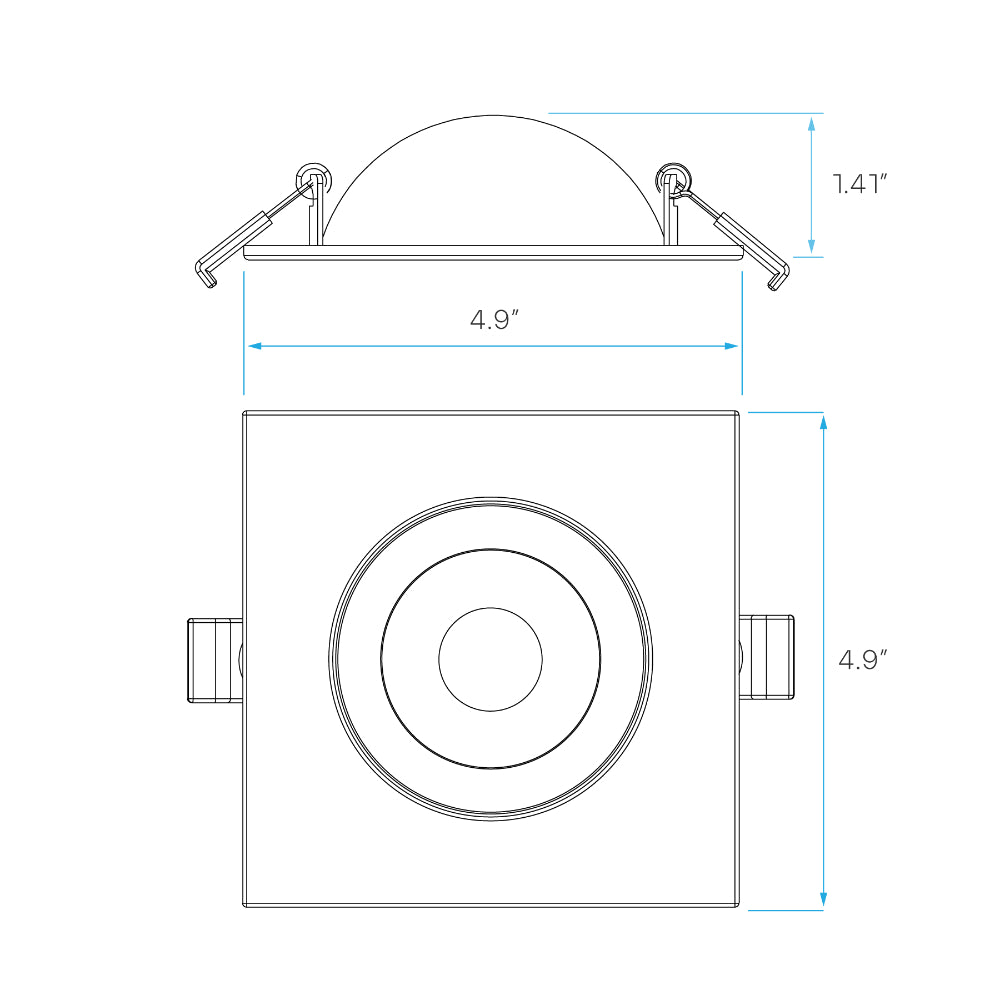

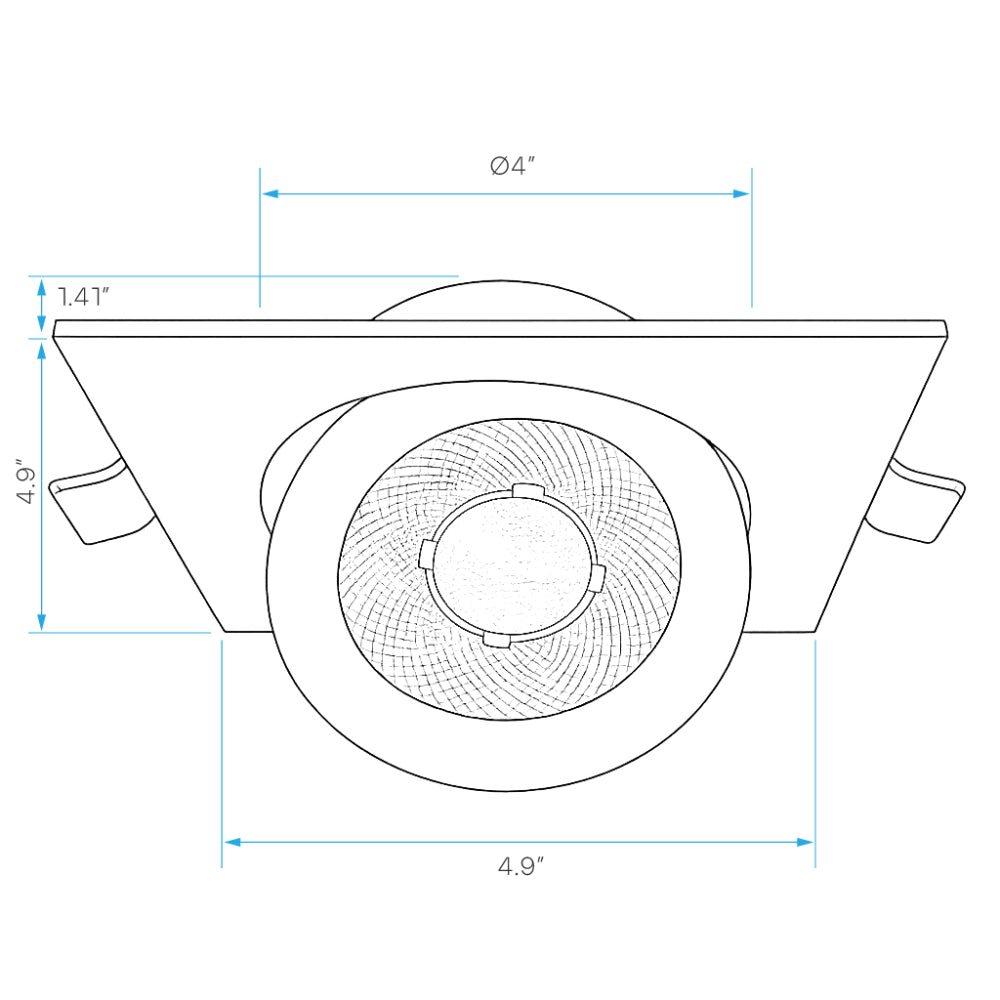

  • Dimensions:
    • Width: Ø4.9 Inch
    • Depth: 1.41 Inch
  • Finish: White
  • Cutout: Ø4 Inch
  • Plate: LR41002 (#1), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

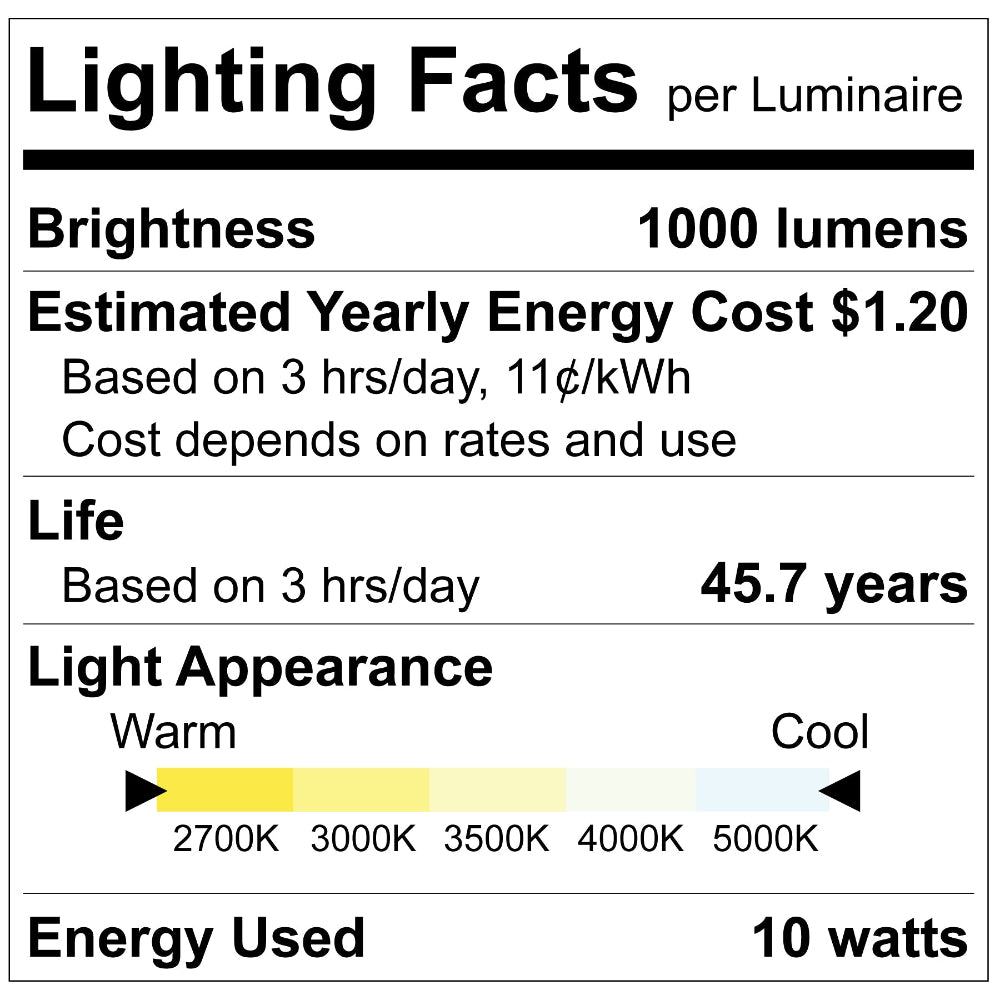

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1000
  • Beam Angle: 50°
  • CRI: 90

Electrical

  • Power (Wattage): 10
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Power Factor: 0.9
  • Frequency: 50/60Hz
  • Lumen Efficacy: 100
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR23332 Specification Sheet

Click forLuxrite LR23332 Install Guide

Click forLuxrite LR23332 Dimmer Compatibility

Click forLuxrite LR23332 Warranty

Click forLuxrite LR23335 Dimmer Compatibility

Click forLuxrite LR23335 Warranty
