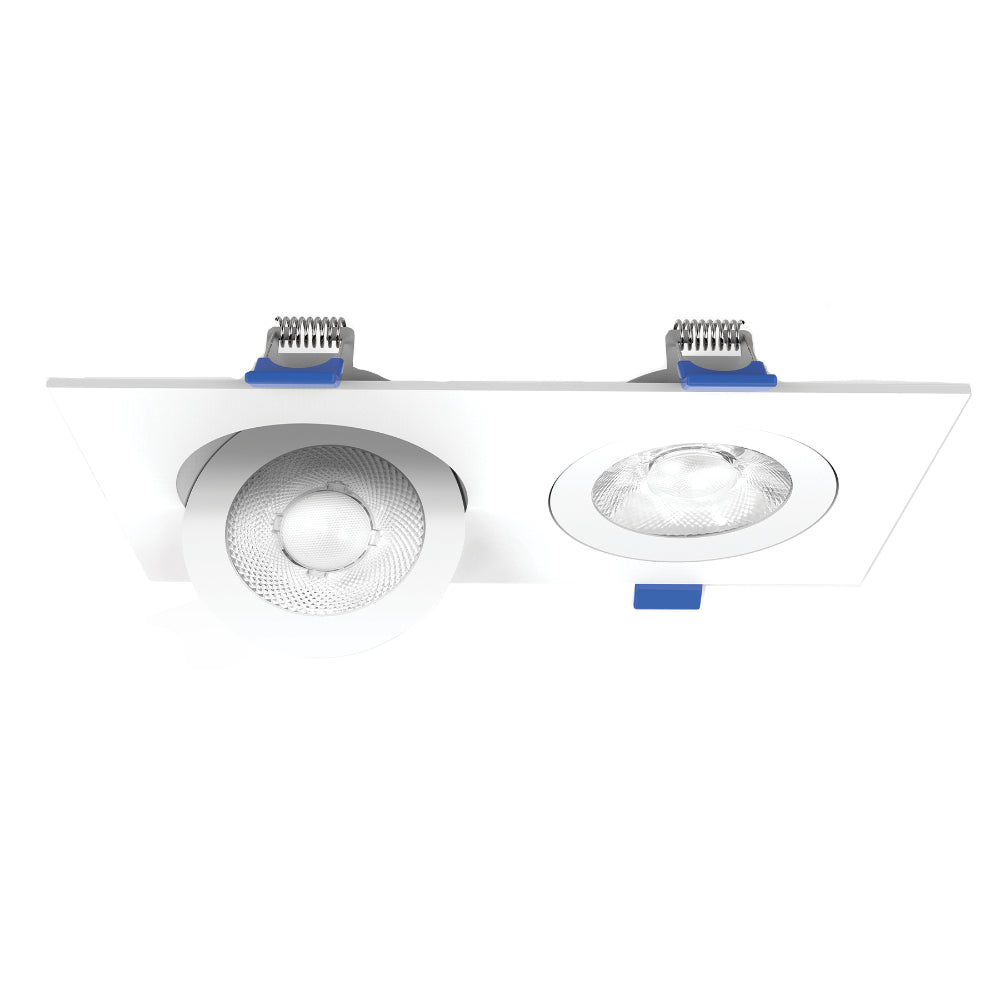

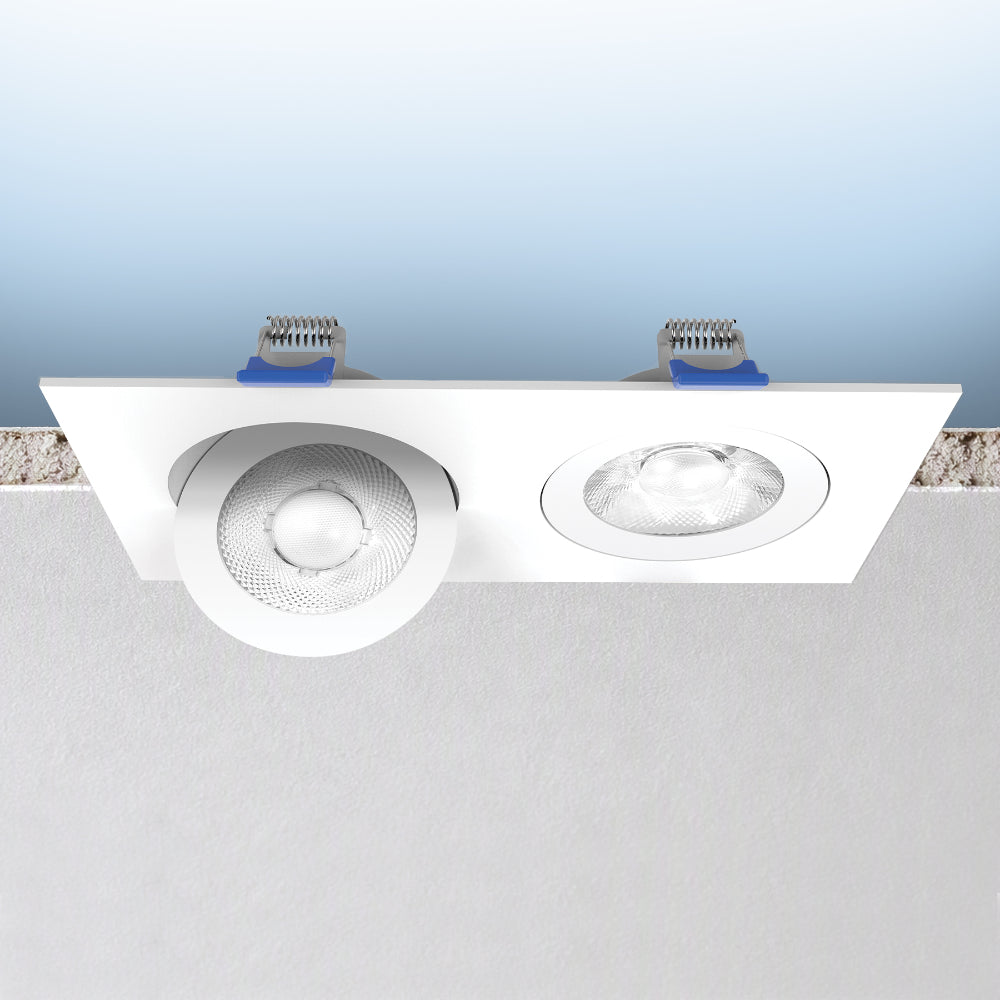

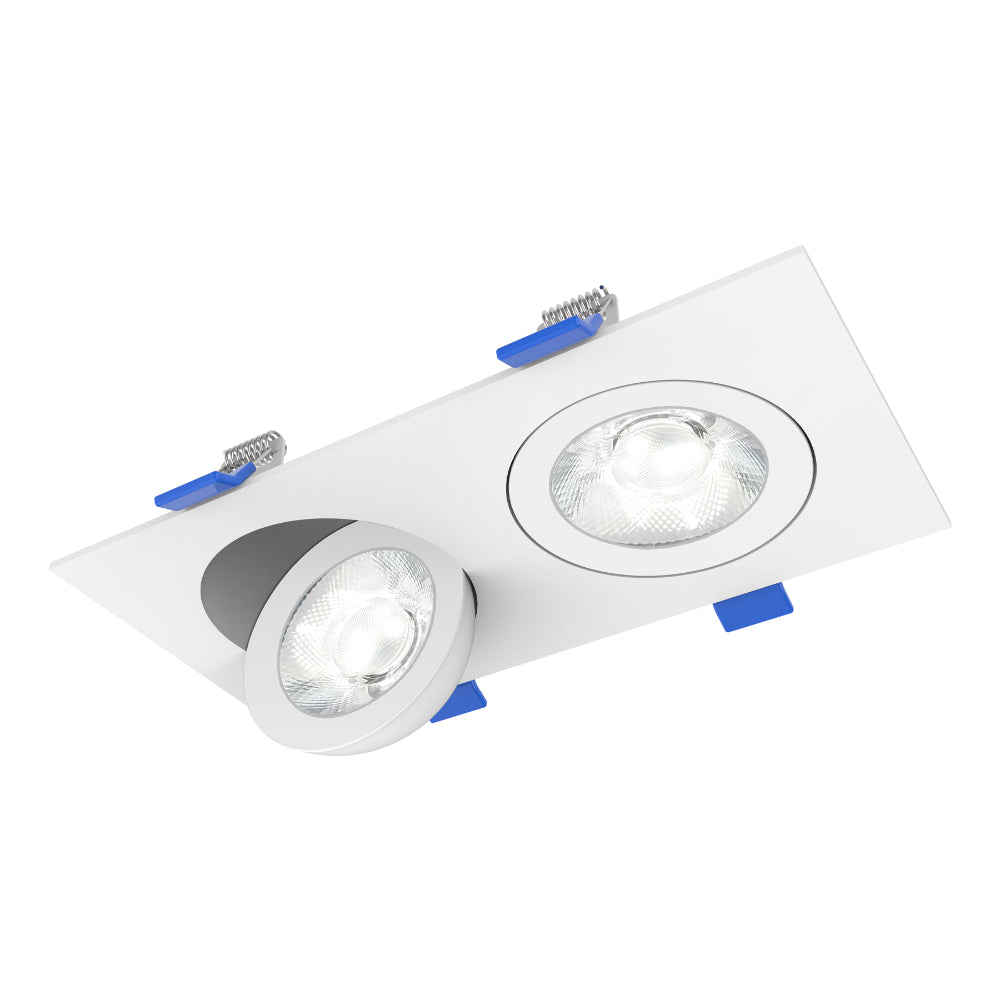

Luxrite 4" Recessed Floating Gimbal - 5 CCT Selectable Square Trim 2-Head

LuxriteSKU: LR23336
Price:
$0.00 USD

Description

Luxrite 4" Recessed Floating Gimbal - 5 CCT Selectable Square Trim 2-Head

Specifications

  • Item description: LED20W/DL4/2HD/FGB/5CCT/SQ
  • Size: 4 Inch
  • Shape: Floating Gimbal

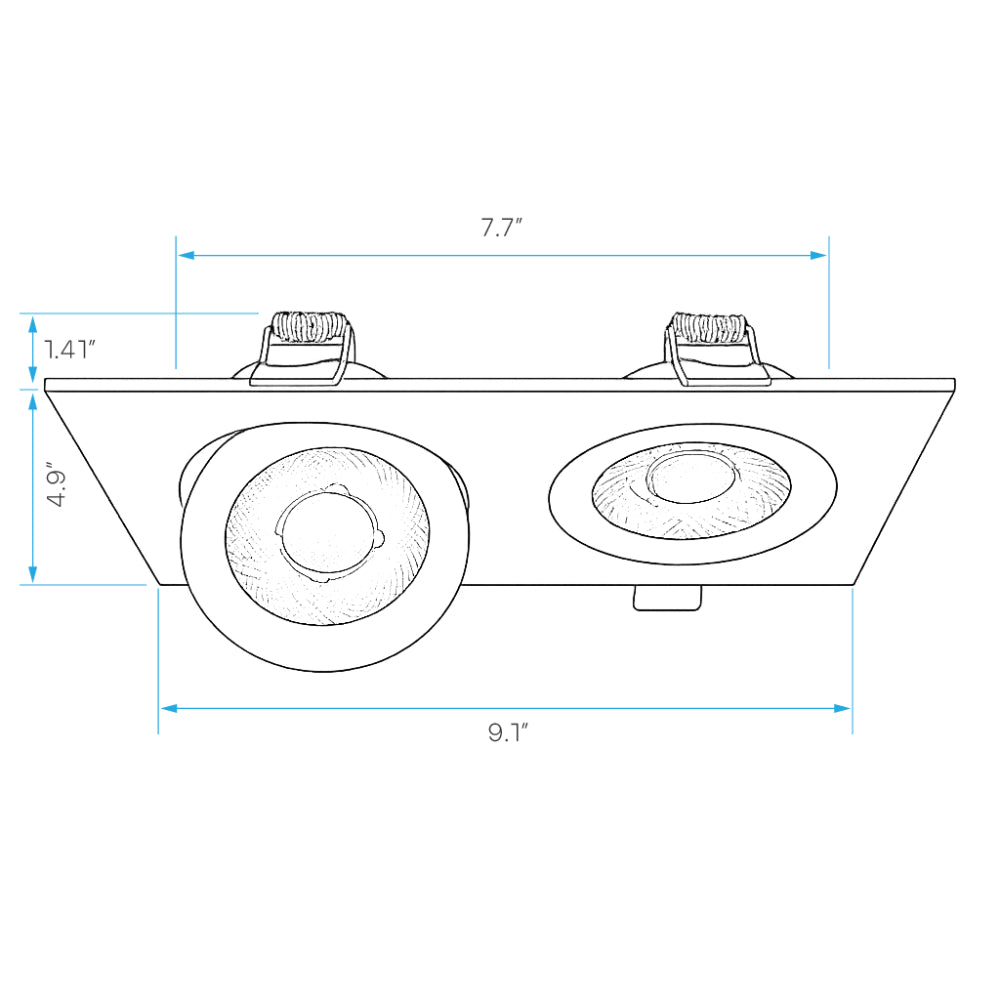

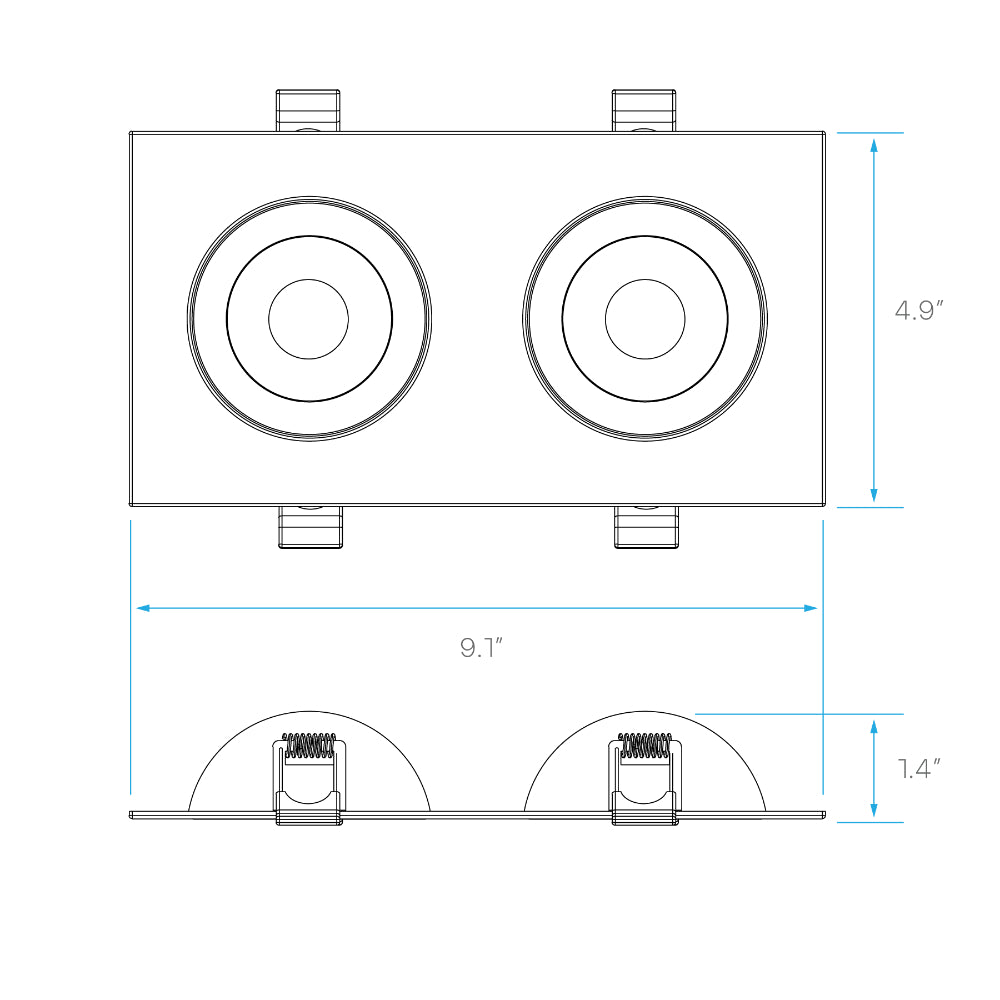

  • Dimensions:
    • Length: 9.1 Inch
    • Width: 4.9 Inch
    • Depth: 1.41 Inch
  • Finish: White
  • Cutout: 8 Inch x 4 Inch
  • Plate: Lr41013 (#1)

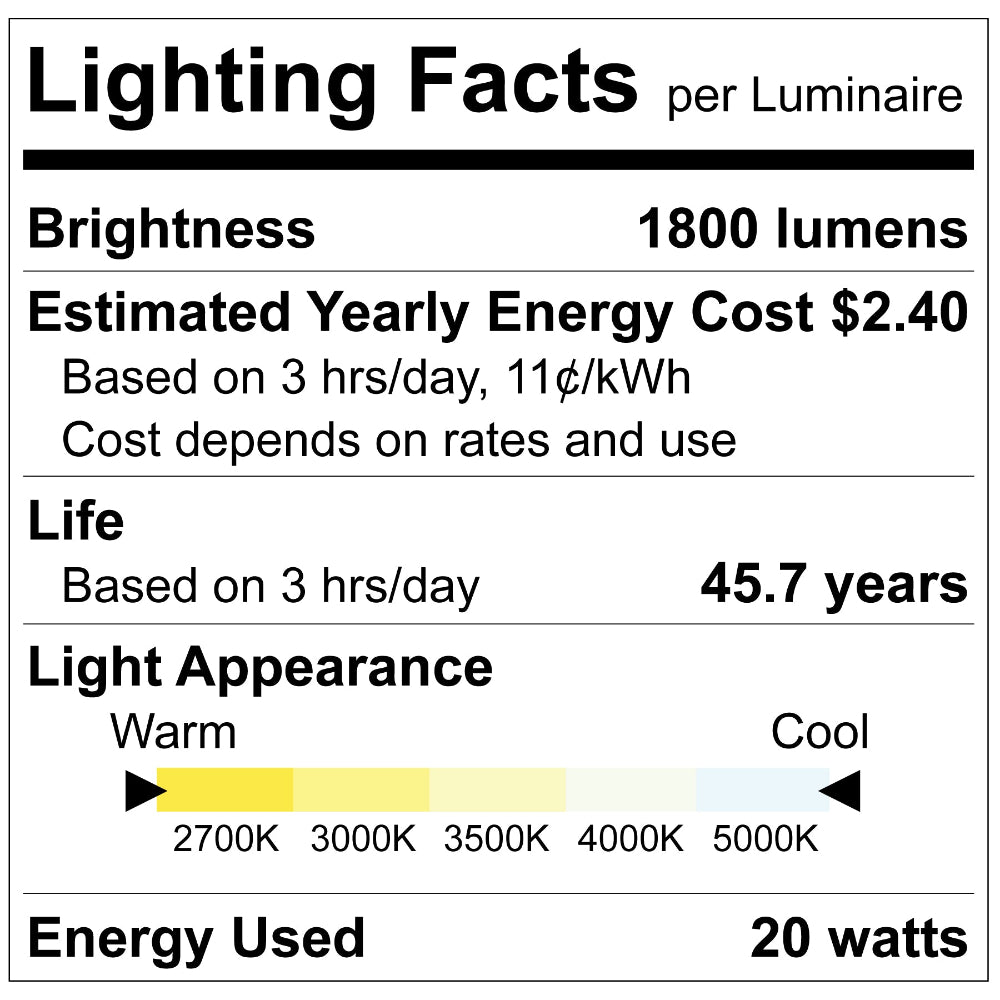

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1800
  • Beam Angle: 50°
  • CRI: 90

Electrical

  • Power (Wattage): 20
  • Input Volts: 120V
  • Rated Lifetime: 50000
  • Dimmable: Triac
  • Power Factor: 0.9
  • Frequency: 50/60Hz
  • Lumen Efficacy: 90
  • Operating Temp:
    • Min: -4°
    • Max: 104°
Product Files

Click forLuxrite LR23336 Specification Sheet

Click forLuxrite LR23336 Install Guide

Click forLuxrite LR23336 Dimmer Compatibility

Click forLuxrite LR23336 Warranty
