Description

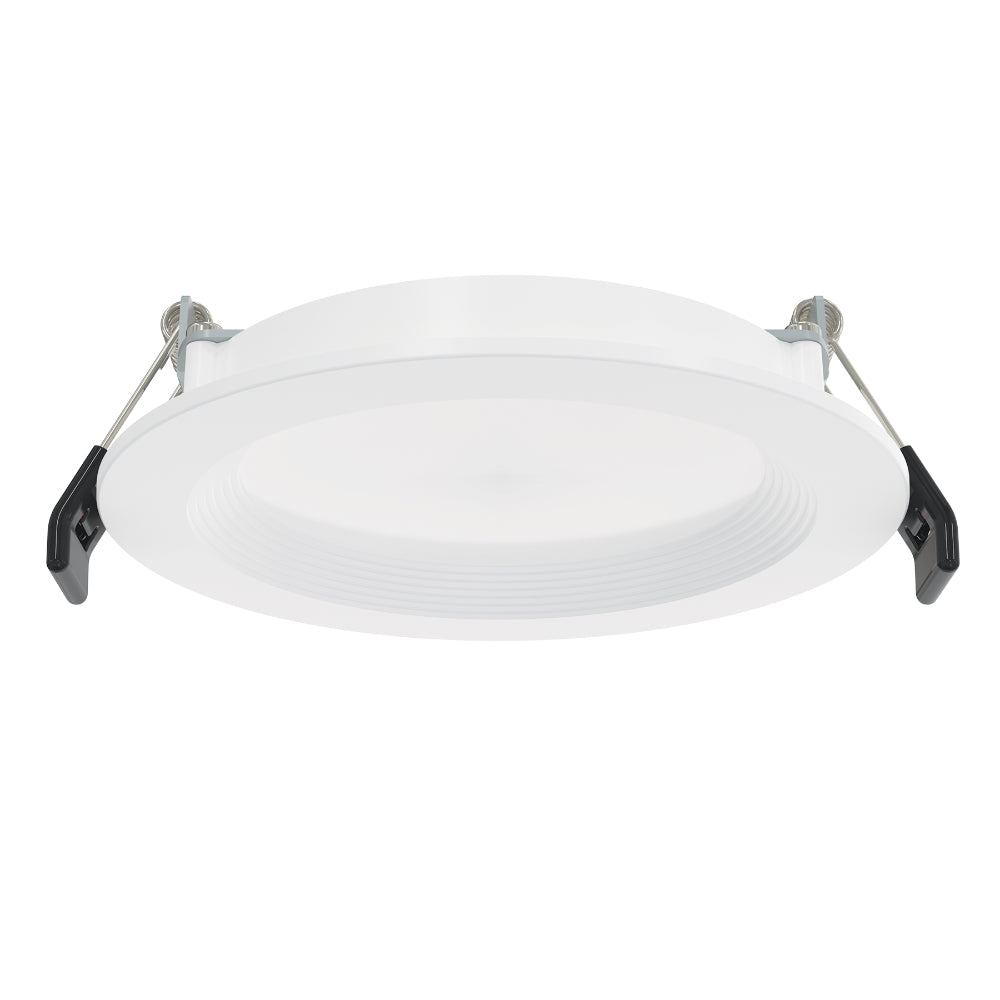

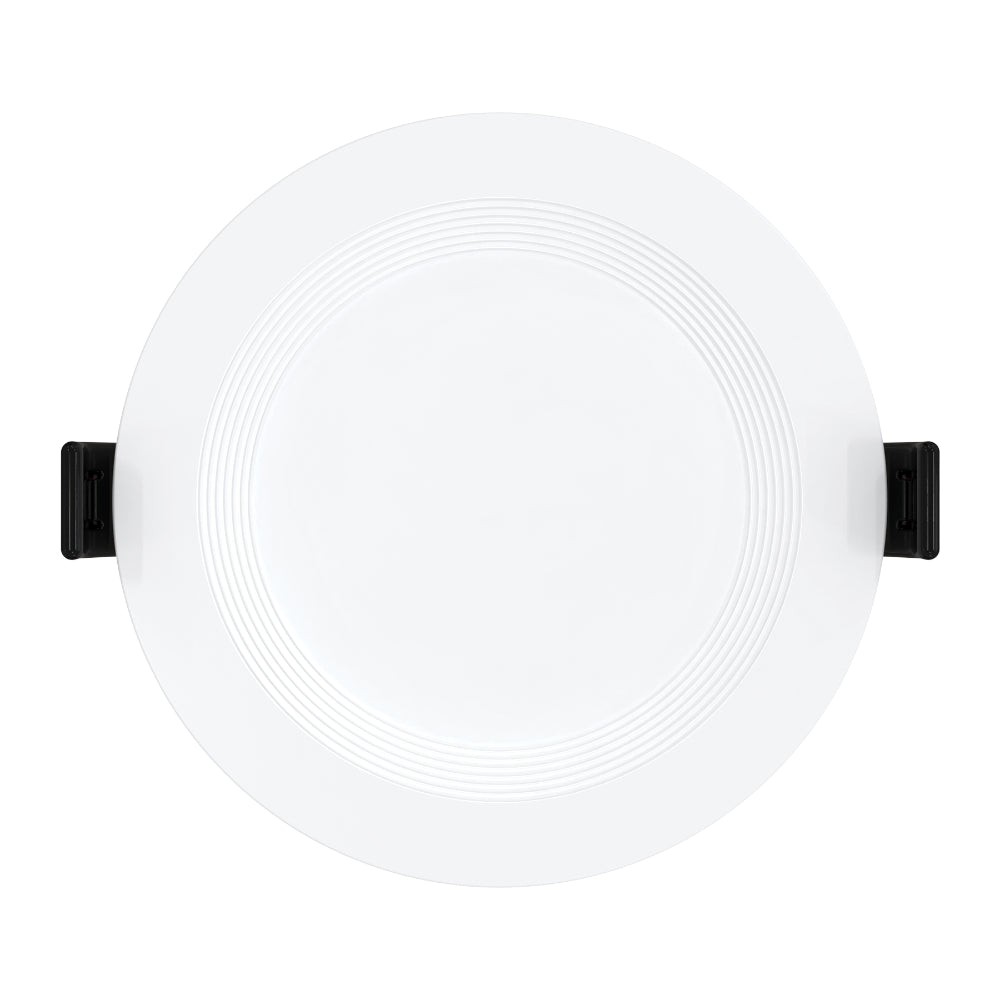

Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & 3 Wattage Selectable - Universal Voltage
Specifications
- Item description: LED/MINI4/PANEL/3WO/5CCT/RD/UNV/B
- Size: 4 Inch
- Shape: Recessed Mini Panel

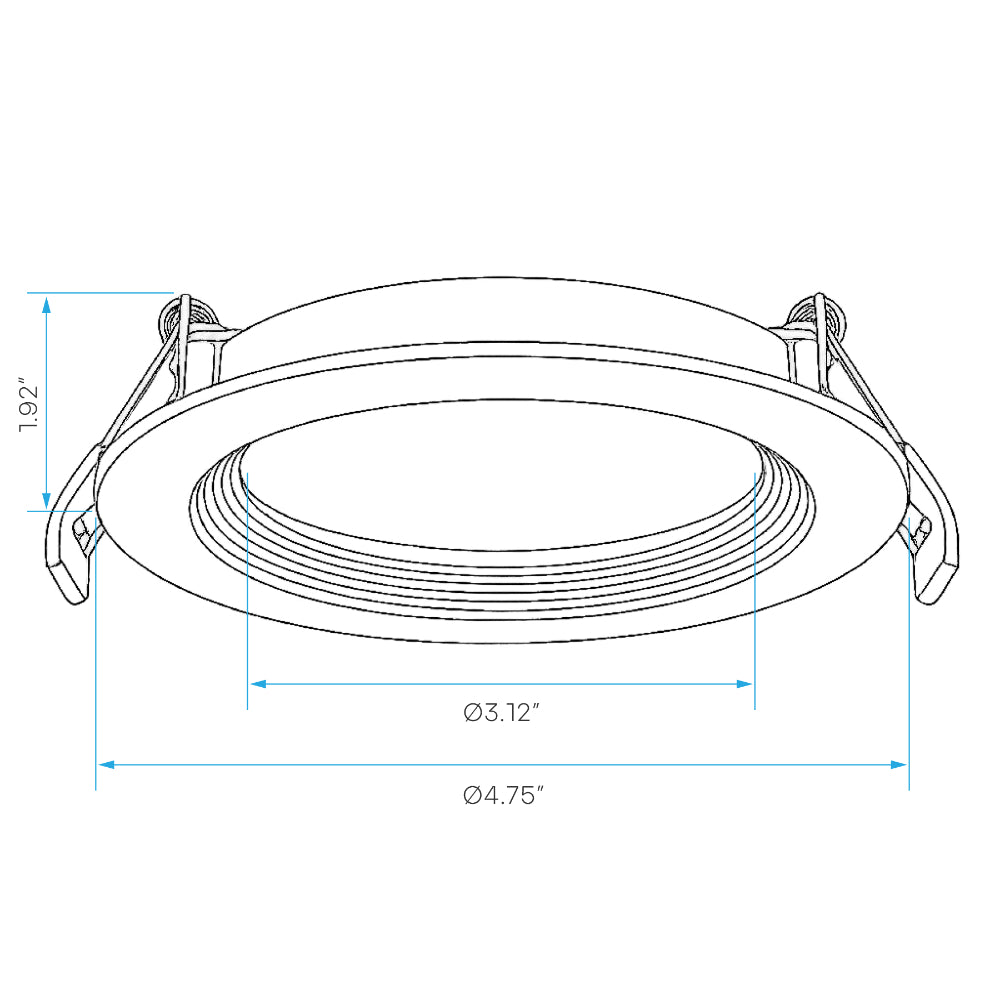

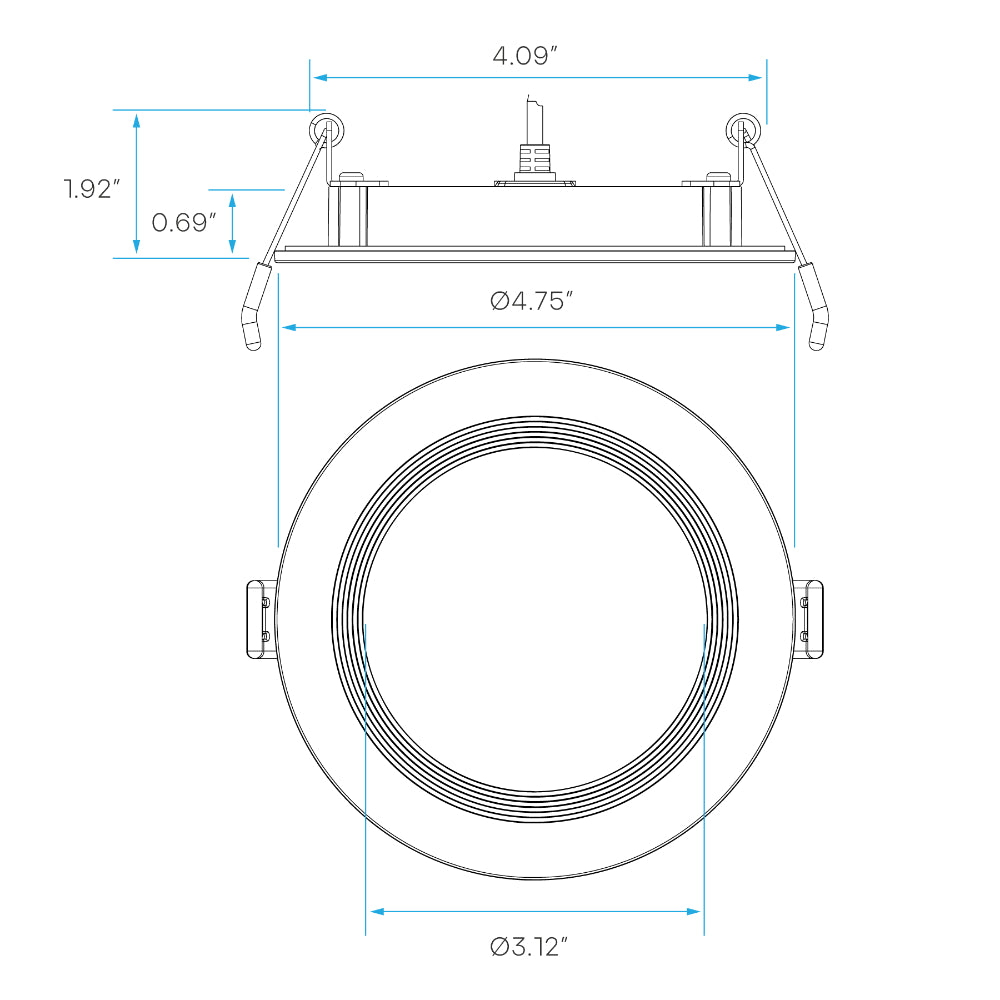

- Dimensions:
- Length: Ø4.75 Inch
- Height: 1.92 Inch
- Finish: White
- Cutout: Ø4.3 Inch
- Plate: LR41002 (#1), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

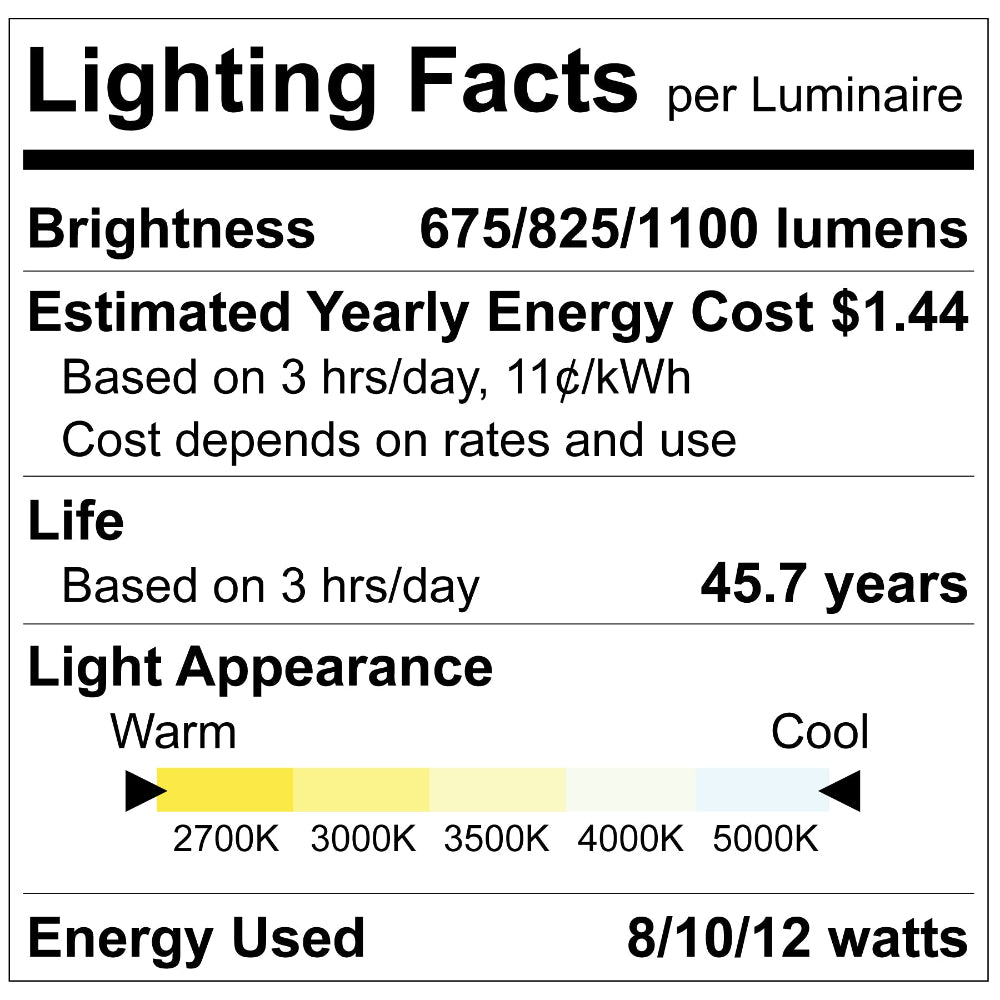

Photometric
- Color (Temp): CCT Selectable
- Color (CCT): 2700K/3000K/3500K/4000K/5000K
- Lumen: 675/825/1100
- Beam Angle: 110º
- CRI: 90
Electrical
- Power (Wattage): 8/10/12
- Input Volts: 120-277V
- Rated Lifetime: 50000
- Dimmable: Triac
- Power Factor: 0.9
- Frequency: 60Hz
- Lumen Efficacy: 84/83/92
- Operating Temp:
- Min: -4º
- Max: 104º
Product Files
Click forLuxrite LR23902 Specification Sheet
Click forLuxrite LR23902 Install Guide
