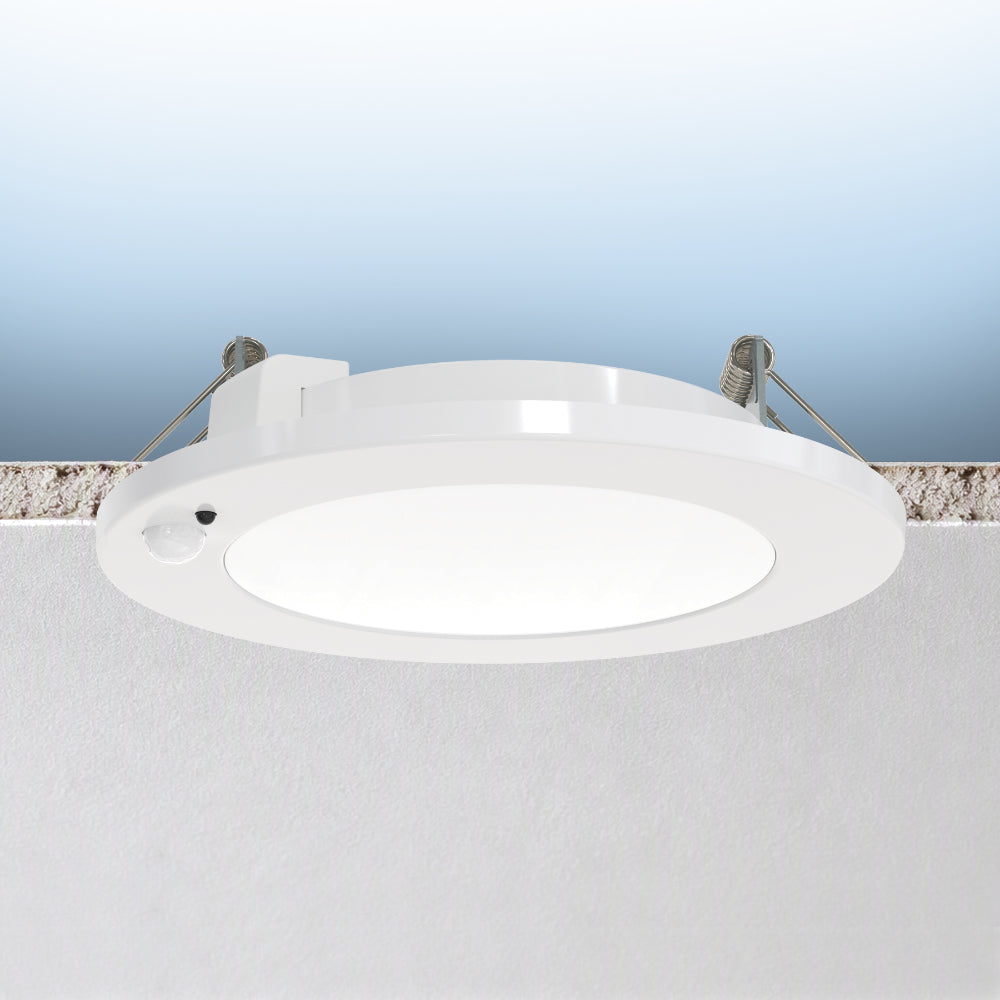

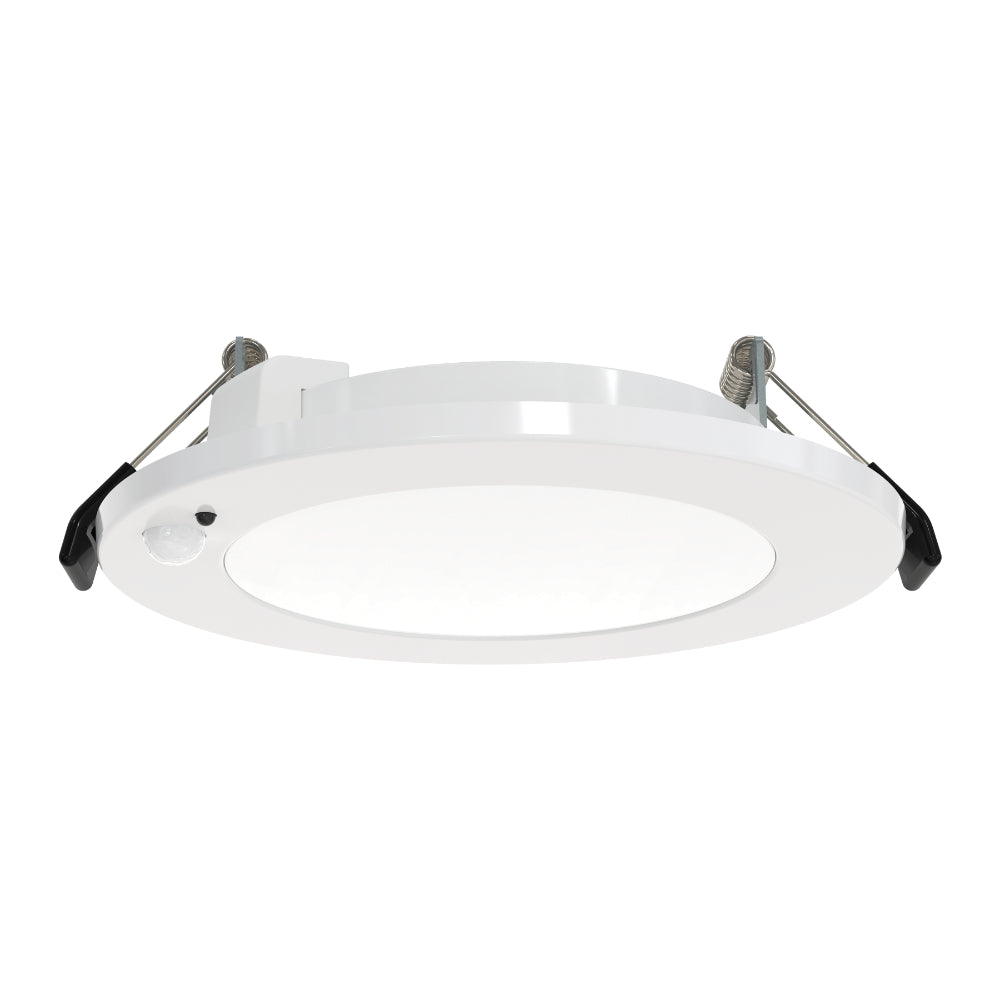

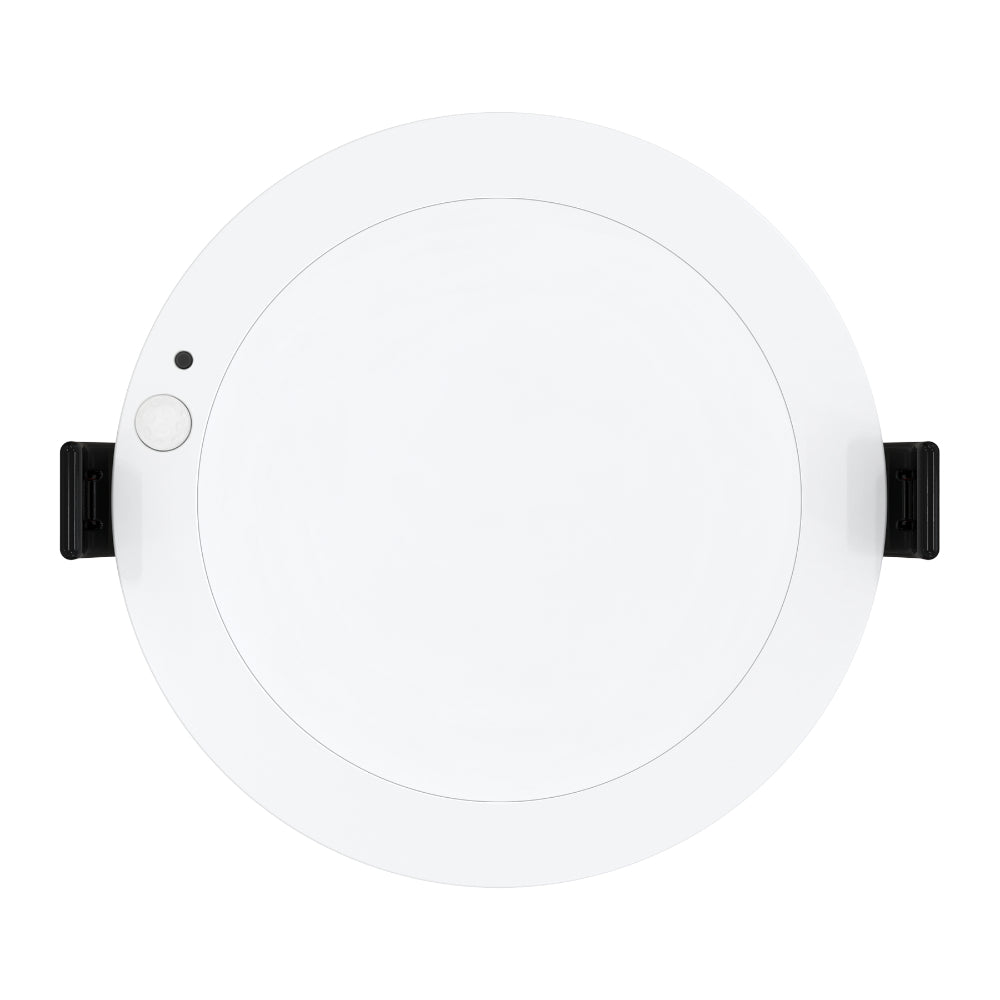

Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage
Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 1
Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 2
Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 3
Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 4
Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 5
Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 6
Roll over image to zoom in Click on image to zoom
Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal VoltageLuxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 1Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 2Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 3Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 4Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 5Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage Additional Image 6

Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage

LuxriteSKU: LR23911
Price:
$0.00 USD

Description

Luxrite 4" Recessed Mini Panel Canless Spotlight - 5CCT & Adjustable PIR Sensor - Universal Voltage

Specifications

  • Item description: LED/MINI4/PANEL/5CCT/RD/PIR
  • Size: 4 Inch
  • Shape: Recessed Mini Panel

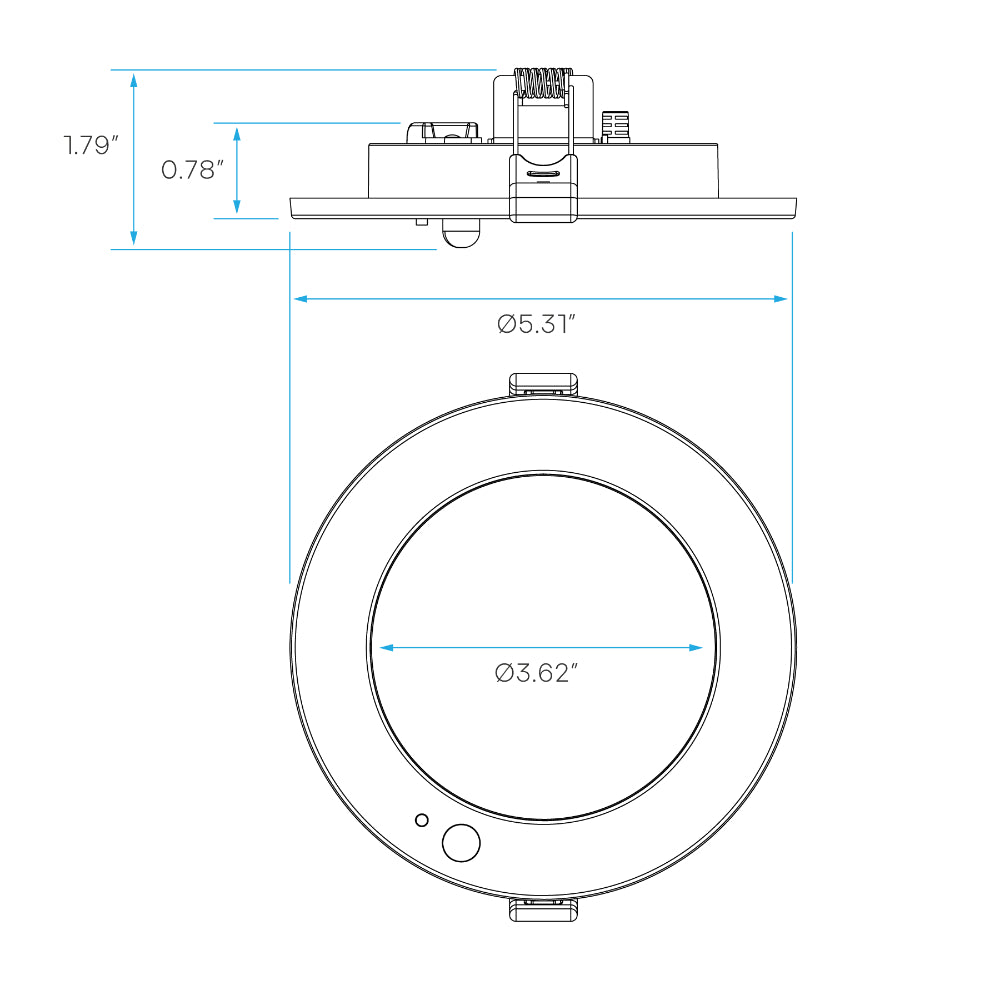

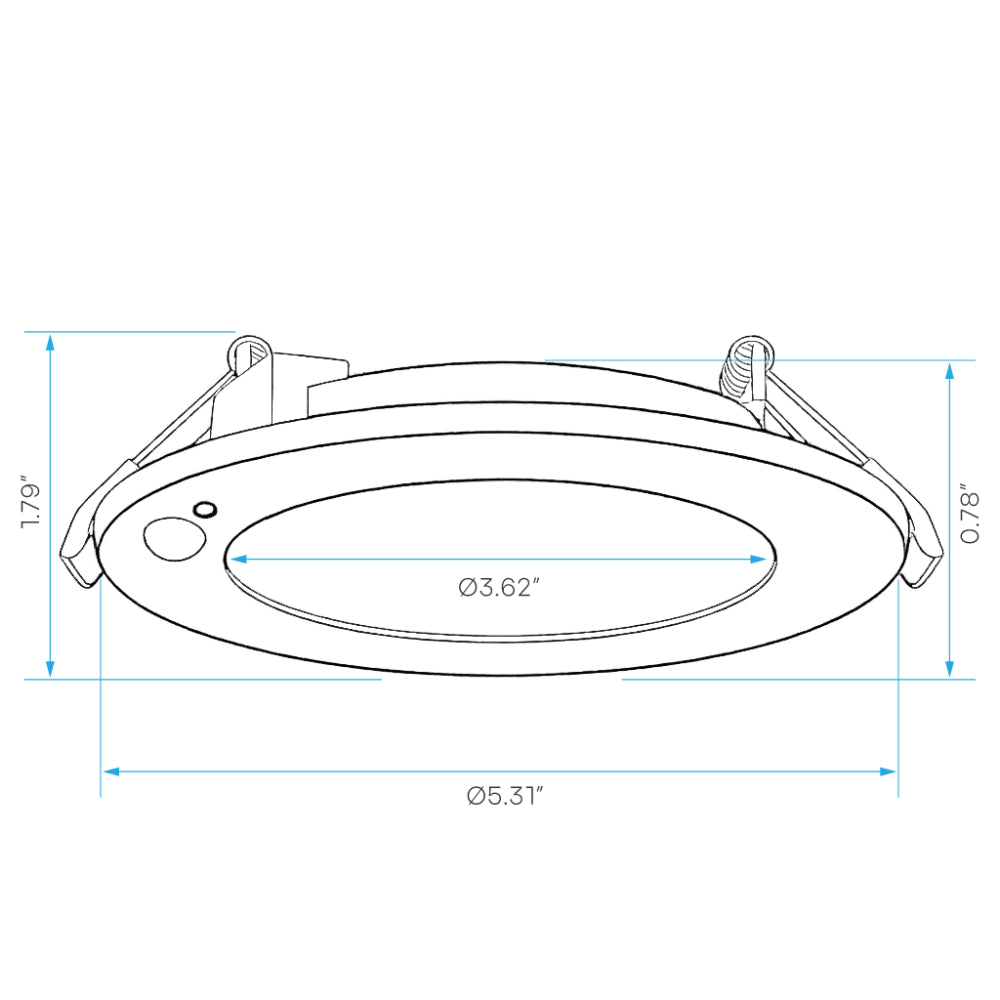

  • Dimensions:
    • Length: Ø5.31 Inch
    • Height: 1.79 Inch
  • Finish: White
  • Cutout: Ø4.3 Inch
  • Plate: LR41002 (#1), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

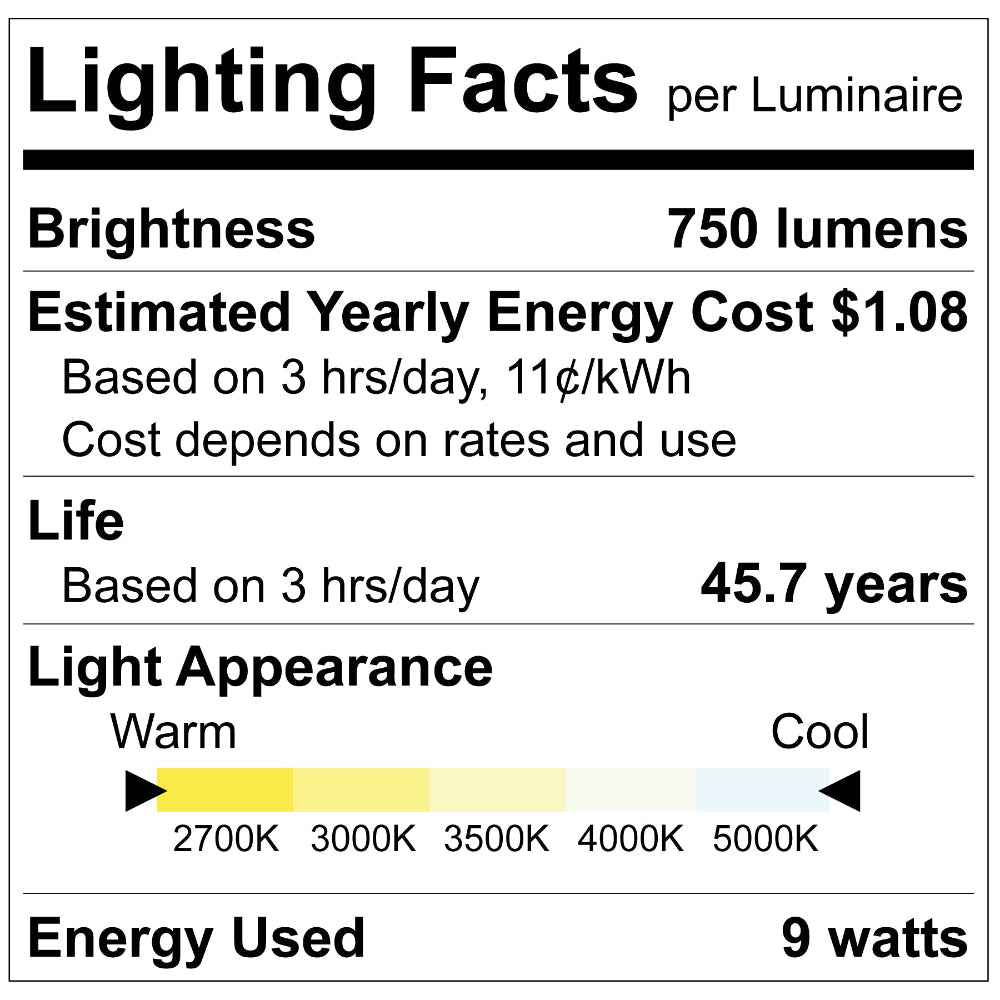

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 750
  • Beam Angle: 110º
  • CRI: 90

Electrical

  • Power (Wattage): 9
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Power Factor: 0.9
  • Frequency: 50/60Hz
  • Lumen Efficacy: 84
  • Operating Temp:
    • Min: -4º
    • Max: 104º
Product Files

Click forLuxrite LR23911 Specification Sheet

Click forLuxrite LR23911 Family Specification Sheet

Click forLuxrite LR23911 Install Guide

Click forLuxrite LR23911 Warranty
