Luxrite 4" Regressed Canless Spotlight - Round - 5 CCT Select Universal Voltage/Dual Dimming

LuxriteSKU: LR23369
Select Finish: Black
Price:
$0.00 USD

Description

Luxrite 4" Regressed Canless Spotlight - Round - 5 CCT Select Universal Voltage/Dual Dimming

Specifications

  • Item description: LED/RDL4/5CCT/RD/UNV/DD/BK
  • Size: 4 Inch
  • Shape: 4 Inch Round Regressed

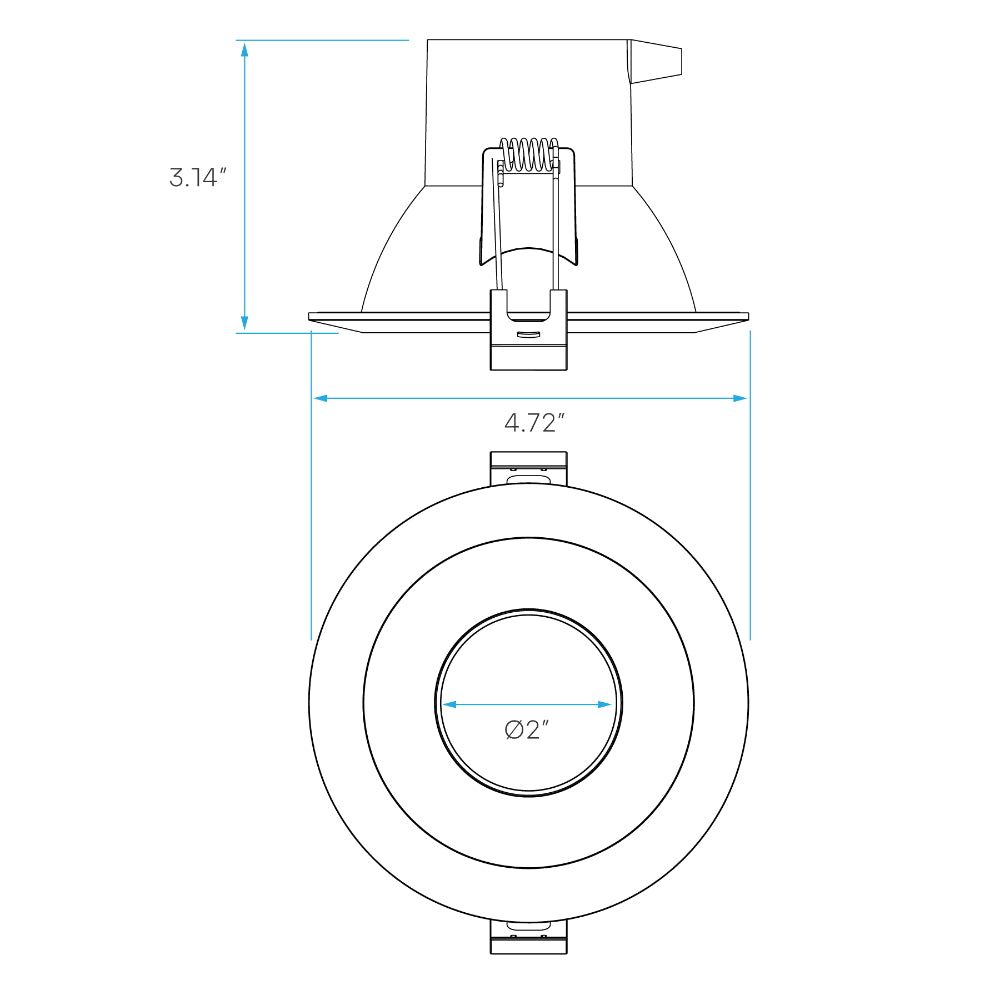

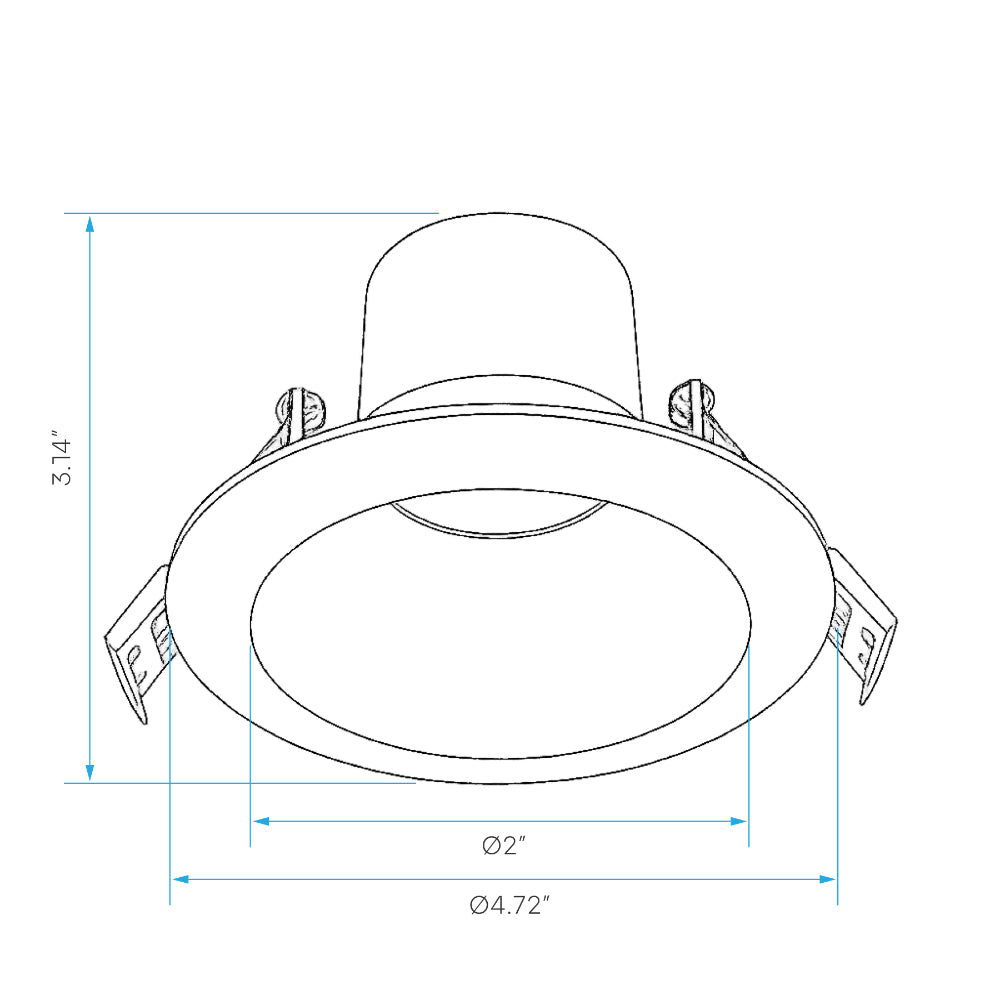

  • Dimensions:
    • Width: Ø4.72 Inch
    • Depth: 3.14 Inch
  • Cutout: Ø4 Inch
  • Plate: LR41002 (#1), LR41006 (#3), LR41010 (R1), LR41011 (#4)

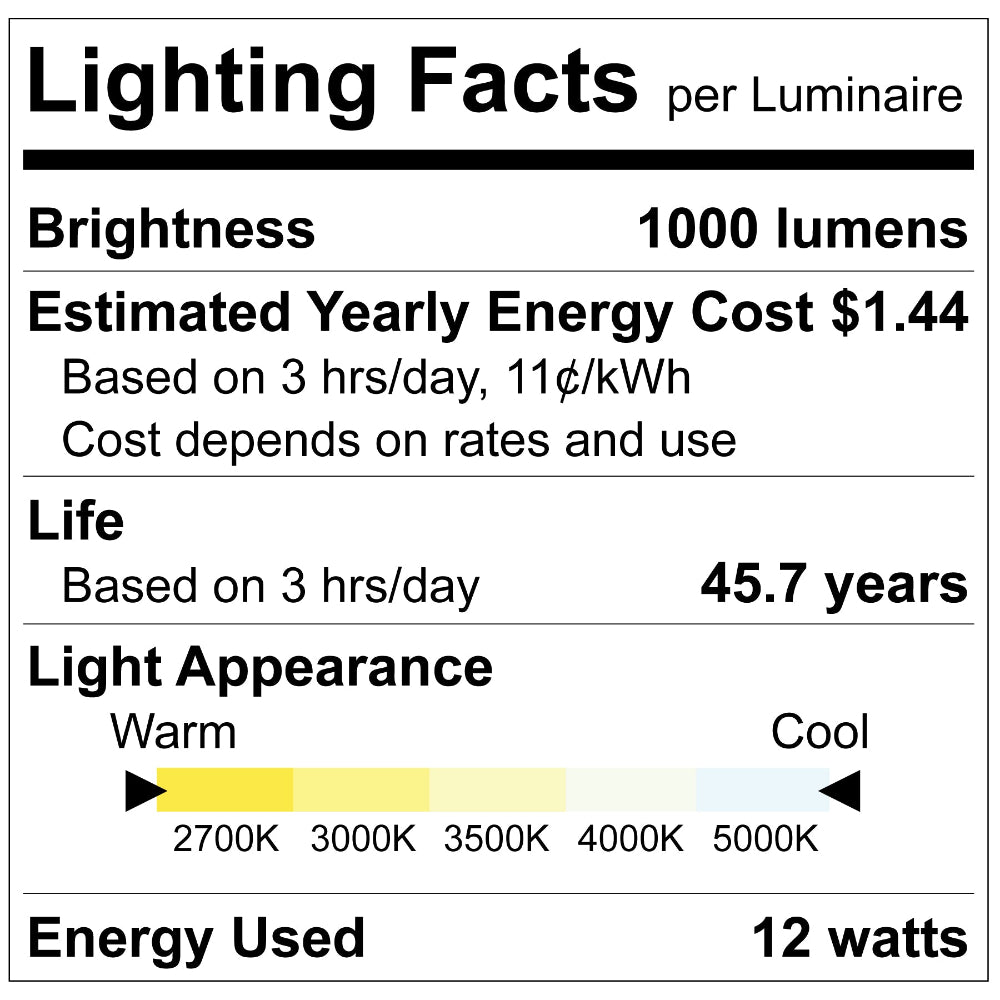

Photometric

  • Color (Temp): CCT Selectable
  • Color (CCT): 2700K/3000K/3500K/4000K/5000K
  • Lumen: 1000
  • Beam Angle: 45º
  • CRI: 90

Electrical

  • Power (Wattage): 12
  • Input Volts: 120-277V
  • Rated Lifetime: 50000
  • Dimmable: Dual Dimming TRIAC/0-10V
  • Power Factor: 0.9
  • Input Current: 0.1A
  • Frequency: 60Hz
  • Lumen Efficacy: 83
  • Operating Temp:
    • Min: -4º
    • Max: 104º
Product Files

Click forLuxrite LR23369 Specification Sheet

Click forLuxrite LR23369 Family Specification Sheet

Click forLuxrite LR23369 Install Guide

Click forLuxrite LR23369 Dimmer Compatibility

Click forLuxrite LR23369 Warranty

Click forLuxrite LR23368 Dimmer Compatibility

Click forLuxrite LR23368 Warranty
